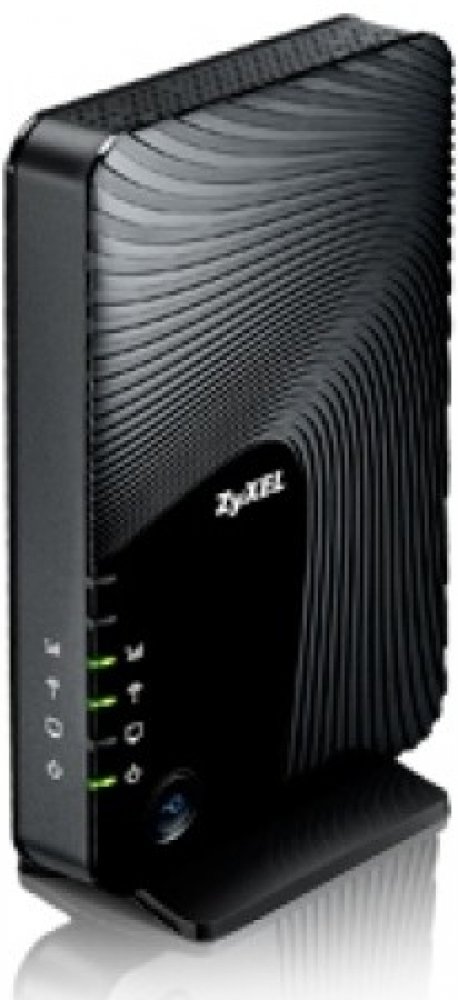

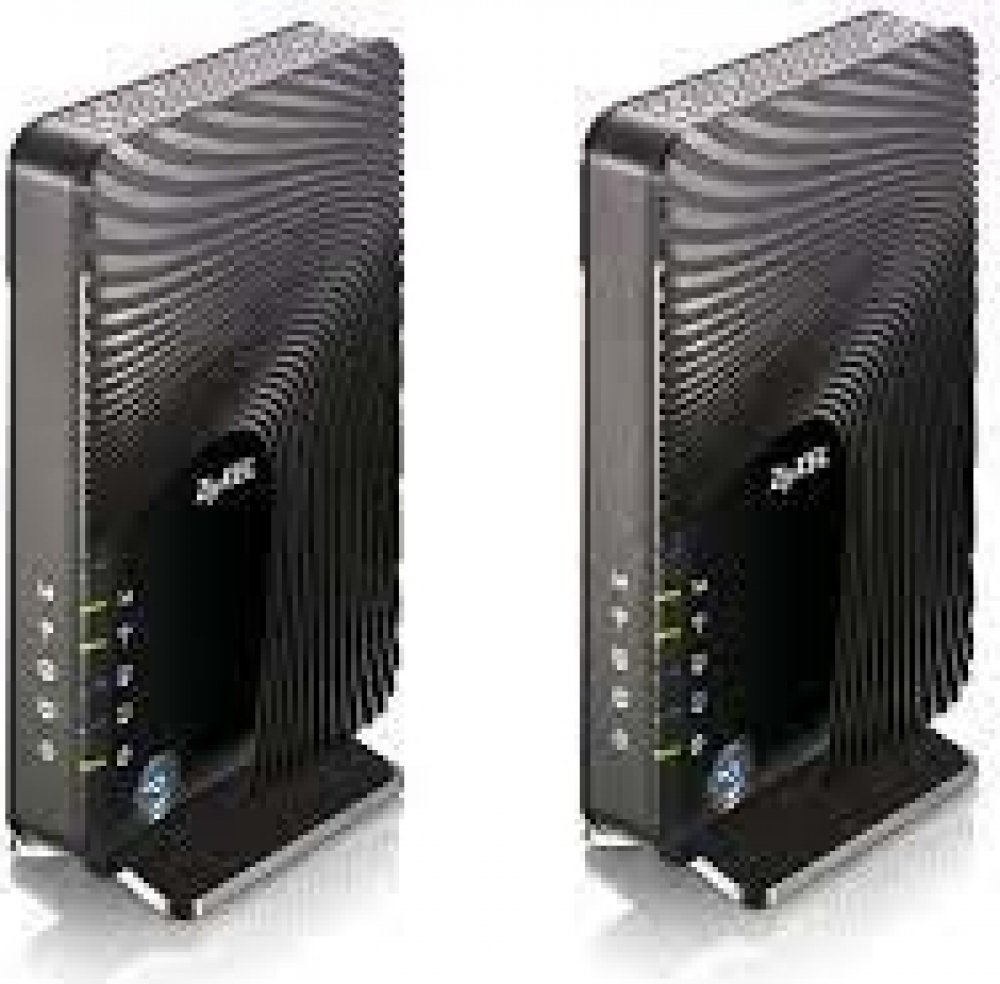

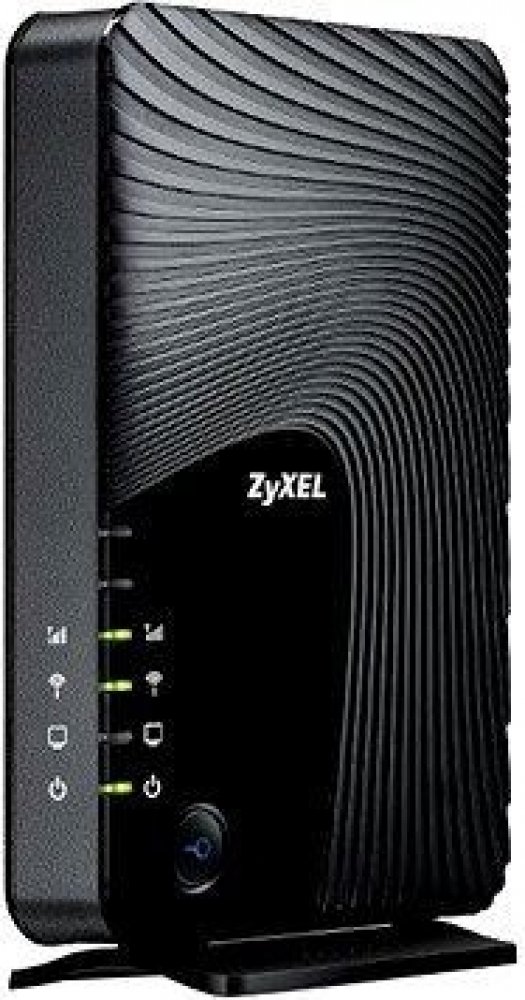

ZyXEL WiFi 600Mbps Media Streaming Box, WAP5805
OVERVIEW
* 802.11n-compliant with data transfer rates of up to 600 Mbps*
* 5 GHz radio band for interference-free connectivity
* Beamforming technology supports explicit dynamic digital solutions
* Video-grade QoS optimizes video streaming
* Gigabit Ethernet port for maximum wired connection performance and stability
* Hidden SSID for robust Wi-Fi se...
ZyXEL WiFi 600Mbps Media Streaming Box, WAP5805
OVERVIEW
* 802.11n-compliant with data transfer rates of up to 600 Mbps*
* 5 GHz radio band for interference-free connectivity
* Beamforming technology supports explicit dynamic digital solutions
* Video-grade QoS optimizes video streaming
* Gigabit Ethernet port for maximum wired connection performance and stability
* Hidden SSID for robust Wi-Fi security and smooth video streaming
* AP/Client mode switch for easy setup and control
* SSH/Telnet protocol for advanced configuration
* Remote management through TR-069**
* Green product with wireless scheduling, power on/off button for energy saving
SPECIFICATIONS
SYSTEM SPECIFICATIONS
Wireless Standard
* 802.11 a/n
Wireless Transfer Rate
* Receive: 600 Mbps*
* Transmit: 600 Mbps*
Wireless Security
* WPA-PSK/WPA2-PSK
WLAN Features
* Two operation modes: access point and WLAN client
* Video-grade QoS
* Wi-Fi Protected Setup (WPS)
* Wi-Fi Multimedia (WMM)
* Wireless scheduling
* Wireless output power management (auto)
* Auto channel selection
* MAC address filtering
* Supports more AP (up to three guest AP at AP mode)
System Management
* HTTP, SSH, Telnet
* TR-069 remote management
* Online firmware upgrade
HARDWARE SPECIFICATIONS
* LAN: One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
* LED indicators:
- Power
- LAN
- Wireless
- WPS
- Quality: Multi-color LED identifying wireless traffic quality in client mode
* Antennas: Four internal antennas
* AP/Client mode switch for setting up operation mode
* Buttons:
- Power on/off button
- WPS button
- Reset button
* Power: 12 V DC, 1 A
* Power consumption: 7 watt max
PHYSICAL SPECIFICATIONS
* Item dimensions (WxDxH): 110 x 156 x 31 mm
* Item weight: 218 g
* Packing dimensions (twin pack, WxDxH): 271 x 228 x 95 mm
* Packing weight (twin pack): 1,139 g
ENVIRONMENTAL SPECIFICATIONS
Operating Environment
* Temperature: 0°C to 40°C
* Humidity: 10% to 90% (Non-condensing)
Storage Environment
* Temperature: -30°C to 70°C
* Humidity: 10% to 95% (Non-condensing)
CERTIFICATION
Safety
* CE-LVD
EMC
* CE, FCC
PACKAGE CONTENTS
* 5 GHz Wireless HD Media Streaming Box
* Power adapter
* Ethernet cable
* Quick start guide
* Support CD
* Warranty card
* The maximum wireless data transfer rate of up to 600 Mbps for 5 GHz simultaneously, which is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
** Future request by project based
