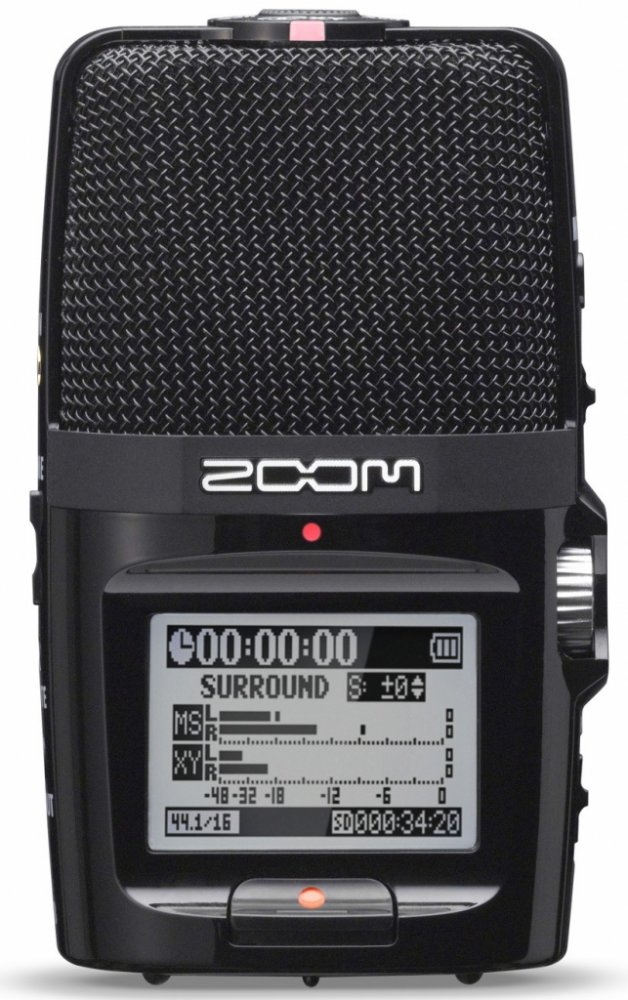

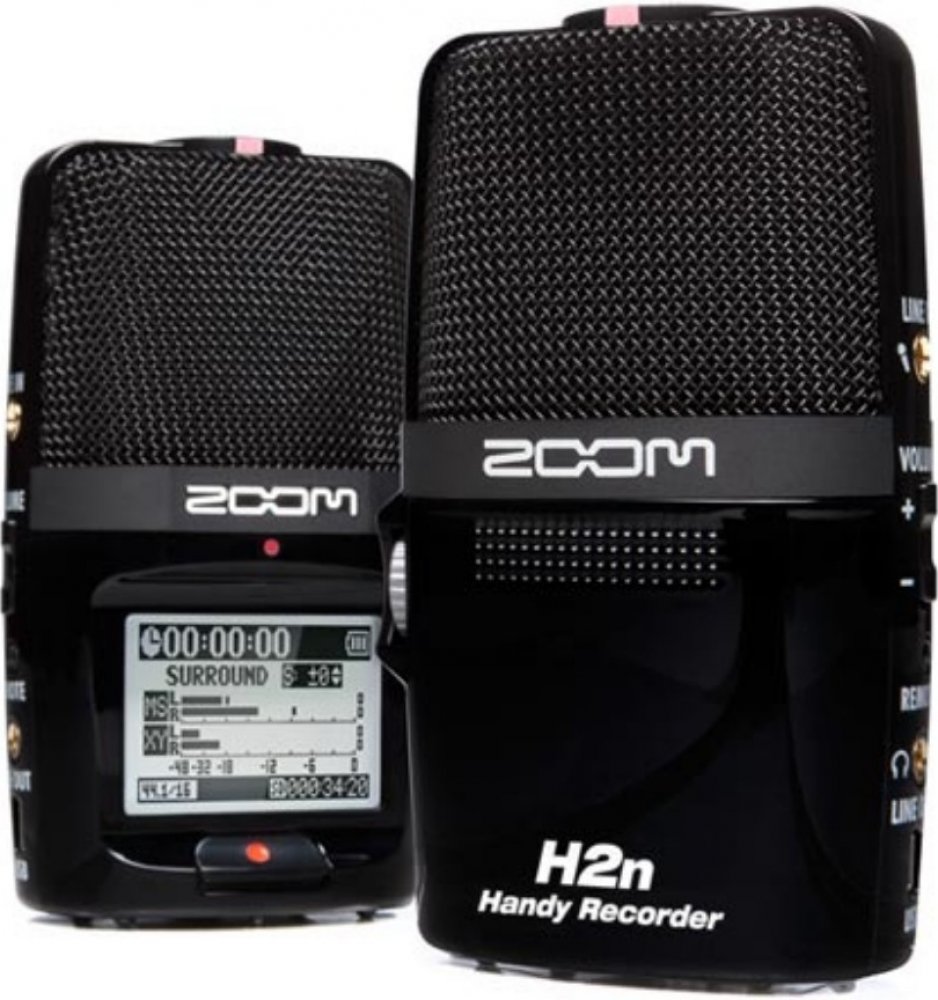

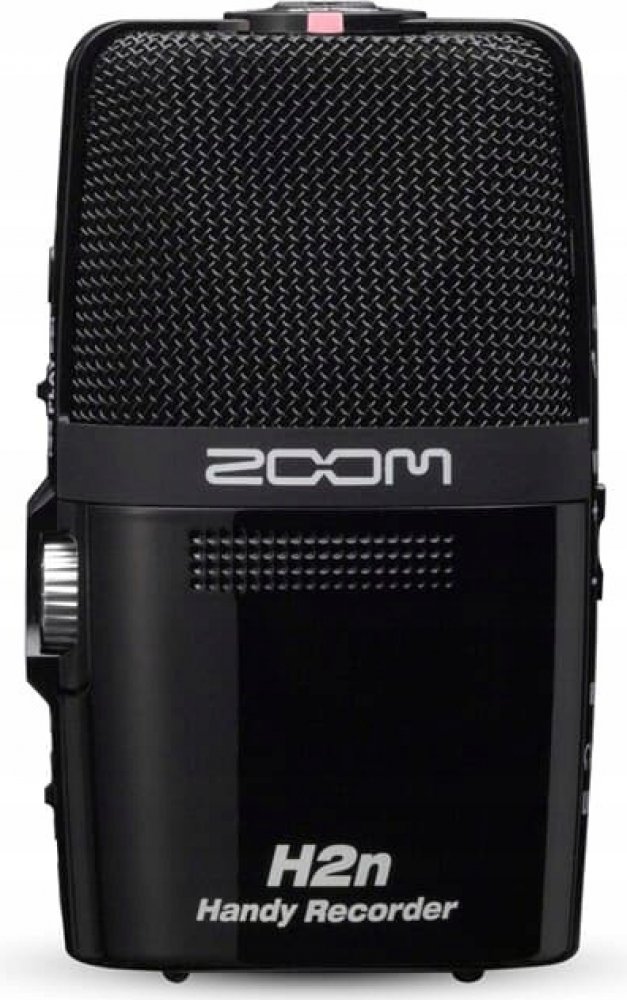

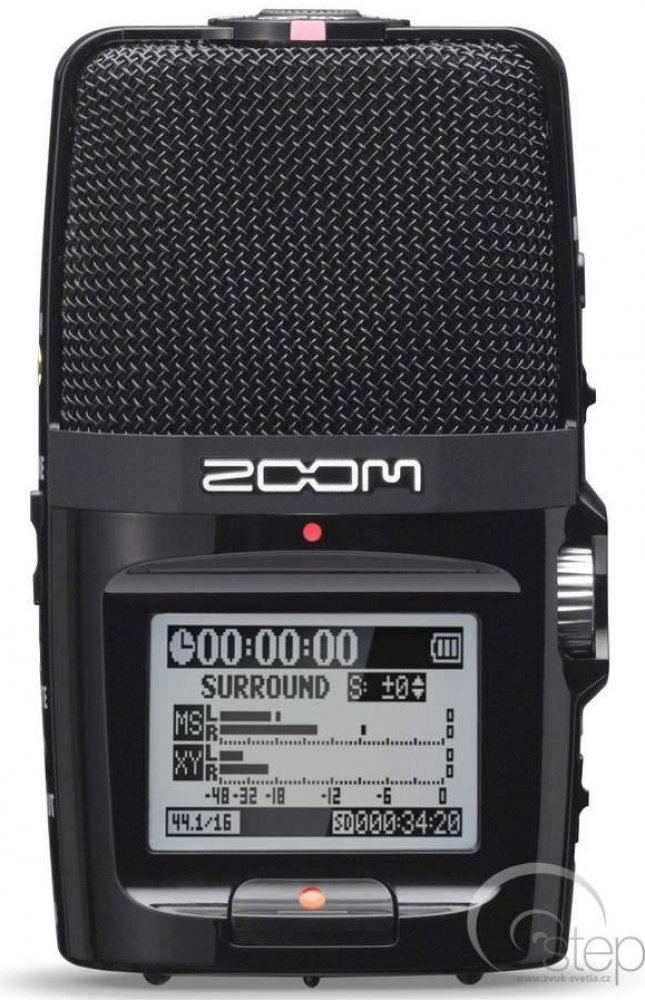

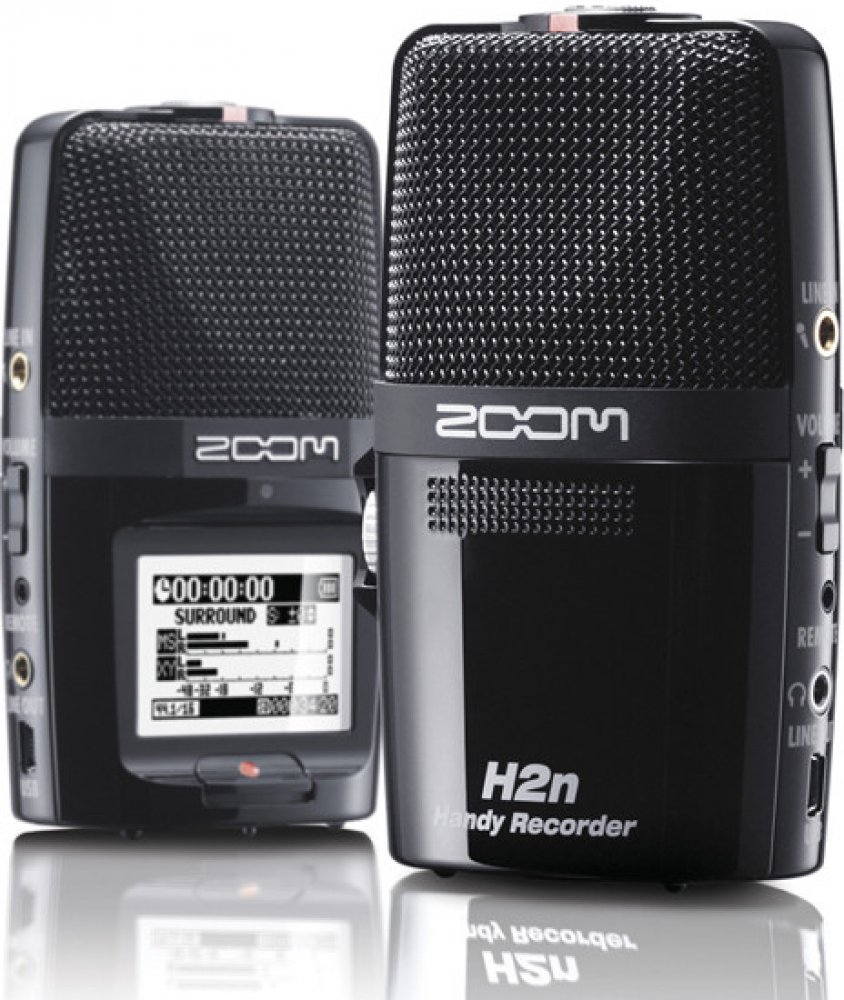

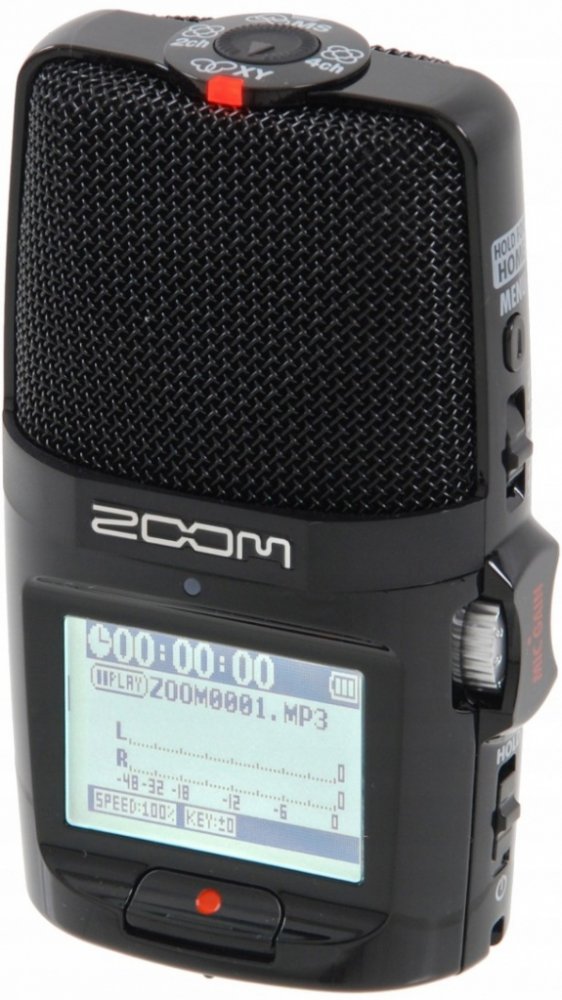

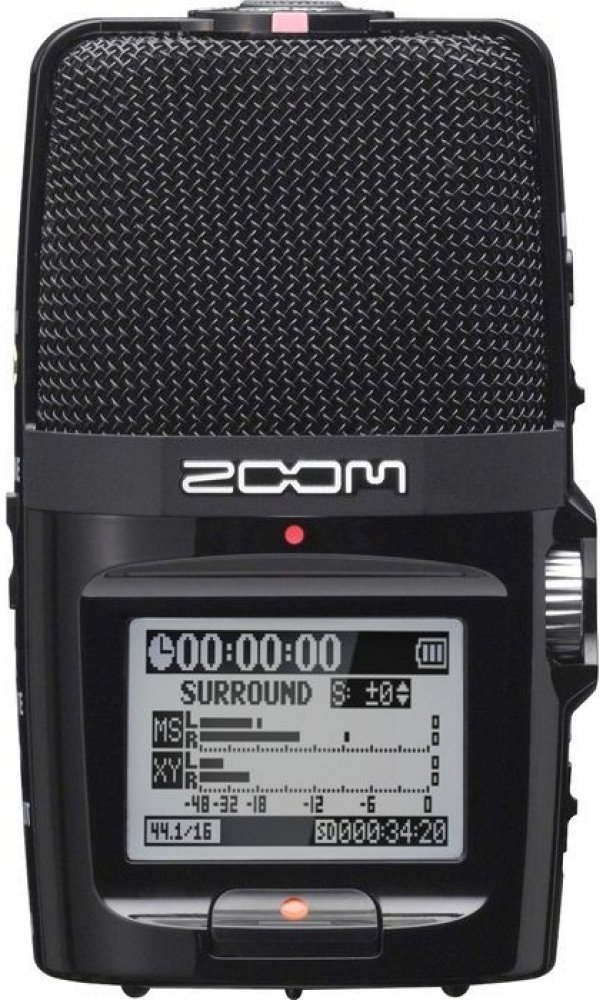

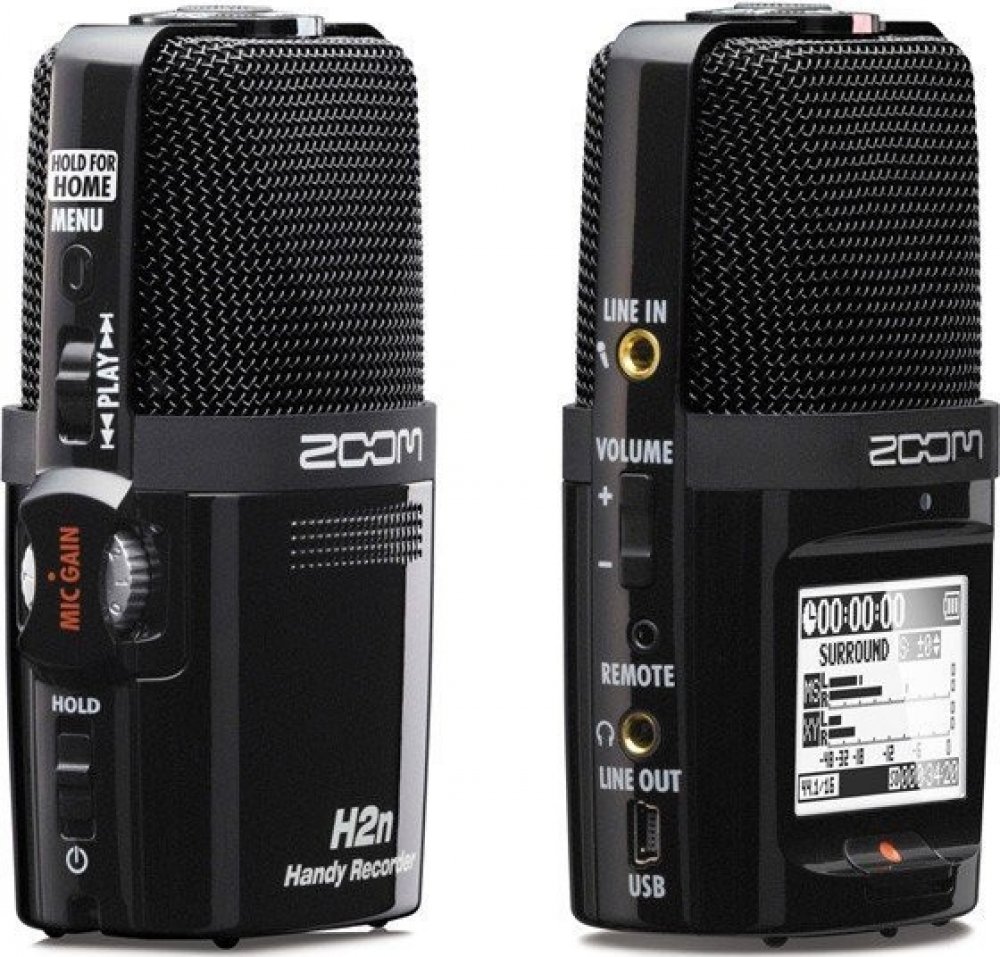

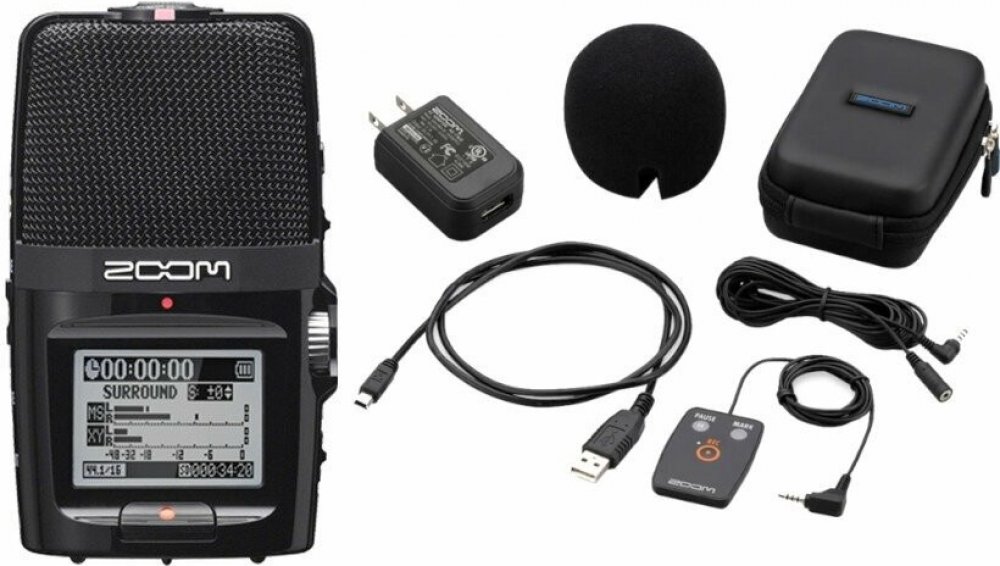

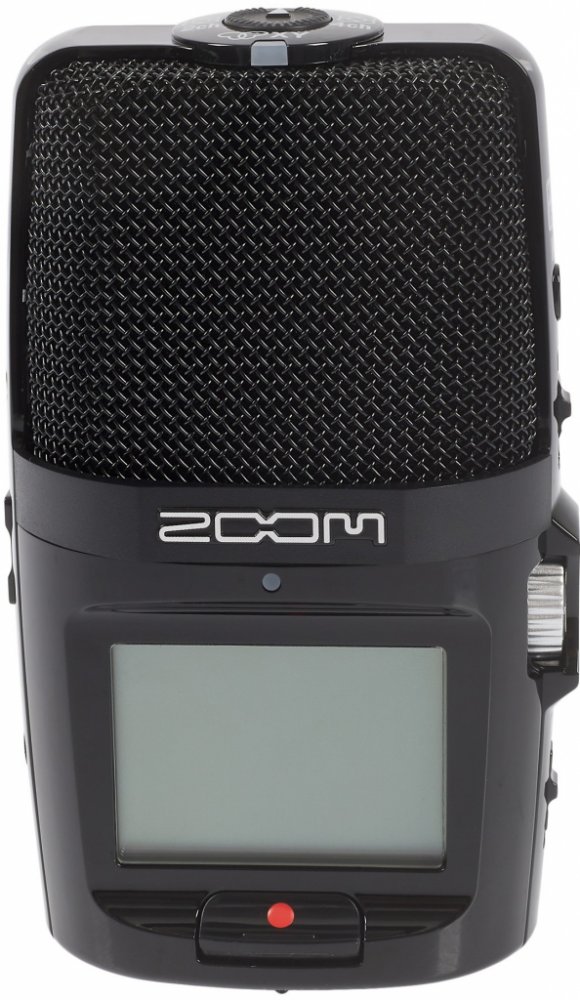

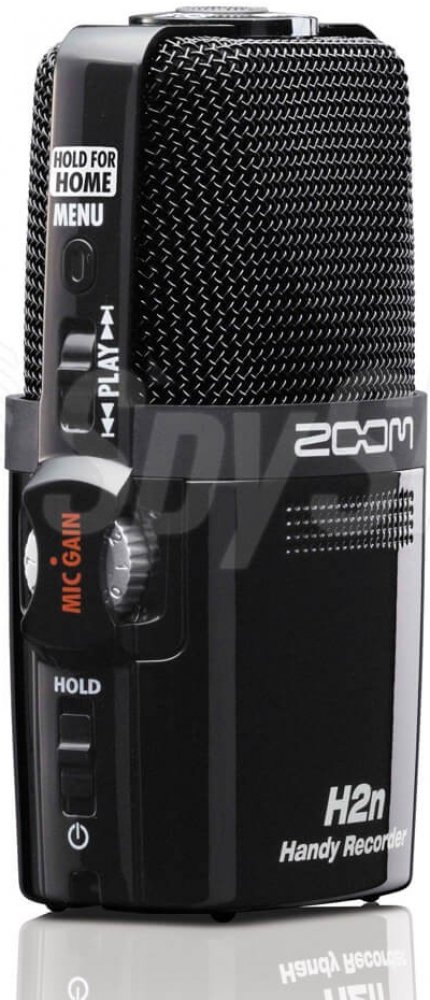

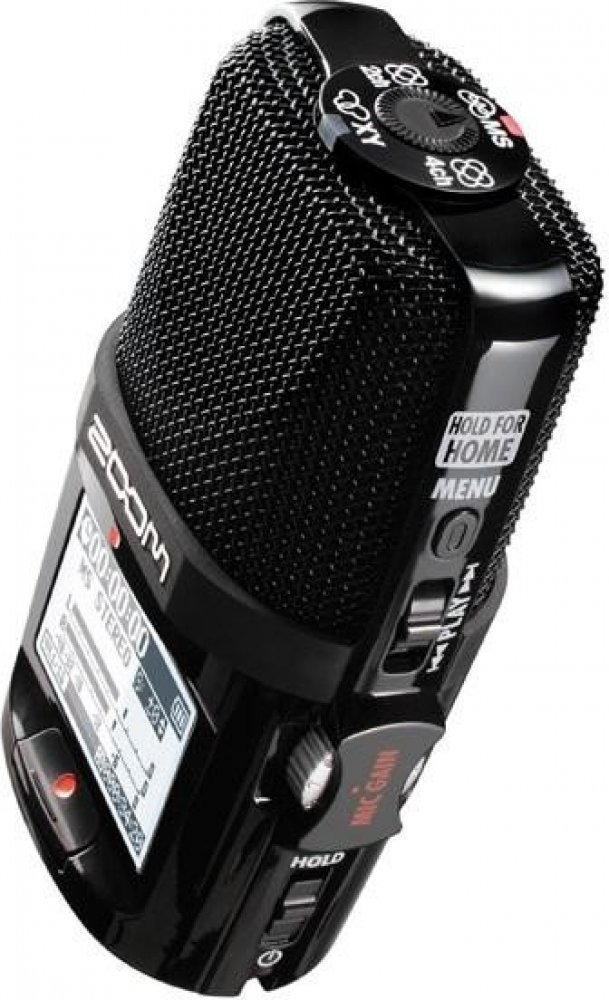

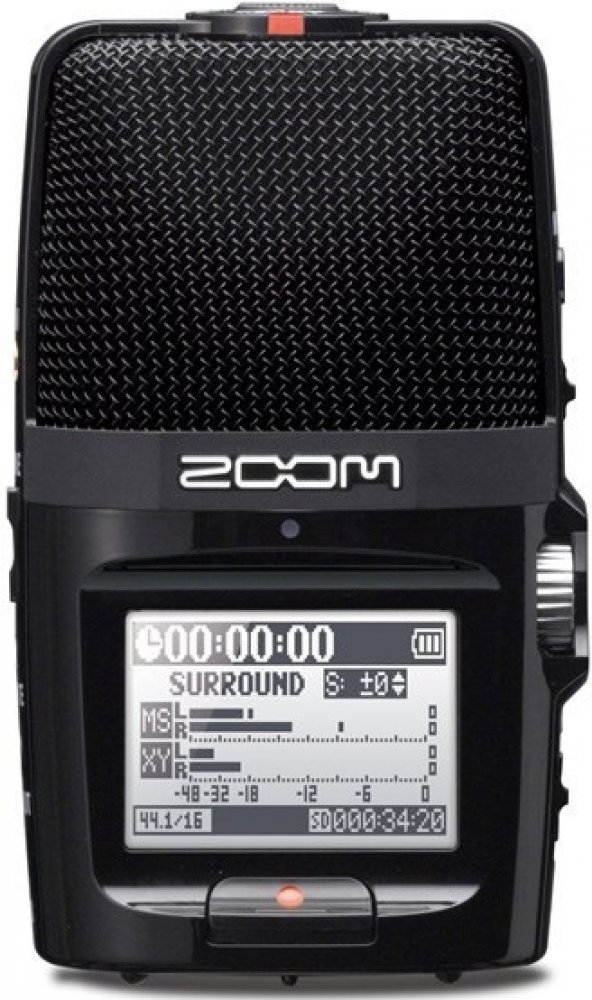

Zoom H2n

Kapesní rekordér

Přenosný rekordér H2n používá čtyři vestavěné mikrofony v konfiguraci W-X/Y.
Audio ukládáno v kvalitě až 96 kHz/24-bit ve formátu WAV nebo MP3 až do
datového toku 320 kps. Lze snímat celý prostor 360st při 48 kHz/24-bitech,
což umožní konverzi nahrávky do formátu 5.1 surround. Výstup USB+sluch.

Funkce: Compressor/Limiter, Metronome, Tuner, Normalizer, MP3-Post-Encoder, Marker, Surround-Mixer, variable Playback Speed, LCD-Display, build-in Speaker, Microphone/Line-Input 1/8", Headphone-/Line-Output 1/8", USB 2.0 Connections,

Napájení: baterie (2xAA), USB nebo napájecí zdroj.

Recording Media SD/SDHC card (up to 32GB)
Built-in Mic MS stereo & 90-degree XY stereo
Maximum Sound Pressure Level 120dB SPL
Recording Format «STEREO MODE»
PCM (Quantization : 16/24bit, Sampling Frequency : 44.1/48/96kHz),
MP3 (Bit Rate : 48 to 320kbps, Sampling Frequency : 44.1kHz)
«4CH MODE»
PCM (Quantization: 16/24bit, Sampling Frequency: 44.1/48kHz)
A/D Conversion 24bit, 128times oversampling
D/A Conversion 24bit, 128times oversampling
Signal Processing 32bit
Functions Lo-cut Filter, Compressor/Limiter, Auto Gain, Pre-Rec, Auto-Rec, Tuner,Metronome, Variable Speed Playback, Key Control, A-B Repeat,File Dividing, Normalize, MP3 Post-Encode, Marker, Surround Mixer
Display 128 x 64 pixel, backlit LCD
Input Gain 0 to +39dB
Mic / Line Input 1/8" stereo phone jack (Plug-in power supported)
Input impedance 2k? (Input level: 0 to -39dBm)
Phones / Line Output 1/8" stereo phone jack
Rated Output Level -10dBm
Output Load Impedance 10k? or more
Phones Output Level 20mW + 20mW into 32? load
Built-in Speaker 400mW 8?
USB Mini-B type, Mass Storage Class operation (USB2.0 High Speed compatible),
Audio Interface operation (16bit, 44.1kHz/48kHz)
Power Requirements AA/LR6 battery x 2, or AC adapter AD-17 (DC5V/1A/center positive)
Battery Life 20 hours (16bit/44.1kHz WAV recording)
Dimensions 67.6 (W) x 113.8 (D) x 42.7 (H) mm
Weight 130g (without batteries)
