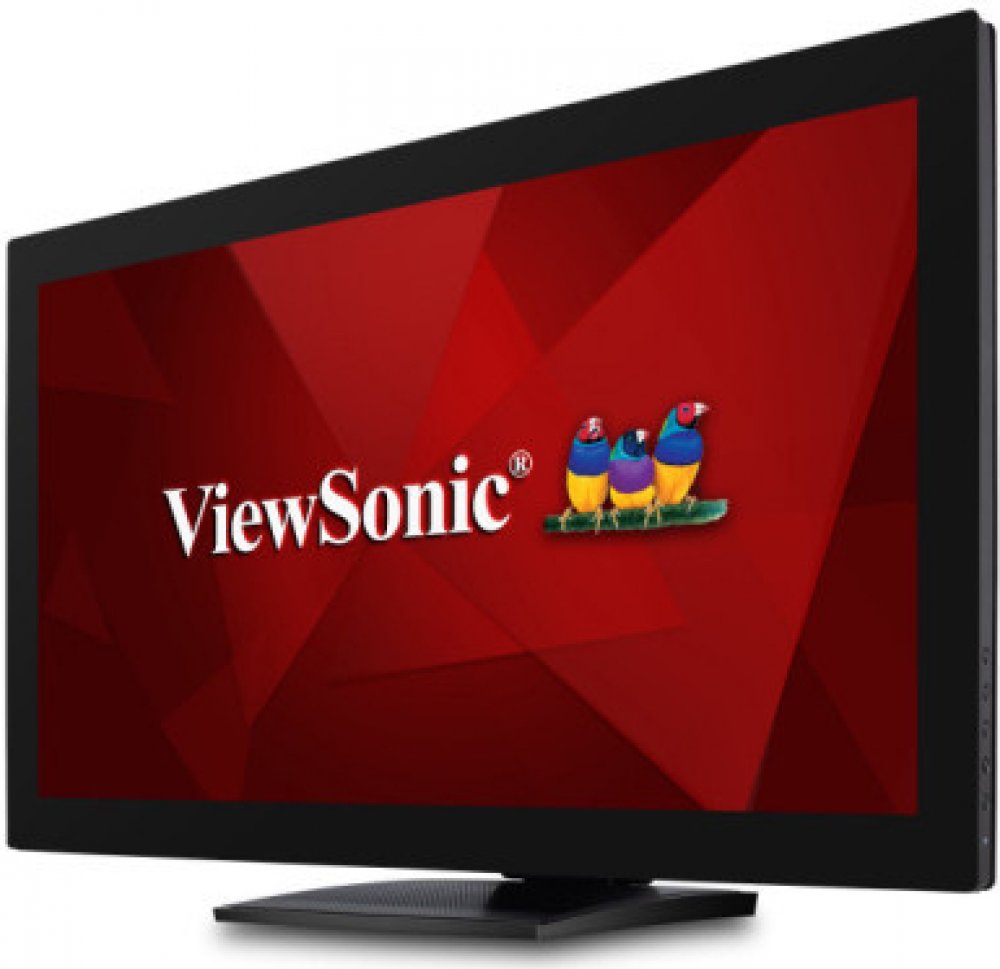

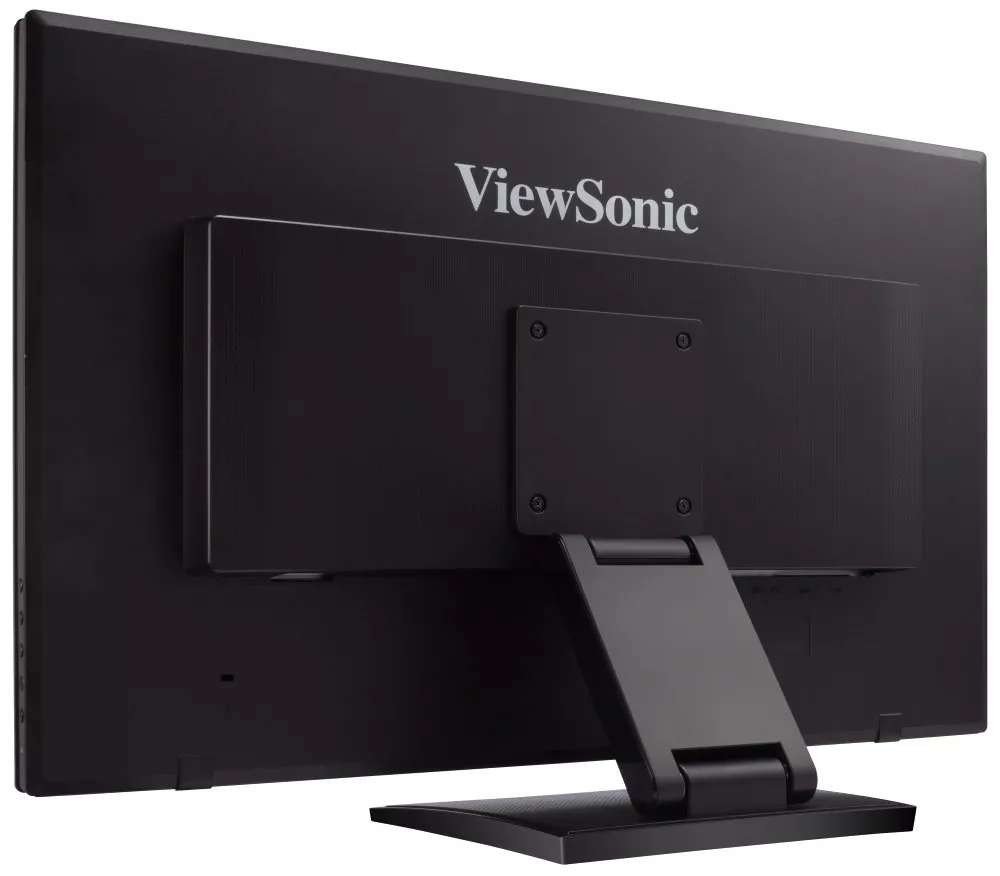

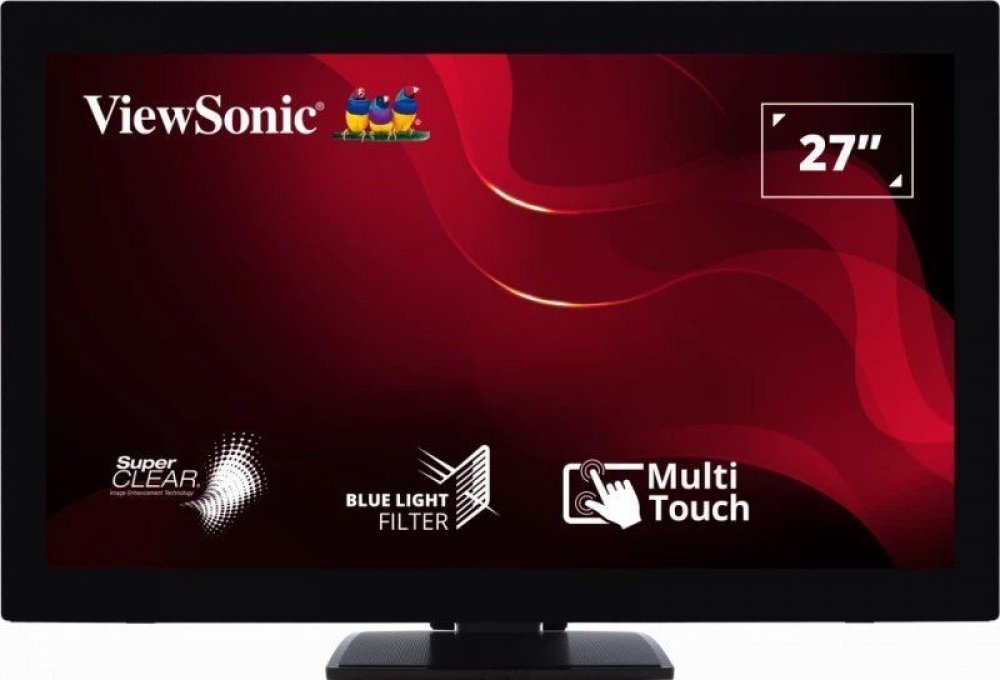

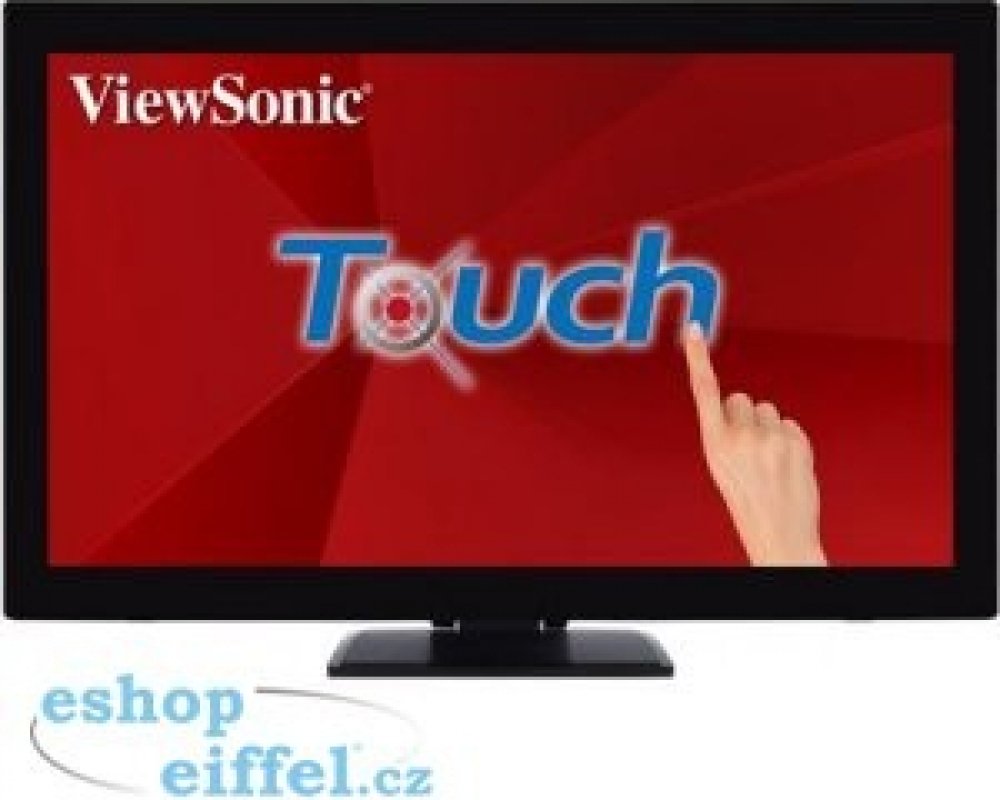

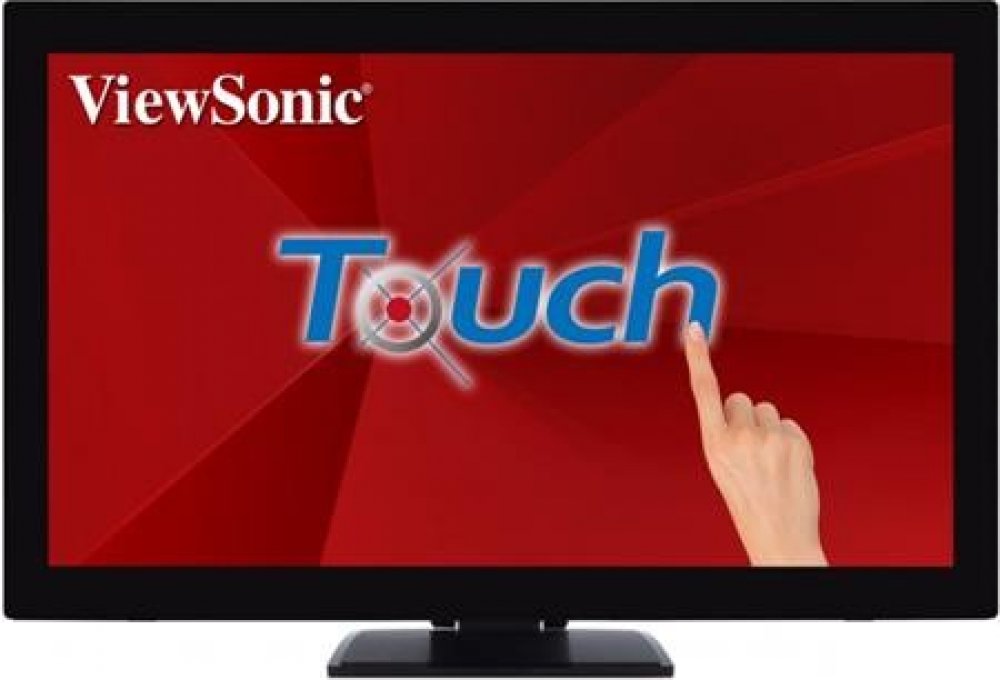

ViewSonic TD2760
27 " 6 ms ViewSonic 1920 x 1080 px 60 Hz VA 178 ° 178 ° 230 cd/m2 76 Hz 90 KHz matné 69 cm 16:9 LCD LED 7.9 kg černé 66 cm 44.3 cm 23.9 cm vhodné pro standardní stoly (24–32″) ideální pro vícemonitorové sestavy 1.4 1.2 1 1 100 x 100 mm vhodné pouze na stěnu (VESA, nad 7 kg) F 19 kWh 8 bit bez USB-C 2
TD2760
27 10-point Touch Screen Monitor
SuperClear® technology
Advanced ergonomic stand for tilt or flat
HDMI, DisplayPort and VGA inputs
50M:1 dynamic contrast ratio
Supports Windows® 7/8/10 and selected Linux, Chrome, and Android
OVERVIEW
The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and 1080p ...
TD2760
27 10-point Touch Screen Monitor
SuperClear® technology
Advanced ergonomic stand for tilt or flat
HDMI, DisplayPort and VGA inputs
50M:1 dynamic contrast ratio
Supports Windows® 7/8/10 and selected Linux, Chrome, and Android
OVERVIEW
The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and 1080p Full HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mounted display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. The TD2760-#39;s ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission.
*Supports Windows 7/8/10, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 -amp; 7.0
SPECIFICATIONS
LCD PANEL
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 230 cd/m2 with touch, 300 cd/m2 without touch
Colours: 16.7M
Colour Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6ms
Response Time (GTG w/OD): 6ms
Response Time (MPRT): N/A
Viewing Angles: 178o horizontal, 178o vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes
X Lighting: N/A
Colour Gamut: NTSC: 72% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
COMPATIBILITY
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8.1/10 certified, macOS tested
Mac® Resolution (min): 1920x1080
CONNECTOR
VGA: 1
USB 3.0 Type A: 2
USB 3.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
Display Port: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
RS232 In: 1
TOUCH
Touch Technology: Capacitive multi-point touch
Touch Points: 10
Surface Treatment: Anti-Glare, Hard Coating (?6H)
Glass Thickness: 1.88mm
AUDIO
Internal Speakers: 2Watts x2
POWER
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 26W
Consumption (max): 28W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.3W
Power Supply: Internal
ADDITIONAL HARDWARE
Kensington Lock Slot: 1
Cable Organization: N/A
CONTROLS
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
WALL MOUNT
VESA Compatible: 100 x 100 mm
INPUT SIGNAL
Frequency Horizontal: 15 ~ 90KHz
Frequency Vertical: 50 ~ 76Hz
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
ERGONOMICS
Height Adjust (mm): N/A
Swivel: N/A
Tilt (Forward/Back): -4o / 90o
Pivot (Right/Left): N/A
WEIGHT (IMPERIAL)
Net (lbs): 17.4
Net Without Stand (lbs): 12.2
Gross (lbs): 22.6
WEIGHT (METRIC)
Net (kg): 7.9
Net Without Stand (kg): 5.5
Gross (kg): 10.2
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 29.6 x 20.7 x 8
Physical (in.): 26 x 17.5 x 9.4
Physical Without Stand (in.): 26 x 16.2 x 2.3
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 753 x 525 x 204
Physical (mm): 660 x 443 x 239
Physical Without Stand (mm): 660 x 410 x 58
GENERAL
Regulations: cTUVus, FCC-B, ICES003, Energy Star, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS
PACKAGE CONTENTS: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4, Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.0, Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Country Of Origin: China
Power Management: Energy Star standards
Více informací o produktu
27 10-point Touch Screen Monitor
SuperClear® technology
Advanced ergonomic stand for tilt or flat
HDMI, DisplayPort and VGA inputs
50M:1 dynamic contrast ratio
Supports Windows® 7/8/10 and selected Linux, Chrome, and Android
OVERVIEW
The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and 1080p Full HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mounted display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. The TD2760-#39;s ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission.
*Supports Windows 7/8/10, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 -amp; 7.0
SPECIFICATIONS
LCD PANEL
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 230 cd/m2 with touch, 300 cd/m2 without touch
Colours: 16.7M
Colour Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6ms
Response Time (GTG w/OD): 6ms
Response Time (MPRT): N/A
Viewing Angles: 178o horizontal, 178o vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes
X Lighting: N/A
Colour Gamut: NTSC: 72% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
COMPATIBILITY
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8.1/10 certified, macOS tested
Mac® Resolution (min): 1920x1080
CONNECTOR
VGA: 1
USB 3.0 Type A: 2
USB 3.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
Display Port: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
RS232 In: 1
TOUCH
Touch Technology: Capacitive multi-point touch
Touch Points: 10
Surface Treatment: Anti-Glare, Hard Coating (?6H)
Glass Thickness: 1.88mm
AUDIO
Internal Speakers: 2Watts x2
POWER
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 26W
Consumption (max): 28W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.3W
Power Supply: Internal
ADDITIONAL HARDWARE
Kensington Lock Slot: 1
Cable Organization: N/A
CONTROLS
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
WALL MOUNT
VESA Compatible: 100 x 100 mm
INPUT SIGNAL
Frequency Horizontal: 15 ~ 90KHz
Frequency Vertical: 50 ~ 76Hz
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
ERGONOMICS
Height Adjust (mm): N/A
Swivel: N/A
Tilt (Forward/Back): -4o / 90o
Pivot (Right/Left): N/A
WEIGHT (IMPERIAL)
Net (lbs): 17.4
Net Without Stand (lbs): 12.2
Gross (lbs): 22.6
WEIGHT (METRIC)
Net (kg): 7.9
Net Without Stand (kg): 5.5
Gross (kg): 10.2
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 29.6 x 20.7 x 8
Physical (in.): 26 x 17.5 x 9.4
Physical Without Stand (in.): 26 x 16.2 x 2.3
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 753 x 525 x 204
Physical (mm): 660 x 443 x 239
Physical Without Stand (mm): 660 x 410 x 58
GENERAL
Regulations: cTUVus, FCC-B, ICES003, Energy Star, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS
PACKAGE CONTENTS: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4, Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.0, Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Country Of Origin: China
Power Management: Energy Star standards
