ViewSonic TD1655

OVERVIEW

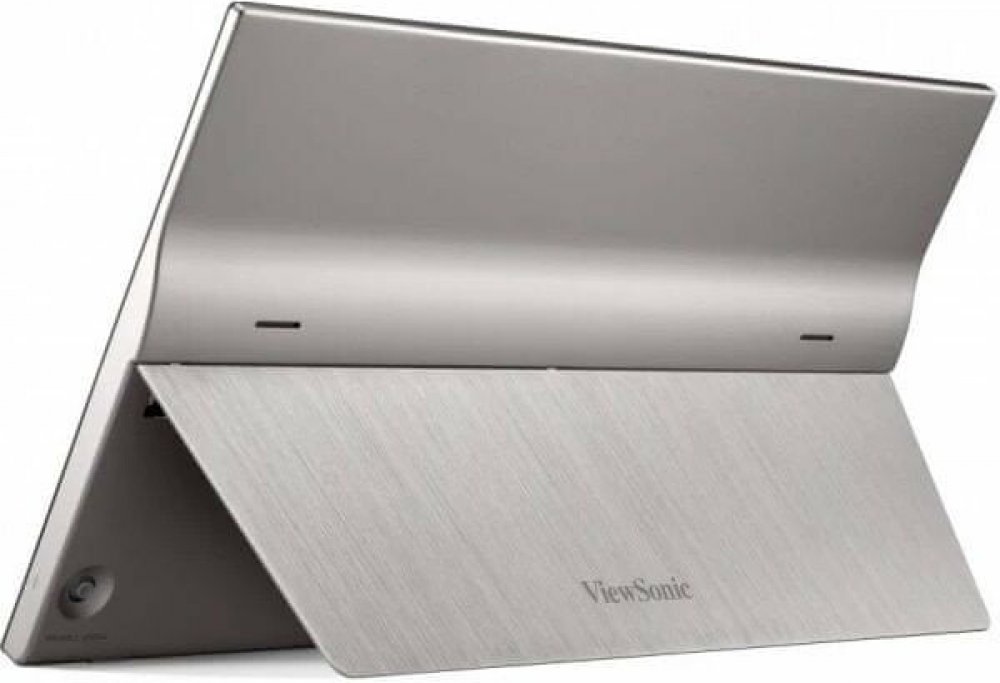

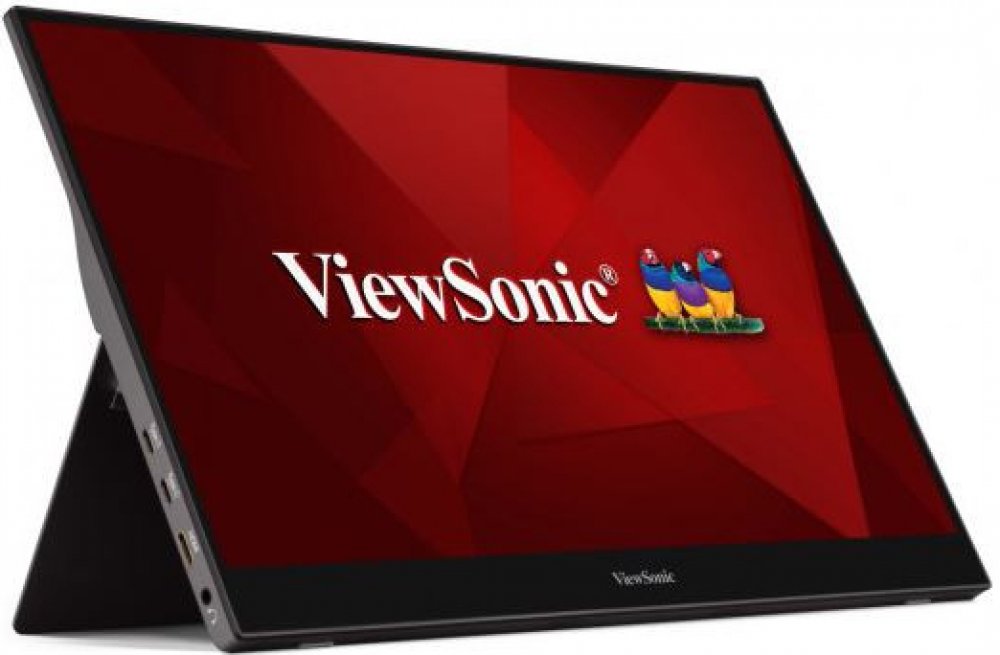

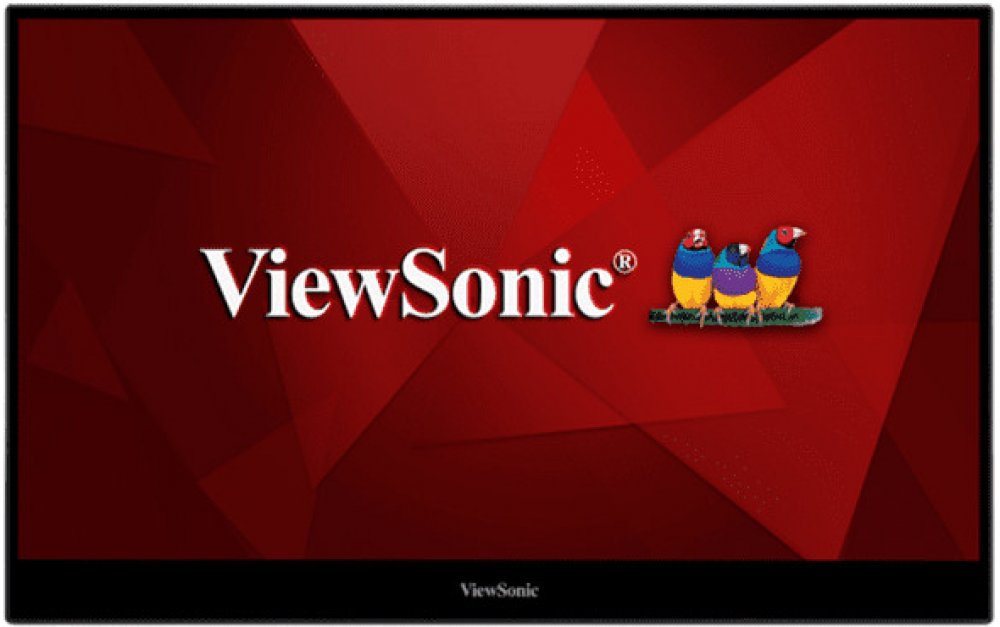

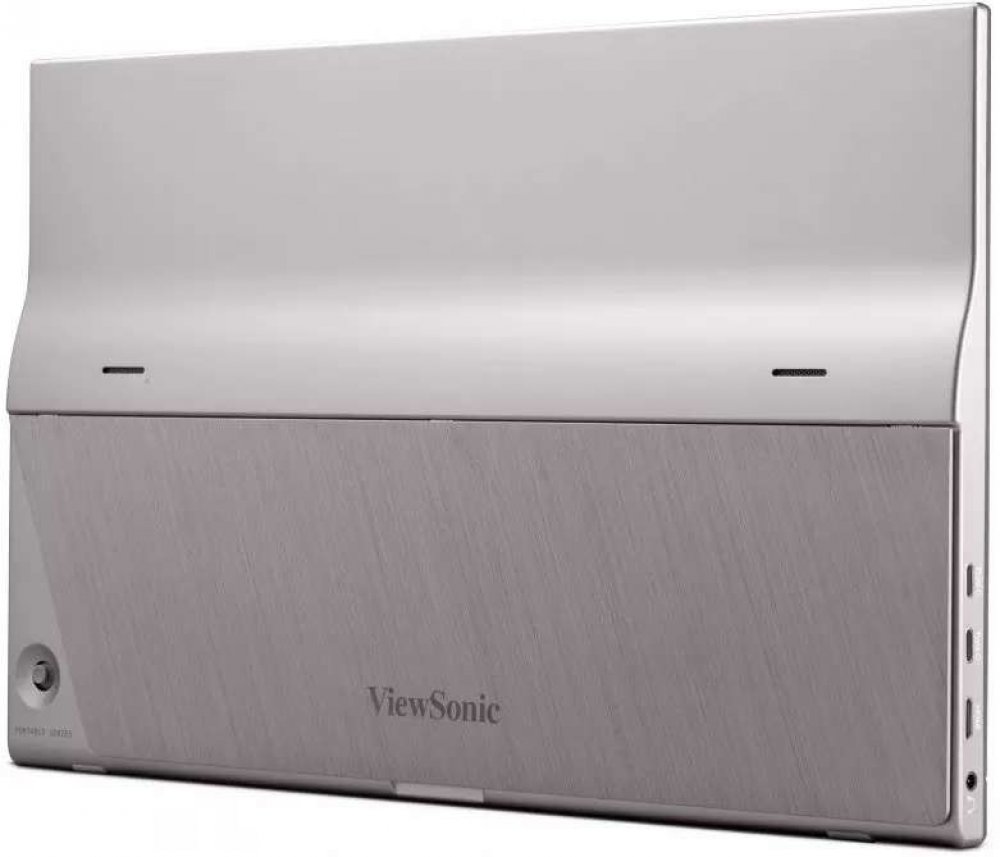

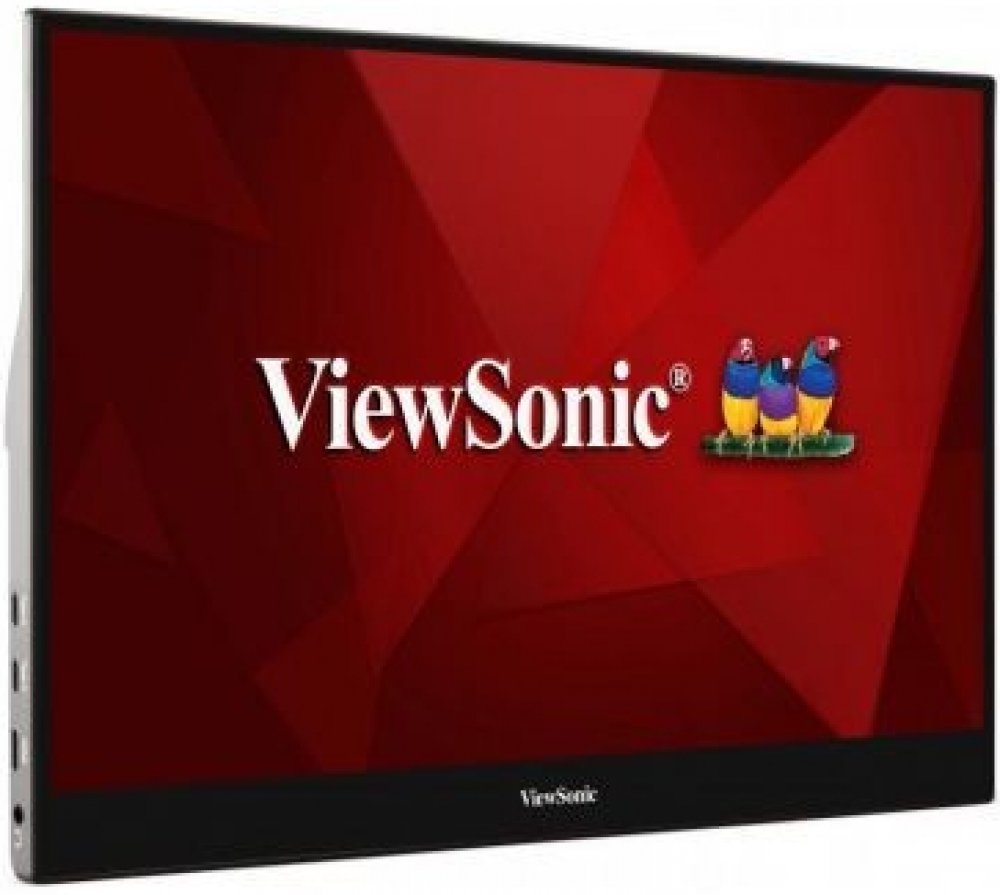

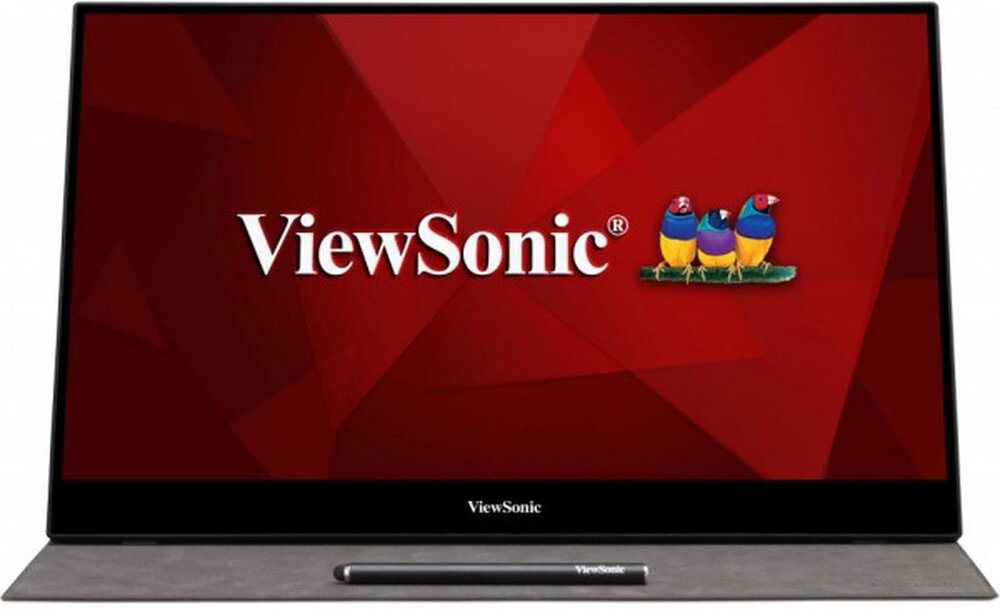

The ViewSonic TD1655 is a portable 16” Full HD touch monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual, power, and touch signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, stainless case, aluminum stand, and 6H hardness screen, reliability is embodied in the design.
SPECIFICATIONS
DISPLAY
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m2 (typ)
Colors: 262K
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.599ms
Response Time (Typical Tr+Tf): 30ms
Viewing Angles: 178o horizontal, 178o vertical, CR>5; 170o horizontal, 170o vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Color Gamut: NTSC: 45% size (Typ), sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy w/ anti-finger print, Hard Coating (?6H)
Cover Glass Thickness: 0.8mm
COMPATIBILITY
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080
CONNECTOR
USB 3.1 Type C: 2
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: External power adapter
AUDIO
Internal Speakers: 0.8Watts x2
POWER
Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: External
CONTROLS
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
INPUT SIGNAL
Frequency Horizontal: 15 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
VIDEO INPUT
Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
ERGONOMICS
Tilt (Forward/Back): 20o / 60o
WEIGHT (IMPERIAL)
Net (lbs): 2.1
Net Without Stand (lbs): 2.1
Gross (lbs): 5.1
WEIGHT (METRIC)
Net (kg): 1
Net Without Stand (kg): 1
Gross (kg): 2.3
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.3 x 11.3 x 3.5
Physical (in.): 14 x 8.8 x 0.6
Physical Without Stand (in.): 14 x 8.8 x 0.6
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 440 x 288 x 89
Physical (mm): 355 x 223 x 16
Physical Without Stand (mm): 355 x 223 x 16
GENERAL
Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI
PACKAGE CONTENTS: TD1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1, Passive touch pen x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
