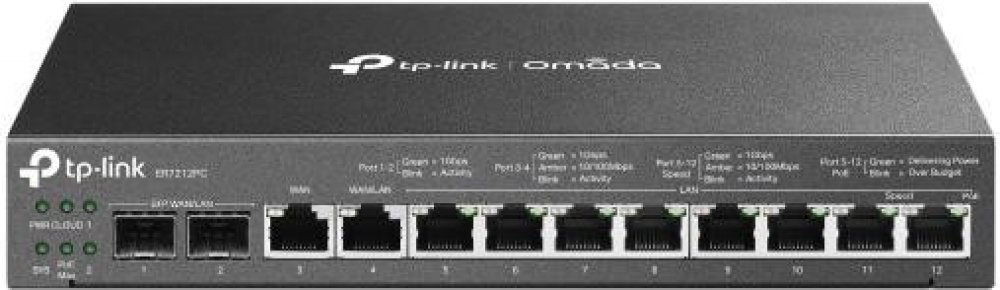

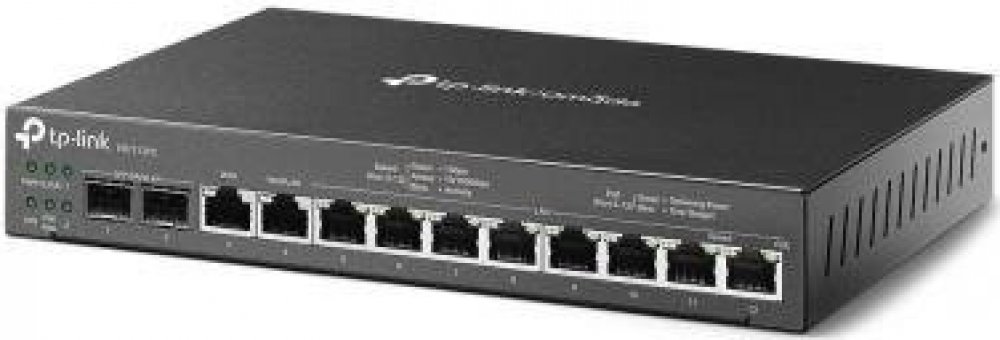

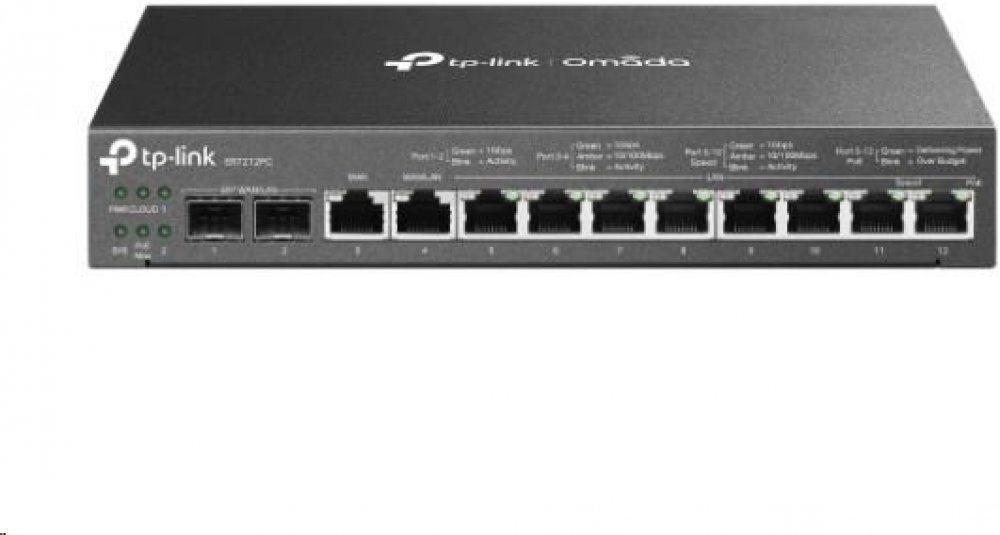

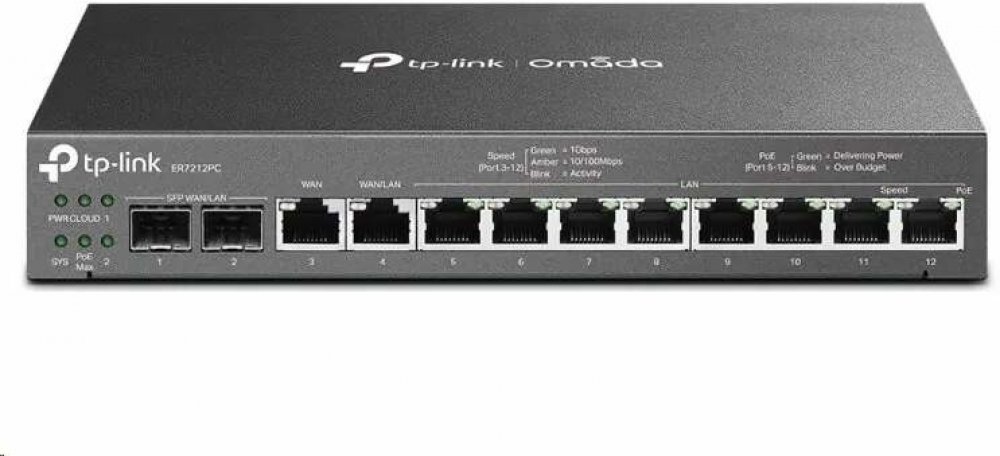

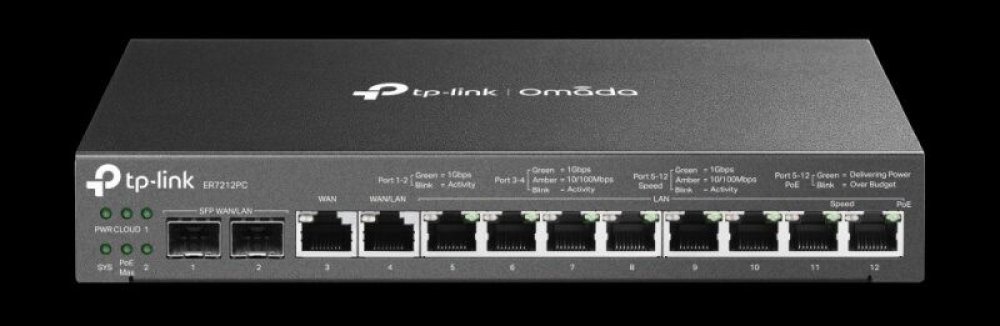

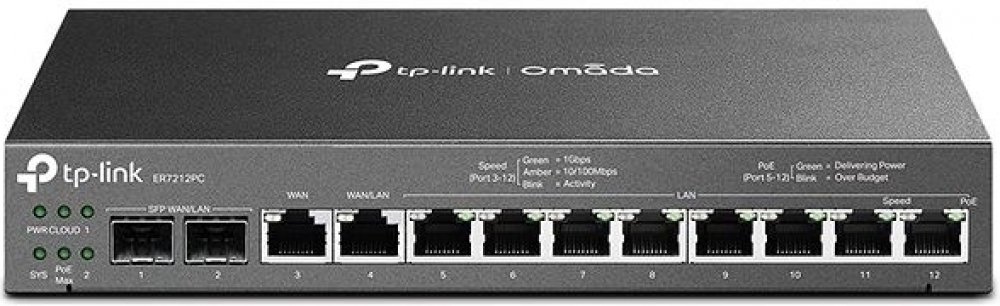

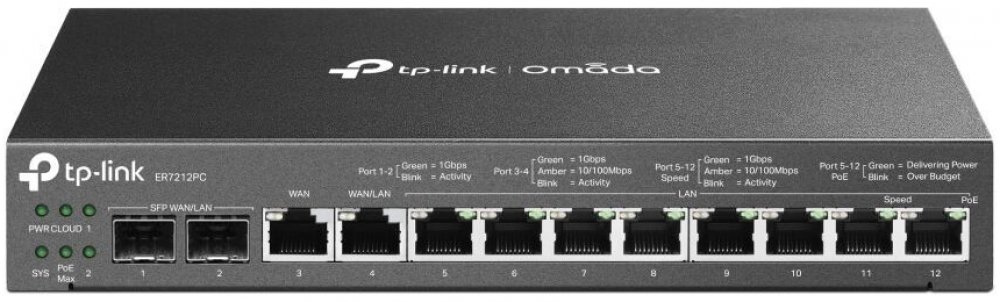

TP-Link ER7212PC

TP-Link ER7212PC
Gigabitový VPN router Omada 3 v 1
Router 3 v 1: Plní funkci routeru, PoE switche a kontroleru Omada.
Profesionální hardware: Dvoujádrový procesor 1,2 GHz s 1 GB paměti DDR3 zajišťuje více než dostatek výkonu až pro 12 gigabitových portů.
Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.
PoE s výstupním napájením 110 W: 8 portů PoE+ RJ45 LAN odpovídajících standardu 802.3at/af s celkovým výstupním napájením 110 W.
Centralizovaná správa: Cloudový přístup a aplikace Omada pro pohodlnou a snadnou správu.
VPN s vysokým zabezpečením: Podporuje připojení IPsec VPN, OpenVPN a L2TP/PPTP VPN.
Snadná instalace: Kompaktní provedení bez ventilátoru pro umístění na stůl nebo montáž na stěnu.
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7212pc/
Technické specifikace
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface
• 2 Gigabit SFP WAN/LAN ports• 1 Gigabit WAN port• 1 Gigabit LAN/WAN port• 8 Gigabit LAN ports
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)EIA/TIA-568 100Ohm STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)EIA/TIA-568 100Ohm STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity
Fanless
Button
Reset Button
Power Supply
53.5VDC/2.43A Adapter
PoE Budget
8 ports PoE+ output, 110 W PoE Budget
Flash
8Mb Nor + 4 GB EMMC
DRAM
1 GB DDR3
Dimensions (WxDxH)
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection
4 kV surge protection
Enclosure
Steel
Mounting
Desktop/Wall-mount
PERFORMANCE
Concurrent Session
24,980
New Sessions /Second
1,900
NAT (Static IP)
935.5 Mbps / 942.1 Mbps
NAT(DHCP)
940.2 Mbps / 941.7 Mbps
NAT(PPPoE)
913.1 Mbps / 935.2 Mbps
NAT (L2TP)
545.0 Mbps / 912.7 Mbps
NAT (PPTP)
523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256)
168.5 Mbps
OpenVPN
34 Mbps
L2TP VPN Throughput
• Unencrypted: 845.3 Mbps• Encrypted: 333.2 Mbps
PPTP VPN Throughput
• Unencrypted: 1012.6 Mbps• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate
154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate
81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN Connection Type
• Static IP• Dynamic IP• PPPoE• PPTP• L2TP
DHCP
• DHCP Server• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP
IPv6
support
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
Advanced Routing
• Static Routing• Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Load Balance
• Intelligent Load Balance• Application Optimized Routing• Link Backup• Online Detection
NAT
• Multi-Net NAT• Virtual Server• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP
Session Limit
IP-based Session Limit
VPN
IPsec VPN
• 20 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• AES128, AES192, AES256 Encryption Algorithm• IKE v1/v2• SHA1, SHA2 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)
PPTP VPN
• PPTP VPN Server• PPTP VPN Client (10)• 16 Tunnels• PPTP with MPPE Encryption
L2TP VPN
• L2TP VPN Server• L2TP VPN Client (10)• 16 Tunnels• L2TP over IPSec
OpenVPN
• OpenVPN Server• OpenVPN Client (10)• 16 OpenVPN Tunnels
SECURITY
Filtering
URL Filtering
Attack Defense
• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN
Access Control
Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
• No Authentication• Simple Password• Hotspot (Local User / Voucher / SMS / Radius)• External Radius Sever• External Portal Sever• Facebook
MANAGEMENT
Omada App
Yes
Cloud Access
Yes
Service
Dynamic DNS (Dyndns, No-IP)
Maintenance
• Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Syslog Support
Management Features
• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration• Management up to 1 Router, 2 Switches and 10 EAPs
OTHERS
Certification
CE, FCC, RoHS
Package Contents
• ER7212PC• Power Adapter• Power Cord• Quick Installation Guide
System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10• MAC OS, NetWare, UNIX or Linux
Environment
• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing
