Synology MR2200ac

Coming with intelligent mesh Wi-Fi capability and best-in-class parental controls, MR2200ac is designed to keep all devices connected and everyone safe. Experience the award-winning Synology Router Manager (SRM) with an MR2200ac, and add more when you are ready to expand your coverage even further.
Smart Wi-Fi all around
Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.
The intelligence behind your mesh network
The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.
Whole-home Wi-Fi, easily managed
State-of-the-art technology doesn't have to be complicated. See how Wi-Fi Connect makes your mesh Wi-Fi straightforward – and powerful.
Create a kid-friendly online world
We want kids to be safe online, even when we’re not there. Safe Access helps you lay down rules for each kid without having to look for parental control solutions for every devices. Now you can get a full picture of how they’re exploring the world every day, and protect them until they’re ready.
Profile
Create a user profile to manage all devices someone owns at one time. You can also have one for all future devices connecting to your local network, one for guest Wi-Fi, one for IoT gadgets, and so on.
Security at the perimeter
It's not just people that you need to protect. It's all the connected things: IP cameras, smart doorbells, alarm systems… things that can make a smart home vulnerable. MR2200ac installs multiple layers of protection to shield your network against cyberattacks happening every day.
Wi-Fi Certified WPA3 & Enhanced Open technology
Certified by the newest Wi-Fi security standards including WPA3-Personal, WPA3-Enterprise and Opportunistic Wireless Encryption (OWE), MR2200ac equips home, business, and open Wi-Fi networks with better defenses against snooping and other attacks.
Always up-to-date
Boasting a long track record of fast and continuous updates, SRM makes sure that your mesh network is ready to counter emerging threats.
Advanced functionality made accessible
For small offices who don't want the hassle of wiring access points everywhere, a mesh Wi-Fi solution fits in perfectly. Unlike others, MR2200ac doesn't leave out the network management features businesses care about.
Hardware Specifications
CPU Quad core 717 MHz
Memory 256 MB DDR3
Antenna type 2x2 MIMO high-performance internal antenna (2.4 GHz / 5 GHz)
LAN port Gigabit (RJ-45) x 1
WAN port Gigabit (RJ-45) x 1
External Ports USB 3.0 x 1 (5V, 0.9A power output)

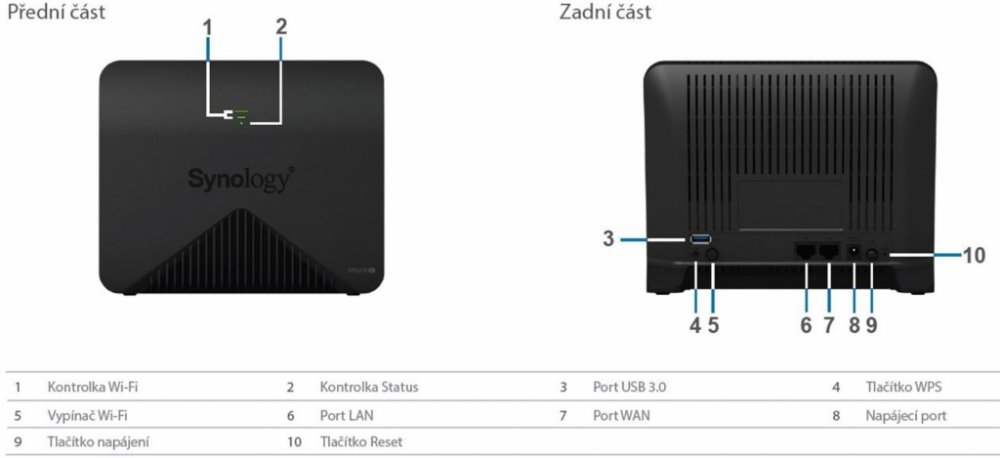

Button and switch WPS, Power, Reset, Wi-Fi On/Off
Appearance Size (Height x Width x Depth)
154 mm x 199 mm x 65 mm
Weight 0.45 kg
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
FCC
CE
BSMI
VCCI Class B
RCM
KC
iDA
TELEC
JATE
IC
Wi-Fi Certification
CE
FCC
NCC
RCM
iDA
TELEC
KC
IC
Warranty
2 Years
Others
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 12.95 W (Access) 5.21 W (Idle)
Wireless
IEEE 802.11ac
IEEE 802.11a/b/g/n/ac
Simultaneous tri-band Wi-Fi
5GHz-1: 867Mbps
5GHz-2: 867Mbps
2.4GHz: 400Mbps
IEEE 802.11ac wave 2 MU-MIMO
Wi-Fi Encryption WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Wi-Fi MAC address filter
Maximum MAC filters 64
Seamless roaming 802.11k/v/r standard support
Beamforming
DFS
Schedulable Wi-Fi
Guest Network
Guest Portal
Customized page style
Connection time limit
Password Rotation
WPS 2.0 (Wi-Fi Protected Setup 2.0)
3G/4G Dongle & Tethering (Learn more)
Maximum connected devices 90
Wi-Fi Point
Primary Wi-Fi Point
Network
Internet connection Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
3G/4G LTE dongle
Android tethering
Operating mode
Wireless Router
Wireless AP
Port forwarding Setup via manual management or UPnP
Maximum port forwarding rules 64
Maximum UPnP rules 64
Port triggering
Maximum port triggering rules 32
Minimum port triggering timeout 30s
Maximum port triggering timeout 3600s
DMZ
IPv6 IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
DHCP Server/client mode, client list, MAC address reservation
Maximum DHCP reservations 500
LAN/WLAN IGMP snooping
VPN
VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
VPN client (PPTP, OpenVPN, L2TP/IPSec)
VPN Pass-through (PPTP, IPSec, L2TP)
Policy route, Static route, Network Address Translation (NAT), PPPoE relay
Maximum IPv4 static routes 100
Maximum IPv6 static routes 100
Diagnosis tools
Ping
Traceroute
Safe Access
Parental Control
User Profile 15
Network Profile 2
Customized Internet schedule
Time Quota
IPv4/IPv6 DNS-based web filter
Sch
