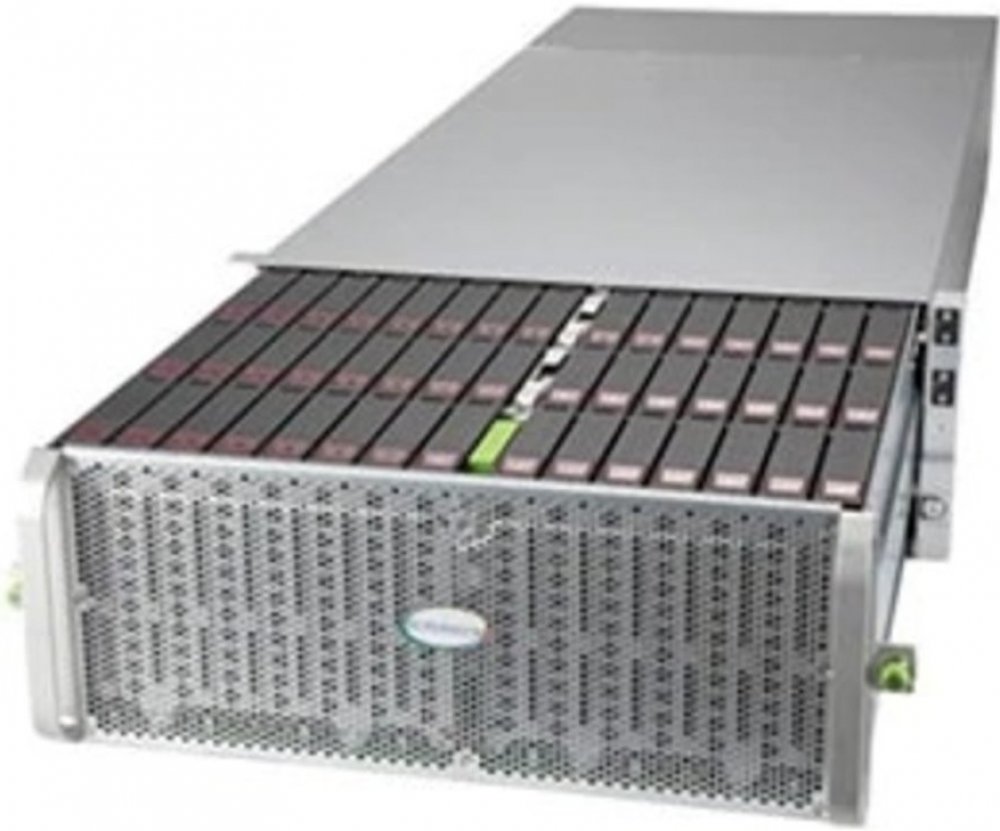

Supermicro SSG-6049SP-DE2CR90

1. Dual Node (HA), Enterprise High Availability (SBB) Architecture (shared storage); Fully serviceable and redundant
Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
2. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡
3. 16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
4. 2 PCI-E 3.0 x16 (HHHL),
1 PCI-E 3.0 x8 (HHHL)
5. 90x 3.5"/2.5" Hot-swap SAS3 drives,
2x Fixed slim SATA SSD, 2x NVMe
M.2 (form factor: 22110)
6. Dual Broadcom 3616 IT Mode
7. Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN
8. 6x 8cm hot-swap counter-rotate
redundant PWM cooling fans
9. 2600W Redundant Power Supplies
Titanium Level (96%)
10. Dedicated node to node connectivity
featuring high performance NTB PCI-E 3.0
x16 , 1G private Ethernet, and IPMI
for robust node fail-over support
