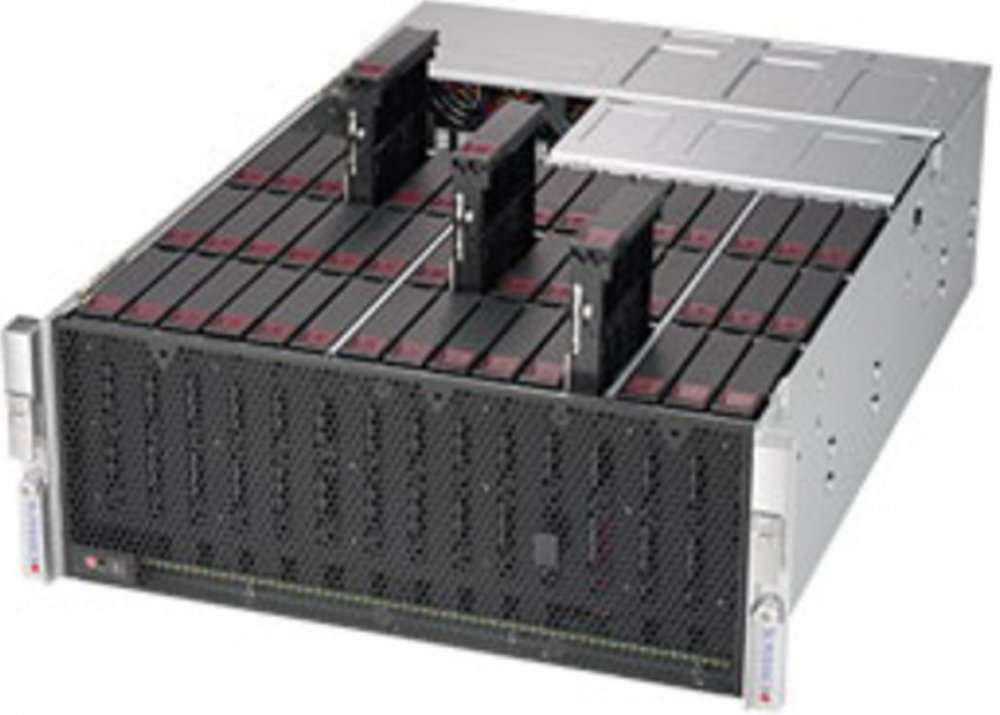

Supermicro SSG-5049P-E1CR45H
SuperMicro 12
1. Single socket P (LGA 3647) supports
Intel® Xeon® Scalable Processors
2. Up to 1TB ECC 3DS LRDIMM, up to
DDR4-2666MHz; 8 DIMM slots
3. 2 PCI-E 3.0 x8 (in x16),
4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
4. 2 GbE LAN ports via Intel i210
5. 45 Hot-swap 3.5" SAS3/SATA3 drive
bays, 2 rear Hot-swap 2.5" SATA
drive bays; optional 2 SATA or NVMe
6. Broadcom 3108 SAS3, HW RAID
(AOC-S3108L-H8IR-P )
7....
1. Single socket P (LGA 3647) supports
Intel® Xeon® Scalable Processors
2. Up to 1TB ECC 3DS LRDIMM, up to
DDR4-2666MHz; 8 DIMM slots
3. 2 PCI-E 3.0 x8 (in x16),
4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
4. 2 GbE LAN ports via Intel i210
5. 45 Hot-swap 3.5" SAS3/SATA3 drive
bays, 2 rear Hot-swap 2.5" SATA
drive bays; optional 2 SATA or NVMe
6. Broadcom 3108 SAS3, HW RAID
(AOC-S3108L-H8IR-P )
7. Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN
8. 5 Hot-swap 8cm redundant PWM fans
9. 1600W Redundant Power Supplies
Platinum Level
Více informací o produktu
Intel® Xeon® Scalable Processors
2. Up to 1TB ECC 3DS LRDIMM, up to
DDR4-2666MHz; 8 DIMM slots
3. 2 PCI-E 3.0 x8 (in x16),
4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
4. 2 GbE LAN ports via Intel i210
5. 45 Hot-swap 3.5" SAS3/SATA3 drive
bays, 2 rear Hot-swap 2.5" SATA
drive bays; optional 2 SATA or NVMe
6. Broadcom 3108 SAS3, HW RAID
(AOC-S3108L-H8IR-P )
7. Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN
8. 5 Hot-swap 8cm redundant PWM fans
9. 1600W Redundant Power Supplies
Platinum Level
