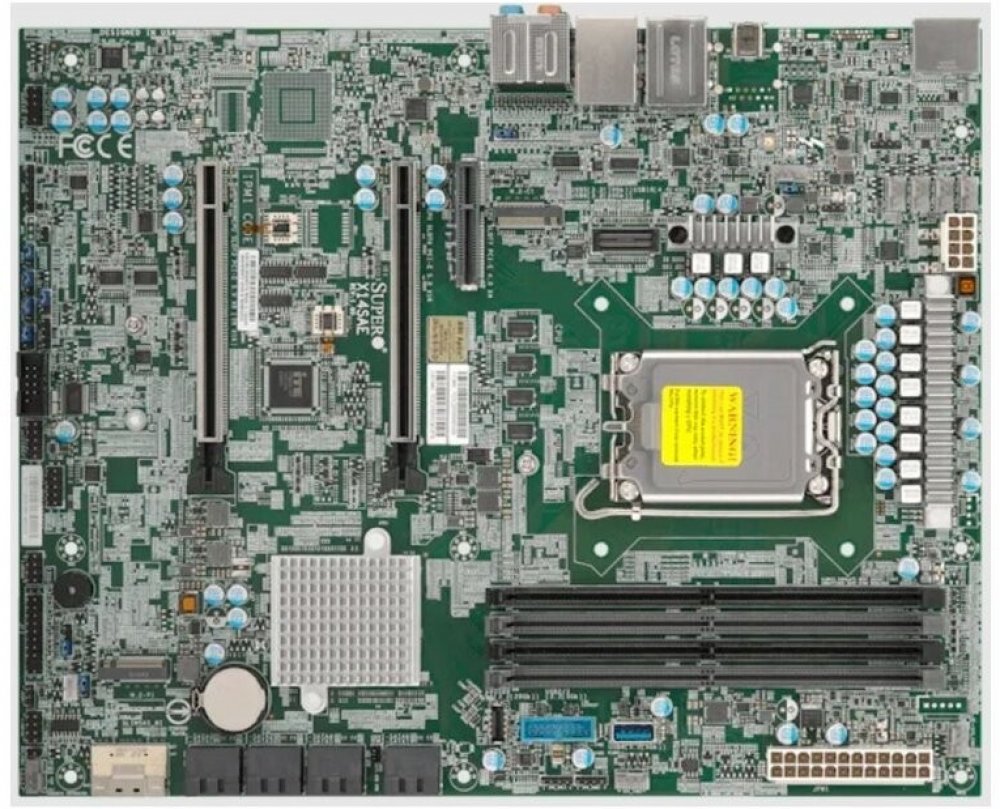

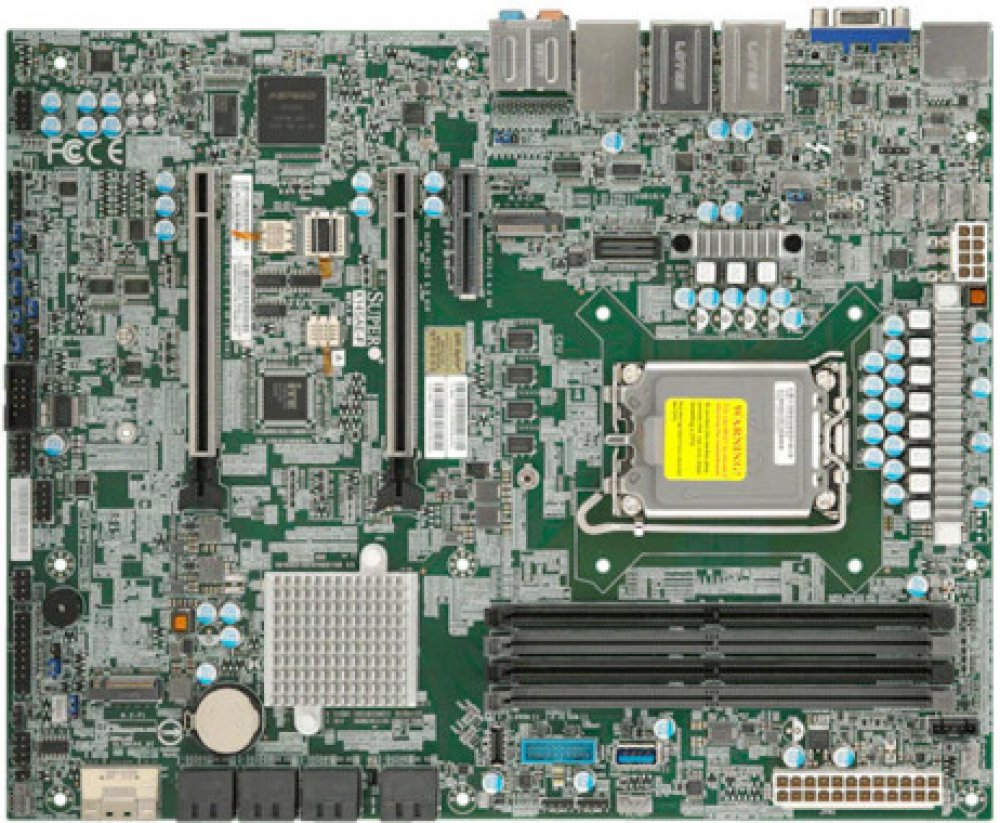

Supermicro MBD-X14SAE-B

Socket 1851 Supermicro Intel W880 ATX Intel pro profesionální použití pro výkonné použití pro běžnou zátěž pro pokročilé 192 GB 4 DDR5 5600 MHz 8 1 2 305 x 244 mm běžné RAID 0, RAID 1, RAID 5, RAID 10 LAN 2.5 Gb/s 2 2.0 DisplayPort 2.1 HDMI 2.1

Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel® V1 Socket) supported, CPU TDP supports Up to 125W TDP
Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
M.2 Interface: 1 PCIe 4.0 x4 and 1 PCIe 5.0x4 (support M.2 Form Factor 2280 only)
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
2 M.2 slots (1 PCIe 4.0 x4 from PCH; support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280)
2 PCIe 5.0 x16 slots,
1 PCIe 4.0 x4 slot
A 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller
A 1 Gigabit LAN with Intel® Ethernet i219LM LAN controller [AMT/vPro]
1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0 Type-C®
*Supports data rates of up to 10 Gbps **Supports data rates of up to 10 Gbps
Intel® W880 Controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Supports Thunderbolt 4
Onboard TPM2.0
