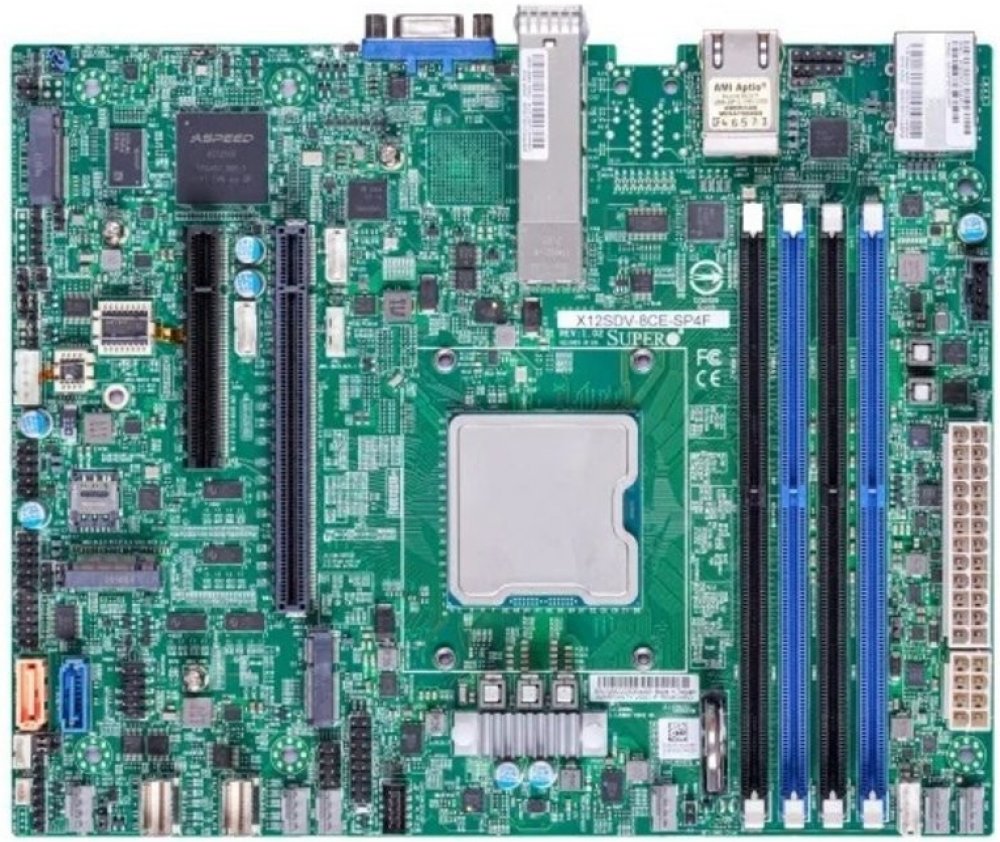

Supermicro MBD-X12SDV-8CE-SP4F-O
256 GB 4 DDR4 2667 MHz Socket BGA Supermicro Intel pro profesionální použití pro výkonné použití pro stabilitu 24/7 pro experty 10 6 2 1 228.6 x 184.2 mm kompaktní RAID 0, RAID 1, RAID 5, RAID 10 1 2 3.0
Key Features
System on Chip
Intel® Xeon® Processor D-1732TE, CPU TDP 52W
Up to 256GB Registered ECC RDIMM, DDR4-2667MHz, in 4 DIMM slots
1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8
1 M.2 M-Key 2280 (SATA/PCI-E 3.0 x4)
1 M.2 B-Key 2280/3042/3052 (USB/SATA/PCI-E 3.0 x2)
1 M.2 E-Key 2230 (PCI-E 3.0 x1)
2 PCI-E 3.0 NVMe x4 SlimSAS Internal Port (4 SATA/PCI-E 3.0 x4)
Dual 1G RJ45 with Intel® i210-IT
Dual 25G SFP...
Key Features
System on Chip
Intel® Xeon® Processor D-1732TE, CPU TDP 52W
Up to 256GB Registered ECC RDIMM, DDR4-2667MHz, in 4 DIMM slots
1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8
1 M.2 M-Key 2280 (SATA/PCI-E 3.0 x4)
1 M.2 B-Key 2280/3042/3052 (USB/SATA/PCI-E 3.0 x2)
1 M.2 E-Key 2230 (PCI-E 3.0 x1)
2 PCI-E 3.0 NVMe x4 SlimSAS Internal Port (4 SATA/PCI-E 3.0 x4)
Dual 1G RJ45 with Intel® i210-IT
Dual 25G SFP28 with Intel SoC
SoC controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
12V DC or ATX Power Input
Více informací o produktu
System on Chip
Intel® Xeon® Processor D-1732TE, CPU TDP 52W
Up to 256GB Registered ECC RDIMM, DDR4-2667MHz, in 4 DIMM slots
1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8
1 M.2 M-Key 2280 (SATA/PCI-E 3.0 x4)
1 M.2 B-Key 2280/3042/3052 (USB/SATA/PCI-E 3.0 x2)
1 M.2 E-Key 2230 (PCI-E 3.0 x1)
2 PCI-E 3.0 NVMe x4 SlimSAS Internal Port (4 SATA/PCI-E 3.0 x4)
Dual 1G RJ45 with Intel® i210-IT
Dual 25G SFP28 with Intel SoC
SoC controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
12V DC or ATX Power Input
