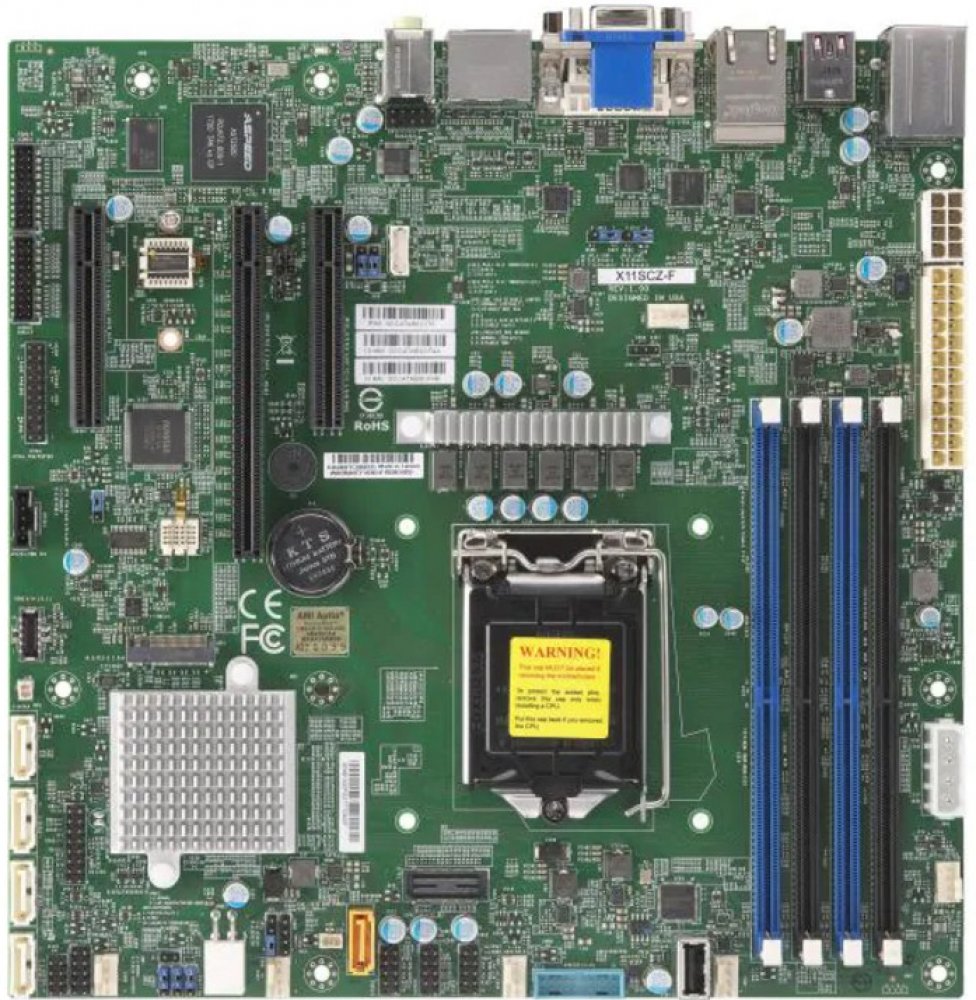

Supermicro MBD-X11SCZ-F-B
Socket 1151 Supermicro Intel C246 micro ATX (mATX) Intel pro profesionální použití pro vyvážený výkon pro stabilitu 24/7 pro experty 128 GB 4 DDR4 2666 MHz 5 6 2 2 1 243.8 x 243.8 mm běžné RAID 0, RAID 1, RAID 5, RAID 10 ALC 888S LAN 1 Gb/s 2 1.0 1.0 3.0 1.0
8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Intel® C246
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 ...
8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Intel® C246
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCIe 3.0 x16,
2 PCIe 3.0 x4 (in x8 slot)
1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays
Více informací o produktu
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Intel® C246
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCIe 3.0 x16,
2 PCIe 3.0 x4 (in x8 slot)
1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays
