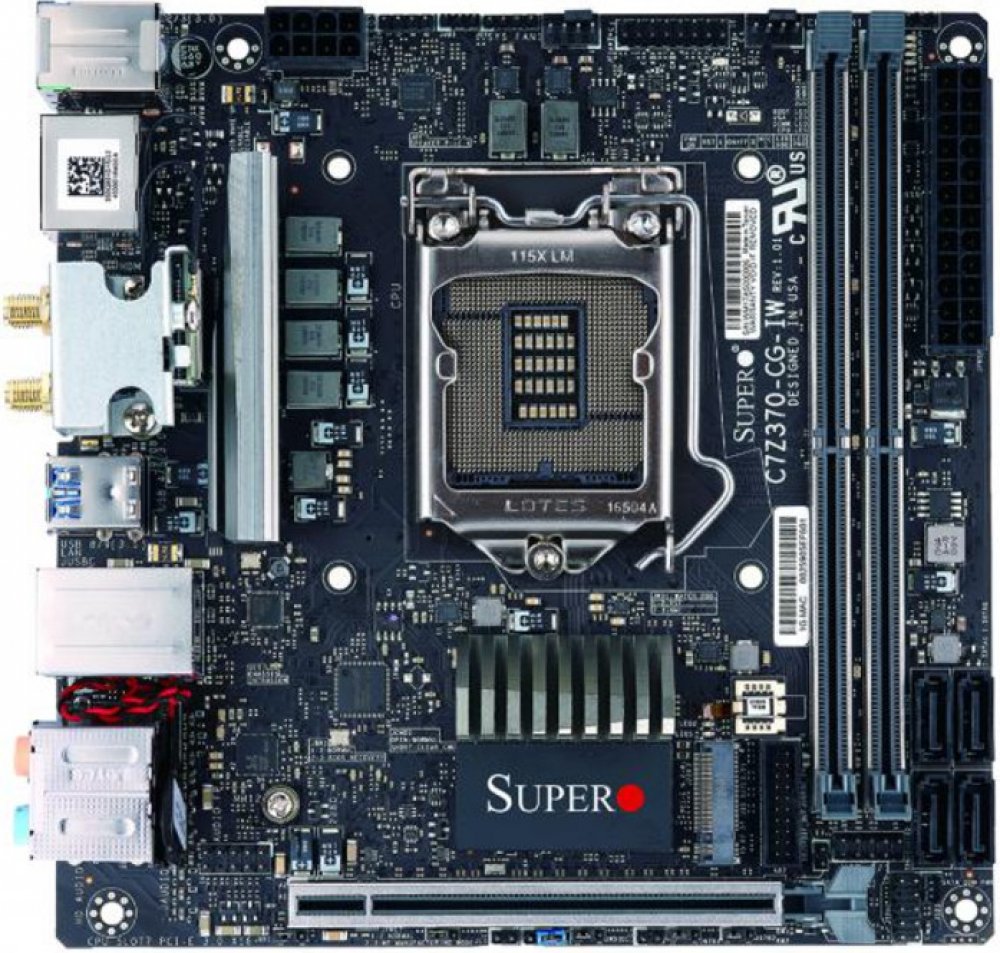

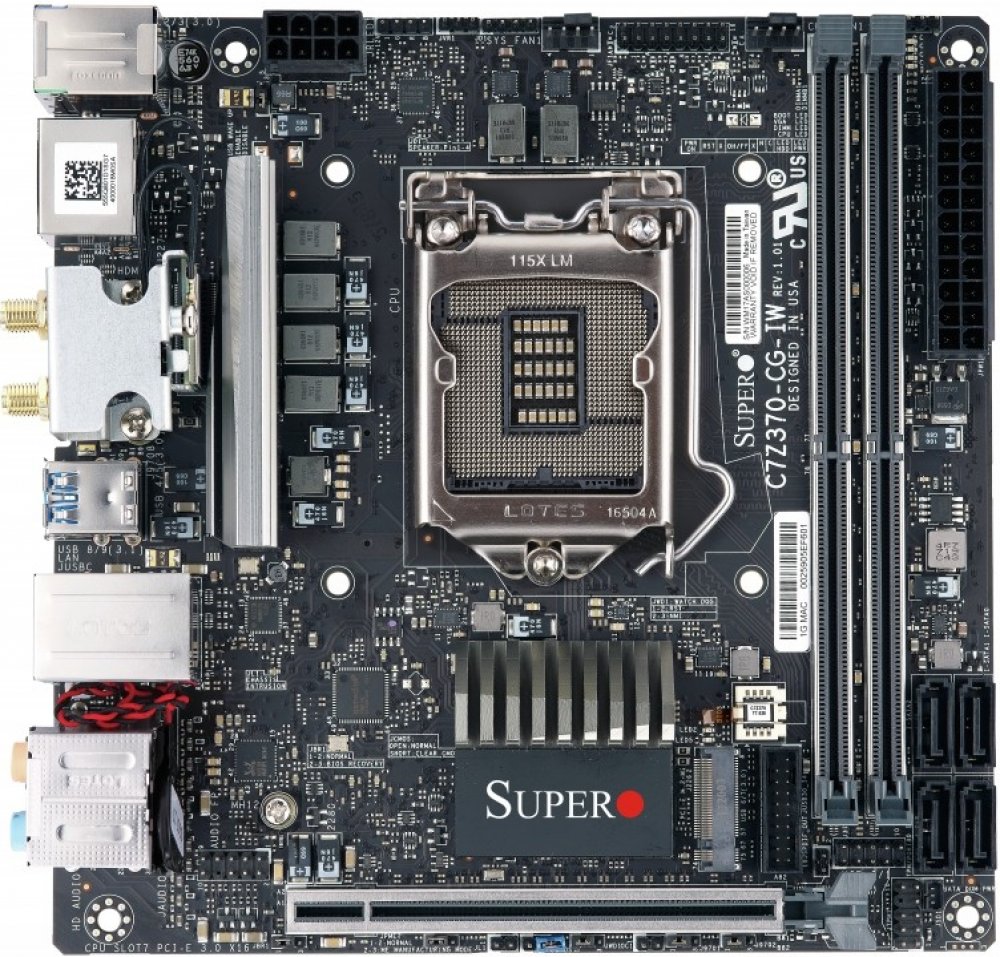

Supermicro MBD-C7Z370-CG-IW-O
Socket 1151 Supermicro mini ITX (mITX) Intel jako běžné PC pro výkonné použití pro běžnou zátěž pro pokročilé 64 GB 2 DDR4 2666 MHz 4 1 1 171.45 x 171.45 mm kompaktní RAID 0, RAID 1, RAID 5, RAID 10 Bluetooth 4.2 LAN 1 Gb/s 1 2.0
8th Generation Intel® Core i9(Non-K only)/i7(8086K and 8700K are not supported)/i5/i3/Pentium®/Celeron® Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
Intel® Z370 Express
Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th...
8th Generation Intel® Core i9(Non-K only)/i7(8086K and 8700K are not supported)/i5/i3/Pentium®/Celeron® Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
Intel® Z370 Express
Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9)
1 PCI-E 3.0 x16M.2 Interface: 2 PCI-E 3.0 x4M.2 Form Factor: 2280M.2 Key: M-Key*1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included
1 HDMI port, 1 DP (DisplayPort) port
Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Single LAN with Intel® single Ethernet PHY i219VSingle LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card
SuperDoctor® 5, Watchdog
RGB LED support
Více informací o produktu
Intel® Z370 Express
Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9)
1 PCI-E 3.0 x16M.2 Interface: 2 PCI-E 3.0 x4M.2 Form Factor: 2280M.2 Key: M-Key*1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included
1 HDMI port, 1 DP (DisplayPort) port
Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Single LAN with Intel® single Ethernet PHY i219VSingle LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card
SuperDoctor® 5, Watchdog
RGB LED support
