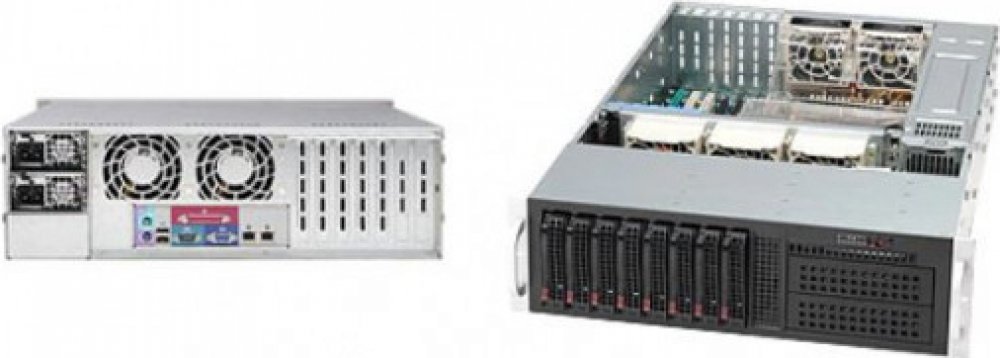

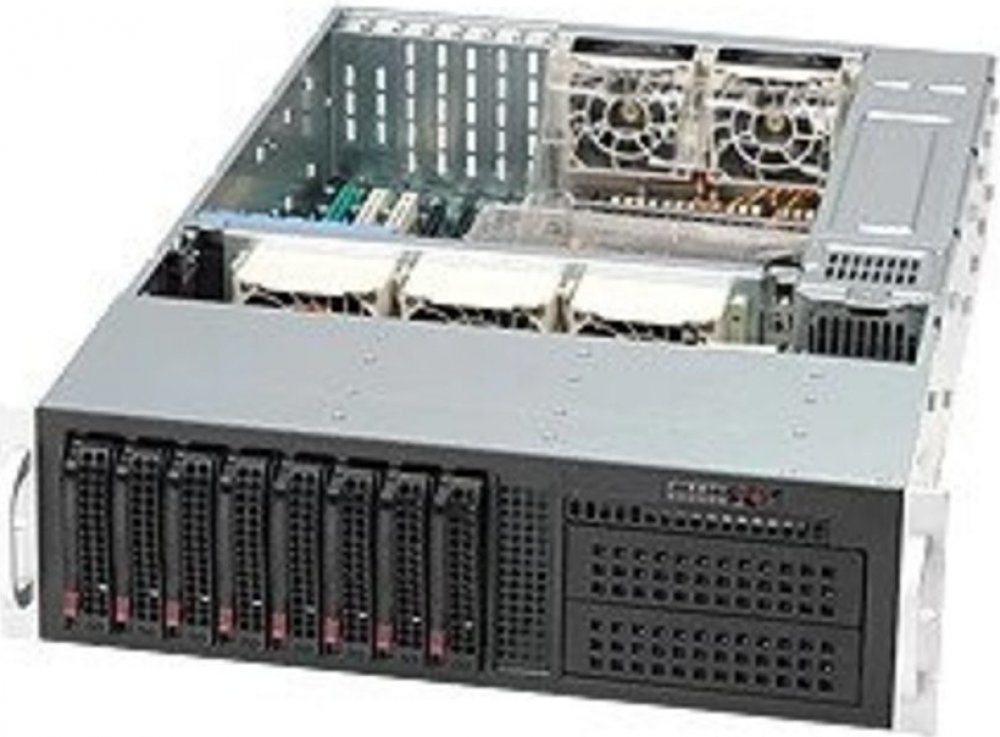

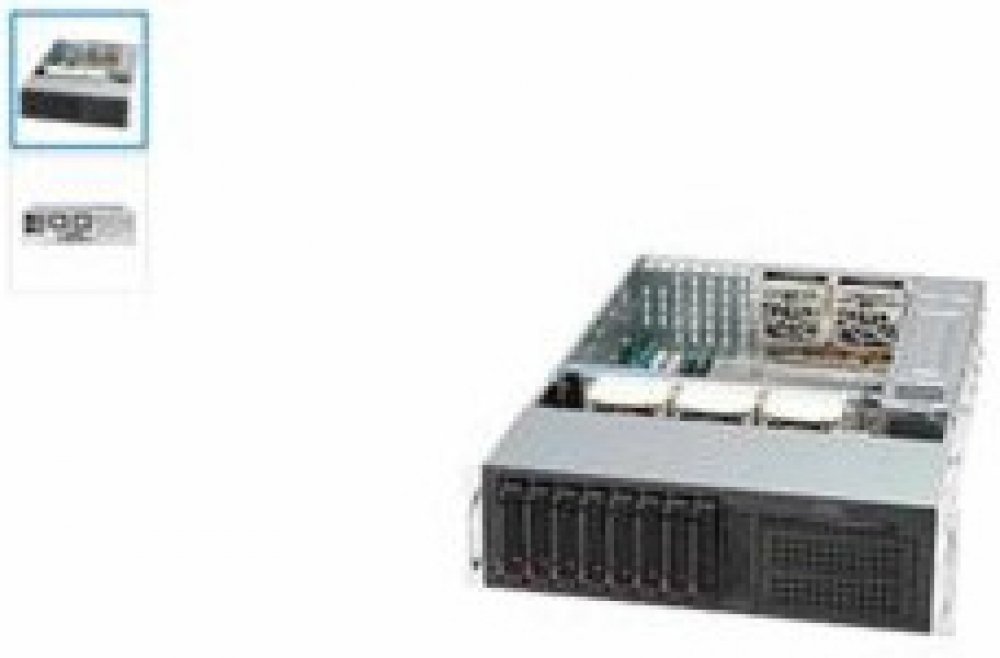

Supermicro CSE-835TQ-R921B

Product SKUs
SuperChassis  835TQ-R921B
Form Factor
3U chassis support for motherboard size - E-ATX and ATX.
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
5.2" (132 mm)
Width
17.2" (437 mm)
Depth
25.5" (647 mm)
Gross Weight
75 lbs (34.02 kg)
Net Weight
36 lbs (16.33 kg)
Packaging (W x H x L)
26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)
Available Color
Black
Expansion Slots
7x Full-height, Full-length expansion slot(s)
Drive Bays
8x 3.5" hot-swap SAS/SATA drive bay
2x 5.25" drive bay
Backplane
SAS833/835 BACK PANEL WITH AMI MG9072
Peripheral Drives
1x slim DVD-ROM drive bay
Front Panel
Button
Power On/Off button
System Reset button
LED
HDD activity LED
Power Fail LED
2 Network Activity LEDs
Power LED
System Overheat LED
Systems Cooling
Fans
2x 80mm rear hot-swap exhaust PWM fan(s)
3x 80mm Hot-swap PWM Fans
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency
94%
Total Output Power and Input
920W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT825-8824
O/P: 12V/75
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A
Certification
   Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL

Motherboard (for CSE-835TQ-R921B)
Motherboard Name
X10DRH-iT X10DRH-iLN X10DRH-i X10DRH-CT X10DRH-CLN4 X10DRH-C
