Supermicro CSE-815TQ-R700WB

Server Geh Super Micro 1U/2x700W/4x3.5" SC815TQ-R700WB bez OS (CSE-815TQ-R700WB) Supermicro SC815TQ-R700WB, Skříň, Server, Černá, EATX, 1U, HDD, LAN,
Výkon
Úvodní popis
Supermicro SC815TQ-R700WB. Formát: Skříň, Model: Server, Barva: Černá.
Napájecí zdroj: 700 W. Podporované pevné velikosti disků: 3.5". Šířka:
437 mm, Hloubka: 650 mm, Výška: 43 mm. Hmotnost včetně balení:
16,3 kg
Popis

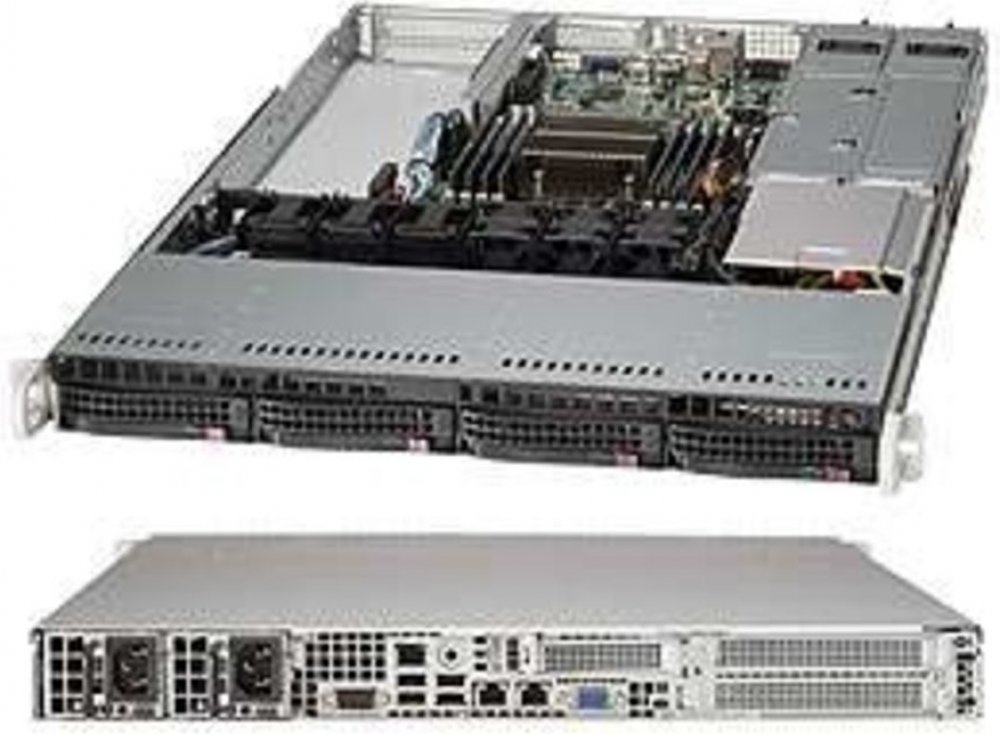

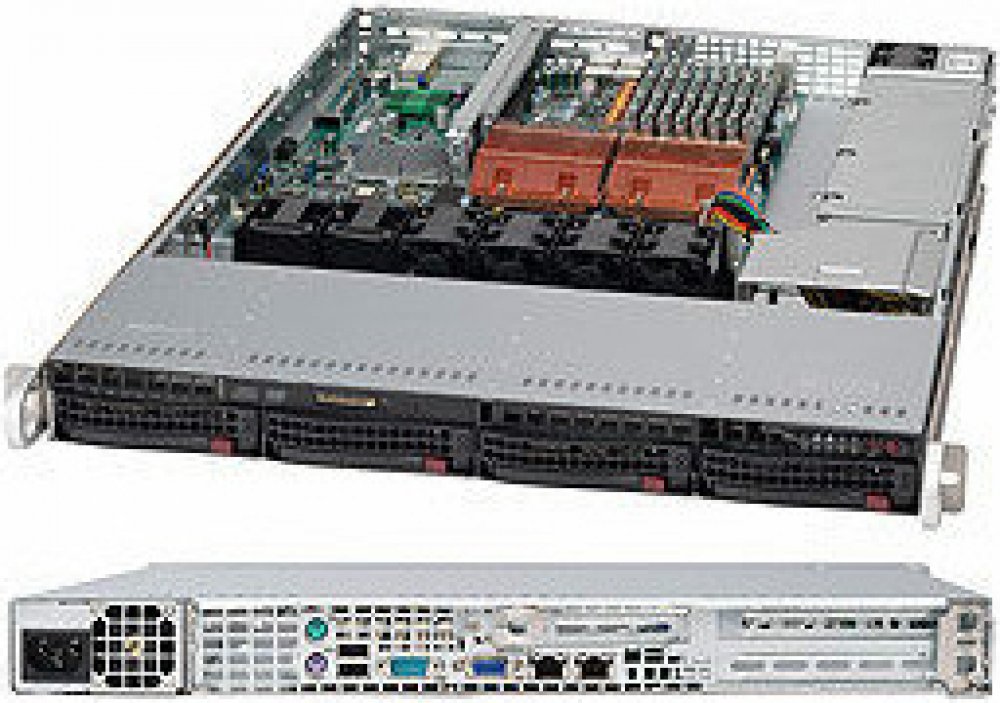

Supermicro's SC815 1U chassis features a unique and highly-optimized design for
Xeon and Opteron platforms. The chassis is equipped with a 700W/650W/560W high
efficiency power supply, Gold Level 720W/560W/330W, or Platinum Level 500W power
supply for superb power savings. High performance fans provide ample optimized
cooling latest generation memory modules and 4 hot-swap 3.5" drive bays offers
maximum storage capacity in a 1U form factor. Optional LCD front bezels are also
available for customization requirements. Bulk package and quick release slide
rails also available for HPC and datacenter use.
- 1U Chassis support for max. motherboard size E-ATX 12" x 13" – optimized
for WIO motherboard
- 4 × 3.5" hot-swap SAS/SATA drive bay with SES2
- SAS or enterprise SATA HDD only recommended
- 4-port 1U TQ backplane (W/ enclosure management), support up to 4× 3.5-inch
SAS/SATA HDD
- 1U 700/750W hot swap redundant power supply
- 2 full height expansion slot(s) (Riser Card Required), 1 low-profile
expansion slot(s) (Riser Card Required)
- 4 × 4cm heavy duty counter-rotating with optimal fan(s) speed control
- Optional 2 x fans for AOC cooling
