STABILA LAX 50 G, 3-pcs Kreuzlinien-Laser
Stabila
Způsob provozu: Baterie
Napětí baterie (V): 1,5
Typ baterie / aku: AA Mignon
Potřebný počet: 3
Baterie jsou součástí dodávky: ano
Laserová dioda (nm): 510 - 530
Typ ochrany: IP53
Typ: Kreuzlinienlaser
Barevný laserový paprsek: zelená
Barva: žlutá / černá

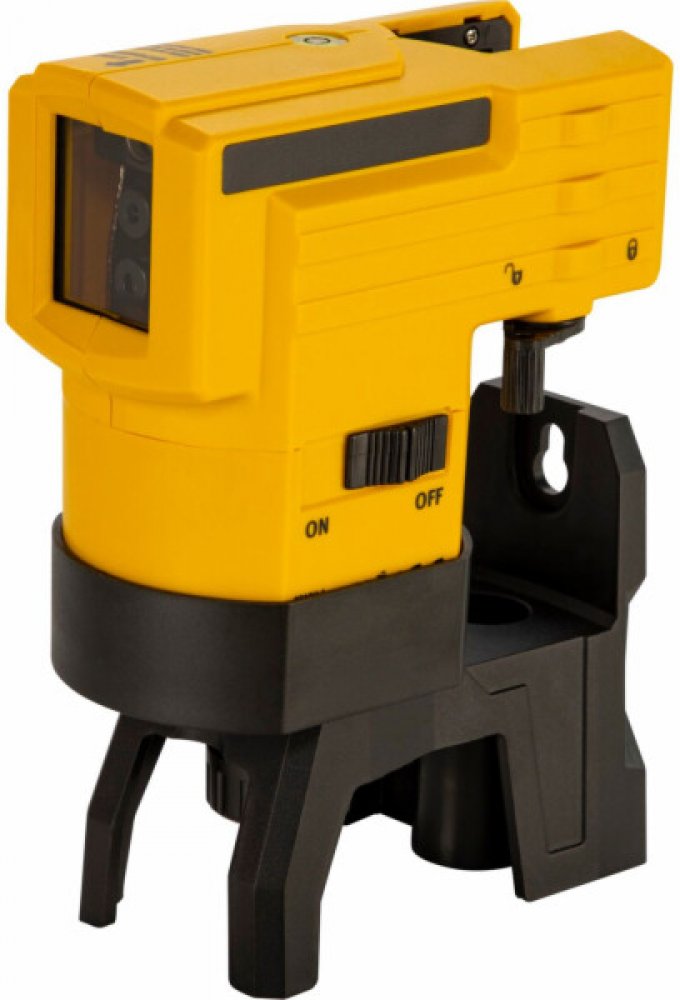

STABILA LAX 50 G – Cross Line Laser with multi-purpose platform and belt pouch
The STABILA LAX 50 G is made for interior work with clearly visibl...
Způsob provozu: Baterie
Napětí baterie (V): 1,5
Typ baterie / aku: AA Mignon
Potřebný počet: 3
Baterie jsou součástí dodávky: ano
Laserová dioda (nm): 510 - 530
Typ ochrany: IP53
Typ: Kreuzlinienlaser
Barevný laserový paprsek: zelená
Barva: žlutá / černá
STABILA LAX 50 G – Cross Line Laser with multi-purpose platform and belt pouch
The STABILA LAX 50 G is made for interior work with clearly visible green lines and stable alignment. The fine line shape helps with exact marking at medium distances. The compact design allows flexible use on different working levels. The multi-purpose platform offers extra fixing options.
Precision in the whole working area
The green lines are easy to see on walls, floors, and other surfaces. The internal pendulum system levels the device automatically and creates clean lines. The platform can rotate and gives more freedom for positioning. A magnetic system holds the unit on metal surfaces.
Smart setup and reliable operation
An integrated clamp gives a secure hold on pipes. Water spray and dust cannot enter the unit, so it works safely on building sites. The long operating time allows longer working periods without stopping. A belt pouch is included for transport.
Features:
Green lines for clear visibility on different surfaces
Long, narrow line shape for exact alignment
Markings at distances up to 30 m
One-button system for direct start
Rotating platform with magnetic fixing for flexible positioning
Clamp on the device for secure pipe fixing
Protection against dust build-up and water spray
Belt pouch as transport solution
Compact design with balanced weight
Technical Data:
Laser class: 2
Output: under 1 mW
Wavelength: 510–530 nm
Self-levelling range: ± 4.50°
Levelling accuracy: ± 0.50 mm/m
Range of visible line: 30 m
Operating time: 7 h
Protection class: IP 53
Tripod connection: 1/4" and 5/8"
Scope of delivery:
Cross line laser LAX 50 G
Multi-purpose platform
Belt pouch
3 x AA 1.5 V batteries
Information in accordance with the General Product Safety Regulation (EU) 2023/988 (GPSR)STABILA Messgeräte Gustav Ullrich GmbHLandauer Straße 45D 76855 Annweiler am TrifelsE-Mail: info@de.stabila.com
