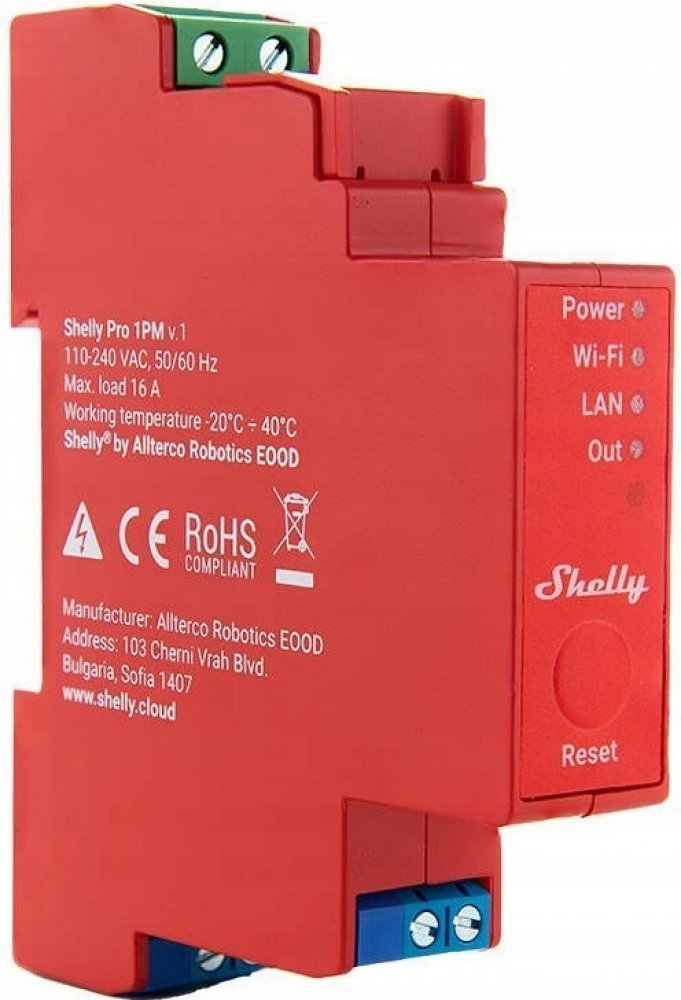

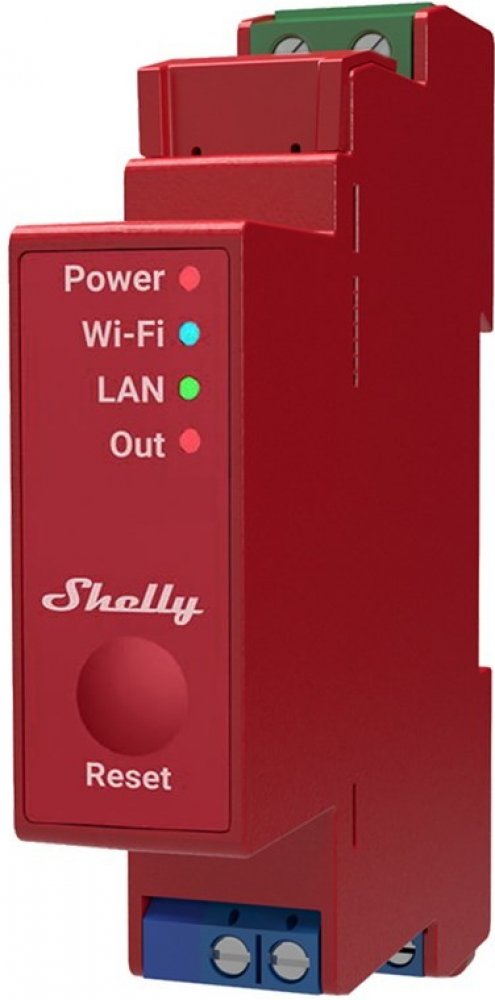

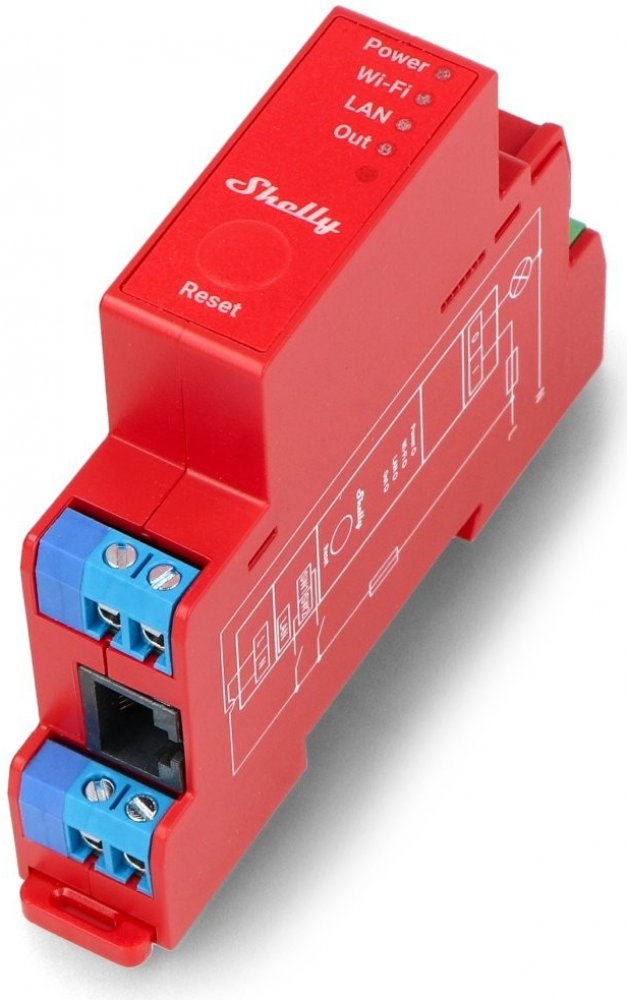

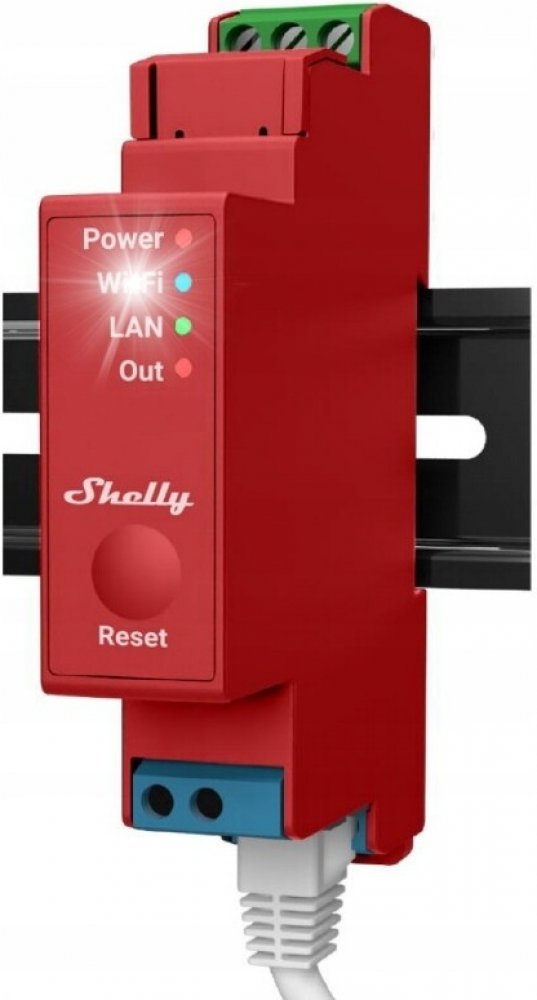

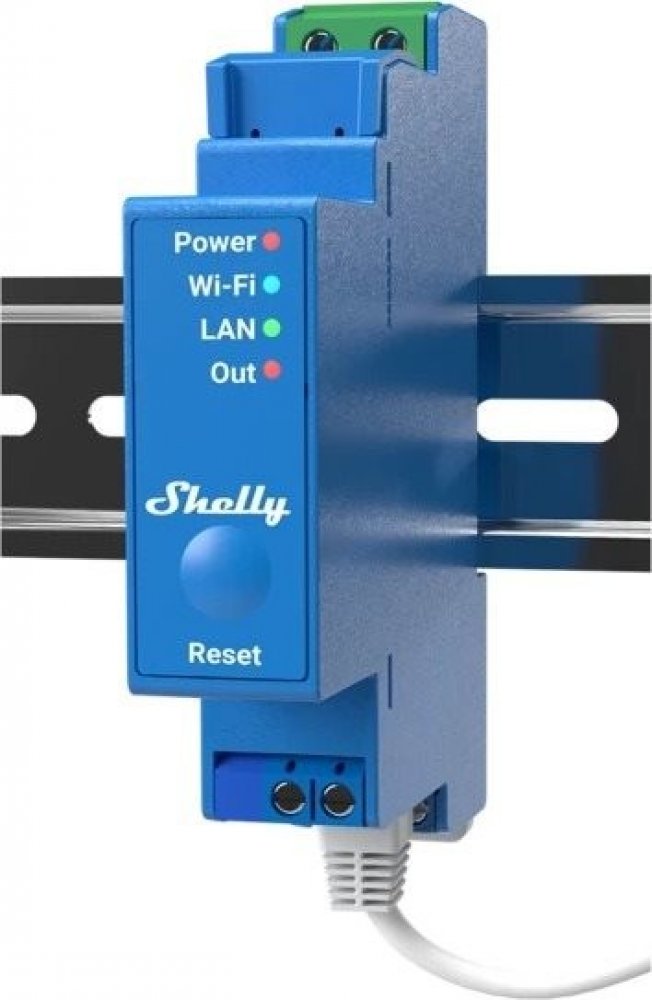

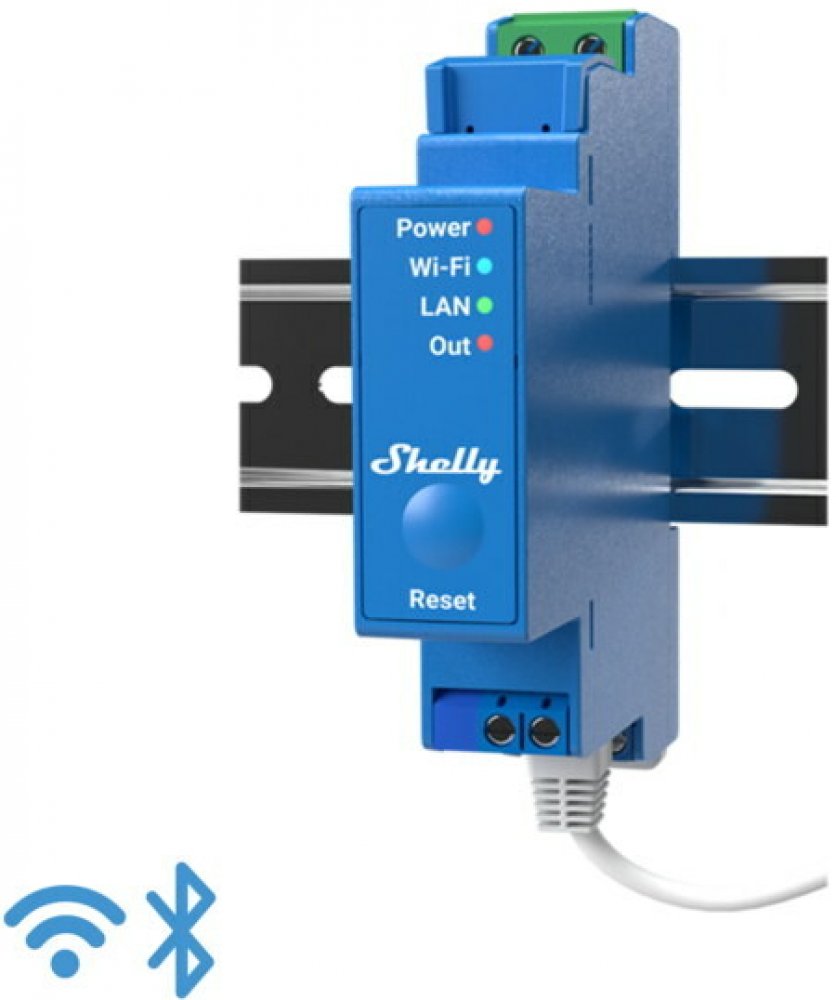

Shelly Pro 1PM WIFI/LAN

1-Channel DIN Rail Relay with Power Monitoring Shelly Pro 1PM WiFi/LAN

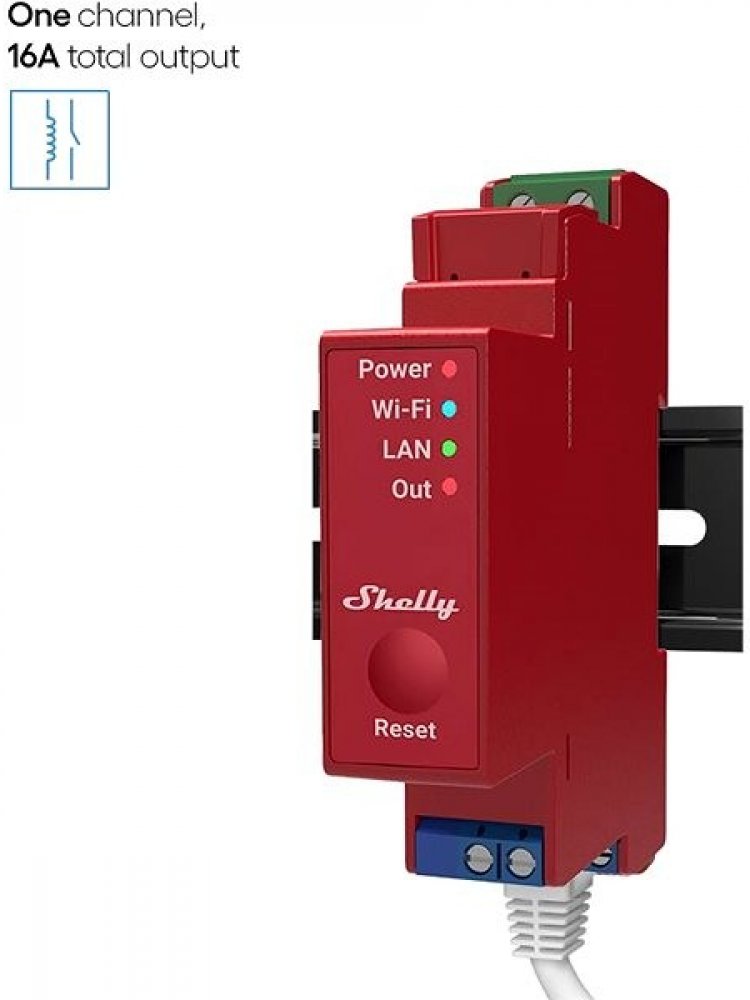

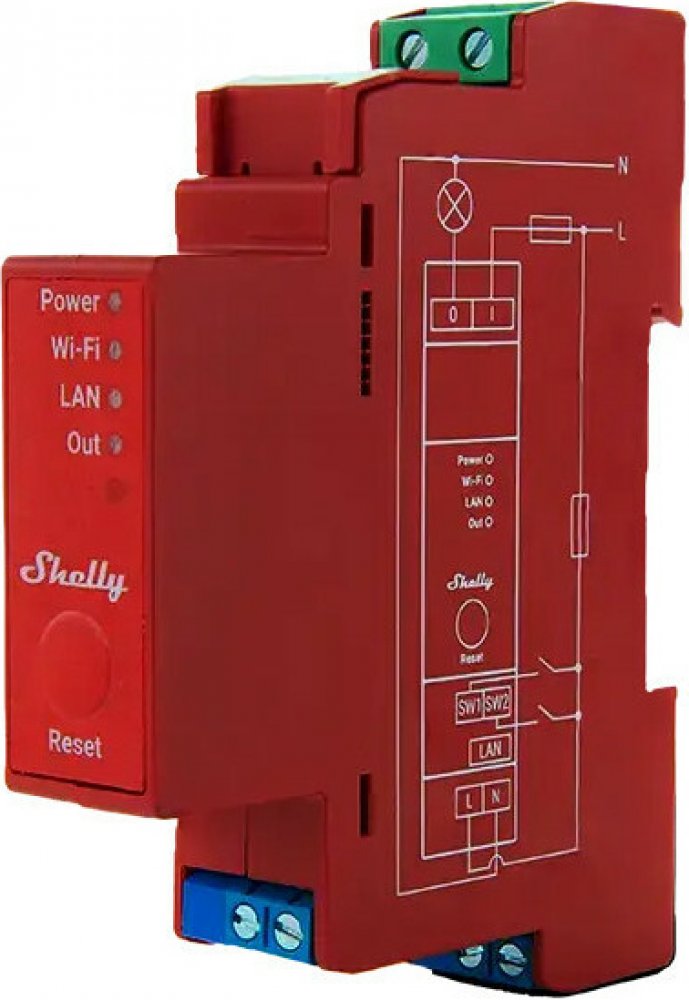

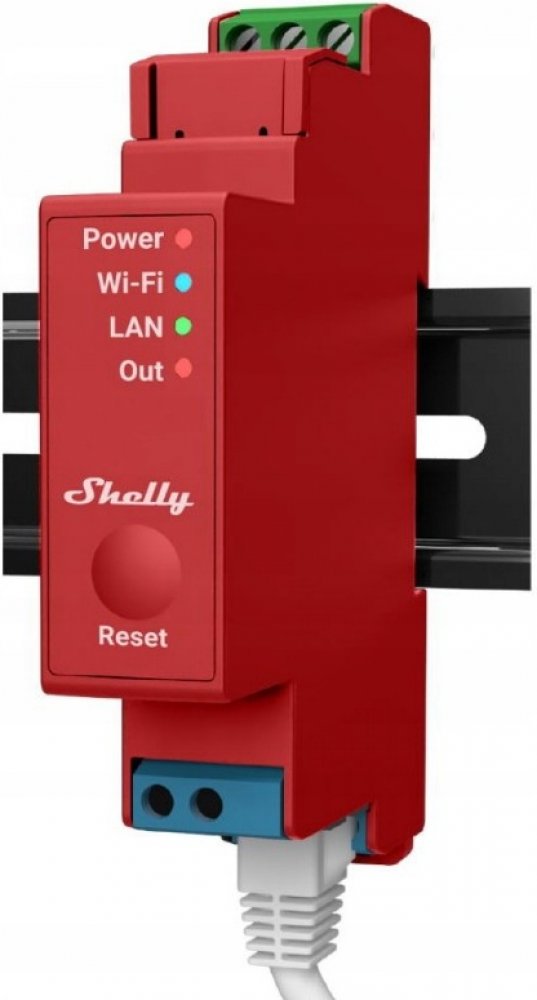

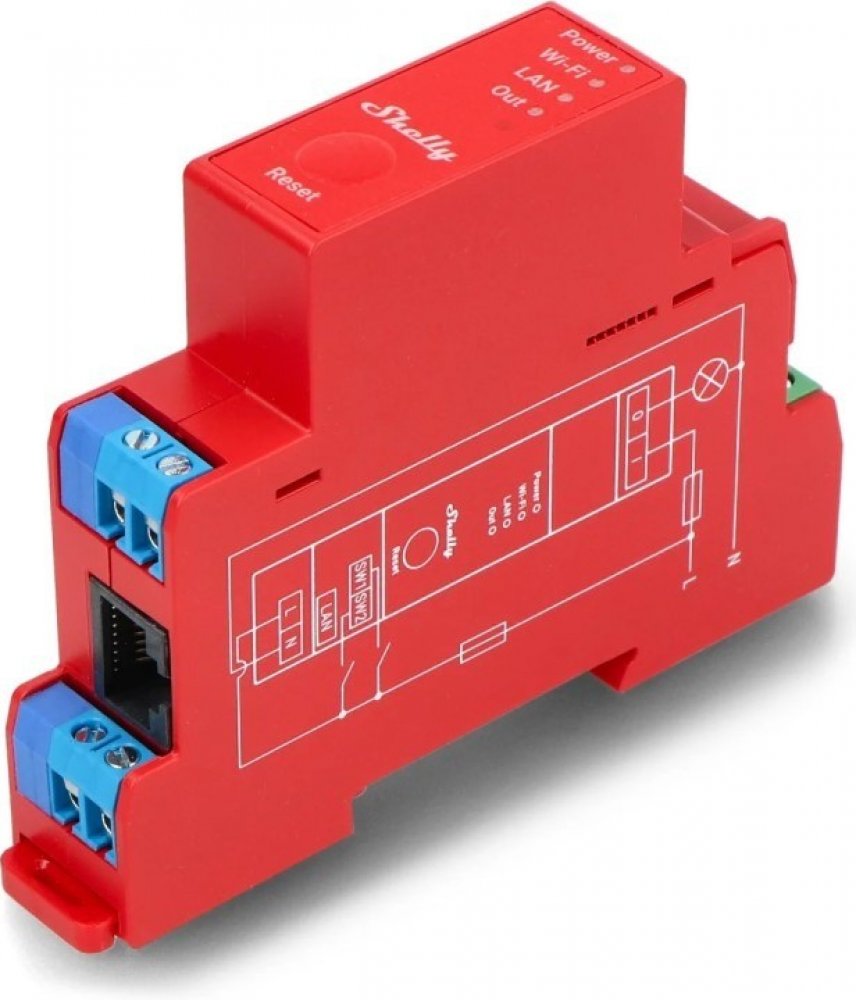

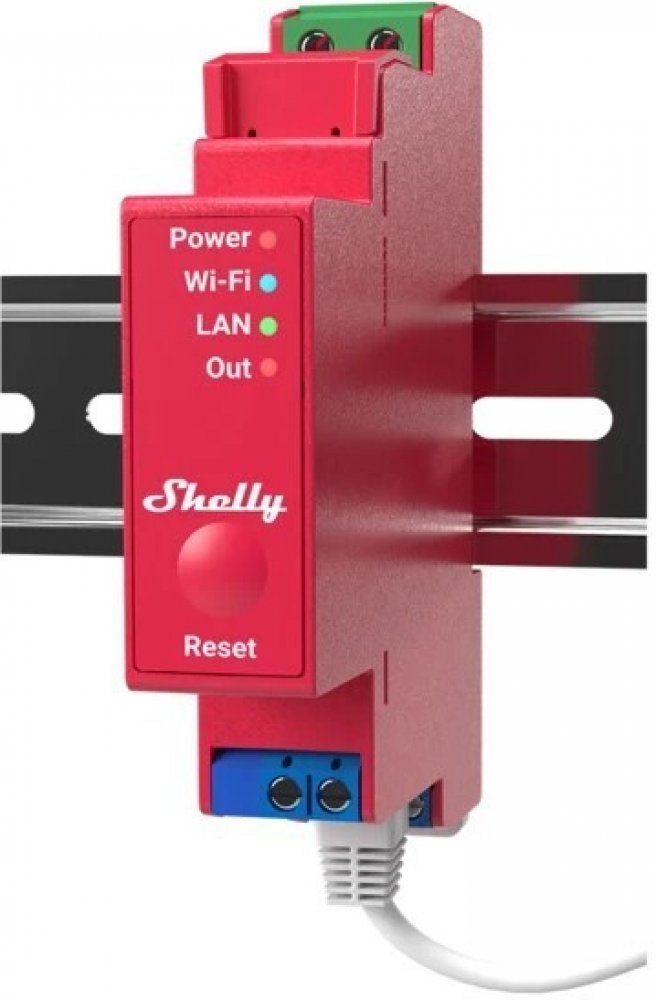

Shelly Pro 1PM is an intelligent DIN rail relay with one channel, capable of controlling devices with a maximum load of 16 A. It comes with a built-in power meter, allowing users to precisely monitor the energy consumption of automated lighting or other equipment. With support for WiFi, LAN, and Bluetooth, it is well-suited for both home and building automation. It also integrates with popular voice assistants like Google Assistant, Samsung SmartThings, and Amazon Alexa, making home control even more convenient. Moreover, scripting features enable the creation of custom automation scenes based on various events, such as weather forecasts.
Many Possibilities
Gain full control over your home with Shelly Pro 1PM. This product is versatile and allows for precise energy consumption monitoring and remote control of various devices. You can use it to control your jacuzzi remotely while tracking energy usage or implement underfloor heating automation to prevent energy wastage. Shelly Pro 1PM is the key to efficient and intelligent home automation.

Manufacturer
Shelly
Model
SPSW-201PE16EU
AC Power Supply Voltage
110 - 240 V
Power Consumption
< 3 W
Max AC Switching Voltage
240 V
Max AC Switching Current
16 A
AC Voltmeter
Yes
AC Ammeter
Yes
Internal Temperature Sensor
Yes
Wi-Fi Protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m indoors and up to 50 m outdoors
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m indoors and up to 30 m outdoors
CPU
ESP32-D0WDQ6
Flash Memory
8 MB
Dimensions
94 x 19 x 69 mm ±0.5 mm

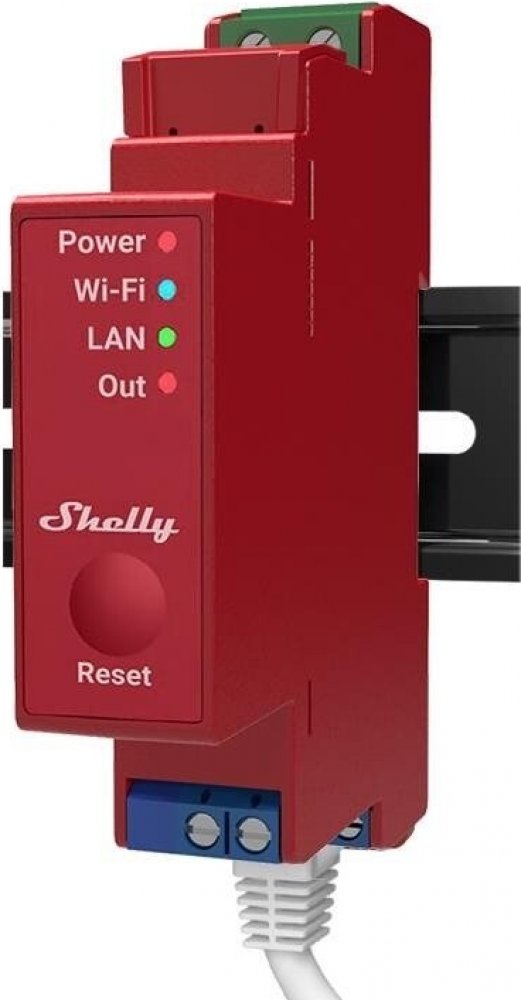

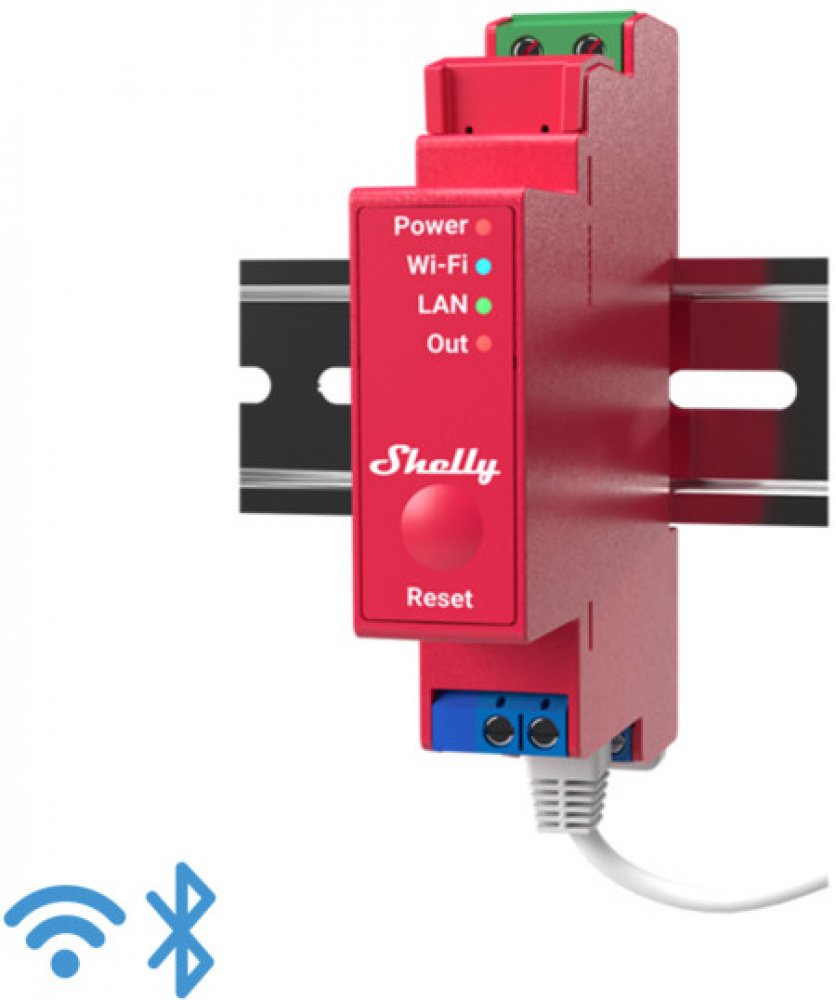

Mounting
DIN Rail
Housing Material
Plastic
Ambient Operating Temperature
From -20°C to 40°C
Humidity
From 30% to 70% RH
Maximum Altitude
2000 m
