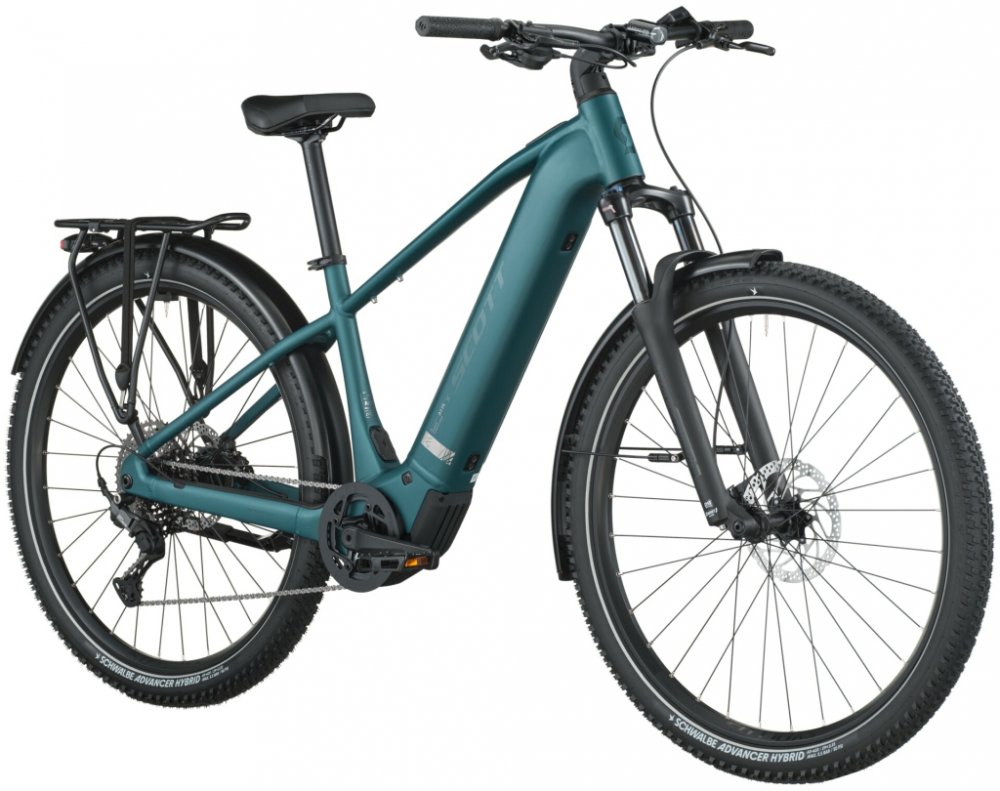

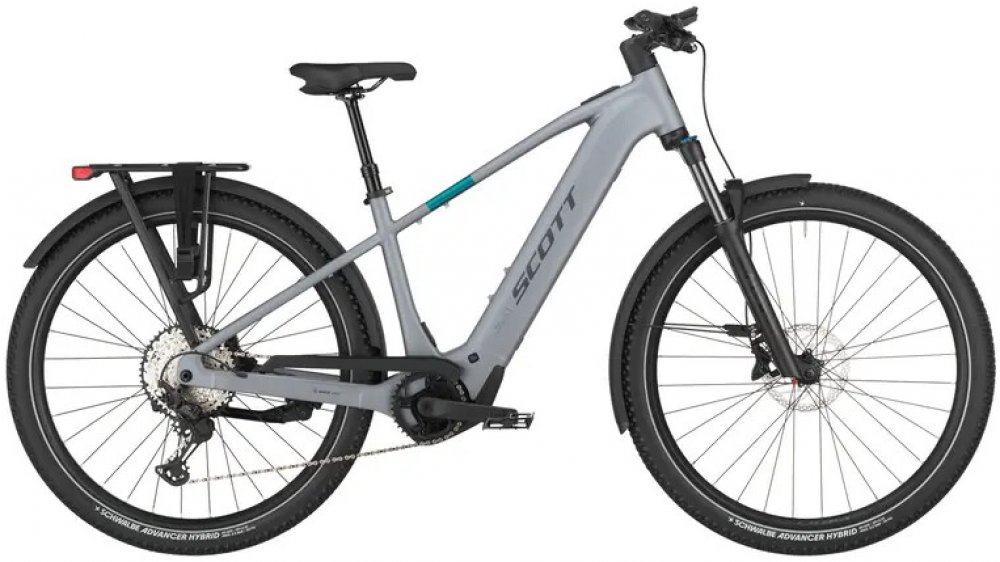

Scott Axis 10 2026
Scott trekking/cross unisex 2026 se středovým motorem Integrovaná v rámu s hliníkovým rámem Bosch Bosch Performance Line CX s momentovým senzorem s odpruženou přední vidlicí 120 mm s hydraulickými kotoučovými brzdami s páčkovým řazením 1 x 12 pro začátečníky
Specifikace
Rám
Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline
Zdvih
120mm
Vidlice
SR Suntour XCM34 Coil, Tapered, 15x110 TA, 120mm Travel
Pohonná jednotka
Bosch Performance Line (BDU346Y) EU: 25kmh
Baterie
PowerTube 540Wh
Displej
Bosch Purion 200
Nabíječka
2A Charger
Přehazovačka
Shimano CUES RD-U6000GS 10 Speed
...
Specifikace
Rám
Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline
Zdvih
120mm
Vidlice
SR Suntour XCM34 Coil, Tapered, 15x110 TA, 120mm Travel
Pohonná jednotka
Bosch Performance Line (BDU346Y) EU: 25kmh
Baterie
PowerTube 540Wh
Displej
Bosch Purion 200
Nabíječka
2A Charger
Přehazovačka
Shimano CUES RD-U6000GS 10 Speed
Řazení
Shimano SL-U600010RC
Kliky
FSA CK-220 165mm
Převodník
Miranda 36T w/Chain Guard
Řetěz
Shimano LG500
Kazeta
Shimano CS-LG40010 11-48T 10 Speed
Brzdy
Shimano BR-MT200 Disc Brakes
Rotor
Front: SM-RT30 CL 180mm, Rear: RT-EM300 CL 180mm
Řidítka
Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise Syncros Lock On Grip
Představec
Syncros with front Light mount
Sedlovka
Syncros 3.0, 31.6mm
Sedlovka
Syncros Capilano
Hlavové složení
Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm
Přední náboj
Shimano HBTC50015BB, 15x110mm
Zadní náboj
Shimano FHTC500HMBB, 148x12mm
Výplet
Stainless Black
Ráfky
Syncros X18 Disc
Přední plášť
Schwalbe Advancer 60-622 Wired
Zadní plášť
Schwalbe Advancer 60-622 Wired
Světla
Front Lezyne Hecto E65 Rear Super Bright Lezyne Light
Nosič & blatníky
Racktime Micro Rack SnapIt 2.0 27KG
Pedály
VP VPE-506
Extra
Curana alloy profile Fender Ursus Kickstand
Hmotnost v kg (cca)
28.2
Hmotnost v lb (cca)
62.17
Max. systémová hmotnost
160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo
Klíčové vlastnosti
- Hliníkový rám Axis eRIDE
- Bosch Performance, PT540 SmartSystem Engine System
- Vidlice Suntour, zdvih 120 mm
- Sada Shimano CUES, 10 rychlostí
- Diskové brzdy Shimano
- Adaptér Syncros na připojení vozíku za kolo / Přední světlo Lezyne / Zadní integrované v nosiči Syncros / Hliníkové blatníky Curana
- Kompatibilní s adaptérem na nosič Racktime Snap It 2.0, nosnost 27 kg
Technologie
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
AXIS GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
Geometrie rámu
XS
S
M
L
XL
A
head tube angle / angle tube de direction
66.0 °
66.0 °
67.0 °
67.0 °
67.0 °
B
head tube length / hauteur tube de direction
130.0 mm
5.1 in
130.0 mm
5.1 in
130.0 mm
5.1 in
140.0 mm
5.5 in
150.0 mm
5.9 in
C
top tube horizontal / longueur horizontale tube supérieur
580.0 mm
22.8 in
580.0 mm
22.8 in
600.0 mm
23.6 in
620.0 mm
24.4 in
640.0 mm
25.2 in
D
standover height / hauteur entre-jambes
773.1 mm
30.4 in
788.2 mm
31.0 in
789.3 mm
31.1 in
826.6 mm
32.5 in
861.4 mm
33.9 in
E
BB offset / deport axe de pédalier
63.0 mm
2.5 in
63.0 mm
2.5 in
63.0 mm
2.5 in
63.0 mm
2.5 in
63.0 mm
2.5 in
F
BB height / hauteur axe de pédalier
312.0 mm
12.3 in
312.0 mm
12.3 in
312.0 mm
12.3 in
312.0 mm
12.3 in
312.0 mm
12.3 in
G
wheel base / entraxe roues
1,213.1 mm
47.8 in
1,213.1 mm
47.8 in
1,221.1 mm
48.1 in
1,242.7 mm
48.9 in
1,264.3 mm
49.8 in
H
BB center to toptube center / dist. boitier - milieu tube supérieur
I
BB center to top of seattube / dist. boitier - sommet tube de selle
370.0 mm
14.6 in
400.0 mm
15.7 in
440.0 mm
17.3 in
490.0 mm
19.3 in
540.0 mm
21.3 in
J
seat angle / angle tube de selle
75.8 °
75.8 °
75.8 °
75.8 °
75.8 °
K
chainstay / longueur des bases
482.0 mm
19.0 in
482.0 mm
19.0 in
482.0 mm
19.0 in
482.0 mm
19.0 in
482.0 mm
19.0 in
L
reach / reach
412.2 mm
16.2 in
412.2 mm
16.2 in
430.8 mm
17.0 in
448.5 mm
17.7 in
466.2 mm
18.4 in
M
stack / stack
663.0 mm
26.1 in
663.0 mm
26.1 in
668.6 mm
26.3 in
677.8 mm
26.7 in
687.0 mm
27.0 in
N
stem length / longueur potence
70.0 mm
2.8 in
70.0 mm
2.8 in
70.0 mm
2.8 in
70.0 mm
2.8 in
70.0 mm
2.8 in
0
trail / chasse au sol
111.1 mm
4.4 in
111.1 mm
4.4 in
103.8 mm
4.1 in
103.8 mm
4.1 in
103.8 mm
4.1 in
