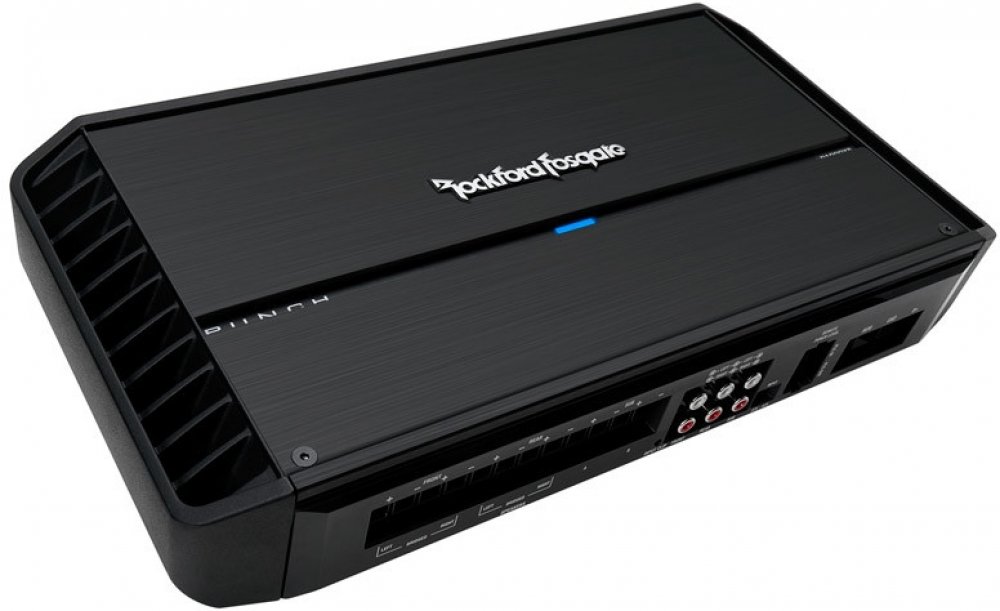

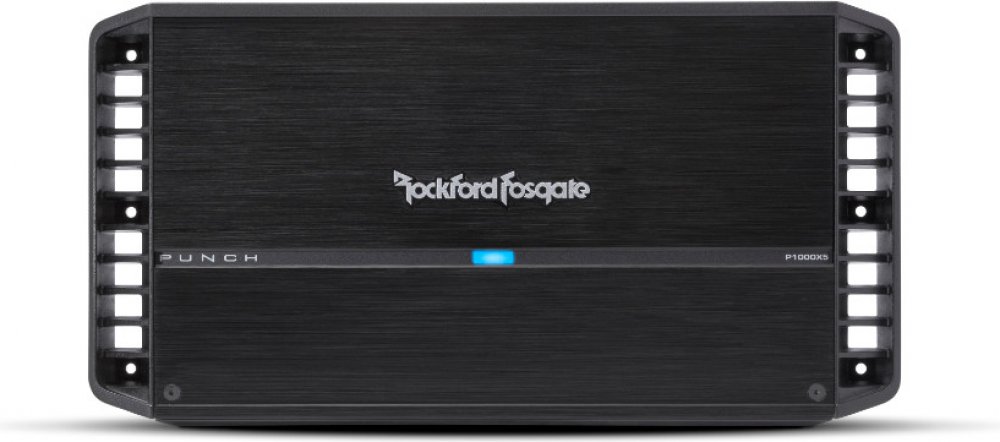

Rockford Fosgate P1000X5
Rockford Fosgate 20 - 20000 Hz 5
The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.
High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
12dB/octave Bu...
The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.
High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz.
Muted turn on
Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Infrasonic filter
2/4 channel input switch
CEA-2006 Compliant:
CEA-2006 Power Rating
75Wx4 + 150Wx1 @ 4Ω
≤1.0% THD+N
Number of Channels:
5
Rated Power
(RMS Continuous Power):
75 Watts x 4 +
150 Watts x 1 @ 4-Ohm
125 Watts x 4 +
300 Watts x 1 @ 2-Ohm
N/A +
500 Watts @ 1-Ohm
Total Power
(Sum of Rated Power):
1000 Watts
Dynamic Power
(PVC/PowerCube®):
115 Watts x 4 +
299 Watts x 1 @ 4-Ohms 0° Res
190 Watts x 4 +
540 Watts x 1 @ 2-Ohms 0° Res
N/A +
863 Watts x 1 @ 1-Ohm 0° Res
Bridgeable:
Yes (front/rear channels)
Frequency Response:
Front/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Efficiency (average):
Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise):
Více informací o produktu
High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz.
Muted turn on
Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Infrasonic filter
2/4 channel input switch
CEA-2006 Compliant:
CEA-2006 Power Rating
75Wx4 + 150Wx1 @ 4Ω
≤1.0% THD+N
Number of Channels:
5
Rated Power
(RMS Continuous Power):
75 Watts x 4 +
150 Watts x 1 @ 4-Ohm
125 Watts x 4 +
300 Watts x 1 @ 2-Ohm
N/A +
500 Watts @ 1-Ohm
Total Power
(Sum of Rated Power):
1000 Watts
Dynamic Power
(PVC/PowerCube®):
115 Watts x 4 +
299 Watts x 1 @ 4-Ohms 0° Res
190 Watts x 4 +
540 Watts x 1 @ 2-Ohms 0° Res
N/A +
863 Watts x 1 @ 1-Ohm 0° Res
Bridgeable:
Yes (front/rear channels)
Frequency Response:
Front/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Efficiency (average):
Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise):
