Relacart UR-260D

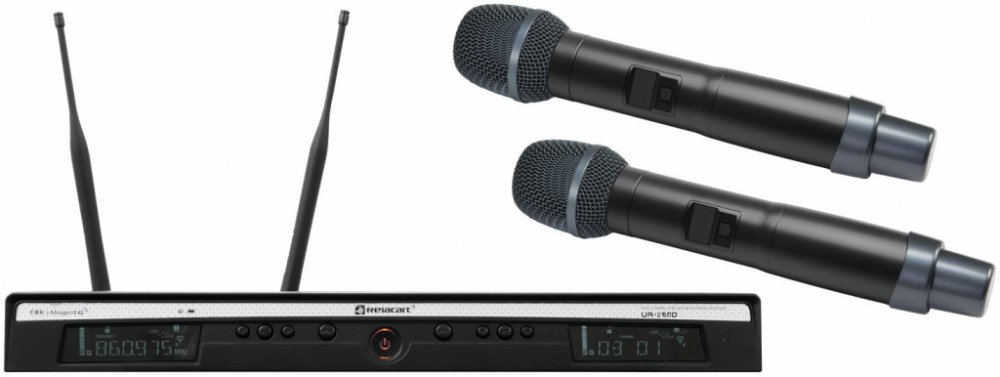

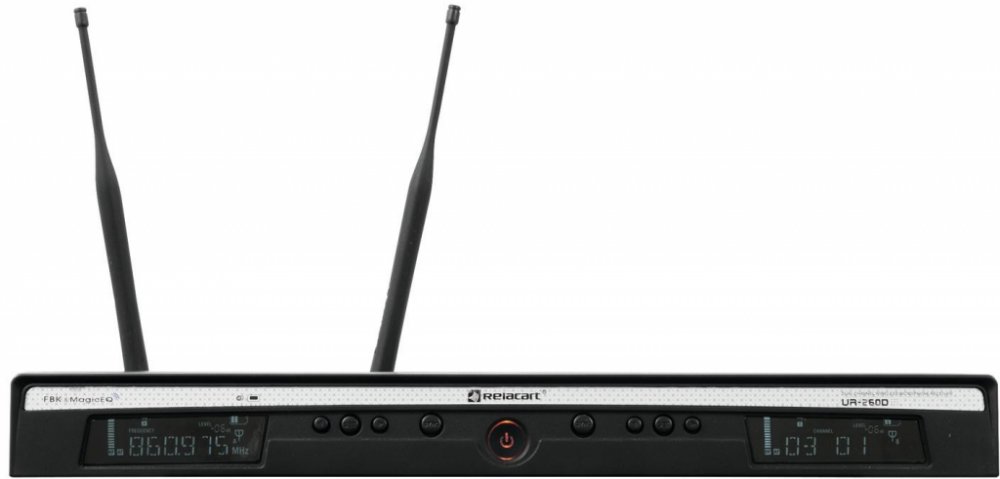

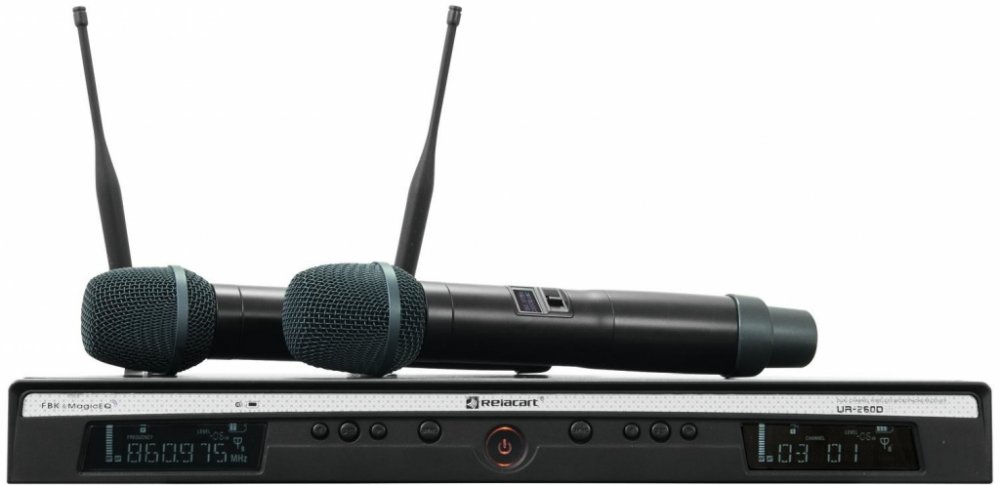

2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality. Integrated MagicEQ enables amazing microphone modeling of hand-held microphones. Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets. Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone. DSP programming and management via Ethernet port and intuitively operated PC software. High-quality true diversity reception. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Parallel operation of up to 9 systems is possible without any interference. Pilot tone technology (PLL) and noise squelch for interference-free operation. Operation range with line of sight approx. 80 meters. Automatic frequency scan (AFS) finds interface-free channels. Infrared interface for easySystem: True diversity, 2 channels
Carrier frequencies: UHF 823-832 MHz and 863-865 MHz
Receiving frequencies: 90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth: 11 MHz
Deviation: 45 kHz
Frequency stability: 0.0005 %
T.H.D.: 100 dB
Modulation method: FM
Coverage: 80 m (with line-of-sight)
Frequency range: 45-18000 Hz (3 dB)
Sensitivity: 5 dBV (S/N >60 dB at 25 deviation)
Audio output: 2 x XLR, bal.
6.3 mm jack, unbal.
Antenna inputs: 2 x BNC (supply 8 V/150 mA)
Communication: LAN (TCP/IP)
for DSP programming via Ethernet
Signal processor: 96 kHz, 24 bits
Power supply: 12 V DC, 1 A
via supplied power unit connected to 100-240 V AC, 50/60 Hz
Power consumption: 12 W
Dimensions: 410 x 43 x 225 mm
Rack installation with 1 U
with supplied mounting brackets
Weight: 2 kg2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality. Integrated MagicEQ enables amazing microphone modeling of hand-held microphones. Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets. Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone. DSP programming and management via Ethernet port and intuitively operated PC software. High-quality true diversity reception. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Parallel operation of up to 9 systems is possible without any interference. Pilot tone technology (PLL) and noise squelch for interference-free operation. Operation range with line of sight approx. 80 meters. Automatic frequency scan (AFS) finds interface-free channels. Infrared interface for easySystem: True diversity, 2 channelsCarrier frequencies: UHF 823-832 MHz and 863-865 MHzReceiving frequencies: 9010 frequency banks with up to 10 preset frequencies eachSwitching bandwidth: 11 MHzDeviation: 45 kHzFrequency stability: 0.0005 %T.H.D.: 100 dBModulation method: FM Coverage: 80 m (with line-of-sight)Frequency range: 45-18000 Hz (3 dB)Sensitivity: 5 dBV (S/N >60 dB at 25 deviation) Audio output: 2 x XLR, bal.6.3 mm jack, unbal.Antenna inputs: 2 x BNC (supply 8 V/150 mA)Communication: LAN (TCP/IP)for DSP programming via EthernetSignal processor: 96 kHz, 24 bitsPower supply: 12 V DC, 1 A via supplied power unit connected to 100-240 V AC, 50/60 HzPower consumption: 12 WDimensions: 410 x 43 x 225 mmRack installation with 1 Uwith supplied mounting bracketsWeight: 2 kg
