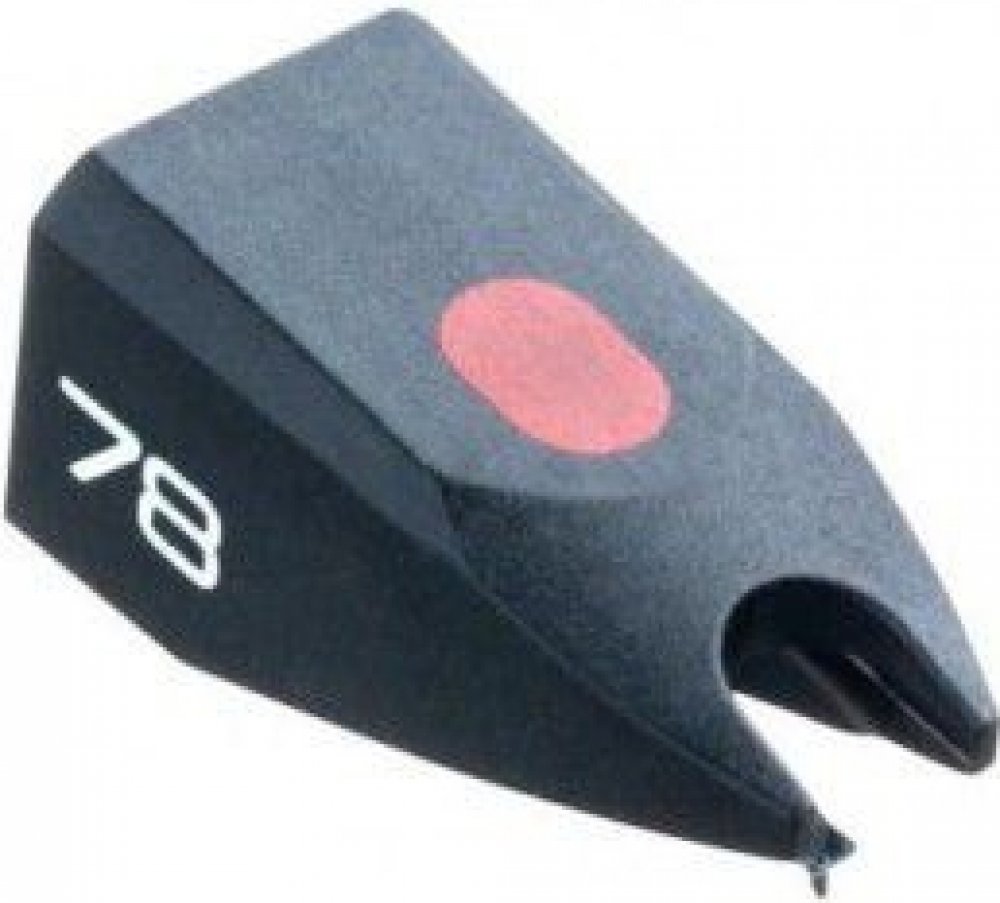

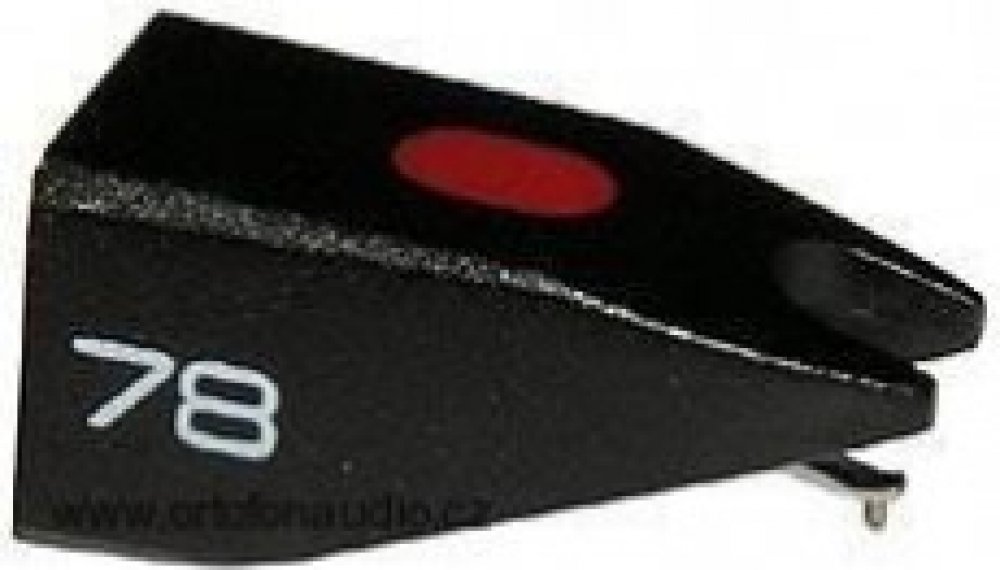

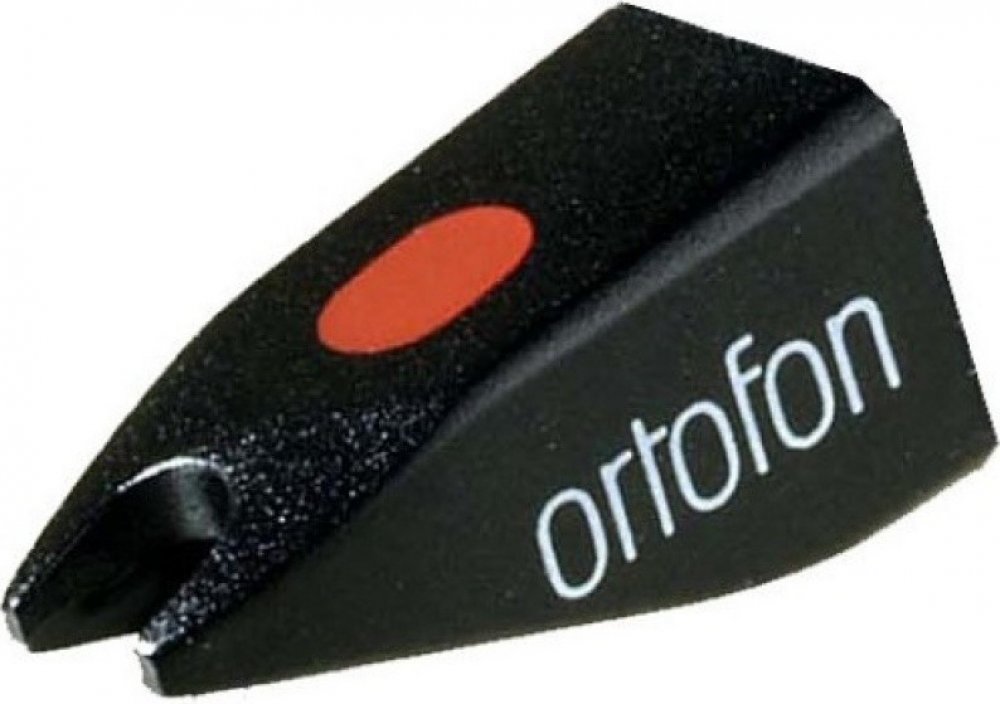

Ortofon Stylus 78

Náhradní hrot

Podmínkou uplatnění záruky je odborná instalace a nastavení výrobku provedená specializovanou organizací.

All Super OM, OM, OMP, TM, Concorde cartridges for playing 78 r.p.m.records

Stylus 78
Technical data

Frequency range
20-15.000 Hz
Frequency response
20-12.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *)
60 µm
Compliance, dynamic, lateral
15 µm/mN
Stylus type
spherical
Stylus tip radius
 65µm
Equivalent stylus tip mass
0,5 mg
Tracking force range
1,75-2,25 g (17,5-22,5 mN)
Tracking force, recommended
2,0 g (20 mN)
Tracking angle
20°
Stylus colour
Black


Recommended for following cartridges
All Super OM, OM, OMP, TM, Concorde cartridges for playing 78 r.p.m. records
