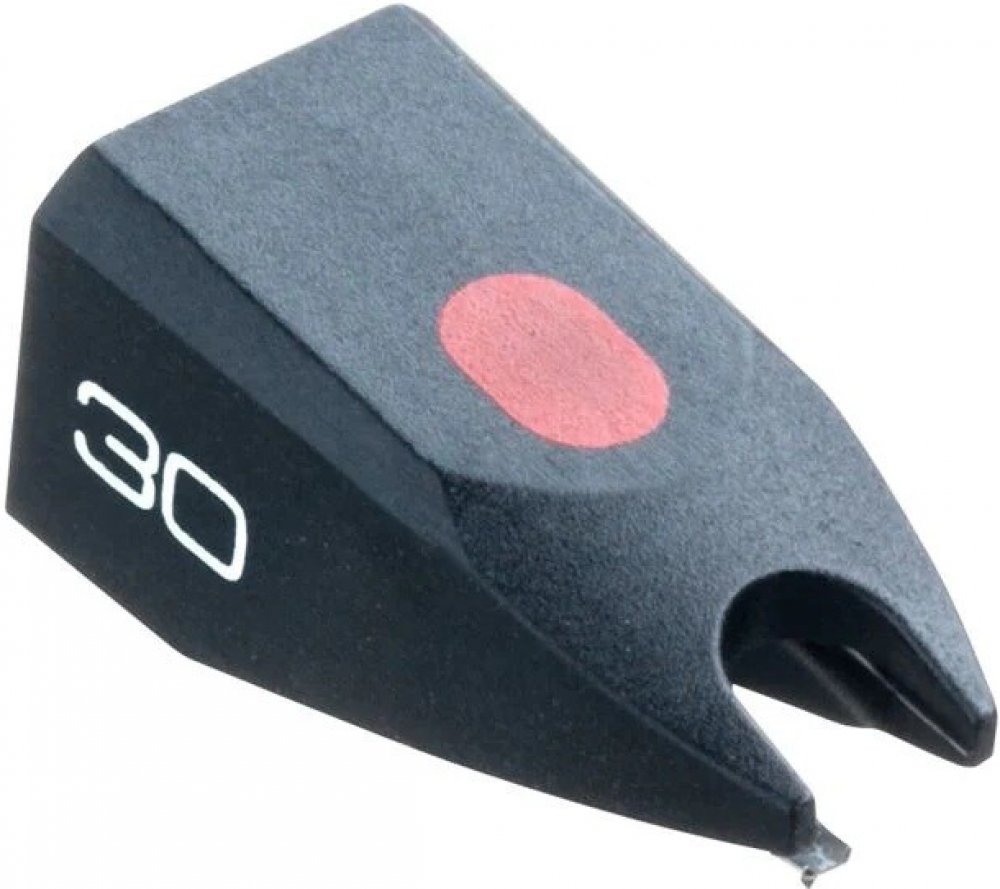

Ortofon Stylus 30

Náhradní hrot

Podmínkou uplatnění záruky je odborná instalace a nastavení výrobku provedená specializovanou organizací.


Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM30H,TM 30H


Stylus 30

Technical data

Frequency range
20-29.000 Hz
Frequency response
20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *)
90 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Nude Fine LIne
Stylus tip radius
r/R 8/40 µm
Equivalent stylus tip mass
0,3 mg
Tracking force range
1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended
1,5 g (15 mN)
Tracking angle
20°
Stylus colour
Black


Recommended for following cartridges
Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H
