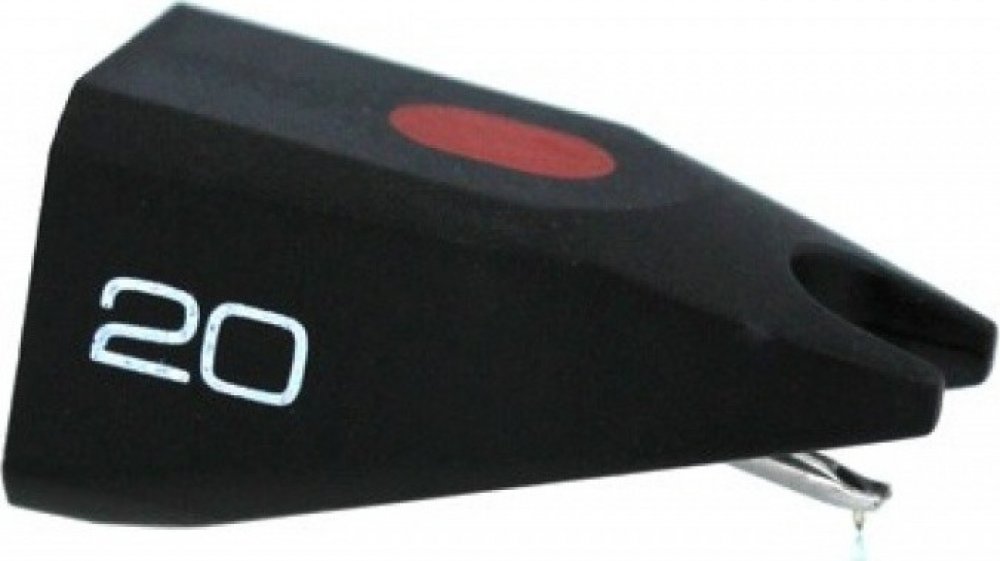

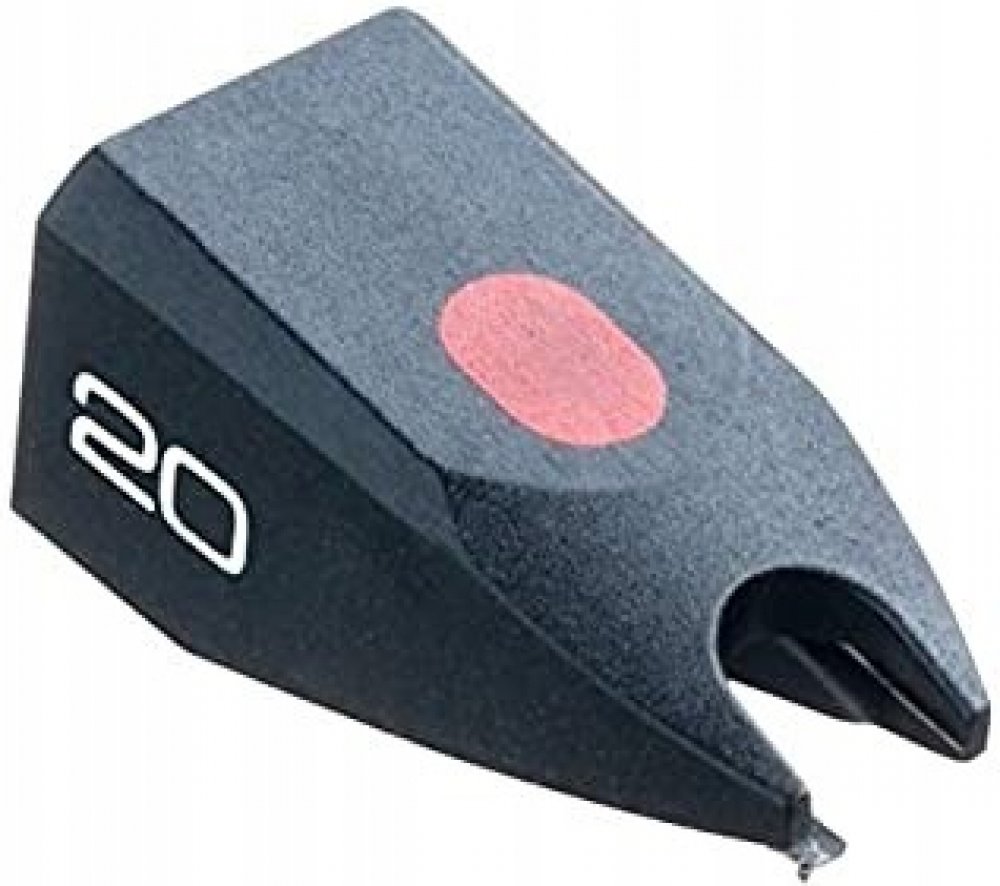

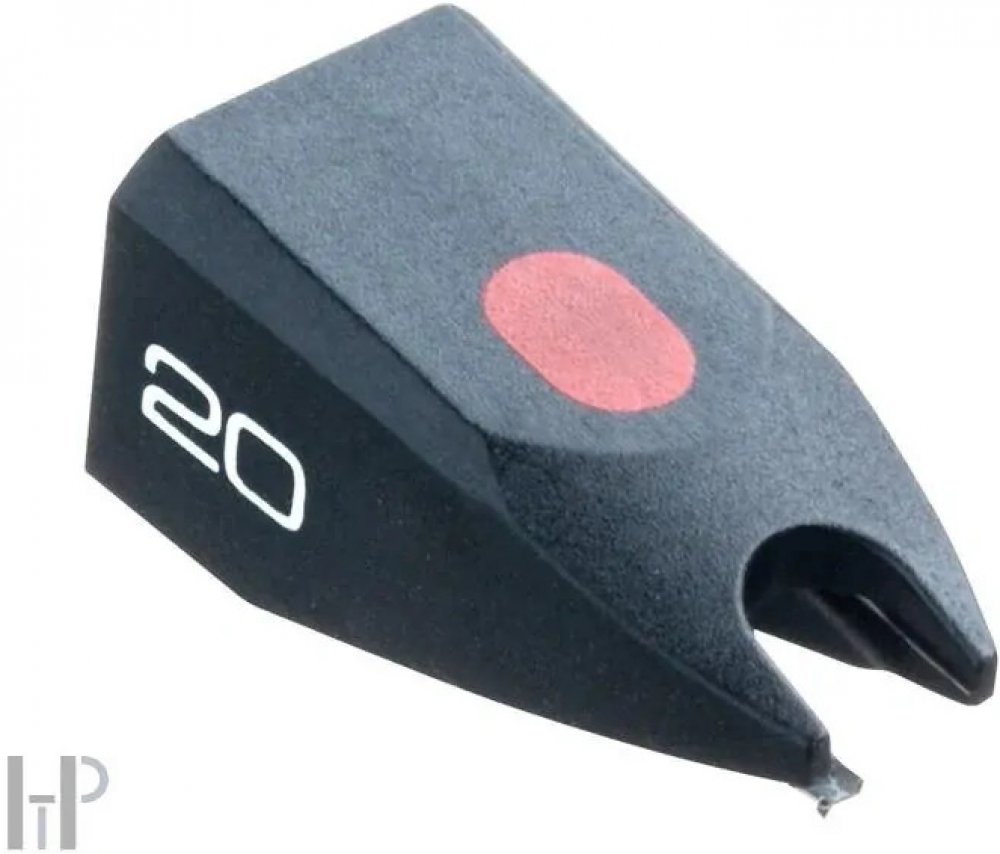

Ortofon Stylus 20

Náhradní hrot


Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U,TM 20H


Podmínkou uplatnění záruky je odborná instalace a nastavení výrobku provedená specializovanou organizací.

Stylus 20

Technical data

Frequency range
20-27.000 Hz
Frequency response
20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *)
80 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Nude Elliptical
Stylus tip radius
r/R 8/18 µm
Equivalent stylus tip mass
0,4 mg
Tracking force range
1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended
1,50 g (15 mN)
Tracking angle
20°
Stylus colour
Black


Recommended for following cartridges
Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
