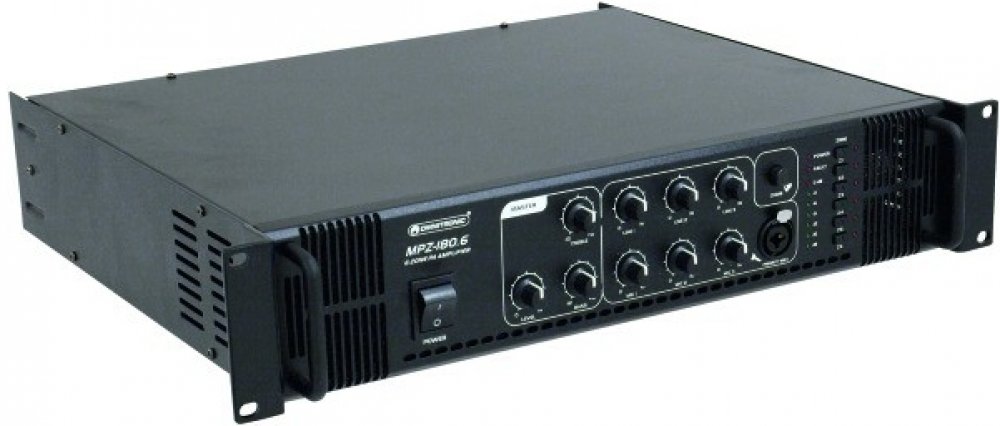

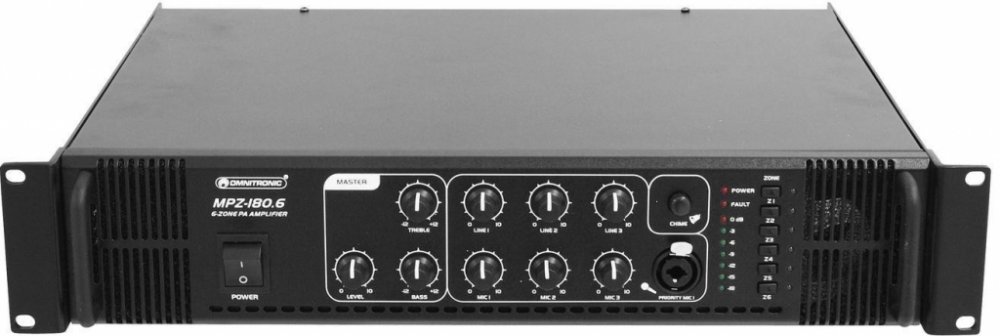

Omnitronic MPZ-180.6

Enormous reliability with a maximum of flexibility The Omnitronic MPZ-180.6 ELA mixer amplifier is your reliable partner for ELA sound reinforcement systems. Thanks to its 19'' format, it is ideally suited for both mobile and permanent installations. Outputs for ELA loudspeakers with 70 V and 100 V audio transformers or 4-16- Ohm loudspeakers leave nothing to be desired. In addition, you can also connect a device with line level (e.g. mixing console) to the line output. With 6 mixable inputs you are always flexible. Connect up to 3 microphones and 3 line level devices. Control your ELA speakers conveniently via the 6 zone outputs of the MPZ-180.6. They can be switched separately on the front panel. For you, this means the greatest possible adaptability when implementing your sound reinforcement concept.Make yourself heard! The microphone input at the front has an adjustable priority switch. It allows you to make important announcements with automatic, continuously adjustable level reduPower supply: 230 V AC, 50 Hz
Power consumption: 360,00 W
Frequency range: 80 - 16000 Hz
Power connection: Fixed Power supply cord with safety plug
Impedance: 100 V ELA
Output power: 180 W RMS
Housing design: (19'') 48.3 cm rack installation 2 U
Width: 48,3 cm
Height: 8,9 cm
Depth: 38,5 cm
Weight: 10,00 kg
Output type: 70 V, 100 V or 4-16 ohms
Output current: 2.5 A (70 V), 1.8 A (100 V)
Mic inputs: 5 mV, 600 ohms
Line inputs: 300 mV, 10 kohms
Speaker connectors: Screw connectors, terminal block
Distortion: 0.5 % (1 kHz)
S/N ratio: 85 dB (line), 75 dB (mic)
