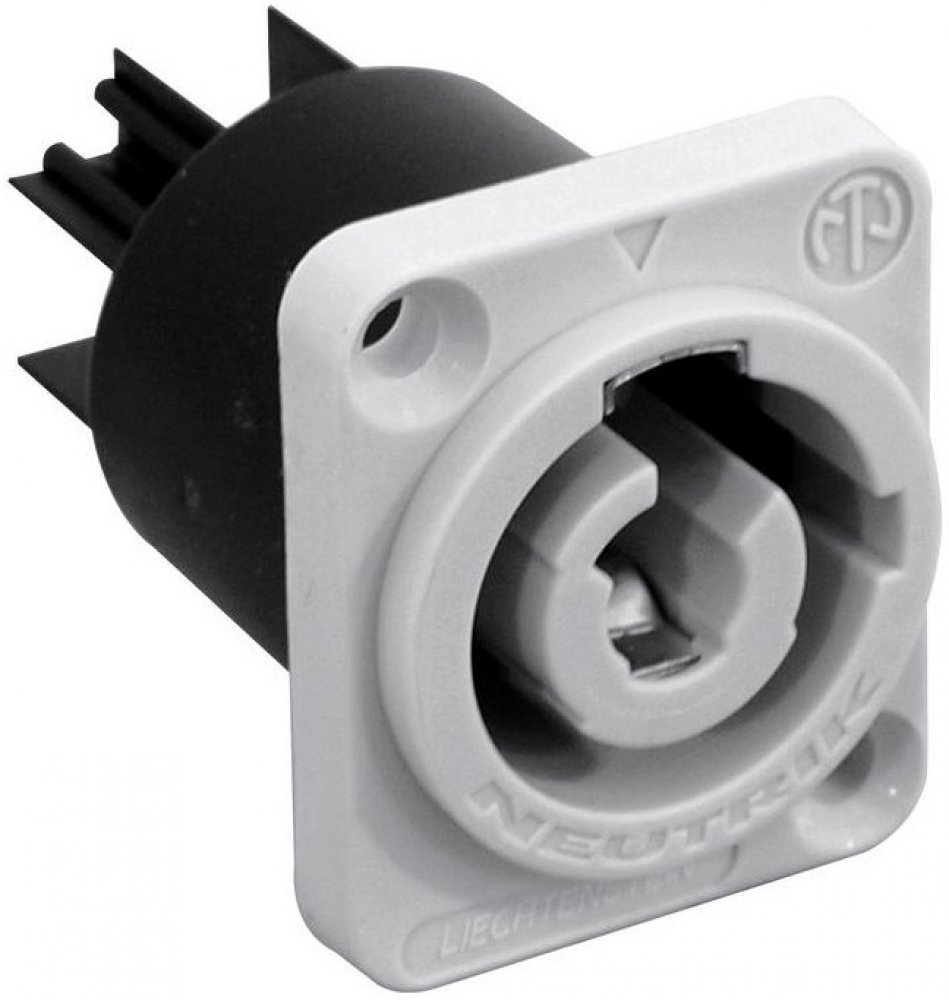

Neutrik PowerCon grey panel NAC3 MPB-1
Neutrik
NEUTRIK chassis connectorPremating safety ground
Quicklock with securing lever
Cable O.D. range: 5 - 15 mm
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
Appropriate plugs are identified by mechanical keyways and by color
Connector type: Powercon (gray)
Plug construction: Mounting version
Made in Europe .spc { line-height: 1.4;}Tec...
NEUTRIK chassis connectorPremating safety ground
Quicklock with securing lever
Cable O.D. range: 5 - 15 mm
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
Appropriate plugs are identified by mechanical keyways and by color
Connector type: Powercon (gray)
Plug construction: Mounting version
Made in Europe .spc { line-height: 1.4;}Technické parametryIP classification IP20
Weight 0,01 kg
Number of contacts 2 + PE
Rated current per contact 20 A RMS
Rated voltage 250 V AC
Dielectric strength 4000 V DC
Contact resistance
Insulation resistance after damp heat test >,100 Mohms
Creepage distance according to IEC 664-1
Cable retention force = 220 N, depending on cable dia and material
Wiring Flat tabs for FASTON 4.8 mm x 0.5 mm (0.187'' x 0.02'') or soldering
Solderability complies with IEC 68-2-20
Housing PA 6 30% GR
Insert PA 6 30% GR
Contacts CuZn39Pb3 / CuSn6
Contact surface L+N 20 m Ag plated, Earth 4 m Ag plated
Chuck POM
Temperature range -30C to +80C
Flammability UL94HB Velikost balení 3 x 2.5 x 4 cmHmotnost balení0.01 kg
