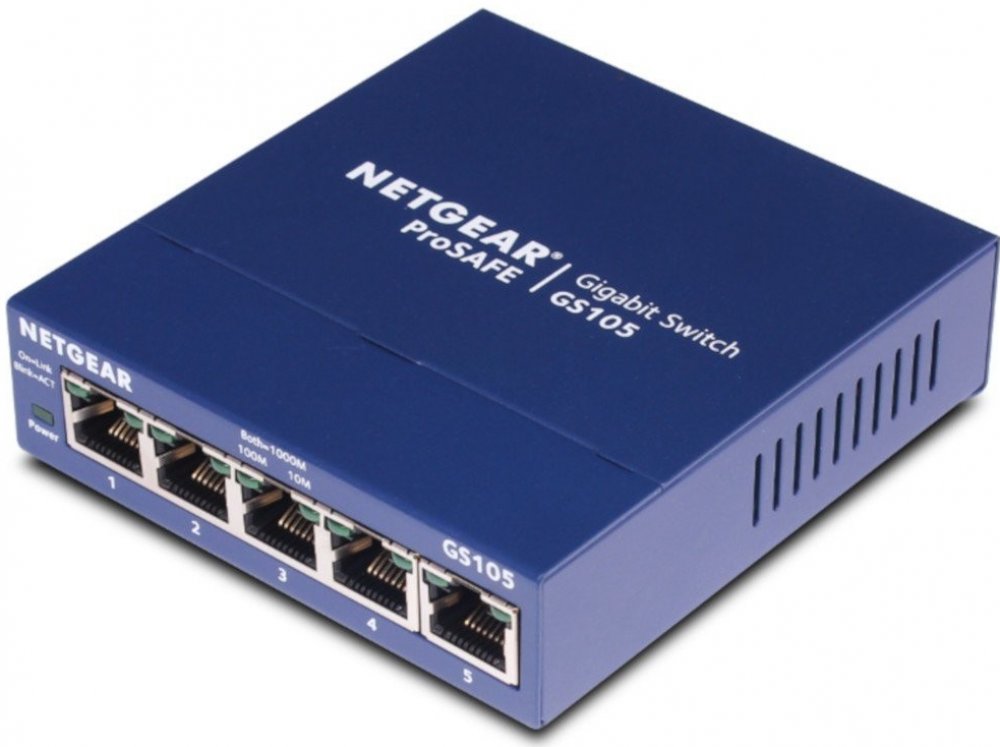

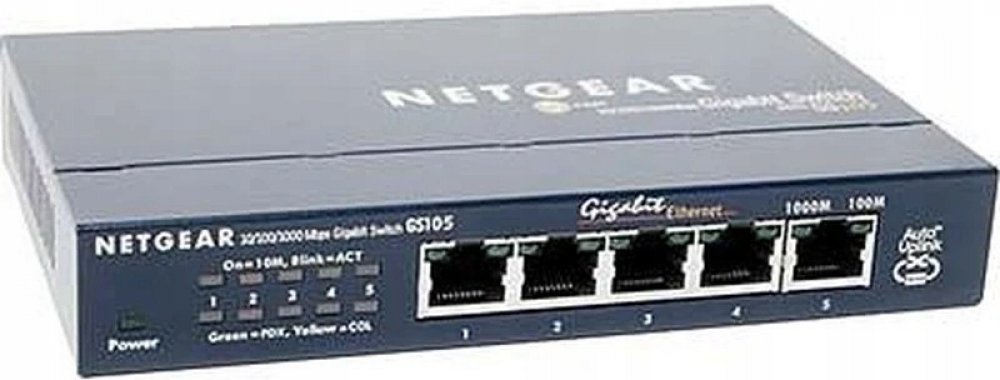

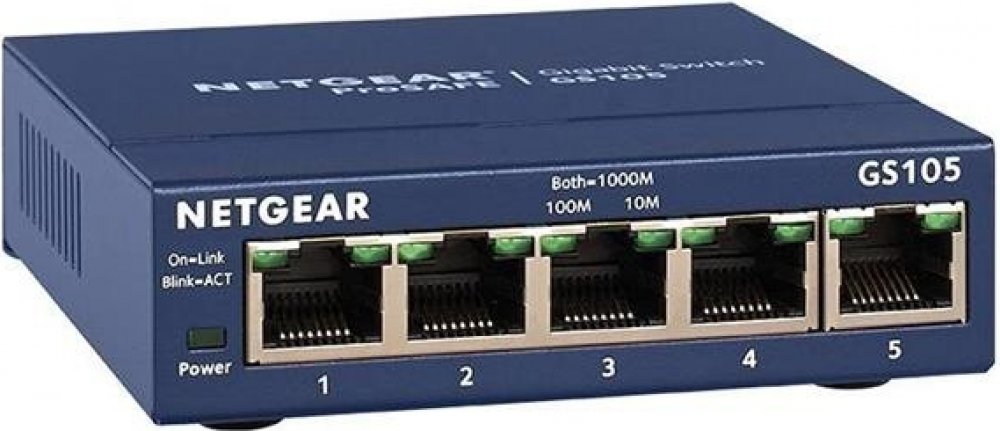

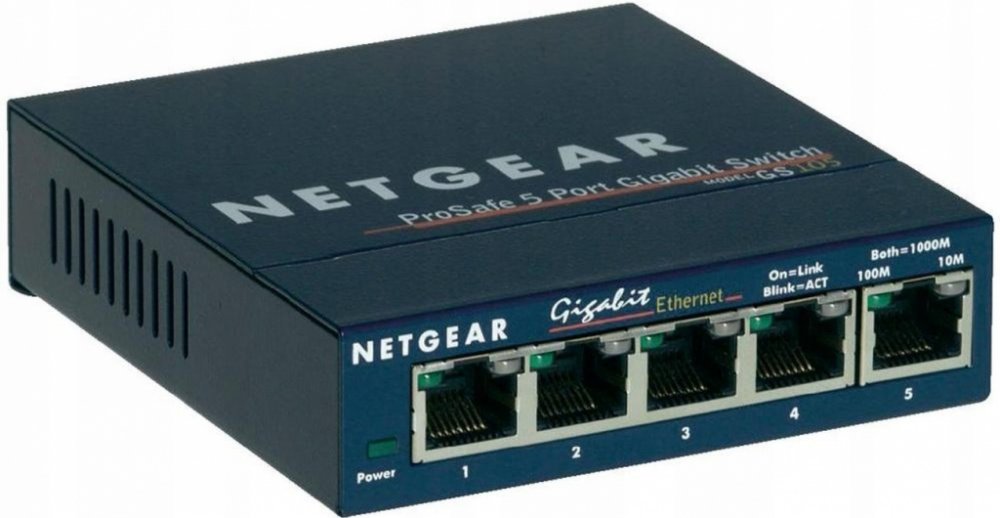

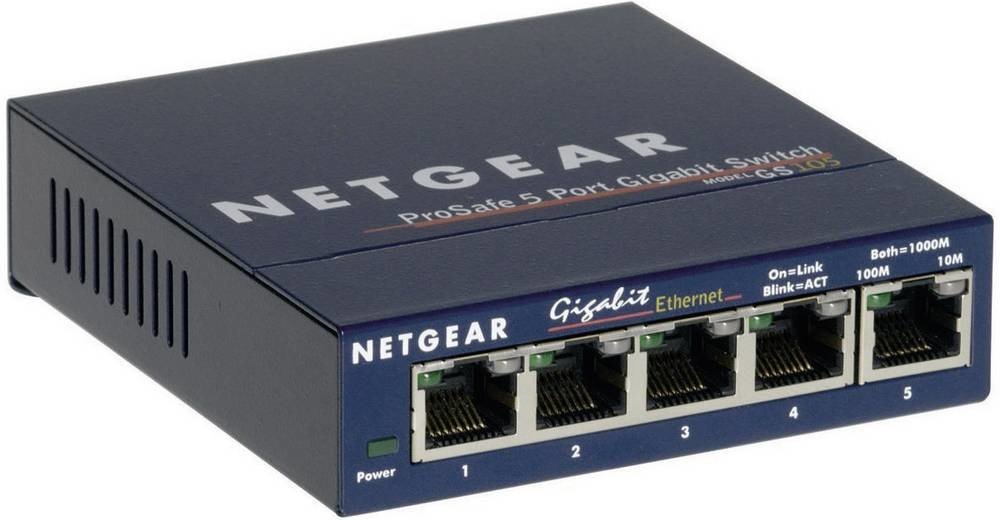

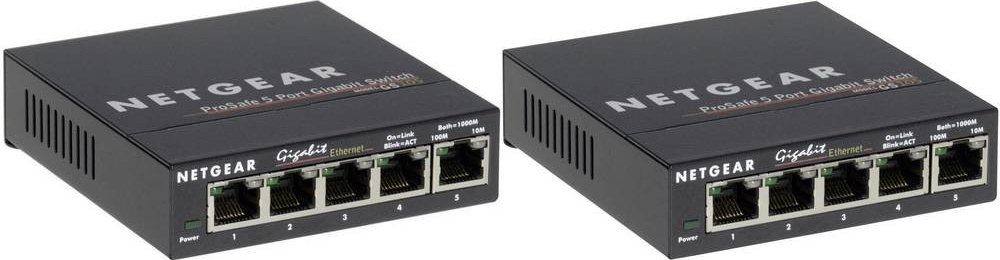

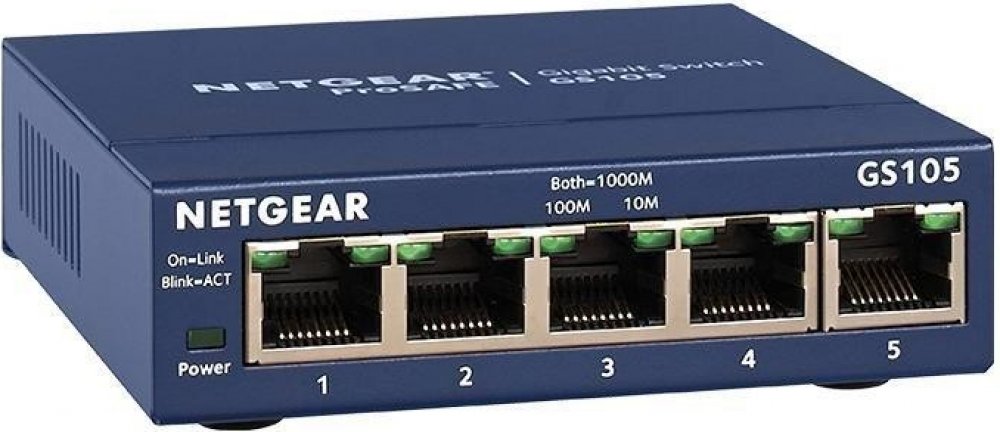

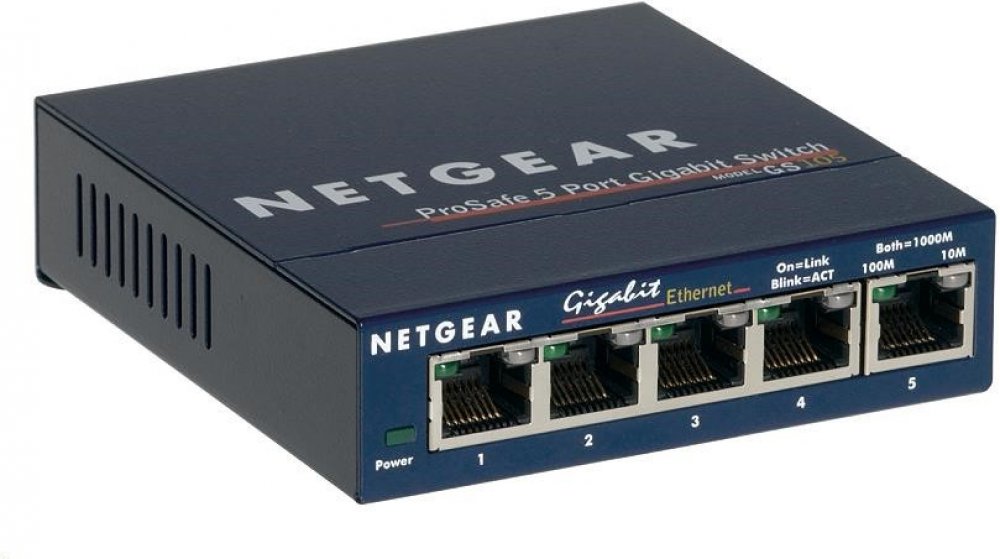

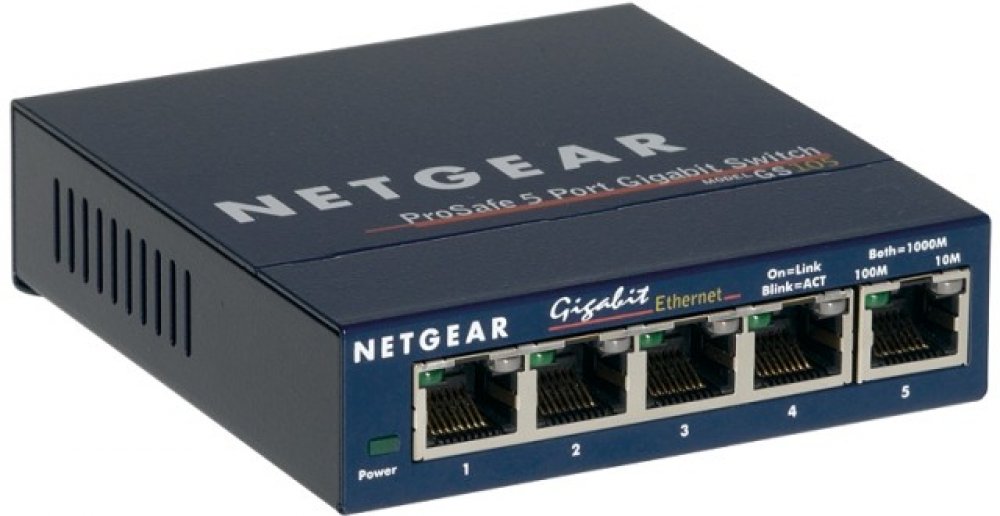

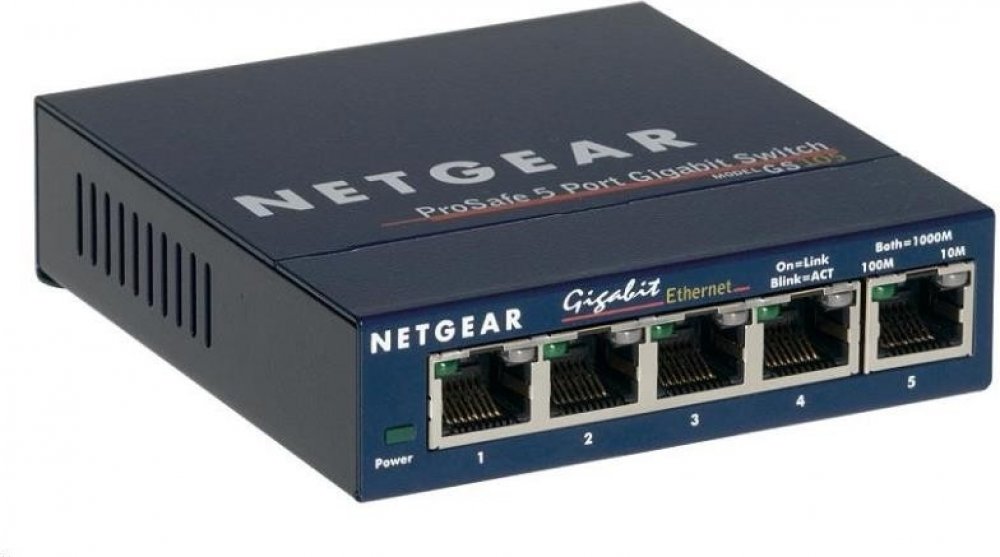

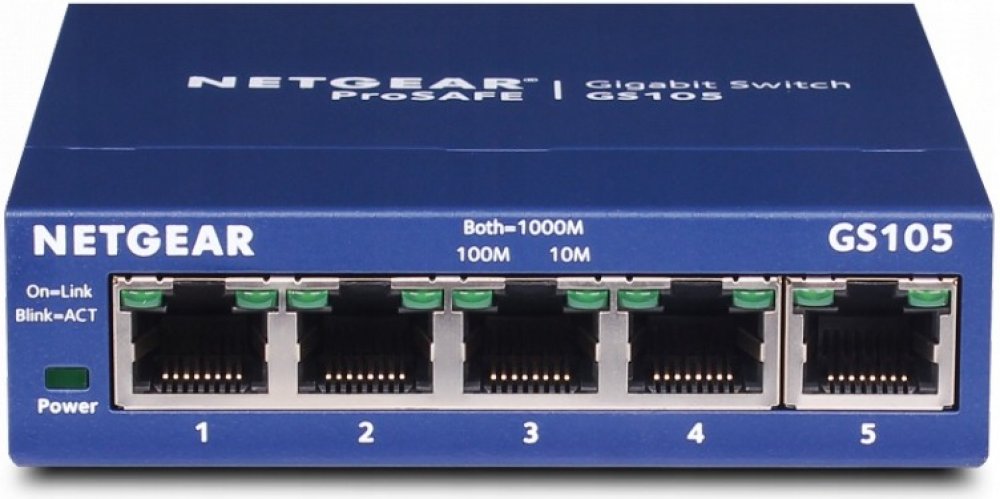

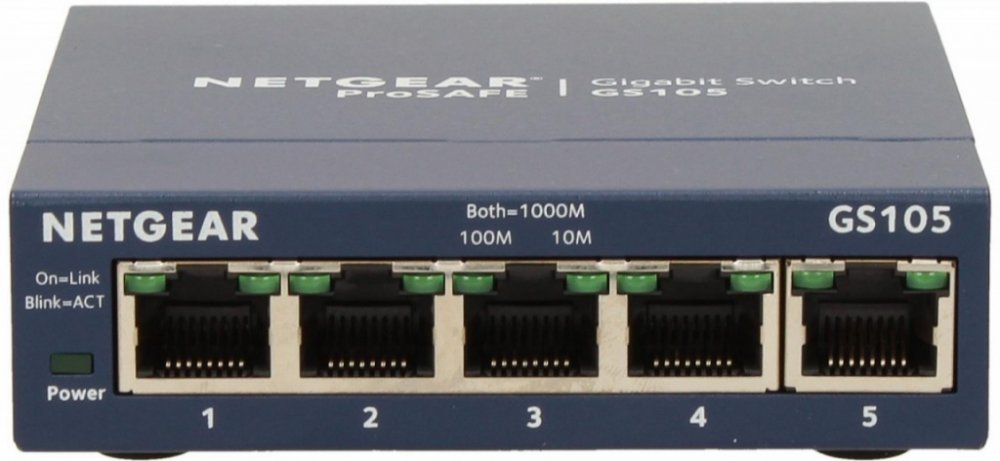

Netgear GS105GE

5 PORT GIGABIT DESKTOP SWITCH

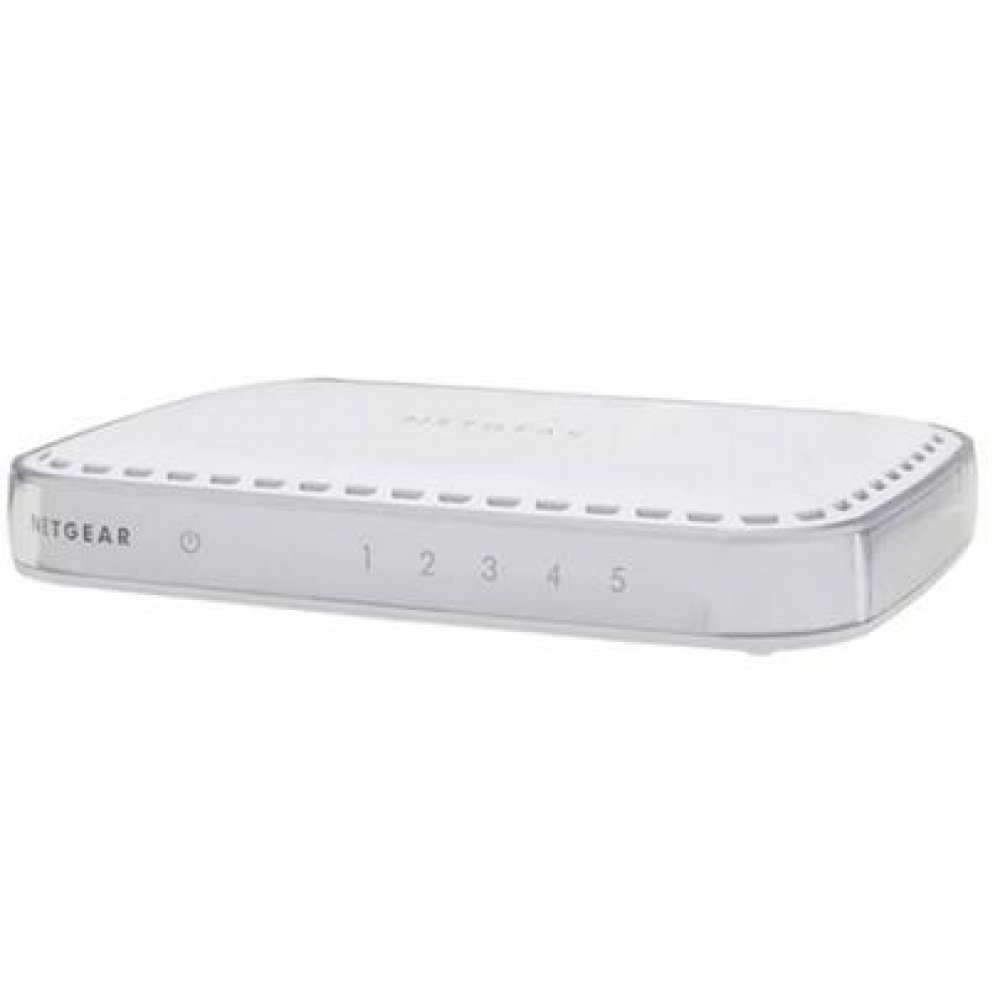

GS605
Provides maximum performance, connecting up to 10x faster than Fast Ethernet
Makes it simple to combine Fast Ethernet and Gigabit devices in your network
Incorporates Plug-and-Play ease of use
Physical Specifications
Dimensions (h x w x d): 1.1 x 5.8 x 3.8 in (28.6 x 147 x 95.7 mm)
Weight: 0.63 lbs (0.28 kg)
Network Ports
5 auto-speed-sensing UTP ports
Forwarding Mode
Store-and-Forward
Performance
Bandwidth: 10 Gbps (non-blocking)
Forward Rate (10 Mbps port): 14,800 packets/sec
Forward Rate (100 Mbps port): 148,000 packets/sec
Forward Rate (1000 Mbps port): 1,488,000 packets/sec
Latency (100 to 100 Mbps): 20 ms (max)
Latency (1000 to 1000 Mbps): 10 ms (max)
Packet Buffer Memory: 128 KB Embedded
MAC address database: 4,000
Status LEDs

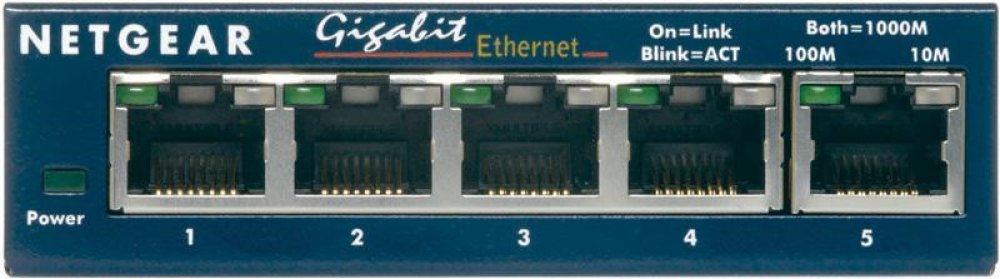

Power, Link, Speed, and Activity indicators for each port

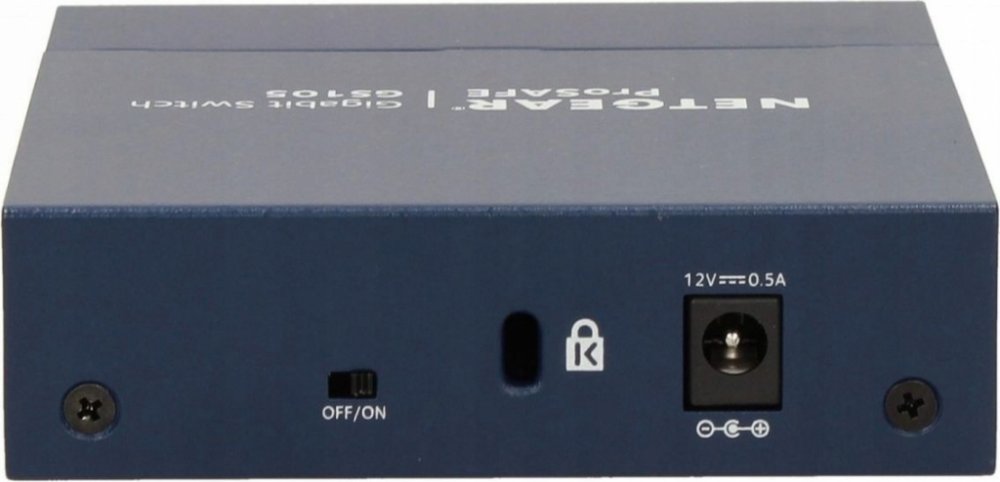

Power Adapter
12W, 12 VDC, 1A; plug is localized to country of sale
Standards Compliance
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Honors IEEE 802.1p priority tags
Jumbo Frame Support (9,000)
Safety Agency Approvals for Power Adapter
C-Tick, CE Mark
Emissions
FCC Class A and VCCI Class A
Environmental Specifications
Operating Temperature: 32 to 104o F (0 to 40o C)
Operating Humidity: 10 to 90% noncondensing
Package Contents
5-port and 8-port 10/100/1000 Mbps
Gigabit Ethernet Switch (GS605v3 or
GS608)
Vertical stand
Power adapter
Instrallation guide
Warranty/support information card
