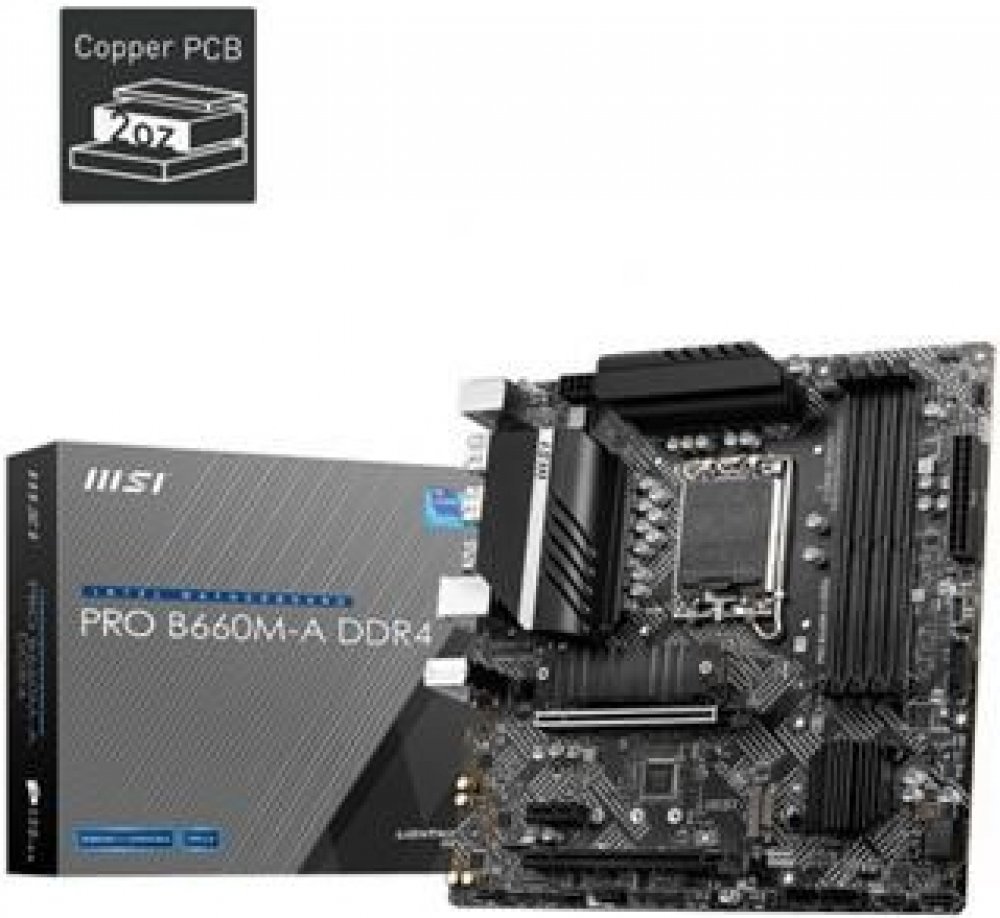

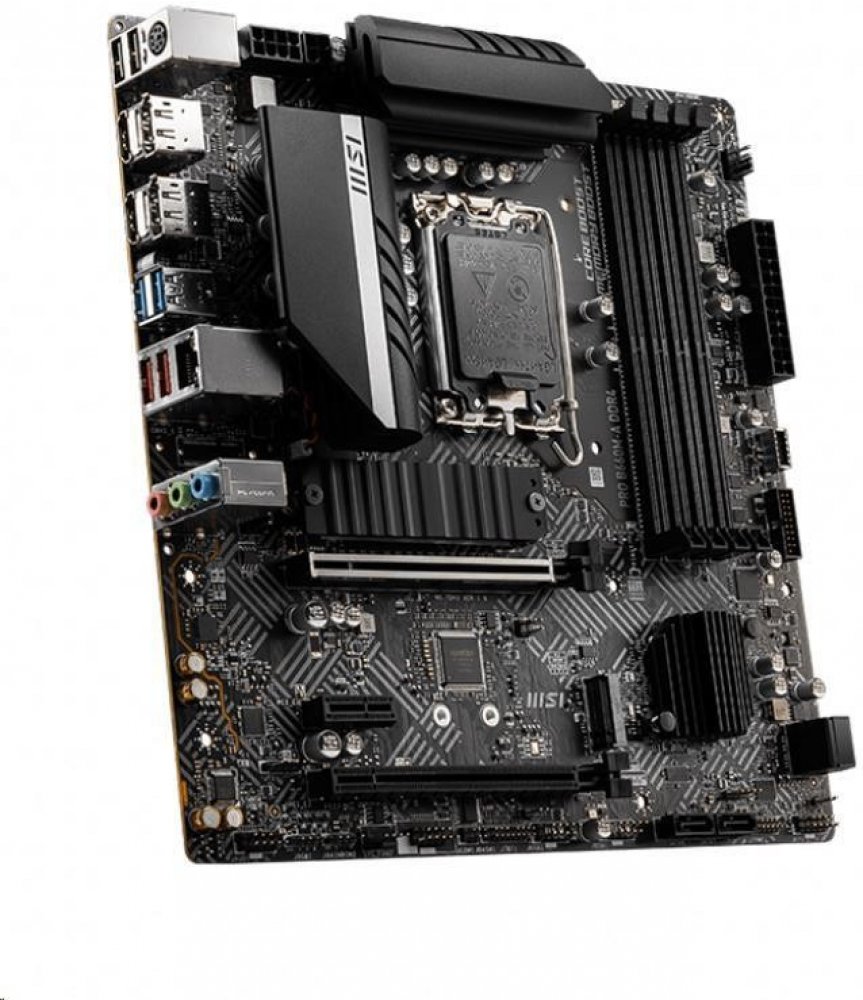

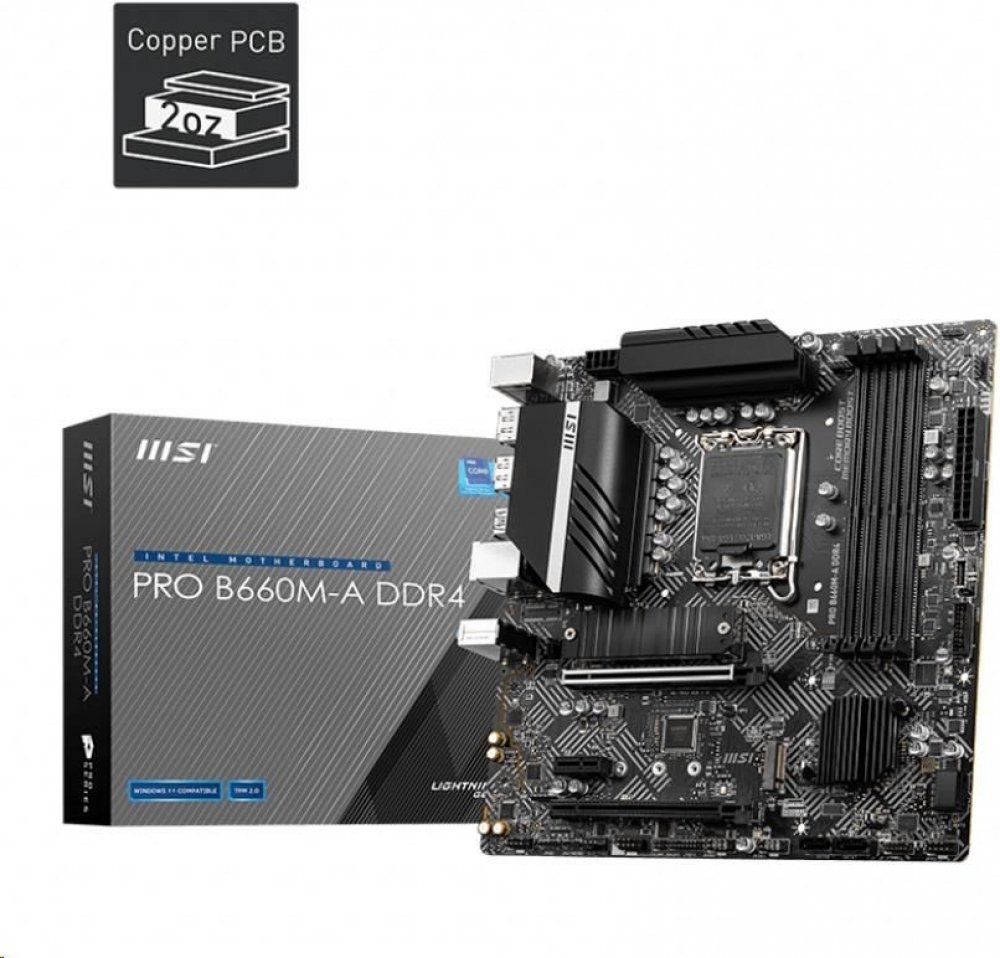

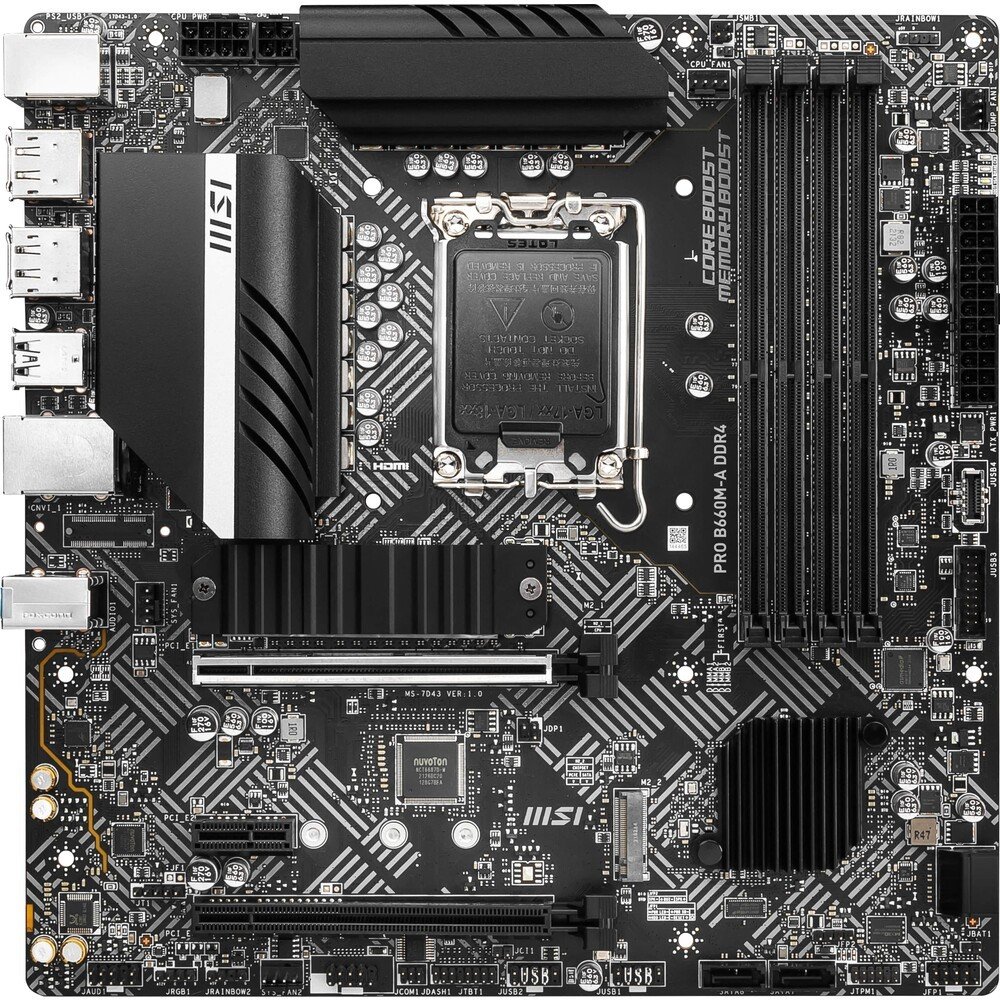

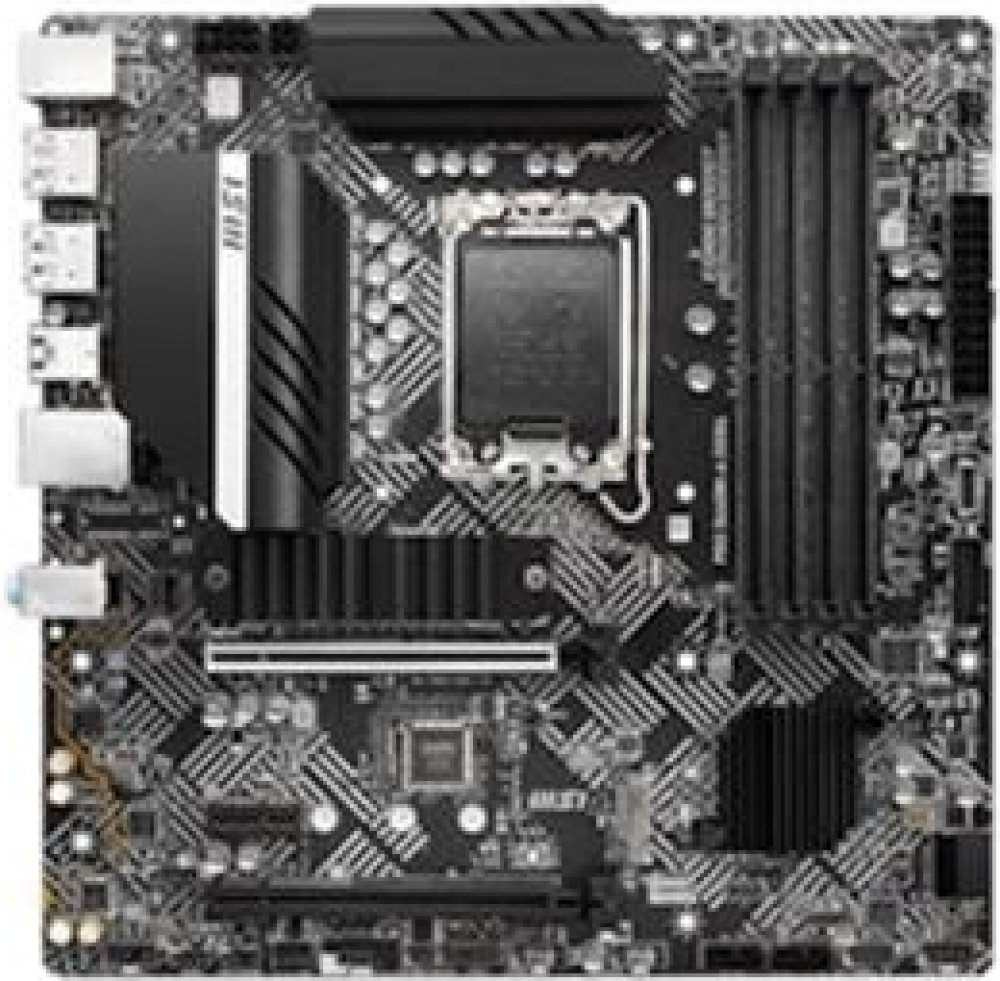

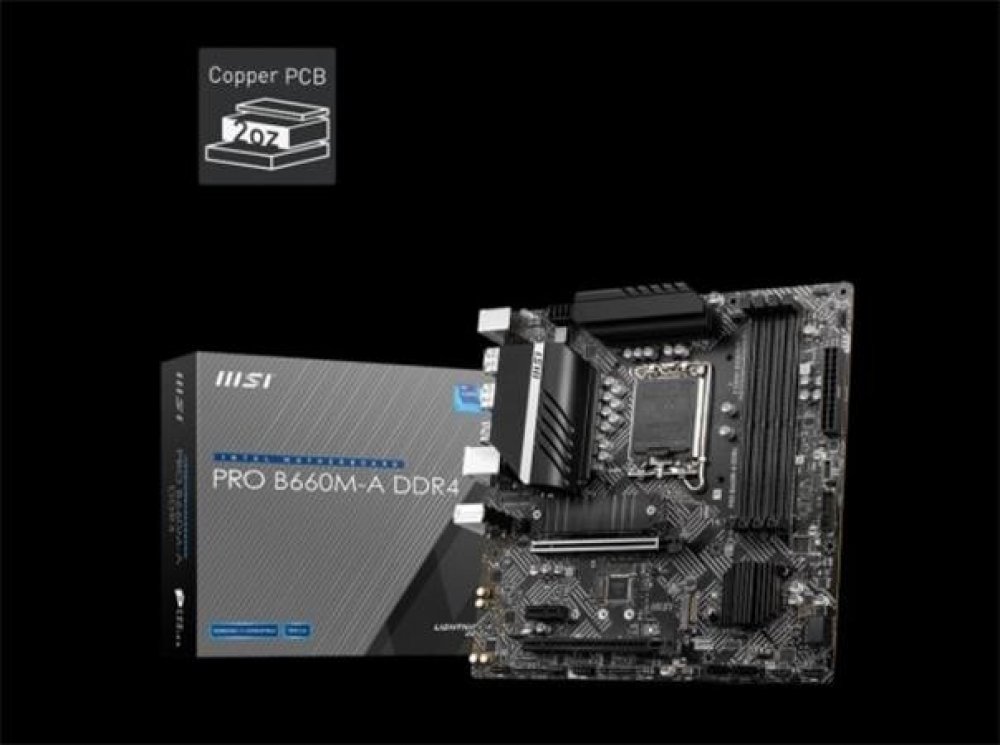

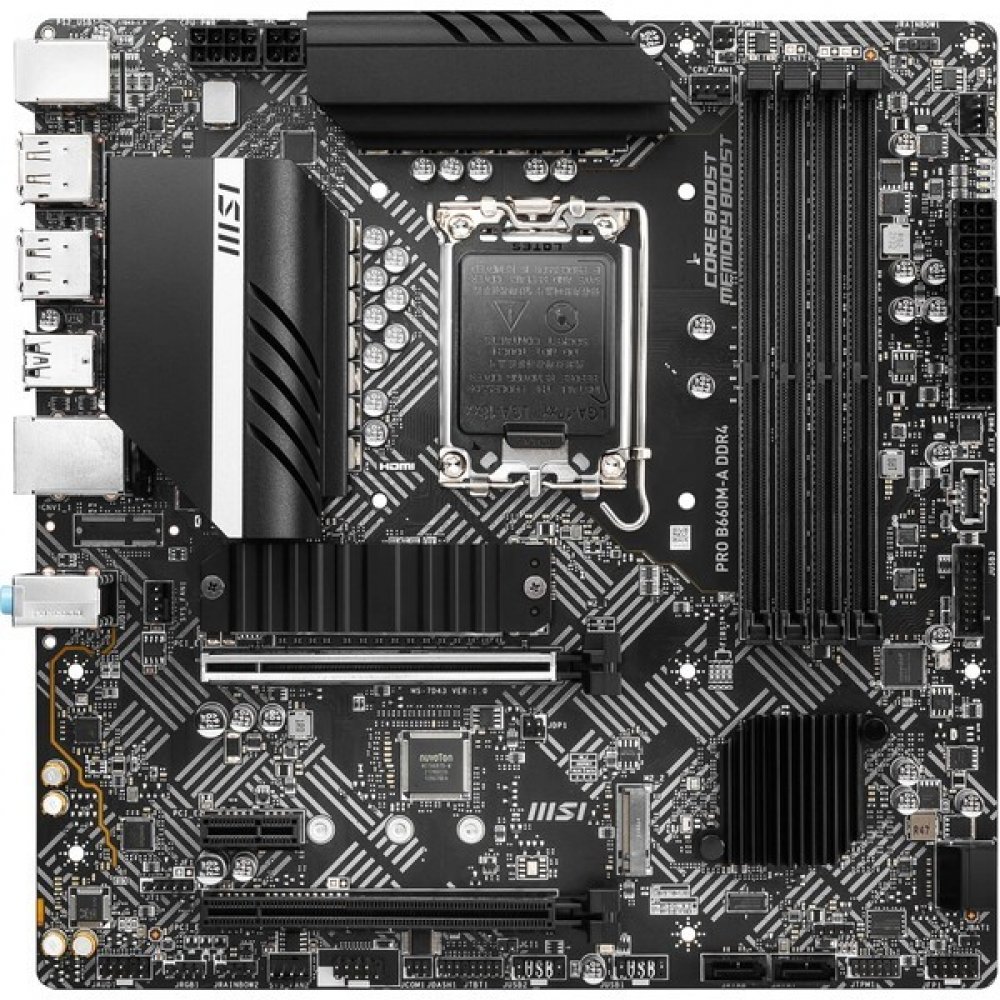

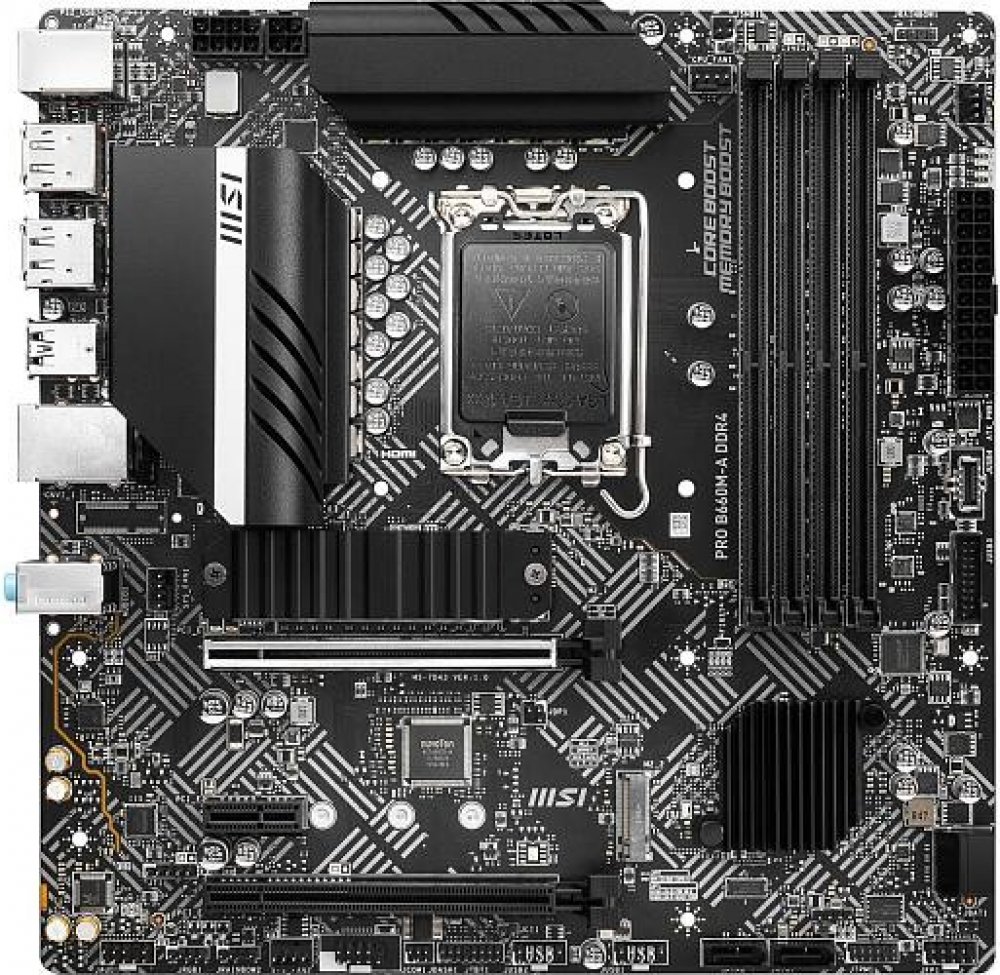

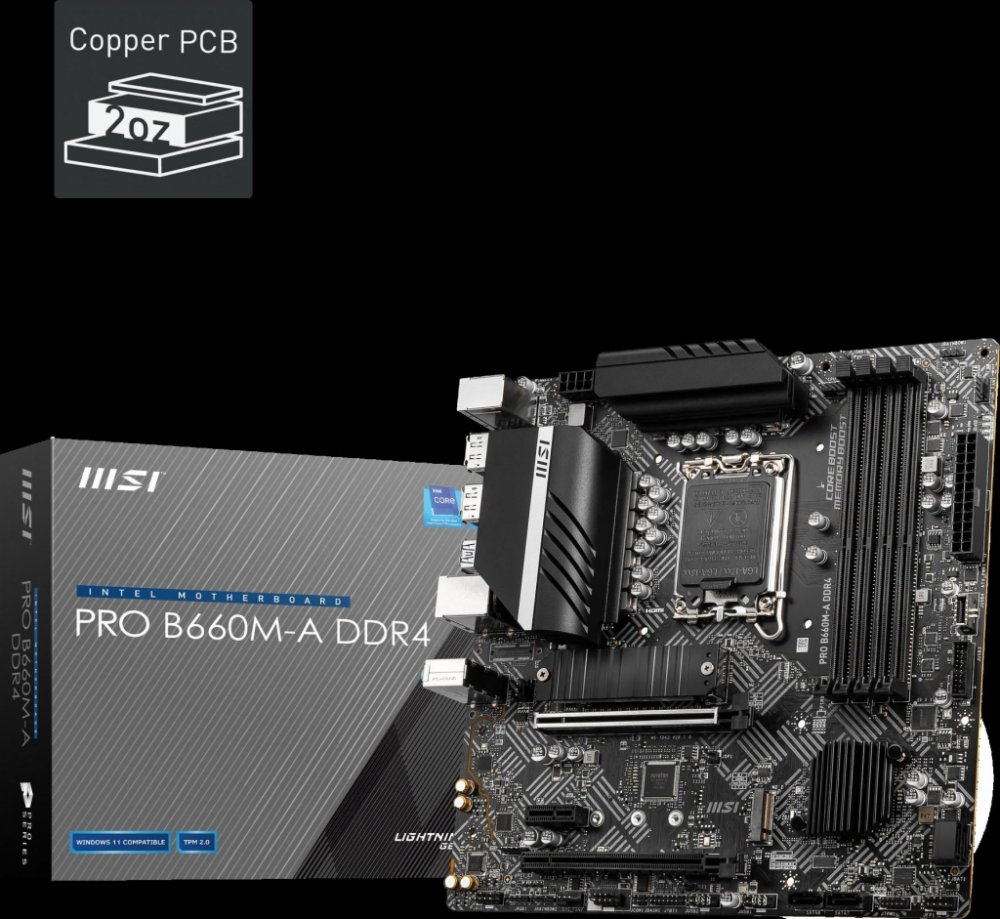

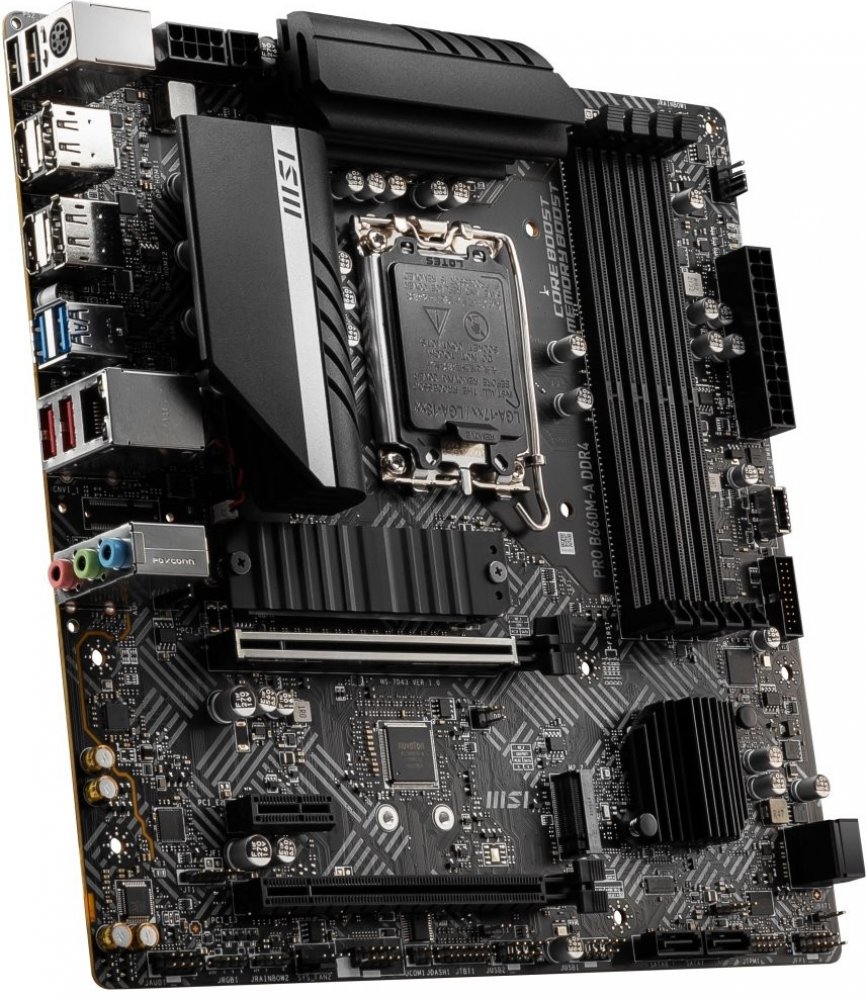

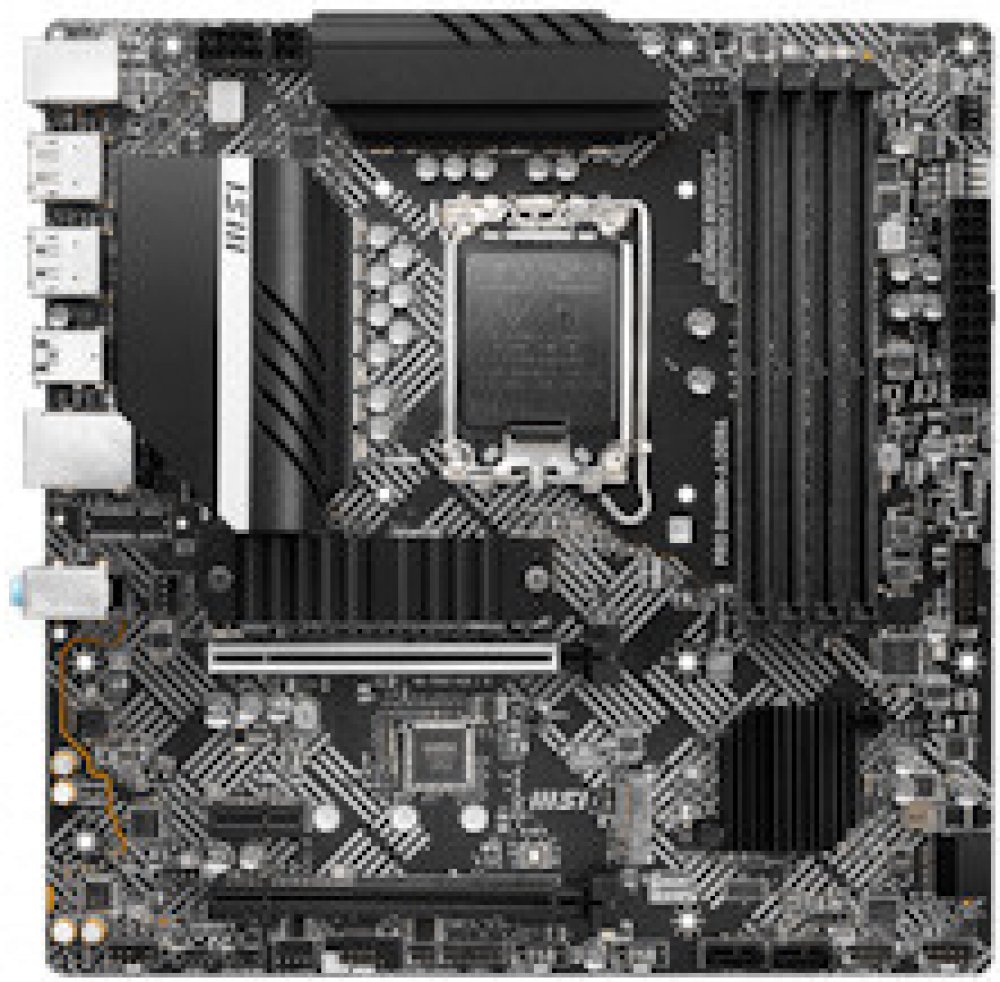

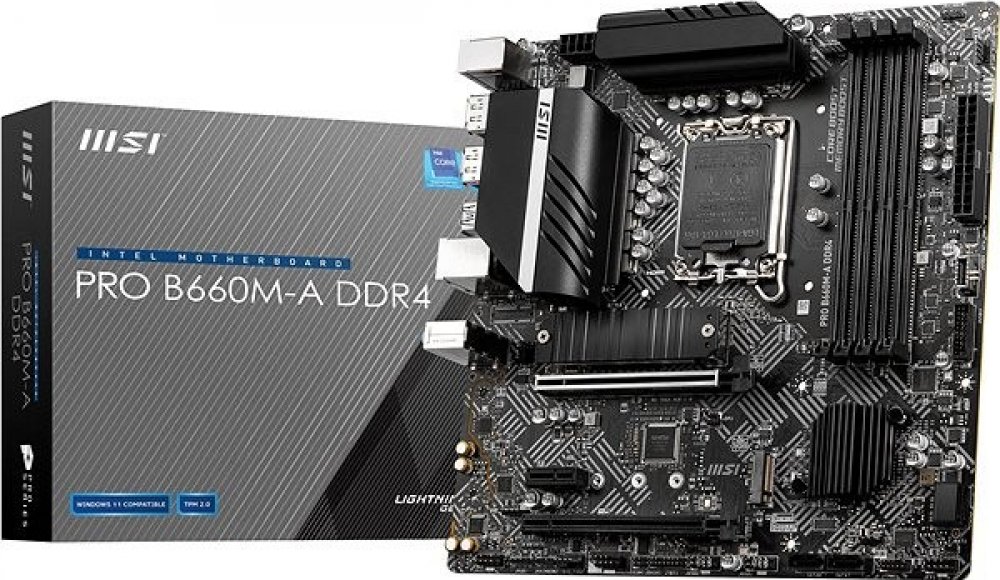

MSI PRO B660M-A DDR4

Socket 1700 MSI Intel B660 micro ATX (mATX) Intel 4 DDR4 4800 MHz 4 1 2 244 x 244 mm 2 2

Chipset: Intel B660 Chipset
Rozměrový formát: Micro-ATX (24.4 cm x 24.4 cm)
Podpora pro procesory: 12th Gen Intel Core Processors
Patice procesoru: LGA 1700
Pozice na paměti: 4x DDR4 memory slots, Dual-Channel mode
Podpora pro paměti: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP
Grafická karta: (na základě procesoru)
*2x HDMI 2.1
*2x DisplayPort 1.4 ports
Zvuková karta: Realtek ALC897 Codec
*7.1-Channel High Definition Audio
Síťová karta: 1x Realtek RTL8125BG 2.5Gbps LAN controller
Rozšiřující sloty:
*2x PCIe x16 slots
*1x PCIe 3.0 x1 slot
RAID řadič: RAID 0, RAID 1, RAID 5 and RAID 10
SATA: 4x SATA 6Gb/s ports
M.2: 2x M.2 slots
USB:
*Interní:
*1x USB 3.2 Gen 1 5Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*Externí:
*2x USB 2.0
*2x USB 3.2 Gen 1 5Gbps Type-A
*2x USB 3.2 Gen 2 10Gbps Type-A
Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x 4-pin ATX 12V power connector
*4x SATA 6Gb/s connectors
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 1 5Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*2x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Chassis Intrusion connector
*1x TPM module connector
*1x Clear CMOS jumper
*1x TBT connector (supports RTD3)
*1x Serial port
*1x Tuning Controller connector
Externí porty:
*Keyboard / Mouse
*2x DisplayPort
*2x HDMI
*2x USB 2.0
*2x USB 3.2 Gen 1 5Gbps Type-A
*2x USB 3.2 Gen 2 10Gbps Type-A
*1x LAN port
*Audio connector
BIOS: AMI BIOS 7D43v10
Stránka výrobce: http://www.msi.com/Motherboard/PRO-B660M-A-DDR4/Overview
