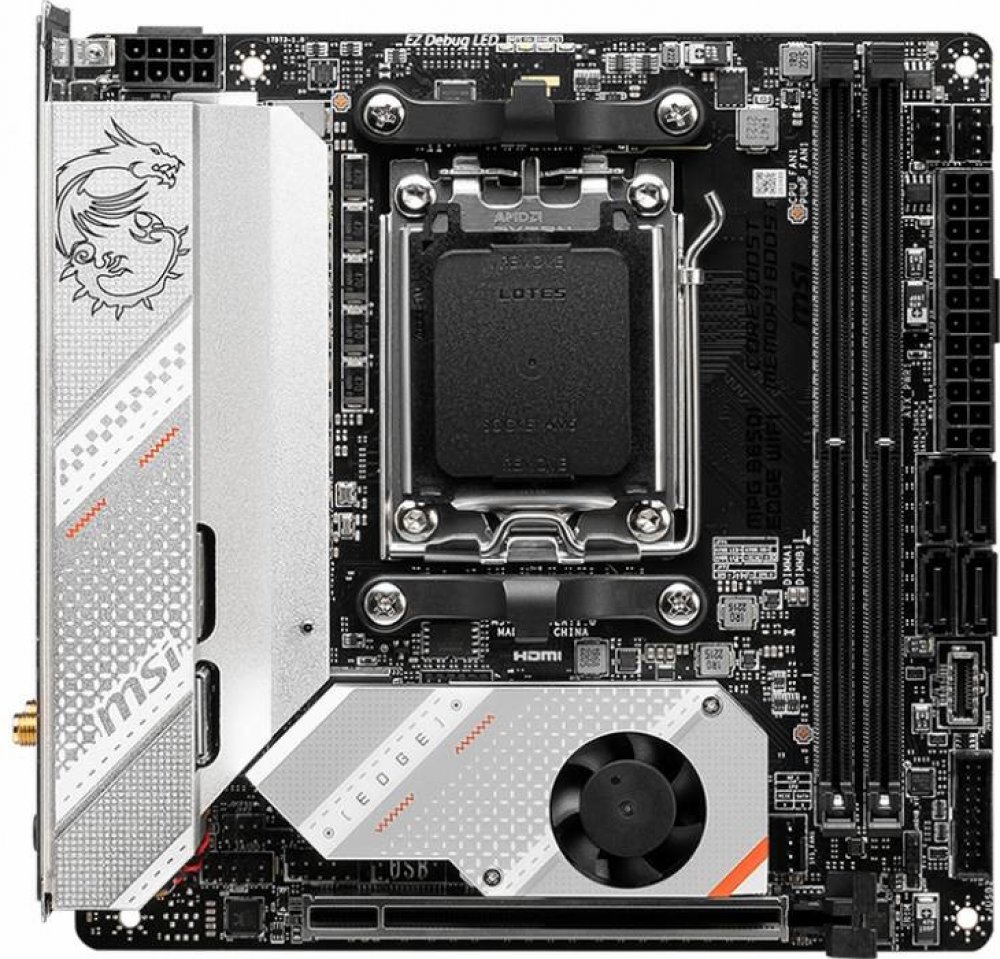

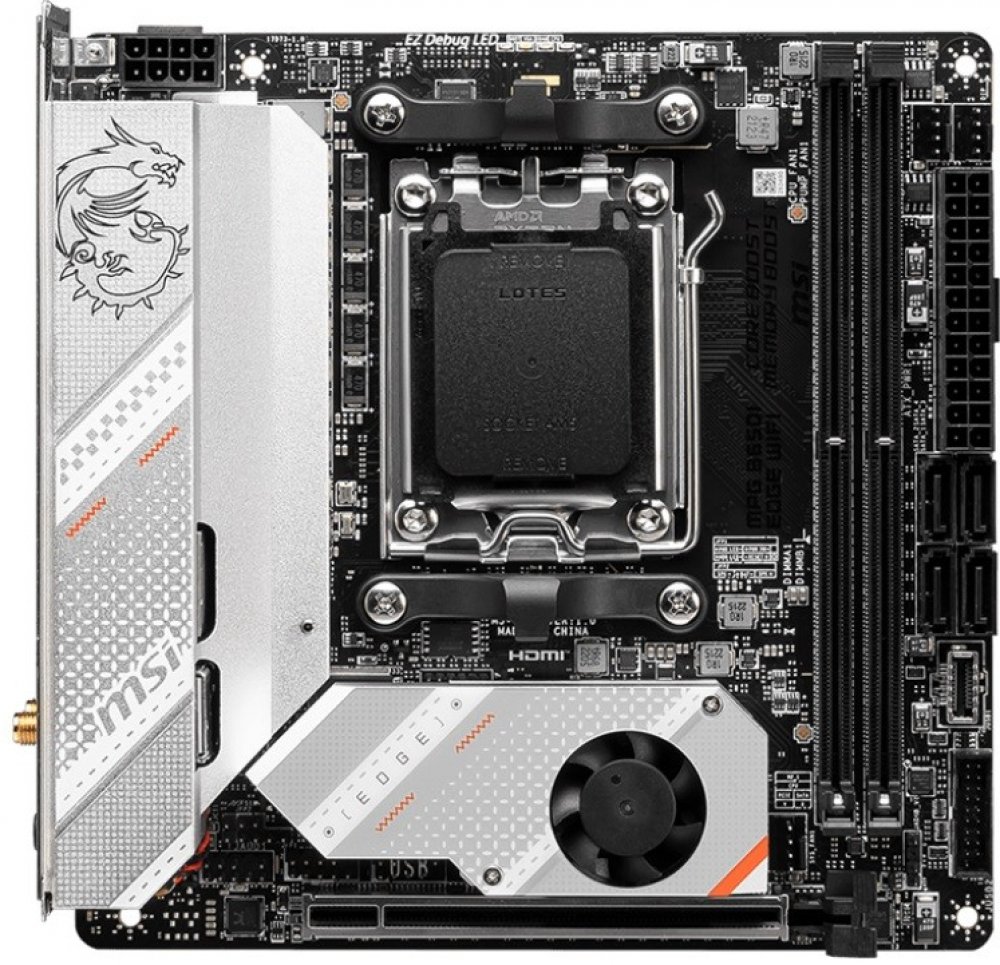

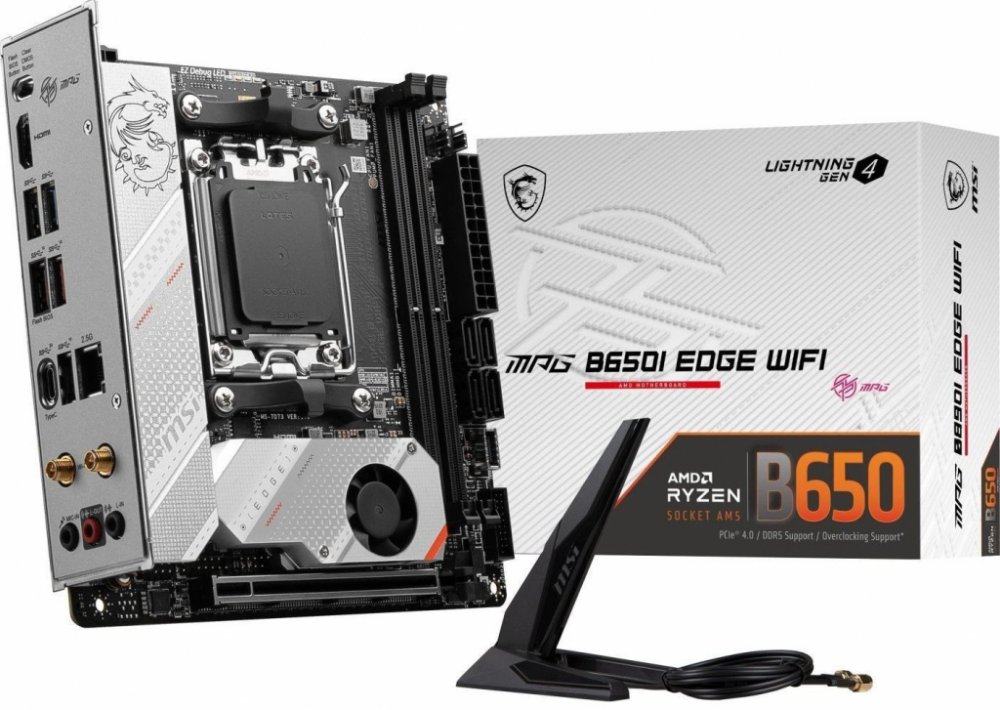

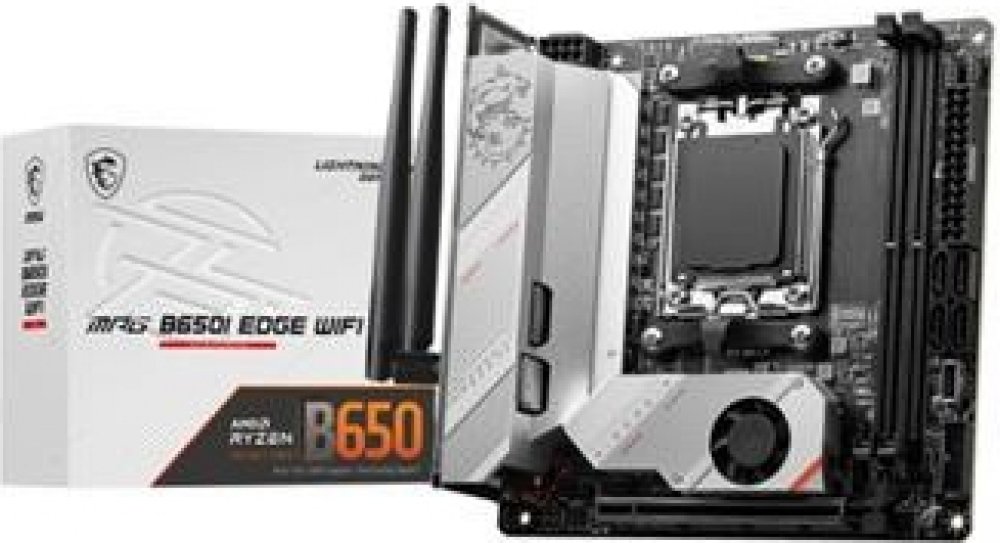

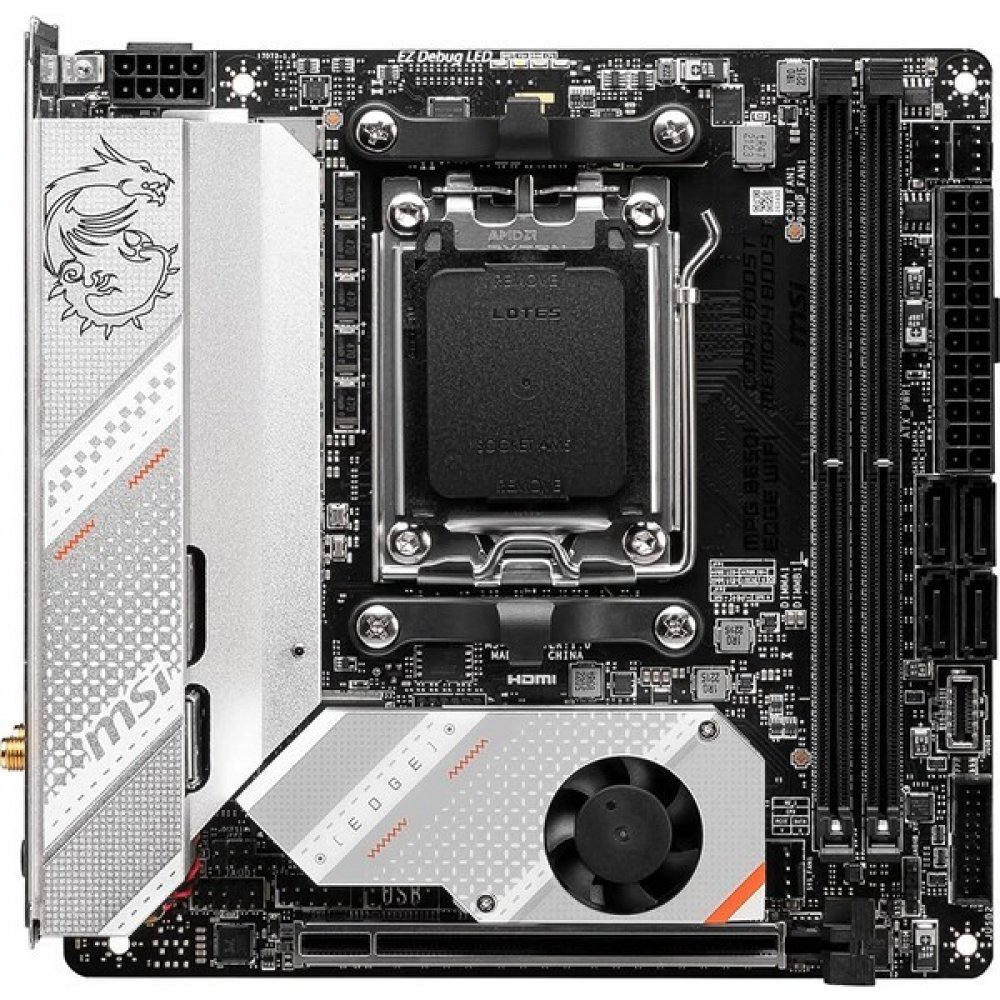

MSI MPG B650I EDGE WIFI

MPG B650I EDGE WIFI
Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7200+MHz (OC)
Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
CHIPSET
AMD B650
CPU SUPPORT
Supports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5
MEMORY
2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6400+ MHz
Support Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO™
ONBOARD GRAPHICS
1x HDMI™Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
1x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
MULTI-GPU
Supports AMD MULTI-GPU
STORAGE
2x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G port
RAID
Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
2x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Realtek RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
Realtek ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Addressable V2 RGB LED connector (JARGB_V2)1x TPM pin header(Support TPM 2.0)2x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C
LED FEATURE
4x EZ Debug LED

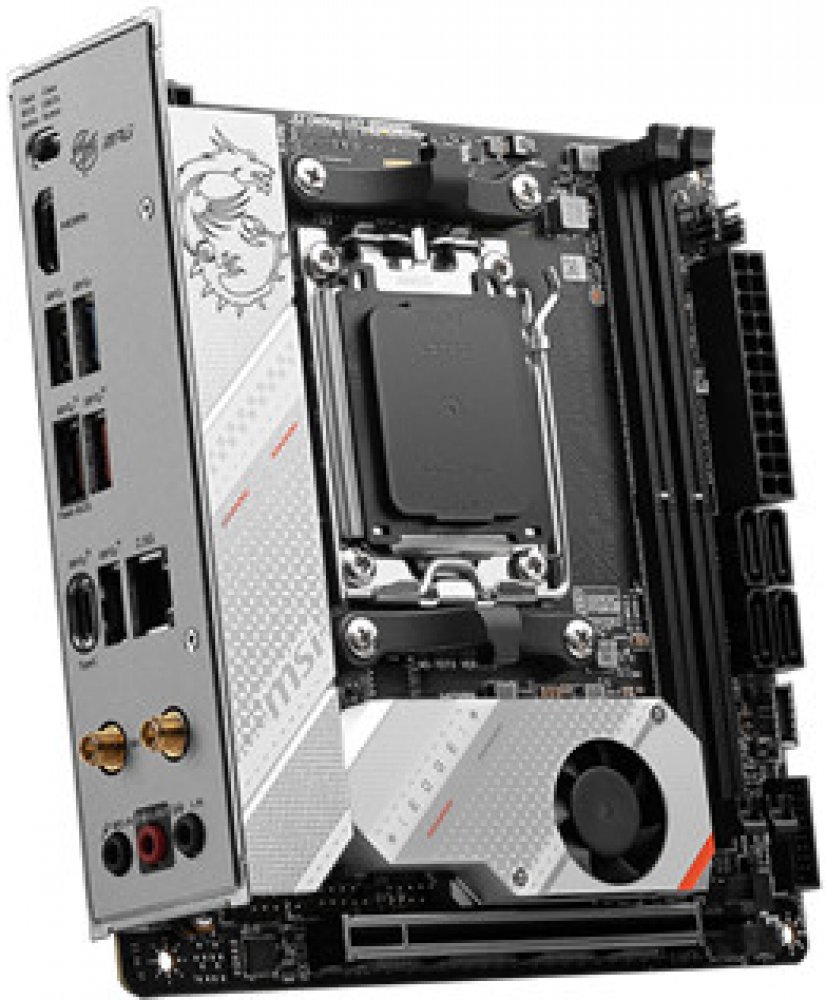

BACK PANEL PORTS
Clear CMOS ButtonUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWireless / BluetoothAudio ConnectorsFlash BIOS ButtonHDMI™USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
PCB DIMENSION
Mini-ITX170mmx170mm
