MikroTik mANT30

OVERVIEW

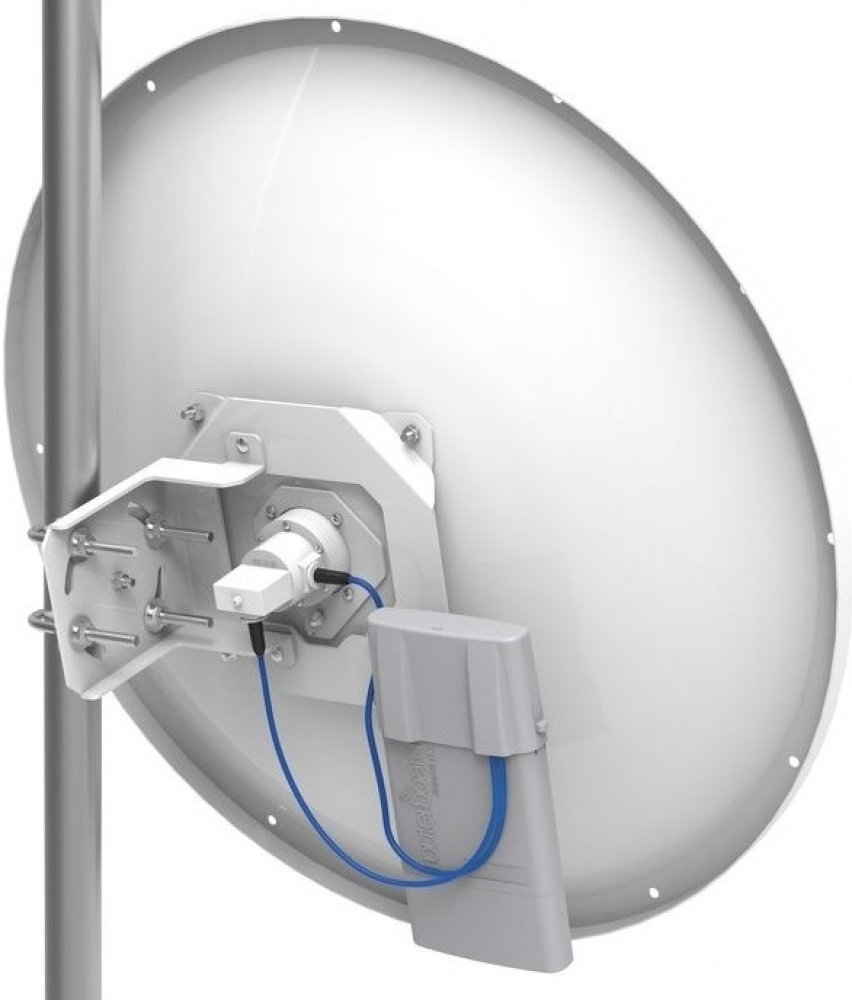

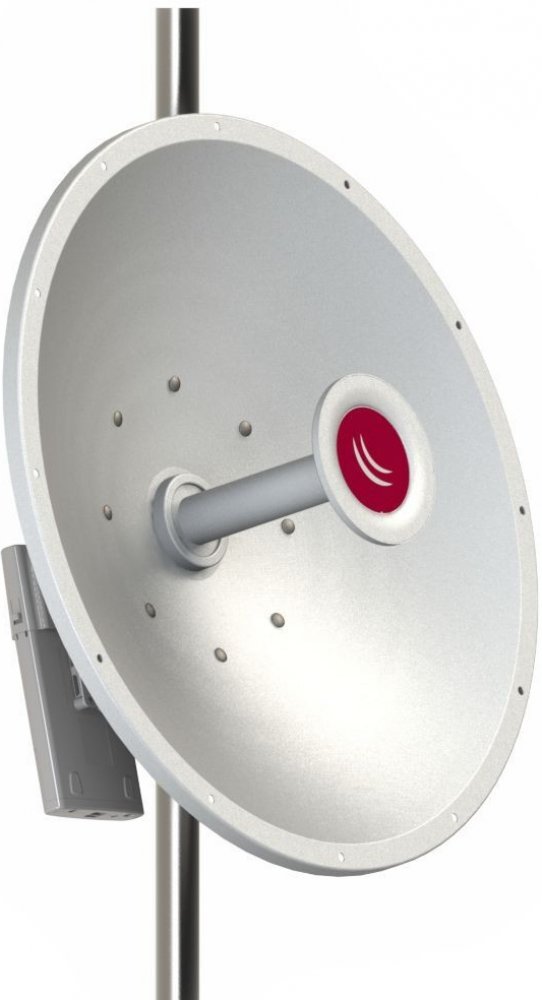

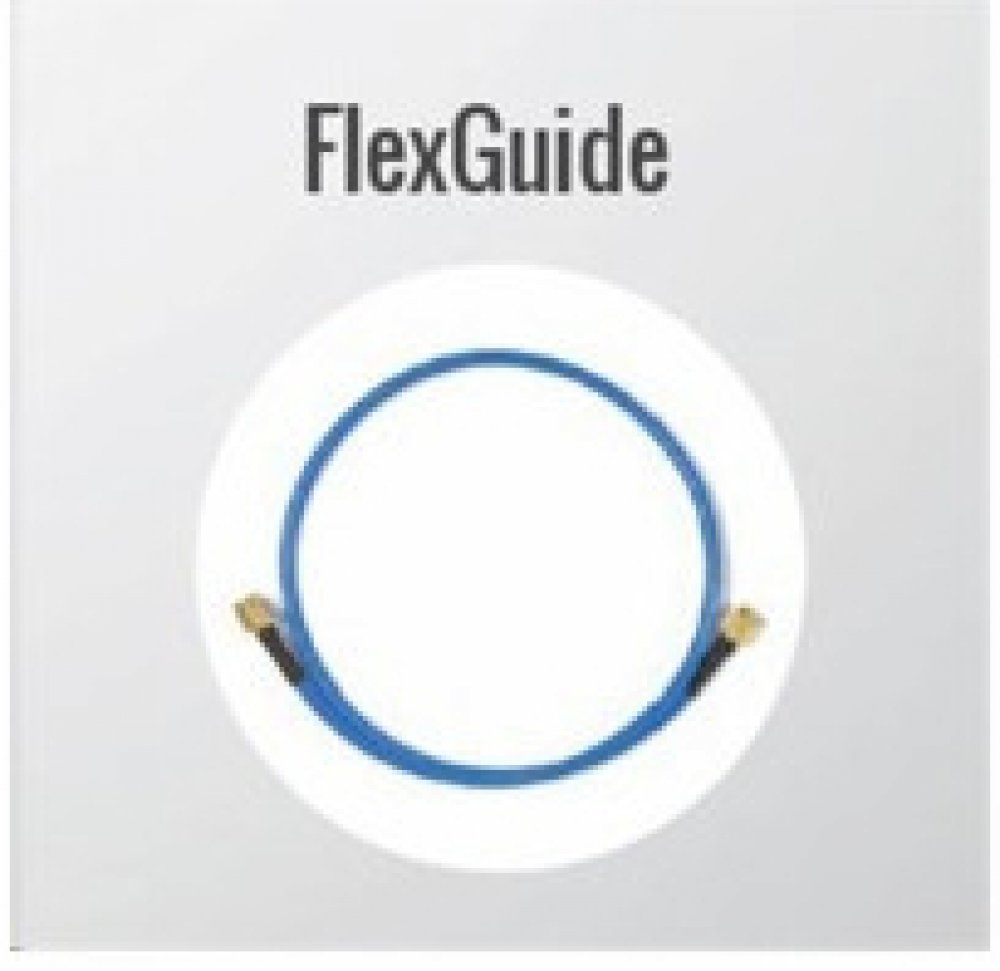

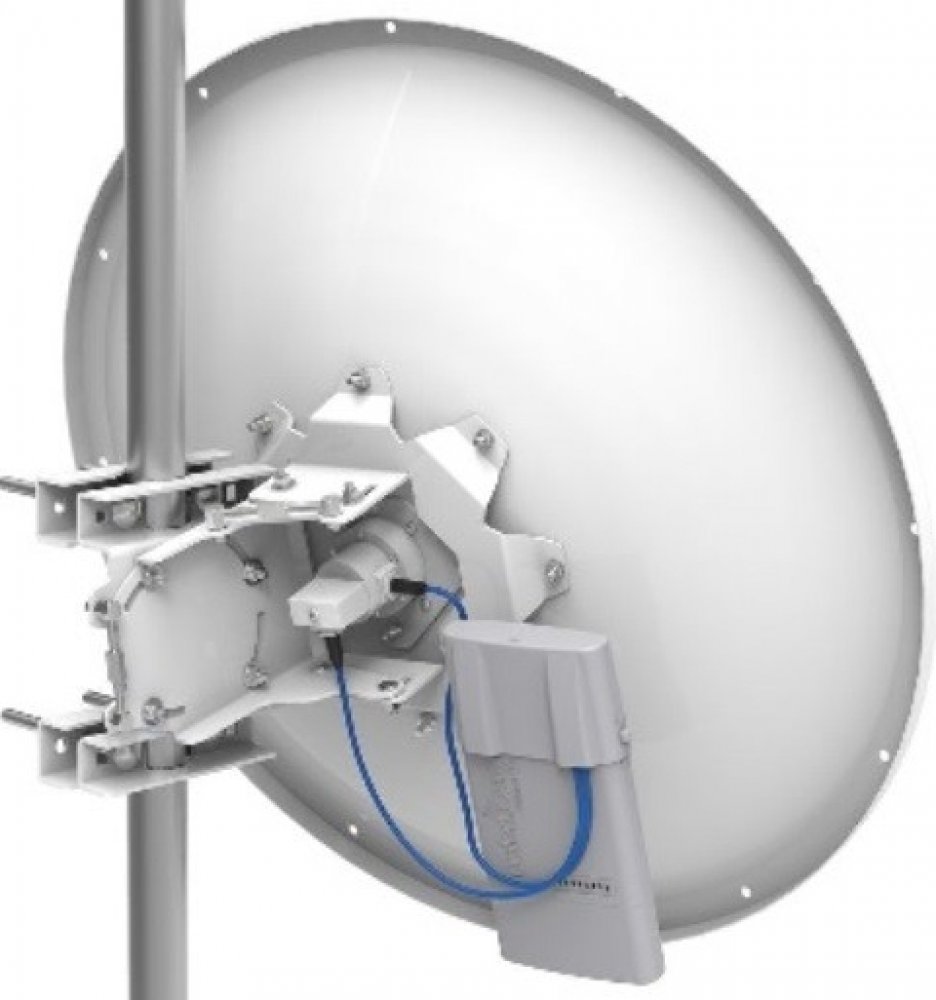

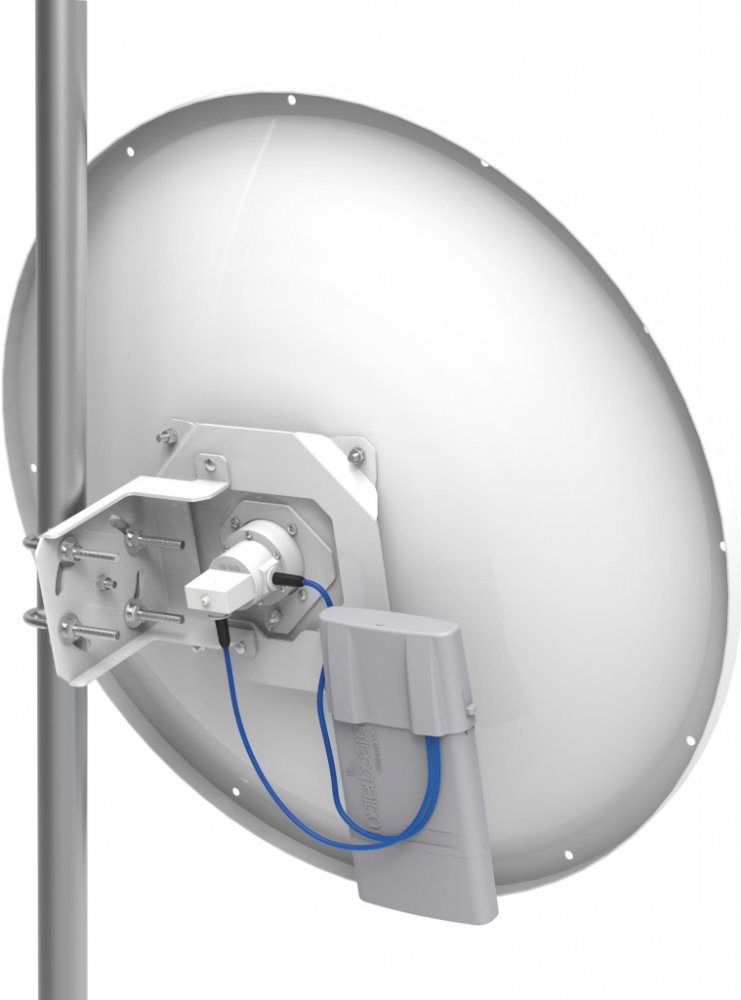

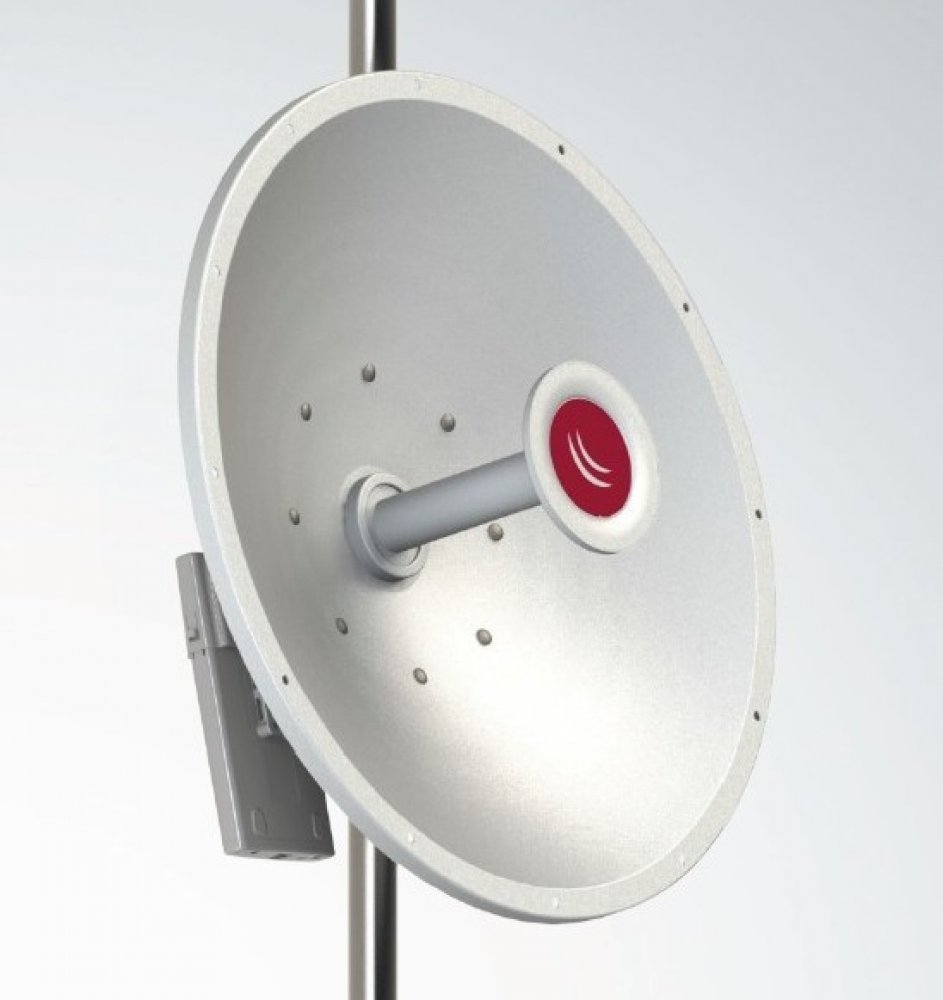

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
SPECIFICATIONS
Product code
*MTAD-5G-30D3
Antenna gain DBI
*30dbi
Frequency Range
*4.7-5.875 GHz
Polarization
*Vertical and Horizontal
Beamwidth
*3 deg
VSWR
*? 1.4 typ, ? 1.8 max
Port to Port Isolation
*>40dB min
Front-to-Back Ratio
*>30 dB
Cross Polarization
*>40 dB
Power Rating
*100W
Impedance
*50 ohms
Elevation adjustment range
*+/- 20 deg
Diameter x Depth
*70 x 45cm (27.5 x 17.8in)
Weight
*4.8kg (10.7 lbs)
Reflector
*Aluminum
Outdoor Rating
*ETSI EN 300 019-2-4
Standards
*EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability
*201kph (125mph)
Wind Load (125 mph)
*181.4kg (400 lbs)
Operating Temperature
*-50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range
*3 to 7cm (1.2 to 2.75in)
Connector
*2x RP-SMA Female (outside thread)
Packaged size
*73x73x20cm (29x29x8in)
Packaged weight
*7.5 kg (16.5 lbs)
