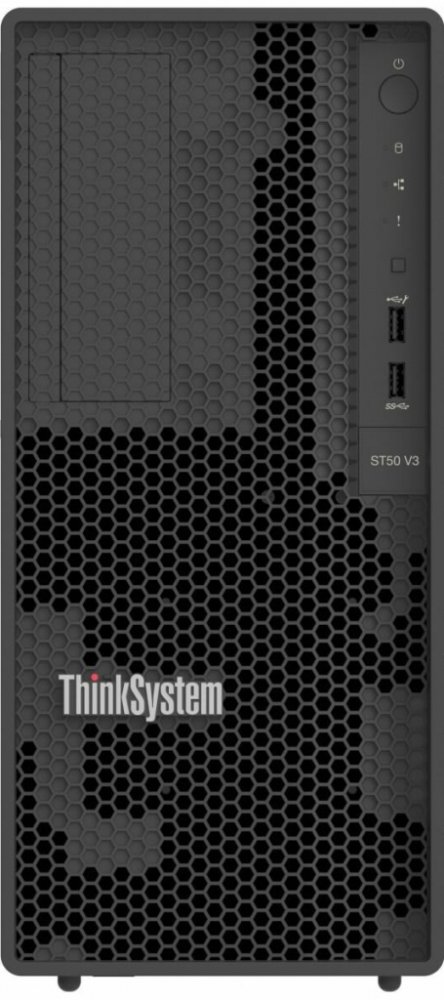

Lenovo ThinkSystem ST50 V3 7DF31002EA

Lenovo ThinkSystem ST50v3 Xeon 6353P 8C 65W 2.7GHz/1x32GB/2x960GB NHS 3,5"/SW RAID/noDVD/XCC2-P/500W fix (7DF31002EA) 7DF31002EA Xeon 6353P 8C 65W 2.7GHz 1× 32GB OB SATA / AHCI 3× 3.5" SATA:
2× 960GB SATA SSD Opt Yes 500W fixed Yes Std No
Machine type 7DF3 – 3 year warranty
Form factor Tower (can be installed in a rack with the available Rack Mount
Kit) Processor One Intel processor. Choose from:
Intel Xeon E-2400 Series processors („Raptor Lake-E“) up to to 8 cores,
with core speeds up to 3.5 GHz Intel Pentium G7400 and G7400T processors
(„Alder Lake-R“) with 2 cores, with core speeds up to 3.7 GHz Chipset
Intel Rocket Lake PCH-S, C266 Memory Four DIMM sockets supporting Lenovo TruDDR5
DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support
ECC UDIMMs. Memory maximum Up to 128 GB using 4× 32 GB UDIMMs. Memory
protection Error-correcting code (ECC) Disk drive bays Available
configurations:
1× 2.5-inch NHS SATA SSD drive bays 3× 3.5-inch NHS SATA HDD/SSD drive bays
1× slim SATA ODD bay (optional) In addition, the ST50 V3 supports two
M.2 drives installed in an M.2 adapter which is installed in PCIe slot 3.
Note: Drive Bay 3 (3rd 3.5”) kit and M.2 2-Bay Enablement Kit are mutually
exclusive because both kits are installed/assembled at PCIe Slot 3.
Maximum internal storage 2.5-inch drives: 960GB using 1× 960GB 2.5-inch SATA
SSD 3.5-inch drives: 24TB using 3× 8TB 3.5-inch SATA NHS HDDs Intermix of
traditional HDDs and SSDs in the same array is not supported. Storage controller
Onboard 6 Gb SATA (OB SATA): AHCI mode, for JBOD support RAID Mode, using Intel
VROC SATA RAID, supporting RAID 0, 1, 5 12 Gb SAS/SATA RAID adapter, supporting
RAID 0, 1, 5 12 Gb SAS/SATA host bus adapters Optical drive bays Supports Slim
SATA DVD-RW (multiburner). Tape drive bays Supports external one tape USB
3.0 RDX drive. Network interfaces Two integrated Gigabit Ethernet 1000BASE-T
ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared
with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC
systems management. PCI Expansion slots Three PCIe slots (1× PCIe 5.0, 2× PCIe
4.0) as follows: Slot 1: PCIe G4 x4 (x4 slot, open-ended) 25W full-height
half-length (FHHL) Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W full-height
half-length (FHHL) Slot 3: PCIe G4 x4 (x4 slot, open-ended) 25W full-height
half-length (FHHL) Ports Front: One USB 3.2 G1 (5 Gb/s) port One USB 2.0 port
(also for XClarity Mobile connectivity for local systems management) Rear: Four
USB 3.2 G1 (5 Gb/s) ports One VGA video One RJ-45 systems management Two
RJ-45 GbE network ports One serial port Cooling Supports ASHRAE A2
environments. Three fans. Two fixed system fans (front drive bay and rear).
Additional fan attached to the processor heat sink and in the power supplies.
Power supply Model dependent choices
One fixed 300W Gold power supply One fixed 500W Platinum power supply: Energy
Star and ErP Lot 9 compliant. Systems management Operator panel with status
LEDs. XClarity Controller2 (XCC2) embedded management, XClarity Administrator
centralized infrastructure delivery, XClarity Integrator plugins, and XClarity
Energy Manager centralized server power management. Optional XClarity Controller
platinum to enable remote control functions. Security features Power-on
password, administrator's pas­sword, Trusted Platform Module, supporting TPM
2.0. Optional chassis intrusion switch. Padlock loop and Kensington cable for
physical security. Video G200 graphics with 16 MB memory, integrated into the
XClarity Controller. For use with local Administrator functions (not designed
for workstation use). Maximum resolution is 1920×1200 32bpp at 60Hz. Operating
systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux
Enterprise Server, VMware ESXi. See the Operating systems section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable
unit and onsite limited warranty with 9×5 next business day (NBD). Service and
support Optional service upgrades are available through Lenovo Services: 4-hour
or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension,
software support for Lenovo hardware and some third-party applications.
Dimensions Width: 170 mm (6.7 inches), Height: 376 mm (14.8 inches) with
stand, 370 mm (14.6 inches) without stand, Depth: 315 mm (12.4 inches). See
Physical and electrical specifications for details. Weight Fully configured:
11.96 kg (26.4 lbs)
