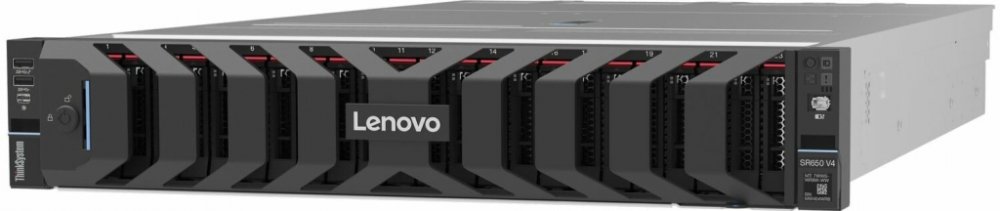

Lenovo ISG ThinkSystem SR650 V4 7DGD1008EA

Lenovo ThinkSystem SR650v4 1x Xeon 6515P 16C 2.3GHz 150W/1x32GB/2x960GB M.2/0GB 2.5" (8)/940-8i (4GB f)/XCC3-P/2x800W (7DGD1008EA) 7DGD1008EA 1× 6515P 16C 150W 2.3GHz 1×32GB 2Rx8 940–8i 4GB 8× 2.5" SAS
Open bay; M.2 B540p Rear RAID, 2× 960GB ER3 M.2 Open Slots 1&2 x8, Slot
5 x16 2× 800W TT 5× Perf Opt Op
Machine types 7DGC – 1 year warranty 7DGD – 3 year warranty 7DK2 –
3 year warranty – SR650 V4 with Compute Complex Neptune Core liquid cooling
7DLN – 3 year warranty – SR650 V4 with SAP HANA 7DGE – 1 year
warranty – SR650 V4 for vSAN 7DGF – 3 year warranty – SR650 V4 for
vSAN Form factor 2U rack Processor One or two Intel Xeon 6700P-series or
6500P-series processors (formerly codenamed „Granite Rapids“). Supports
processors up to 86 cores and 172 threads, core speeds of up to 4.0 GHz, and
TDP ratings of up to 350 W. Chipset None. Integrated into the processor Memory
32 DIMM slots with two processors (16 DIMM slots per processor). Each
processor has 8 memory channels, with 2 DIMMs per channel (DPC). 16 DIMM
slots with 2 processors when the Compute Complex Neptune Core liquid cooling is
used (machine type 7DK2). Lenovo TruDDR5 RDIMMs and MRDIMMs are supported.
RDIMMs operate at up to 6400 MHz at 1 DPC and up to 5200 MHz at 2 DPC.
MRDIMMs are supported up to 8000 MHz. CXL 2.0 memory is also supported, up to
12 DIMMs (6 per processor) installed in E3.S 2T drive bays. Memory maximum Up
to 8TB by using 32× 256GB 3DS RDIMMs Memory protection ECC, SDDC (for x4-based
memory DIMMs), ADDDC (for x4-based memory DIMMs), and memory mirroring. Disk
drive bays Up to 16× 3.5-inch or 40× 2.5-inch or 32× E3.S hot-swap
drive bays:
Front bays can be 3.5-inch (8 or 12 bays), or 2.5-inch (8, 16 or
24 bays), or E3.S (32 bays) Middle bays are 2.5-inch (8 bays) simple-swap
Rear bays can be 3.5-inch (4 bays) or 2.5-inch (4 or 8 bays) Combinations of
SAS/SATA, NVMe, or AnyBay (supporting SAS, SATA or NVMe) are available
M.2 support, for OS boot and drive storage support:
2× front or rear hot-swap M.2 drive bays, or Internal M.2 module
supporting up to two M.2 drives See Supported drive bay combinations for
details. AnyBay bays support SAS, SATA or NVMe drives. NVMe bays only support
NVMe drives.
Maximum internal storage 2.5-inch drives: 1228.8TB using 40× 30.72TB
2.5-inch SAS/SATA SSDs 2211.84TB using 36× 61.44TB 2.5-inch NVMe SSDs 96TB
using 40× 2.4TB 2.5-inch HDDs E3.S drives 491.52TB using 32× 15.36TB
E3.S EDSFF NVMe SSDs 3.5-inch drives: 384TB using 16× 24TB 3.5-inch HDDs
245.76TB using 16× 15.36TB 3.5-inch SAS/SATA SSDs 15.36TB using 4× 3.84TB
3.5-inch NVMe SSDs Storage controllers Up to 36× Onboard NVMe ports (RAID
support using Intel VROC, or with the use of a Tri-mode RAID adapter) 12 Gb
SAS/SATA RAID adapters, PCIe 4.0 or PCIe 3.0 host interface 12 Gb SAS/SATA
HBA (non-RAID), PCIe 4.0 or PCIe 3.0 host interface Optical drive bays No
internal optical drive. Tape drive bays No internal backup drive. Network
interfaces Two dedicated OCP 3.0 SFF slots with a PCIe 5.0 host interface,
either x8 or x16. Support a variety of 2-port and 4-port adapters with up to
400 GbE network connectivity. One port of each installed OCP adapter can
optionally be shared with the XClarity Controller (XCC) management processor for
Wake-on-LAN and NC-SI support. PCI Expansion slots Up to 10× slots, all at the
rear, plus 2× OCP slots. All slots are PCIe 5.0. The use of Riser 3 and
4 requires 2 processors.
Riser 1: 2× low-profile slots, x8 or x16 (CPU 1) Riser 2: 3× full-height
slots, two x16 and one x8 (CPU 1) Riser 3: 3× full-height slots, two x16 and
one x8 (CPU 2) Riser 4: 2× low-profile slots, x8 or x16 (CPU 2) Other slot
configurations are available. See the I/O expansion for details.
The server also supports rear 2.5" or 3.5" drive bays, and rear hot-swap
M.2 drives, instead of some slots. If the server has 8× 2.5-inch rear drive
bays, then Riser 1 slots are full-height.
All configurations include at the rear of the server:
2× OCP slots with PCIe 5.0 x16 or x8 connection For 2.5-inch front drive
configurations, the server supports the installation of a CFF RAID adapter or
HBA in a dedicated area that does not consume any of the rear PCIe slots.
GPU support Support for up to 10× single-wide GPUs or 2× double-wide GPUs
Ports Front: External diagnostics port, optional 2× USB 3 (5 Gb/s) port, one
supports XCC local management, optional Mini DisplayPort (miniDP) v1.1a
video port.
Rear: 2× USB 3 (5 Gb/s) ports, 1× VGA video port, 1× RJ-45 1GbE systems
management port for XCC remote management. Optional DB-9 COM serial port
(installs in a slot). Support for an optional second RJ-45 1GbE systems
management port for XCC remote management (installs in OCP adapter slot).
Support for an optional adapter to share an incoming remote management network
connection across 4 servers (installs in an OCP slot).
Internal: Optional 1× USB 3 (5 Gb/s) connector for operating system or
license key purposes
Cooling 6× (with two processors installed) or 5× (with one processor
installed) single-rotor or dual-rotor hot swap 60 mm fans, configuration
dependent. Fans are N+1 redundant, tolerating a single-rotor failure. One fan
integrated in each power supply. For customers with water infrastructure in
their data center, the server also supports open-loop water cooling for
efficient heat removal. Power supply Up to two hot-swap redundant AC power
supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 800W, 1300W,
2000W, 2700W and 3200W AC options. All AC power supplies support 230V power;
some also support 115V input supply. In China only, all power supply options
support 240 V DC. Support for HVDC and –48V DC power supply options. Video
Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated
into the XClarity Controller 3 management controller. Two video ports (rear VGA
and optional front Mini DisplayPort); both can be used simultaneously if
desired. Maximum resolution is 1920×1200 32bpp at 60Hz. Hot-swap parts Drives,
power supplies, and fans. Systems management Operator panel with status LEDs.
Optional External Diagnostics Handset with LCD display. Clarity Controller 3
(XCC3) embedded management based on the ASPEED AST2600 baseboard management
controller (BMC) and OpenBMC, XClarity Administrator centralized infrastructure
delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized
server power management. Optional XCC3 Premier to enable remote control
functions and other features. Security features Chassis intrusion switch,
Power-on password, administrator's pas­sword, Root of Trust module supporting
TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front
security bezel. Operating systems supported Microsoft Windows Server, Red Hat
Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. See
the Operating system support section for specifics. Limited warranty Three-year
or one-year (model dependent) customer-replaceable unit and onsite limited
warranty with 9×5 next business day (NBD).
