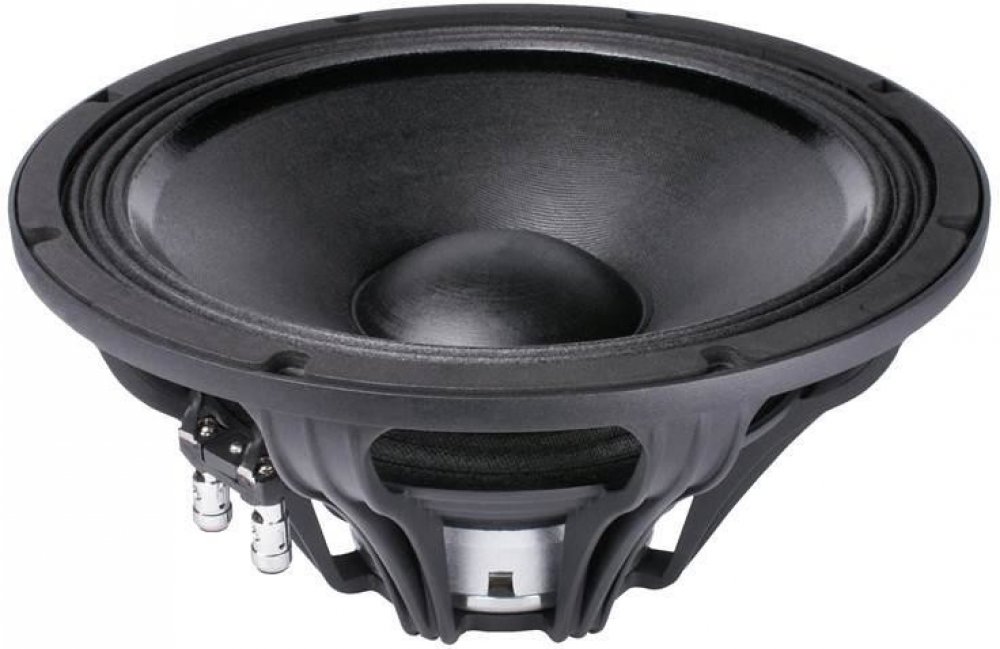

Faital Pro 10FH520 8/ohm
FaitalPRO 1+0 samostatný reproduktor pasivní pro audiofily a profesionály 97 dB 1pásmové 60 Hz 4000 Hz 8.0 ohm 10 palců do velké místnosti (nad 50 m²) 3.7 kg s neodymovým magnetem stacionární domácí
NOMINAL SPECIFICATIONSNominal Diameter 250 mm (10 in)Overall Diameter 261 mm (10.28 in)Bolt Circle Diameter 246 mm (9.69 in)Baffle Cutout Diameter 232 mm (9.13 in)Depth 141.3 mm (5.56 in)Flange and Gasket Thickness 12.5 mm (0.49 in)Net Weight 3.7 Kg (8.2 lb)Shipping Box(Single Carton Box) 294 x 290 x 203 mm(11.6 x 11.4 x 8.0 in)Shipping Weight 4.3 Kg (9.5 lb) TECHNICAL PARAMETERSNominal Impedance...
NOMINAL SPECIFICATIONSNominal Diameter 250 mm (10 in)Overall Diameter 261 mm (10.28 in)Bolt Circle Diameter 246 mm (9.69 in)Baffle Cutout Diameter 232 mm (9.13 in)Depth 141.3 mm (5.56 in)Flange and Gasket Thickness 12.5 mm (0.49 in)Net Weight 3.7 Kg (8.2 lb)Shipping Box(Single Carton Box) 294 x 290 x 203 mm(11.6 x 11.4 x 8.0 in)Shipping Weight 4.3 Kg (9.5 lb) TECHNICAL PARAMETERSNominal Impedance 8 OhmMinimum Impedance 6 OhmAES Power Handling (1) 600 WMaximum Power Handling (2) 1200 WSensitivity (1W/1m) 97 dBFrequency Range 60÷4000 HzVoice Coil Diameter 77 mm (3 in)Winding Material AlFormer Material Glass FiberWinding Depth 18.5 mm (0.71 in)Magnetic Gap Depth 12 mm (0.47 in)Flux Density 1.1 TMagnet Neodymium SlugBasket Material AluminumDemodulation Aluminum RingCone Surround (3) Triple RollNET Air Volume filled by Loudspeaker 1.7 dm^3 (0.060 ft^3)Spider Profile 1x variable height waves THIELE AND SMALL PARAMETERSFs 60 HzRe 5.1 OhmQes 0.30Qms 11.1Qts 0.29Vas 20.5 dm^3 (0.72 ft^3)Sd 321 cm^2 (49.75 in^2)Xmax (4) 7.25 mmXdamage (5) 19.5 mmMms 50.3 gBl 18 N/ALe 0.9...
Více informací o produktu
