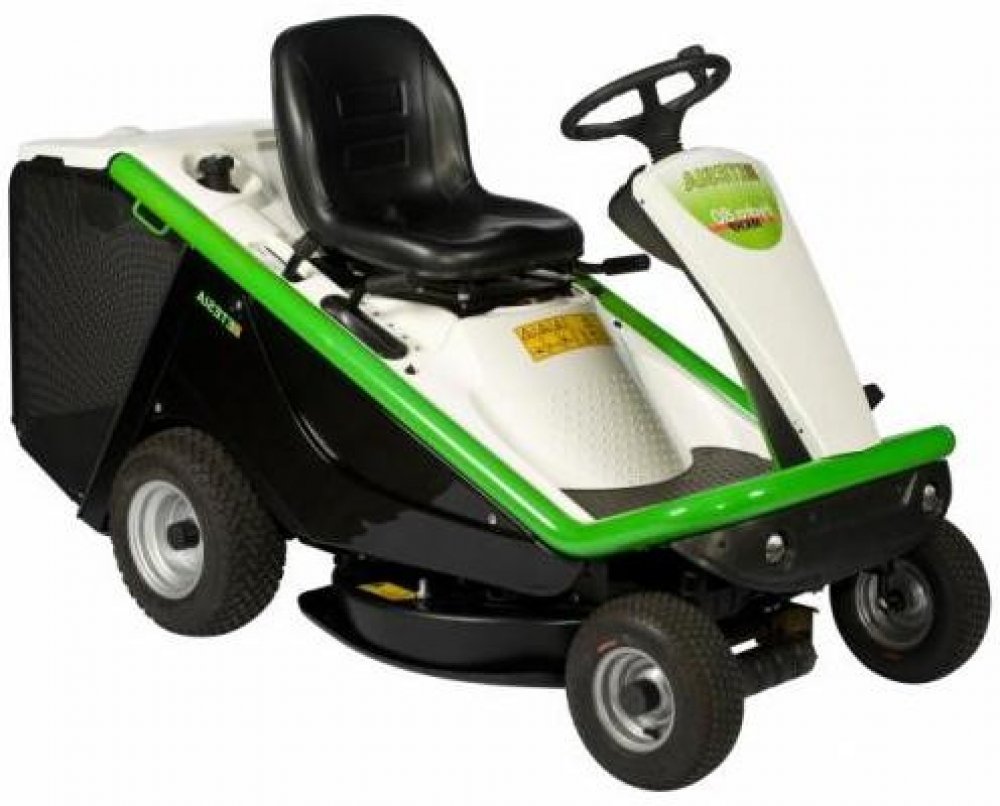

Etesia Hydro 80 MKHP5

Specifications
Its tight turning circle makes it ideal for small or awkward areas.



Mower

Theoretical output (m²/h)
7200
Number of blades
1
Cutting width (cm)
80 cm
Mowing deck
Steel deck
Mount type
Suspended and removable deck
Rotation direction
Hourly
Blade protection
By shear bolt
Type of blade clutch
Electromagnetic with built-in brake
Cutting height (mm)
from 44 to 102 mm



Emptying systems

Grassbox capacity (L)
240 L
Grassbox emptying
Ground assisted emptying
Grassbox structure
Tubular structure - anti UV



Measurement and weight

Weight
240 Kg
Height
130 cm
Width
82.5 cm
Lenght
199.5 cm
Motor


Motor

Number of cylinders
2
Cylinder capacity
603 cm³
Nominal engine power
9.3 kW/12.5 HP
Maximum engine power
11.9 kW/16 HP
Fuel tank capacity (L)
12 L
Oil tank capacity (L)
1 L
Cooling
2 cylinder, air cooled
Fuel
unleaded fuel 95/98
Power
Electronic with transitor
Starter
12 volts 20 Amp. with regulator
Engine type
Kawasaki FS481V
Battery
12V - 20 Ah
Wheel transmission


Wheel transmission

Transmission type
Differential lock
Forward speed (km/h)
9 km/h
Backward speed (km/h)
8 km/h
Oil
2 L
Number of driving wheels
2
Vertical drop
18%
Acoustic pressure
86 dB(A)
Frame
Multi-tubular mechanical welded frame
Direction
Mechanical
Pneumatic
Front: 13x5.0-6 - Back: 16x6.5-8
Braking
Incorporated in hydrostatic transmission
GPS/GPRS
-
