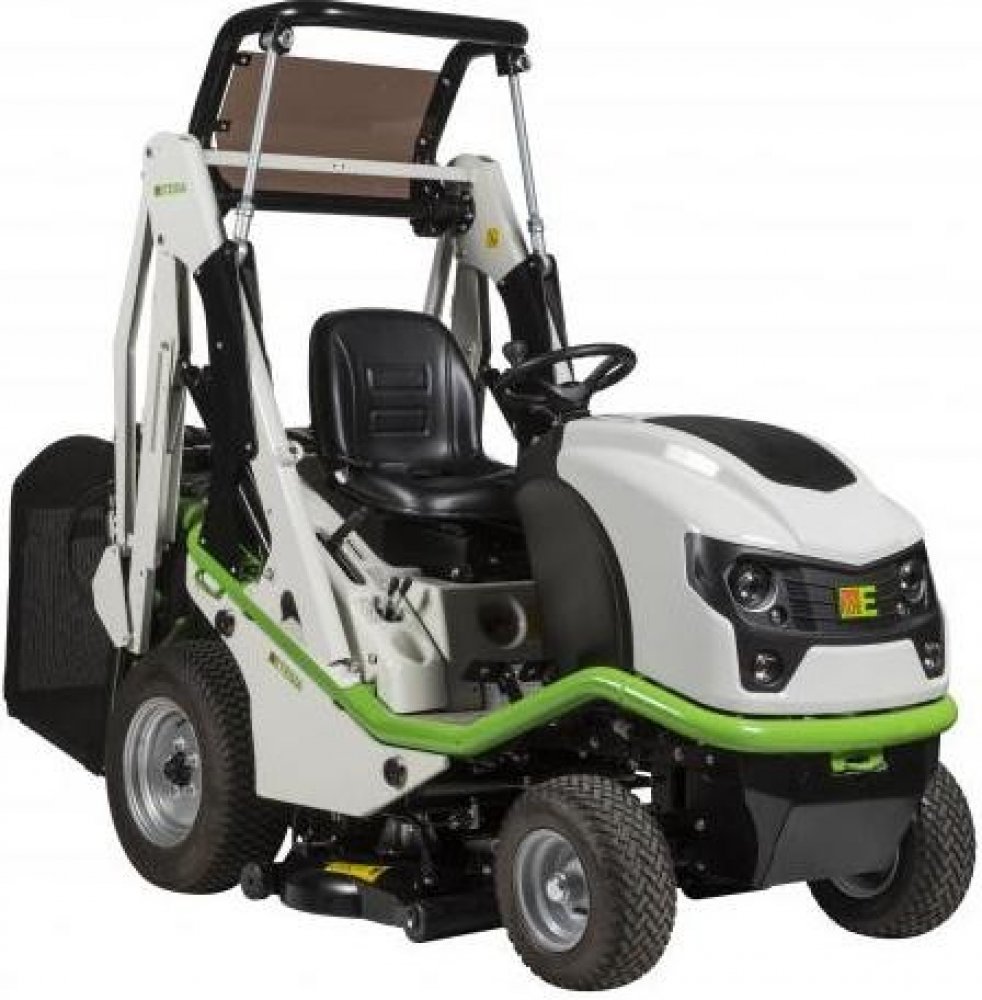

Etesia Buffalo 100 BVHPX2

Specifications
4 drive wheels version



Mower

Non mowed area
1.1 m²
Theoretical output (m²/h)
12000 m²/h
Number of blades
2
Cutting width (cm)
100 cm
Mowing deck
Casted aluminium
Mount type
suspended cutting deck
Rotation direction
opposed
Type of blade clutch
electromagnetic with integrated brake
Cutting height (cm)
from 44 to 102 mm



Emptying systems

Grassbox capacity (L)
600L
Grassbox emptying
hydraulic from ground up to 1.80m
Grassbox structure
tubular anti-uv treatment



Measurement and weight

Weight
630 Kg
Height
200 cm
Width
105 cm
Lenght
292 cm



Motor

Amount of cylinders
2
Cylinder capacity
627 cm³
Nominal engine power
14 kW / 19 HP
Maximum engine power
17 kW / 23 HP
Fuel tank capacity (L)
14.5 L
Oil tank capacity (L)
1.36 L
Cooling
Air-cooled
Fuel
super unleaded petrol
Starter
electric 12 V
Engine
Briggs & Stratton OHV Vanguard
Battery
12V - 60 A



Wheel transmission

Transmission type
Hydraulic
Forward speed (km/h)
12
Backward speed (km/h)
12
Number of driving wheels
4
Acoustic pressure
85 dB(A)
Frame
welded tubular chassis
Direction
hydraulic
Pneumatic
FRONT: 16x6.5x8 / BEHIND: 23x8.5x12
Braking
hydraulic
Forward transmission
hydraulic



Various

Road homologation
Available
