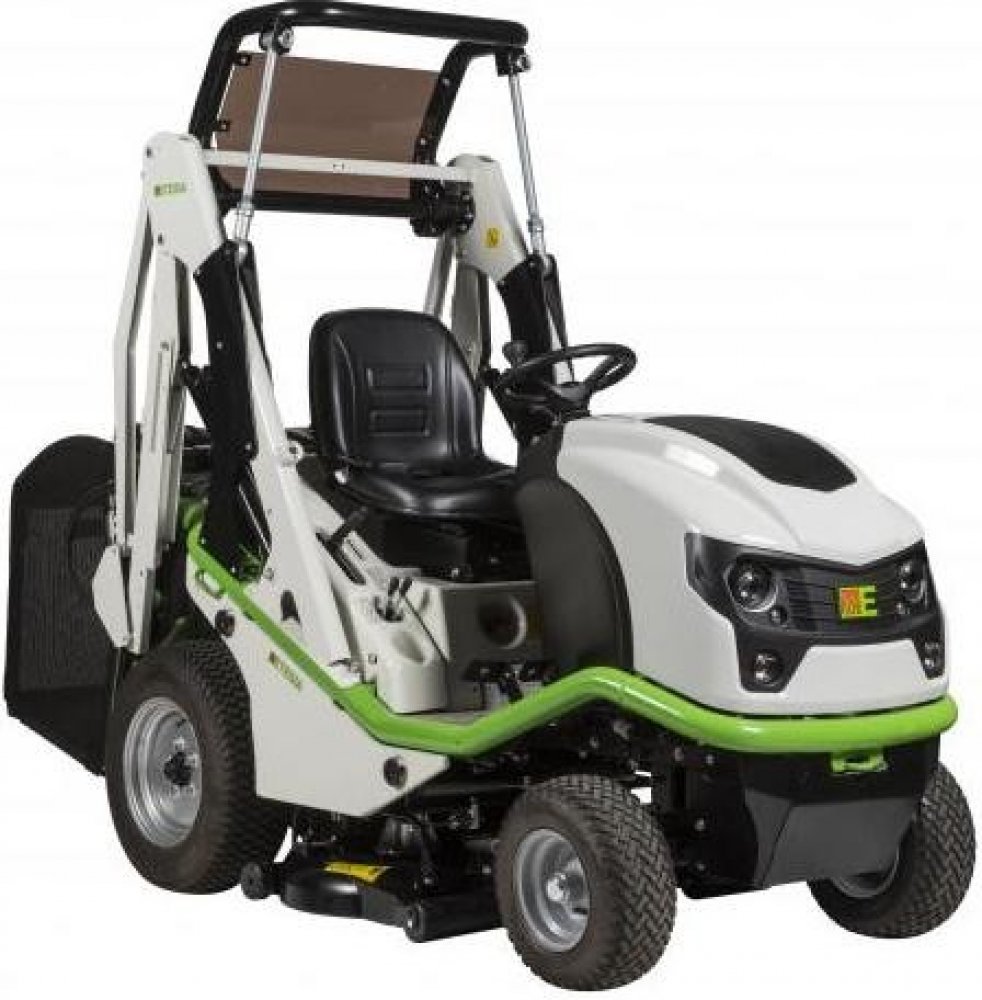

Etesia Buffalo 100 BPHP2

Specifications



Mowing system

Non mowed area
1.1 m²
Theoretical output (m²/h)
12000 m²/h
Number of blades
2
Cutting width (cm)
100 cm
Mowing deck
Opposed double volute
Mount type
Hanging deck
Rotation direction
Opposed
Blade protection
Shearing screws
Type of blade clutch
Electromagnetic
Cutting height (mm)
44 to 102 mm



Grassbox

Grassbox capacity (L)
600L
Grassbox emptying
Hydraulic
Grassbox structure
Tubular



Dimensions and weight

Weight
683 kg
Height
200 cm
Width
105 cm
Lenght
292 cm
Engine


Engine

Number of cylinders
3
Cylinder capacity
760 cm³
Motor power
20.5 HP
Fuel tank capacity (L)
14.5L
Oil tank capacity (L)
3.05 L
Cooling
Air
Fuel
Gasoline
Starter
12.5V
Starter
Electric 12V
Motortype
Perkins
Battery
12 V - 60A
Wheel transmission


Wheel transmission

Transmission type
Hydraulic
Forward speed (km/h)
12 km/h
Backward speed (km/h)
12 km/h
Number of driving wheels
2
Acoustic pressure
85 dB(A)
Frame
Mecanic welded frame
Direction
Hydraulic
Pneumatic
Front: 16x6.5x8 / Back: 23x8.5x12 / 1.2 bar
Braking
Parking: Disk on back wheel / Dynamic: hydraulic with forward transmission
Forward transmission
Hydraulic
GPS/GPRS
No
