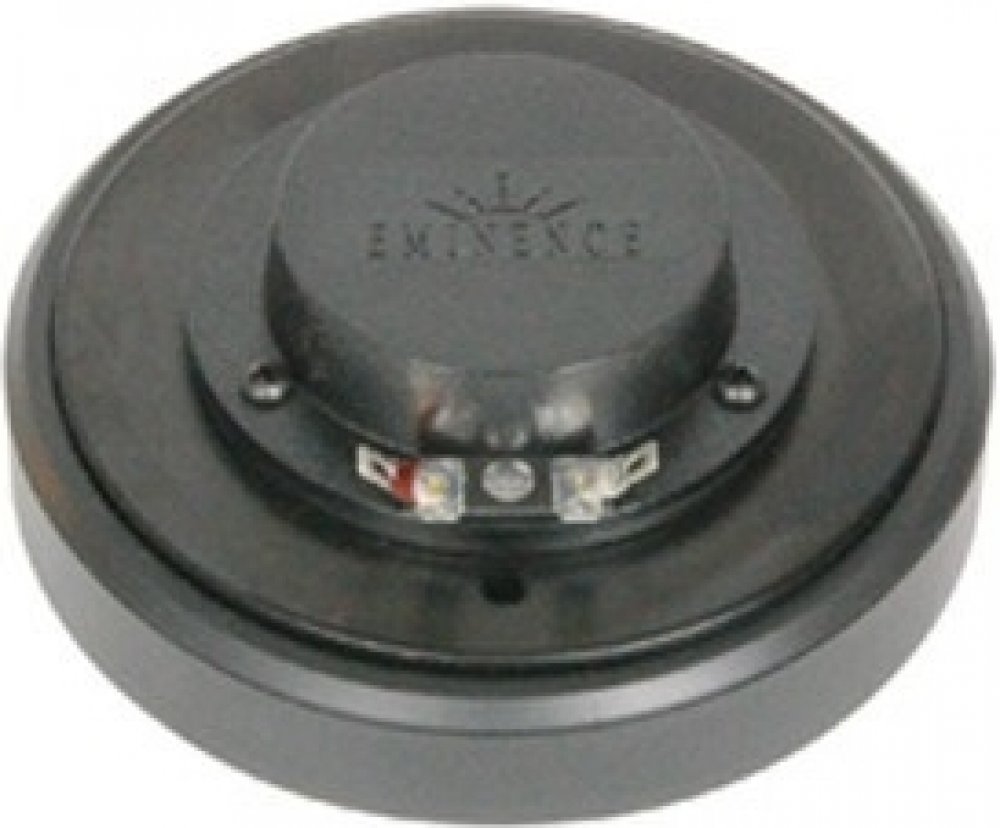

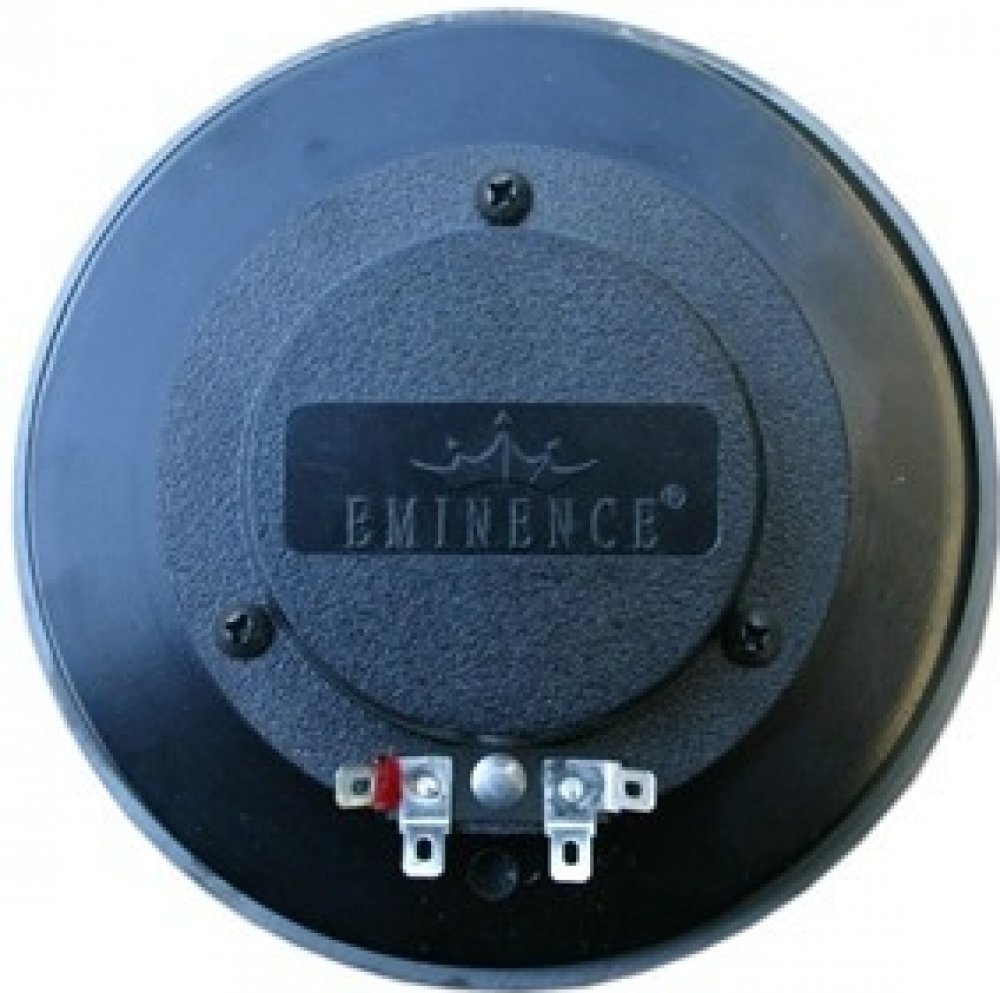

Eminence PSD2002S

Eminence 1+0 samostatný reproduktor pasivní 105.1 dB 1200 Hz 20000 Hz 8.0 ohm 1 palec 2.5 kg s feritovým magnetem

driver 1", 80W, 104dB, 1200-16000Hz, hmotnost 2,5kg, závit
SPECIFICATION
Throat Size 1", 25.4mm
Nominal Impedance* 8 or 16 ohms*
Power Rating 80W
Resonance 550Hz
Usable Frequency Range 1.2kHz - 20kHz
Sensitivity*** 105dB
Magnet Weight 34 oz.
Voice Coil Diameter 2", 51mm
THIELE & SMALL PARAMETERS
DC Resistance (Re) 6.1
Download PDF Spec Sheet
Coil Inductance (Le) 1.6 mH
MOUNTING INFORMATION
Overall Diameter 5.25", 133mm
Mounting Holes Diameter 2X 1/4-20 or 3" M6
Mounting Holes B.C. D. 3" or 2.25"
Mounting Thread 1 3/8" 18 NEF ext.
Depth 2.2", 56mm
Weight 5 lbs, Gross 5.76 lbs
