Digitální multifunkční kokpit KOSO, multimetr TNT D64 na zakázku

KOSO Digital Multifunction Cockpit, TNT D64 Custom Style Multimeter, Black

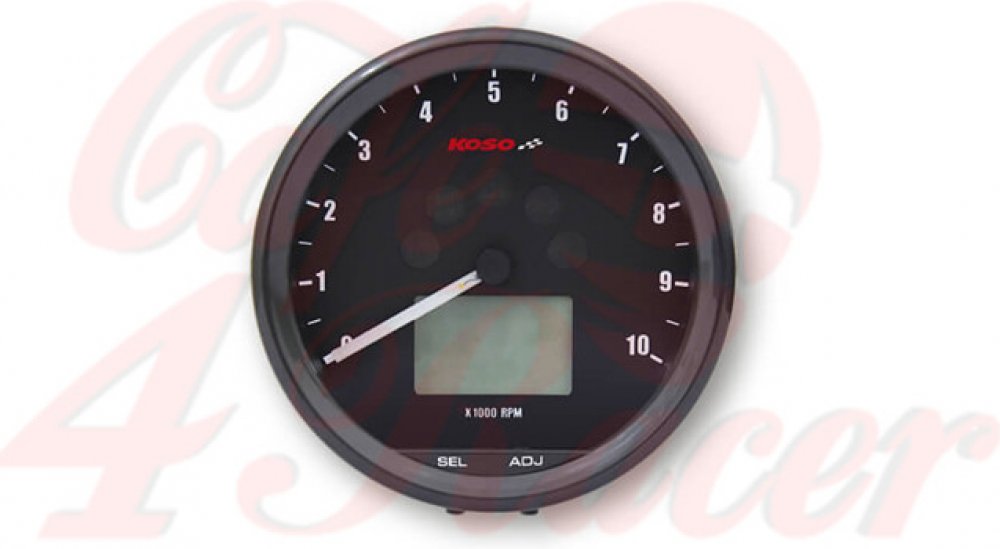

The TNT-64 multifunction speedometer is the perfect device for all cafe racers and special projects. The D64 Custom Style uses a stepper motor for quick and smooth response. The device has many functions such as speed, odometer, trip meter, RPM, fuel gauge, clock, shift light, indicator light and more. This speedometer is available in black and includes the necessary accessories.
Features:
speedometer
• Display range : 0-360 km/h (0-225MPH)
• Display unit : km/h & MPH
Updates: < 0.5 seconds
odometer
• Display range: 0-99999 km (miles)
• Reset automatically after 0-99999 km (miles)
• Display unit: 1 km (miles)
Trip meter A/B
• Display range: 0-999.9 km (miles)
• Reset automatically after 0-999.9 km (miles)
• Display unit: 0.1 km (miles)
tire circumference adjustment
• Unit: 1mm
• Sensor points: 6
Tachometer: Display range: 0-10,000 rpm
shift light
• Adjustment range: 8,000-10,000 rpm
• Unit: 100 rpm
Warning (shift light)
• Light on (F-OFF)
• Flash (F-ON)
Speed signal setting: Setting range: 0.5, 1-24
Speed pulse: setting range
• HI Act (Positive)
• Lo Act (Negative)
fuel gauge
• Display range: 6 levels
• Unity: Each level equals 16.6%
• Setting: 100 ohms, 250 ohms, 510 ohms, 1200 ohms, SW, User
Clock: 24h
tension meter
• Display range: DC 8-18V
• Flashes as soon as the voltage is below 11.5V or higher than 15.5V
Brightness backlight
• Setting: 1-5 (dark to light)
• Unity: Each level equals 20%
Effective Voltage: DC 12V
Effective temperature range: -10 - 60°C (14 140°F)
Standard: JIS D 0203 S2
Dimensions (W x L x H): 68.33 x 64.55 x 54.03 mm
Weight :±127.3g
Illumination of the function lights
• Blinker (Green)
• Warning Light (Red)
• Neutral (Green)
• High Beam (Blue)
Sensor included: Passive speed sensor: BF019005
Scope of delivery: 1 piece including detailed English instructions
