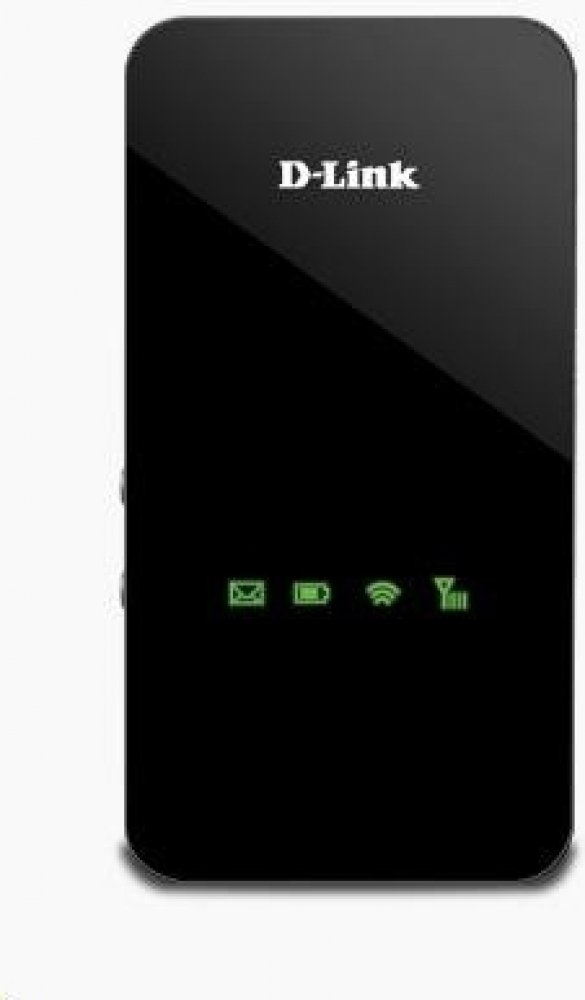

D-Link DWR-720
D-Link routery 802.11 b/g 2,4 GHz WPS
Technical Specifications
General
GSM/GPRS/EDGE band
Quad-Band : 850/900/1800/1900 MHz
Power Class 4 (+33 dBm, 850/900 MHz)
Power Class 1 (+30 dBm, 1800/1900 MHz)
UMTS/HSDPA/HSUPA1 band
900/2100 MHz
Power Class 3 (+23 dBm)
Data Throughput2
Downlink up to 21.6 Mbps in HSPA+ mode
Uplink up to 5.76 Mbps in HSPA+ mode
Security
WEP 64-bit/128-bit
WPA-PSK Auto(TKIP/AES)
WAP2-PSK Auto (TKIP/AES)...
Technical Specifications
General
GSM/GPRS/EDGE band
Quad-Band : 850/900/1800/1900 MHz
Power Class 4 (+33 dBm, 850/900 MHz)
Power Class 1 (+30 dBm, 1800/1900 MHz)
UMTS/HSDPA/HSUPA1 band
900/2100 MHz
Power Class 3 (+23 dBm)
Data Throughput2
Downlink up to 21.6 Mbps in HSPA+ mode
Uplink up to 5.76 Mbps in HSPA+ mode
Security
WEP 64-bit/128-bit
WPA-PSK Auto(TKIP/AES)
WAP2-PSK Auto (TKIP/AES)
WPS Push-Button Connection
Advanced Functions
Built-in firewall
Built-in NAT
UPnP
Physical/Interfaces
Interfaces
802.11b/g wireless LAN, compatible with 802.11n devices
6-pin USIM card interface
microSD card interface
Micro-USB port
Antenna
1 x internal 3G main antenna
1 x internal Wi-Fi antenna
1 x internal 3G auxiliary antenna (on band 900/2100 or 850/1900/2100)
Display
Network type
Battery status
Wi-Fi status
Power
DC 5 V/1 A +/- 5%
2000 mAh Li-ion battery
Dimensions
100.3 x 49.35 x 14.13 mm
Weight
43.67 g
Operating Temperature
-10 to 55 °C (23 to 131 °F)
Operating Humidity
10% to 90% (non-condensing)
Certifications
CE
Wi-Fi Certification
1 Supported frequency band is dependent upon regional hardware version.
2 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
3 SD card not included.
Více informací o produktu
General
GSM/GPRS/EDGE band
Quad-Band : 850/900/1800/1900 MHz
Power Class 4 (+33 dBm, 850/900 MHz)
Power Class 1 (+30 dBm, 1800/1900 MHz)
UMTS/HSDPA/HSUPA1 band
900/2100 MHz
Power Class 3 (+23 dBm)
Data Throughput2
Downlink up to 21.6 Mbps in HSPA+ mode
Uplink up to 5.76 Mbps in HSPA+ mode
Security
WEP 64-bit/128-bit
WPA-PSK Auto(TKIP/AES)
WAP2-PSK Auto (TKIP/AES)
WPS Push-Button Connection
Advanced Functions
Built-in firewall
Built-in NAT
UPnP
Physical/Interfaces
Interfaces
802.11b/g wireless LAN, compatible with 802.11n devices
6-pin USIM card interface
microSD card interface
Micro-USB port
Antenna
1 x internal 3G main antenna
1 x internal Wi-Fi antenna
1 x internal 3G auxiliary antenna (on band 900/2100 or 850/1900/2100)
Display
Network type
Battery status
Wi-Fi status
Power
DC 5 V/1 A +/- 5%
2000 mAh Li-ion battery
Dimensions
100.3 x 49.35 x 14.13 mm
Weight
43.67 g
Operating Temperature
-10 to 55 °C (23 to 131 °F)
Operating Humidity
10% to 90% (non-condensing)
Certifications
CE
Wi-Fi Certification
1 Supported frequency band is dependent upon regional hardware version.
2 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
3 SD card not included.
