D-Link DPE-301GS

D-Link bez správy (unmanaged) 243 g 16 cm 11 cm plast 1 30 W 30 W 1

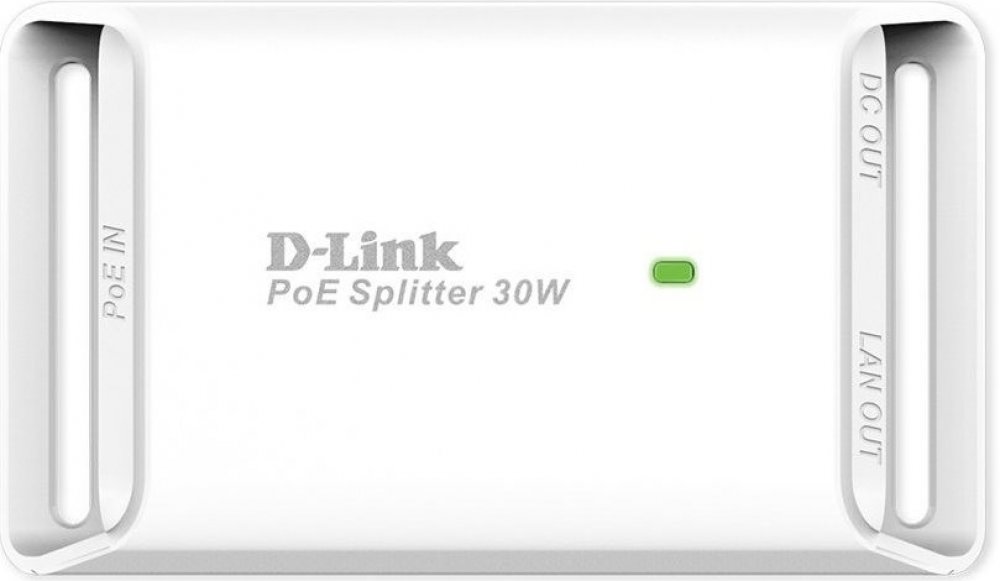

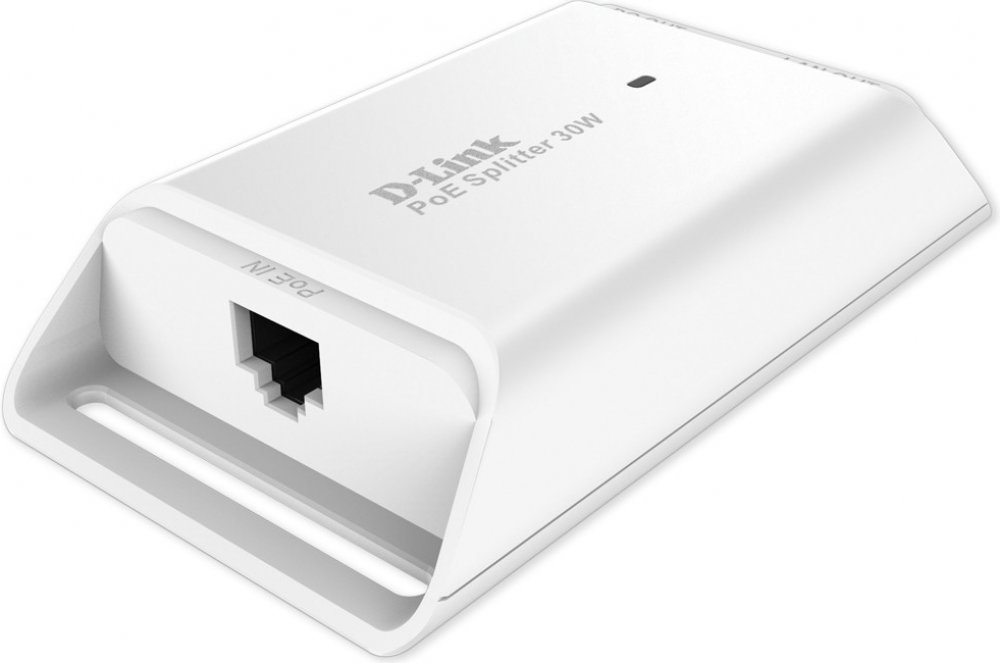

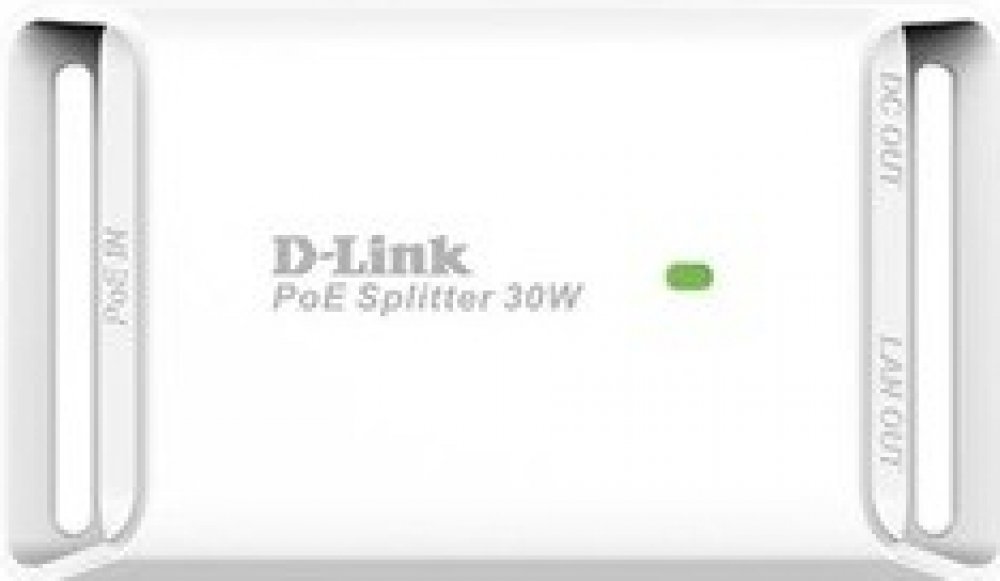

OVERVIEW The DPE-301GS Gigabit PoE+ Splitter provides Gigabit connectivity and high wattage electrical power to legacy devices that do not support PoE, by separating power and data from a PoE source. Compliant with the 802.3at and 802.3af PoE standards, it can effectively turn any device into a PoE device, giving you the ability to mount your non-PoE device virtually anywhere in a building since it doesn’t require a power outlet. Remotely connect and power a wide variety of power demanding devices with the DPE-301GS. The DPE-301GS outputs up to 5 V DC, 9 V DC, or 12 V DC, making it better able to cope with the demands of multi-feature surveillance cameras, 802.11ac wireless access point, network switches and security equipment. Network administrators can remotely connect and power a wide variety of power demanding devices and deploy wireless access points and network cameras in hard-to-reach places such as entryways, rooftops, ceilings or any other location not in close proximity to a power outlet.
TECHNICAL SPECS
Ports
PoE In *Supports half/full-duplex operation *10/100/1000BASE-T port *IEEE 802.3 compliant *IEEE 802.3u compliant *IEEE 802.3ab compliant *IEEE 802.3at compliant *IEEE 802.3af compliant
LAN Out *Supports half/full-duplex operation *10/100/1000BASE-T port *IEEE 802.3 compliant *IEEE 802.3u compliant *IEEE 802.3ab compliant
LED Indicator *Green: Power On
Physical
Dimensions (L x W x H) *109.8 x 62.2 x 24.5 mm
Weight *98 grams (3.46 ounces)
Power Output *5 V DC up to 2.5 A *9 V DC up to 2 A *12 V DC up to 2 A
Included Power Adapter Cables *5.5 mm to 3.8 mm male to male *5.5 mm to 5.5 mm male to male
Temperature *Operating: 0 to 60 °C *Storage: -30 to 70 °C
Humidity *Operating: 5% to 95% non-condensing *Storage: 5% to 95% non-condensing
Certifications *CE *FCC *VCCI *RCM *RoHS
