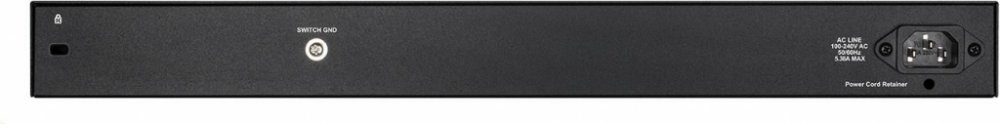

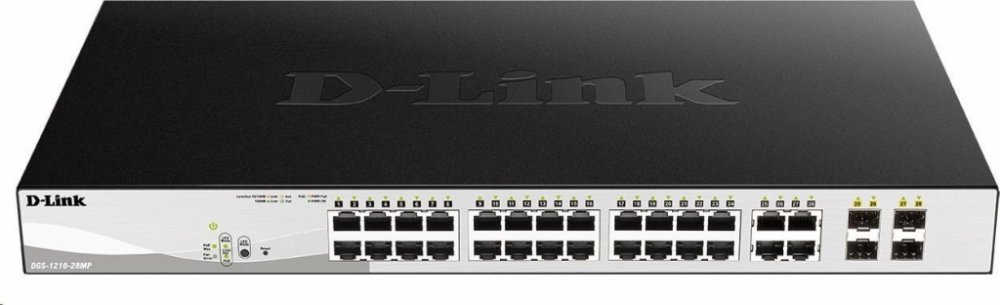

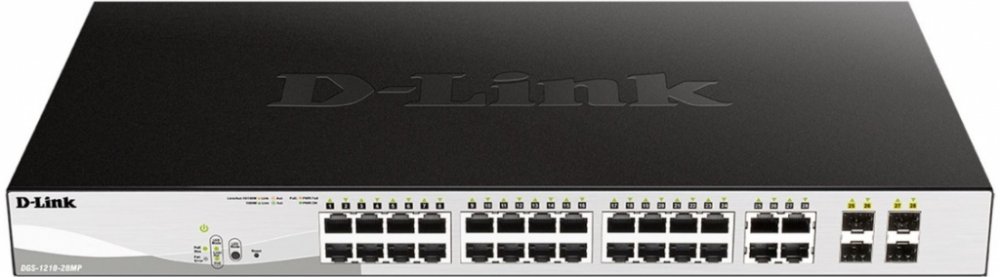

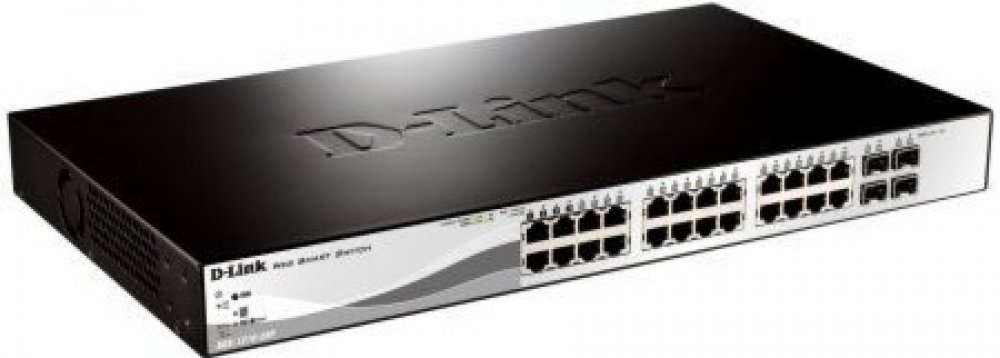

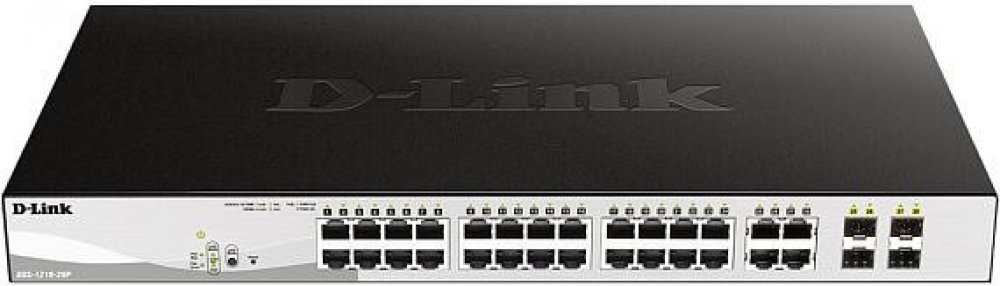

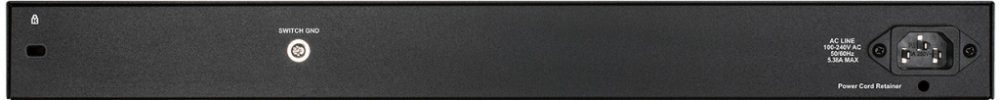

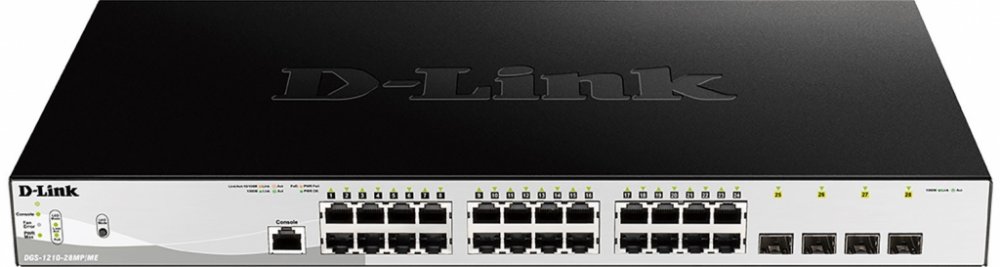

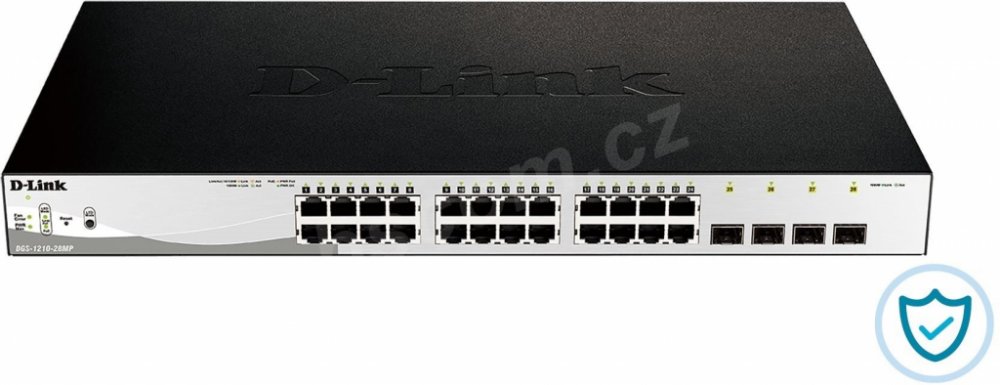

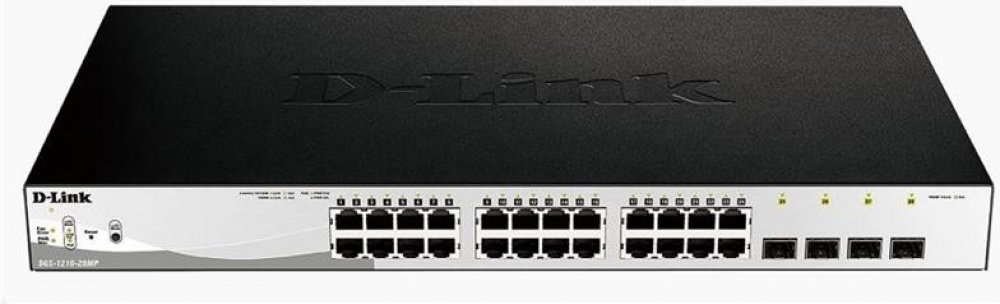

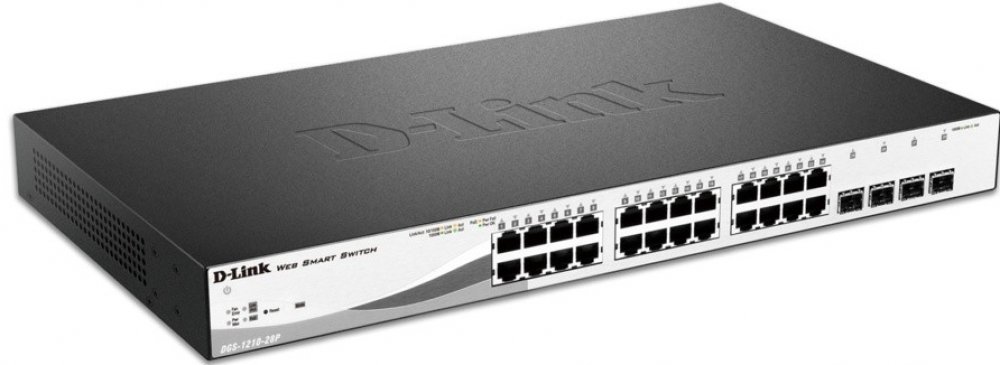

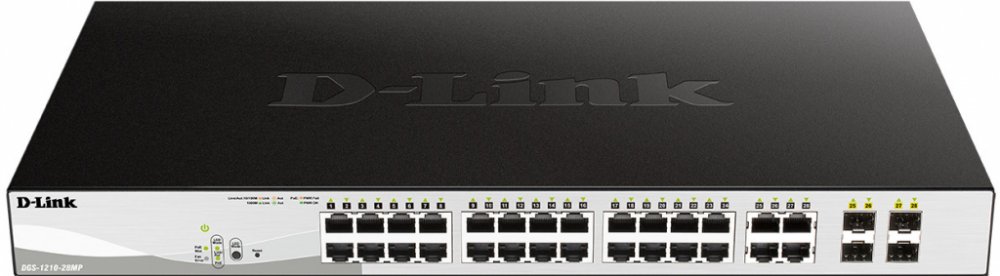

D-Link DGS-1210-28MP

DGS-1210-28MP: 28-Port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (24 x PoE ports, fan)
Features
Green Technology
Power saving via the following features:
Link Status detection
LED Shut-Off
Port Shut-Off
System Hibernation
Time-based PoE (DGS-1210-10P/28P/52P/52MP only)
Security Features
Access Control List secures network
D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
Port Security supports 64 MACs per port
ARP Spoofing Prevention
Intuitive Management
D-Link Network Assistant Utility or Web-based GUI
Built-in SNMP MIB for remote NMS (D-View 6.0)
Compact CLI through Telnet
Advanced Features
Auto Surveillance VLAN
Loopback Detection automatically disables a port when a loop is detected
Cable Diagnostics allows administrators to determine cable status
SFP ports for flexibility
Auto MDI/MDIX
Interface
Number of 10/100/1000BASE-TX ports
DGS-1210-28/28P/28MP - 24 ports
Number of SFP ports
DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports
PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
DGS-1210-28MP (802.3af/802.3at/24 ports/370W)
Performance
Switch Capacity
DGS-1210-28/28P/28MP - 56 Gbps
64-Byte Packet Forwarding Rate
DGS-1210-28/28P/28MP - 41.7 Mpps
MAC Address Table Size
16K
Packet Buffer
DGS-1210-10/20/28/28P/28MP - 1.5 MB per device
Jumbo Frame
Up to 9,216 Bytes
Physical & Environmental
Power Consumption (Standby/Maximum)
DGS-1210-28MP - 33.1W / 454.4W (PoE)

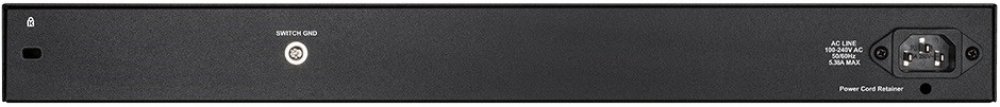

Power Input
10 to 240 VAC, 50/60HZ internal universal power supply
Dimensions (W x D x H)
DGS-1210-28MP - 440 x 250 x 44 mm
Weight
DGS-1210-28MP - 3.86 kg
Ventilation
DGS-1210-28MP - smart fans
Heat Dissipation
DGS-1210-28MP - 1,552.32 BTU per hour
Temperature
Operating: -5° to 50°C (23° to 112°F)
Storage: -20° to 70°C (-4° to 158°F )
Humidity
Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing
Certification
CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
Software Feature
L2 Features
MAC Address Table
16K entries
IGMP Snooping
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
DGS-1210 28/28P/28MP: Maximum of 14 groups/8 ports per group
DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
Up to 9,216 bytes
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP (for DGS-1210-28MP only)
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)
VLAN
802.1Q
VLAN Group
Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
Auto Surveillance VLAN
Quality of Service (QoS)
802.1p Quality of Service
8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
L3 Features
IP Interface
Supports 1 interface
IPv6 Neighbor Discovery (ND)
Static Routing (for DGS-1210-28MP only)
64 IPv4 Static Route Entries
32 IPv4 Static Route Entries
Access Control List (ACL)
