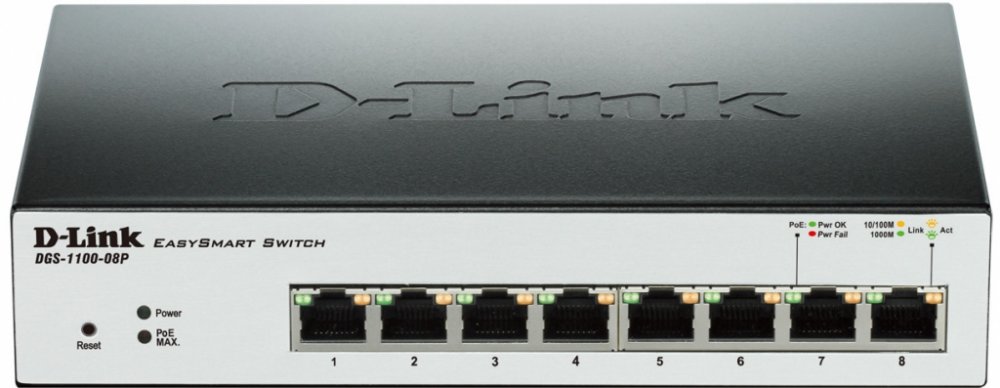

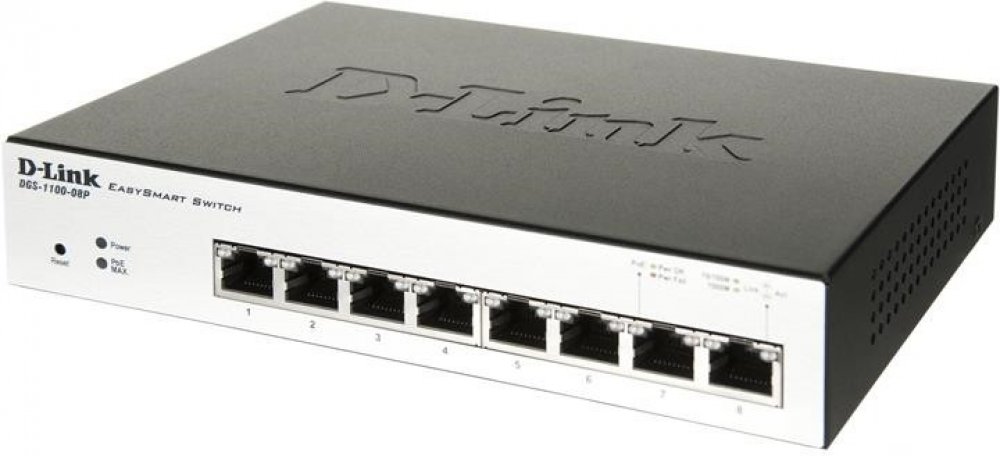

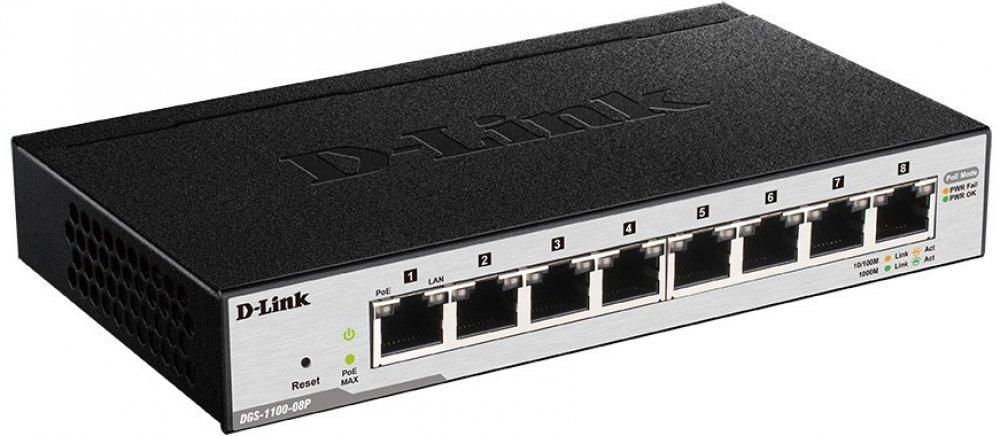

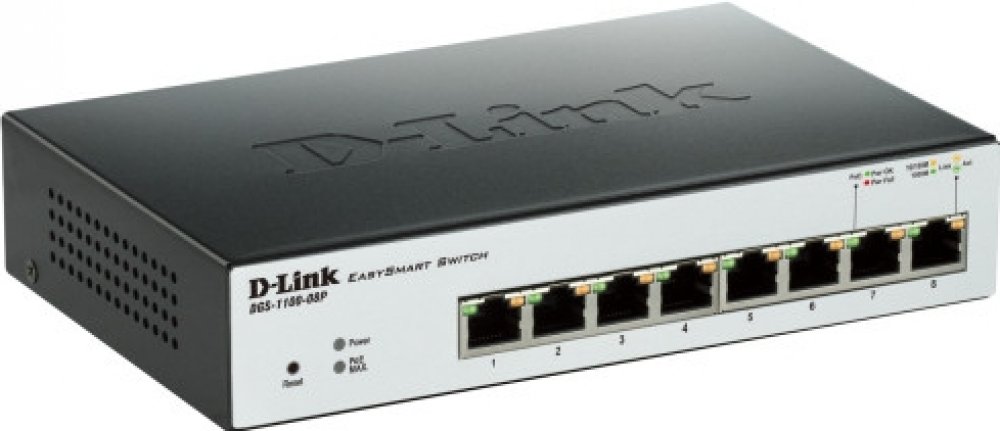

D-Link DGS-1100-08P

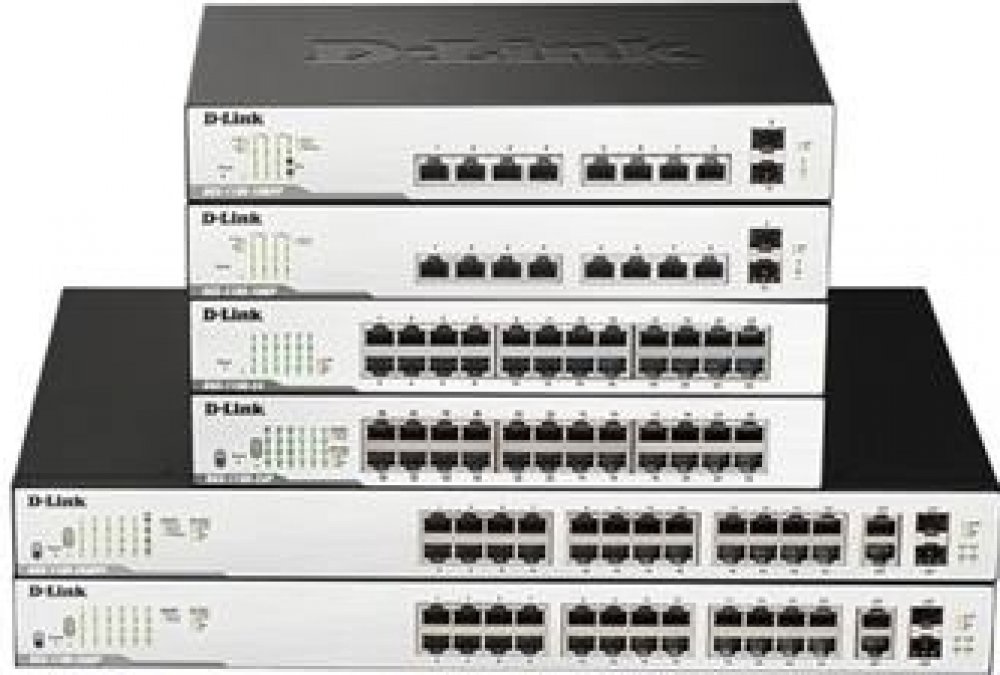

The DGS-1100 Series Gigabit Smart Managed Switches consists of:
DGS-1100-08P: 8-Port Gigabit PoE Smart Managed Switch (8 x PoE ports, fanless)
Features
Physical
Various selection of port counts, with or without PoE and fibre support
Fanless design for silent operation (non-PoE models only)
Green Technology
Link Status detection
IEEE 802.3az compliant
Time-based PoE (PoE models excluding DGS-1100-08P)
Advanced Features
Bandwidth Control
IEEE 802.1Q VLAN traffic segregation
Port-based VLAN
IEEE 802.1p QoS
Surveillance VLAN
Voice VLAN
Management Features
Client-based utility or web-based GUI
Built-in SNMP MIB1
Video Surveillance Mode (MP Models)
Surveillance optimised web interface
High PoE budget and PoE+ ports
Per-port 6 kV surge protection
ONVIF support
Technical Specifications
Interface
Number of 10/100/1000BASE-TX ports
DGS-1100-08P - 8 ports
PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
DGS-1100-08P (802.3af/8 ports/64W)
Performance
Switch Capacity
DGS-1100-08P - 16 Gbps
Maximum Forwarding Rate
DGS-1100-08P - 11.9 Mpps
MAC Address Table Size
DGS-1100-08P - 8K
Packet Buffer
DGS-1100-08P - 2Mbits
Flash Memory
DGS-1100-08P - 2 Mbytes
Diagnostic LED Indicators
Power (Per Device)
Yes
Link/Activity/Speed (Per Port)
Yes
Physical & Environmental
Power Consumption (Maximum)
DGS-1100-08P -78.8W (PoE on)

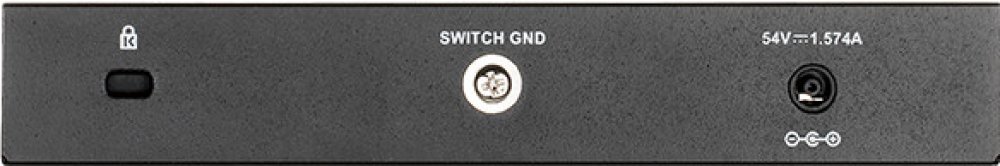

Power Input
DGS-1100-08/08P - 100 to 240 VAC, 50 to 60Hz external power supply
Dimensions (W x D x H)
DGS-1100-08P - 190 x 120 x 38 mm
Weight
DGS-1100-08P - 0.706 kg
Ventilation
DGS-1100-08/08P/16/18/24/26 - fanless
Heat Dissipation
DGS-1100-08P - 268.87 BTU per hour
MTBF
DGS-1100-08P - 708,219 hours
Temperature
DGS-1100-08/08P - operating: 0° to 40°C (32° to 104°F), storage: -10° to 70°C (14° to 158°F )
Humidity
DGS-1100-08/08P - operating: 10% ~ 95% Non-condensing, storage: 5% ~ 95% Non-condensing
EMI/EMC
DGS-1100-08/08P - FCC Class A, CE Class A, VCCI Class A, C-Tick
Safety
DGS-1100-08/08P - cUL, CE LVD
Software Features (DGS-1100-10MP/16/18/24/24P/26P/26MP)
VLAN
Port-based VLAN
802.1Q tagged VLAN
Auto Surveillance VLAN
Voice VLAN
Management VLAN
Asymmetric VLAN
VLAN Group
Supports 128 static VLAN groups
Max. 4094 VIDs
L2 Features
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frames up to 9216 Bytes
IGMP Snooping
IGMP v1/v2/v3 awareness Snooping
Supports 64 Gr
