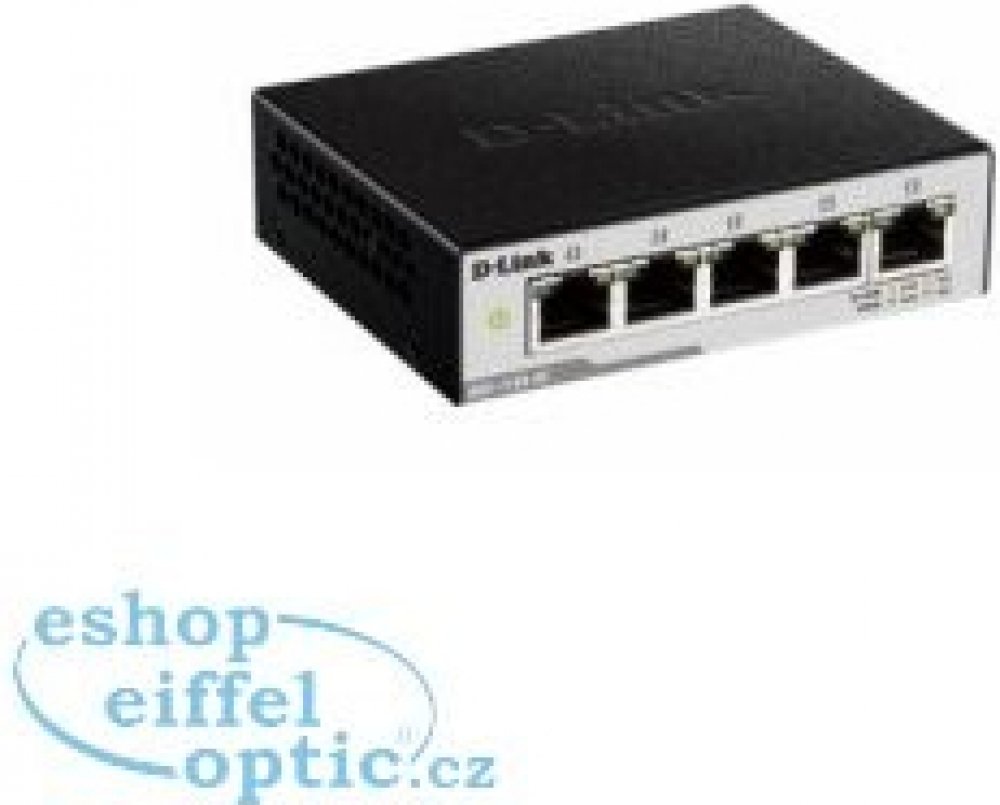

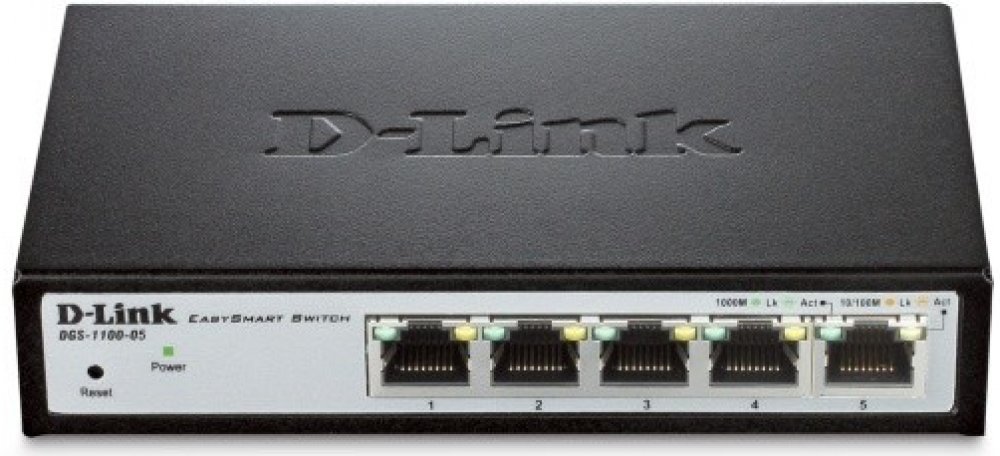

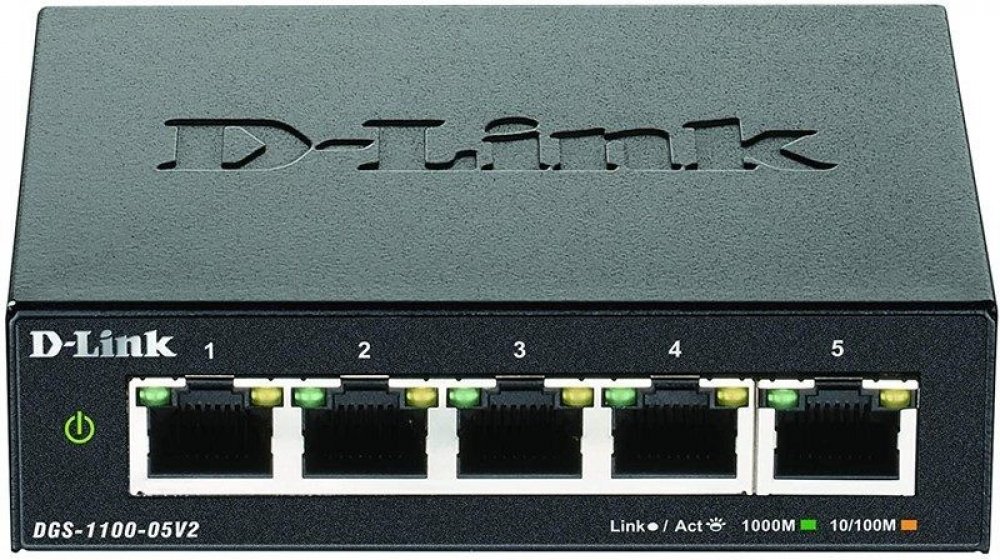

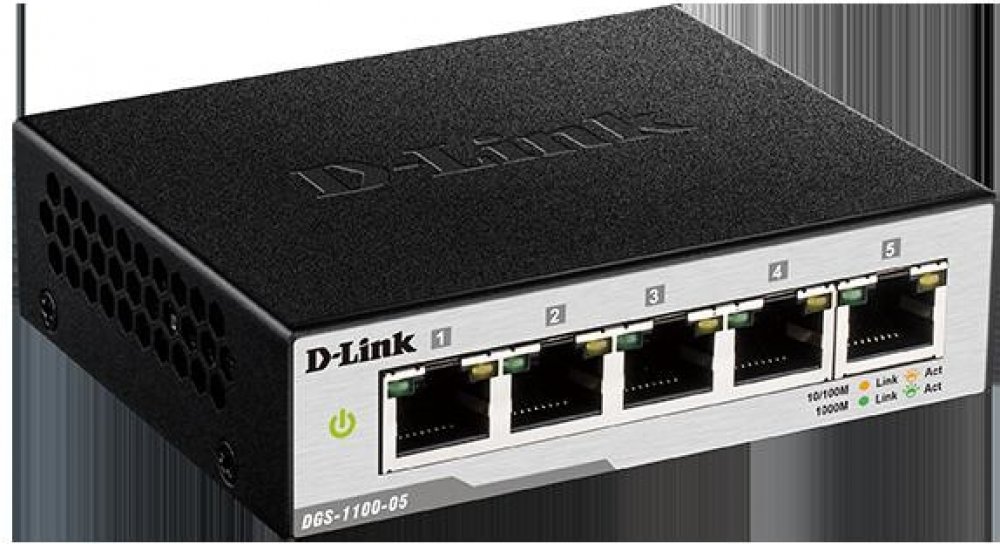

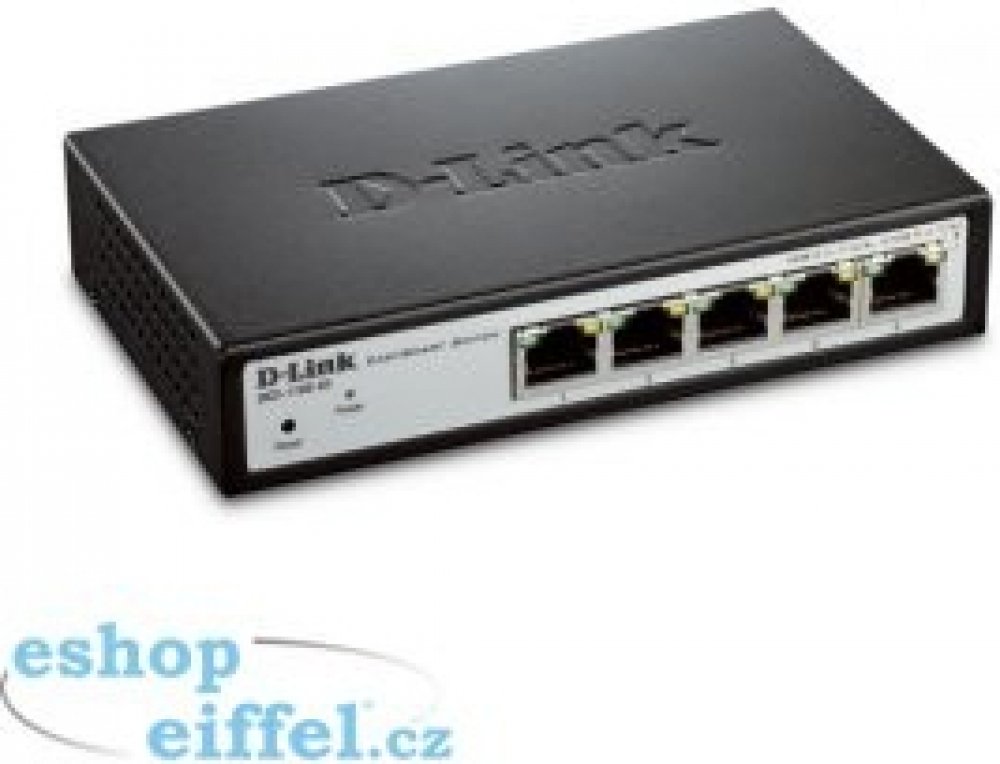

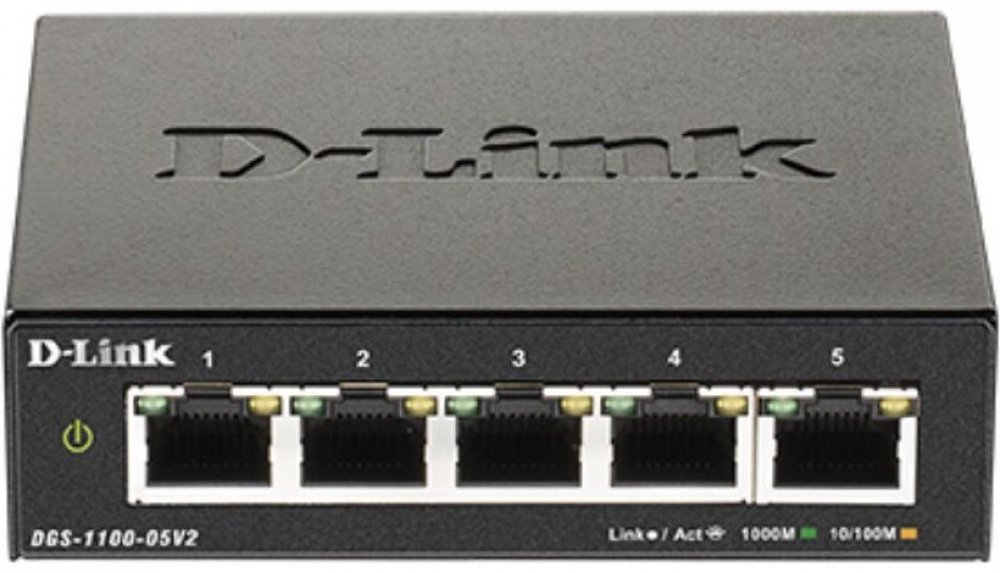

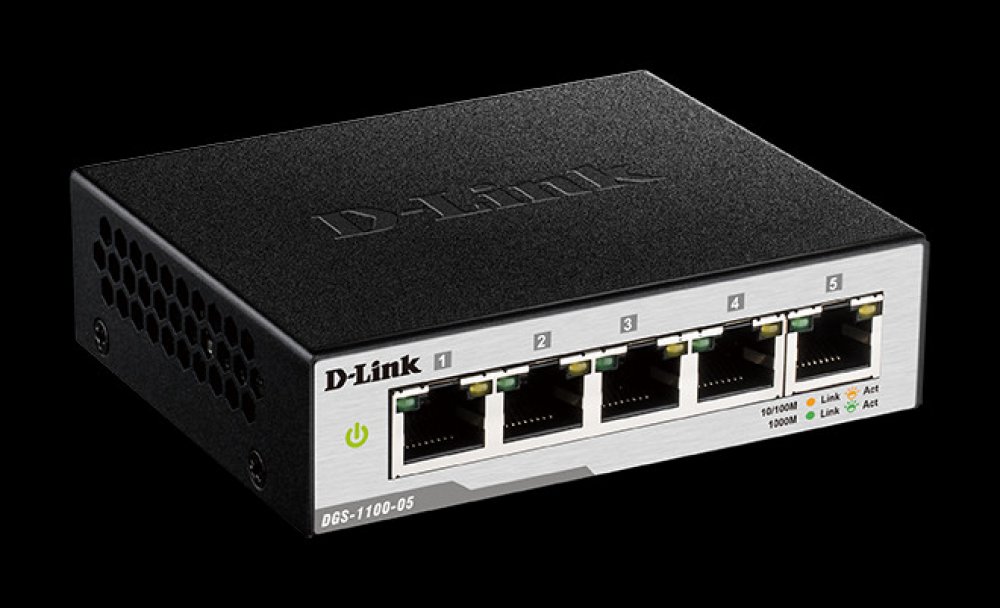

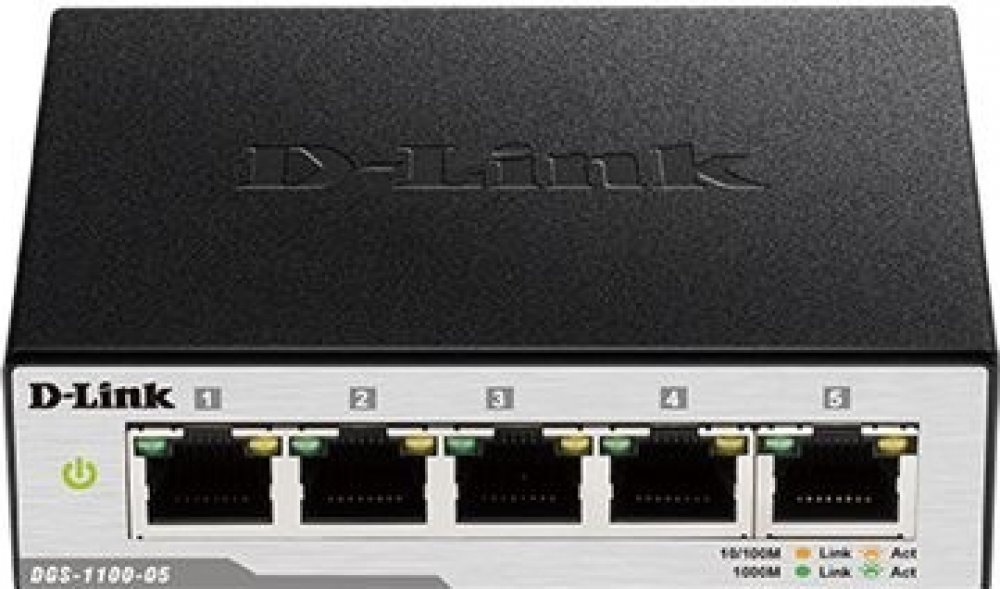

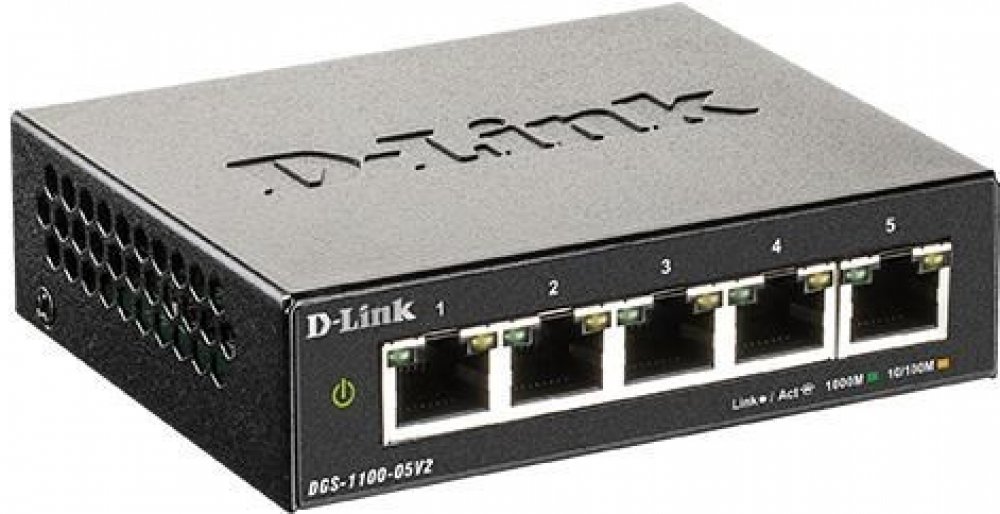

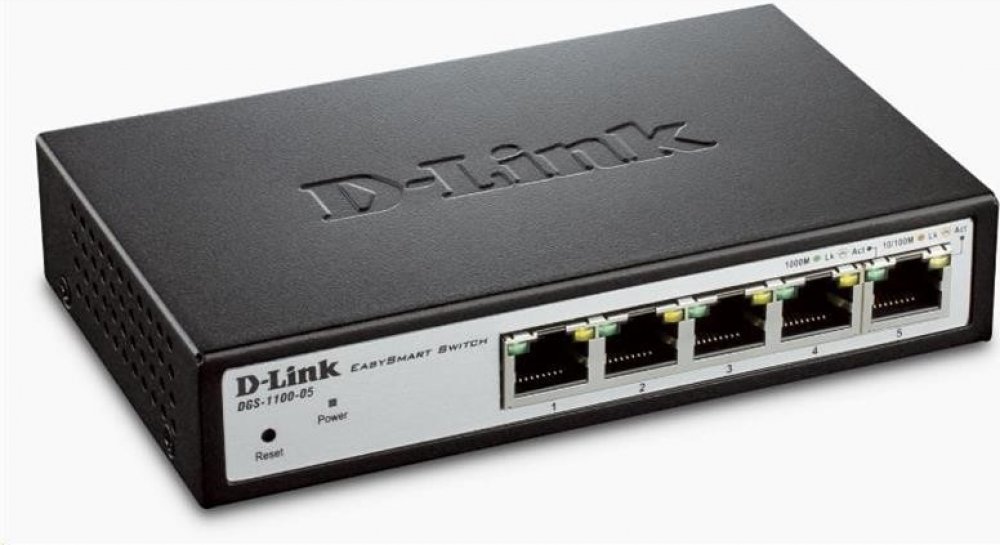

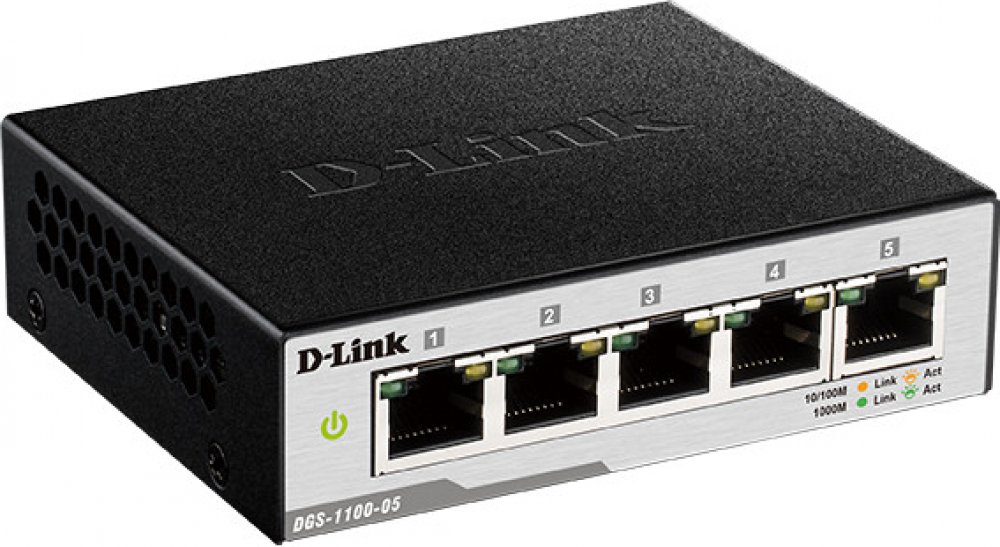

D-LINK DGS-1100-05

DGS-1100-05: 5-Port Gigabit Smart Managed Switch (fanless)
Advanced Features
Bandwidth Control
IEEE 802.1Q VLAN traffic segregation
Port-based VLAN
IEEE 802.1p QoS
Surveillance VLAN
Voice VLAN
Management Features
Client-based utility or web-based GUI
Built-in SNMP MIB
Video Surveillance Mode (MP/MPP Models)
Surveillance optimised web interface
High PoE budget and PoE+ ports
Per-port 6 kV surge protection
ONVIF support
VLAN
Port-based VLAN
802.1Q tagged VLAN
Surveillance VLAN
Voice VLAN
Management VLAN
VLAN Group
Supports 32 static VLAN groups
Max. 4094 VIDs
Quality of Service (QoS)
802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 8 Kb/s)
Security
Static MAC Address
Up to 32 entries
Broadcast/Multicast/Unknown Unicast Storm Control
Management
Web-based GUI (Supports IPv4)
Client-based Utility (SmartConsole Utility)
