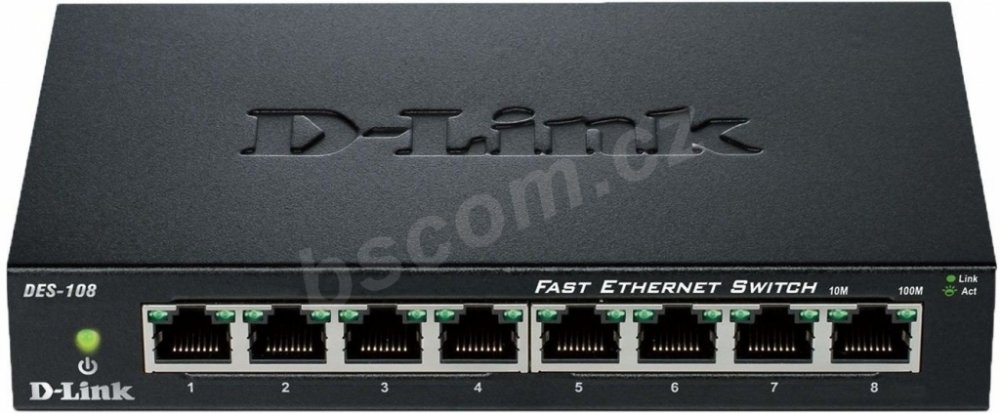

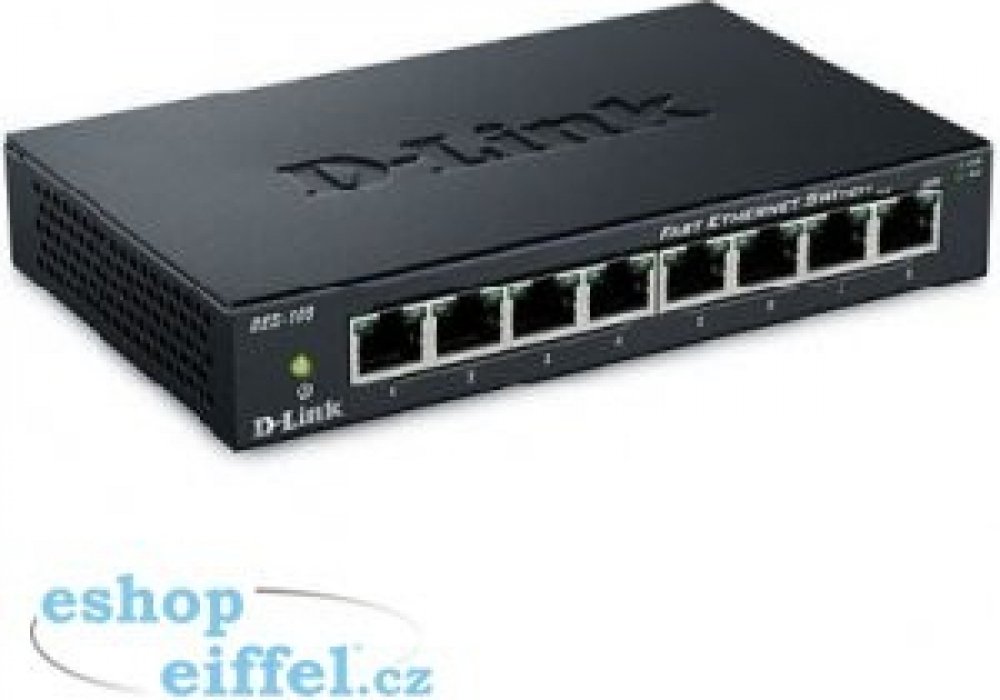

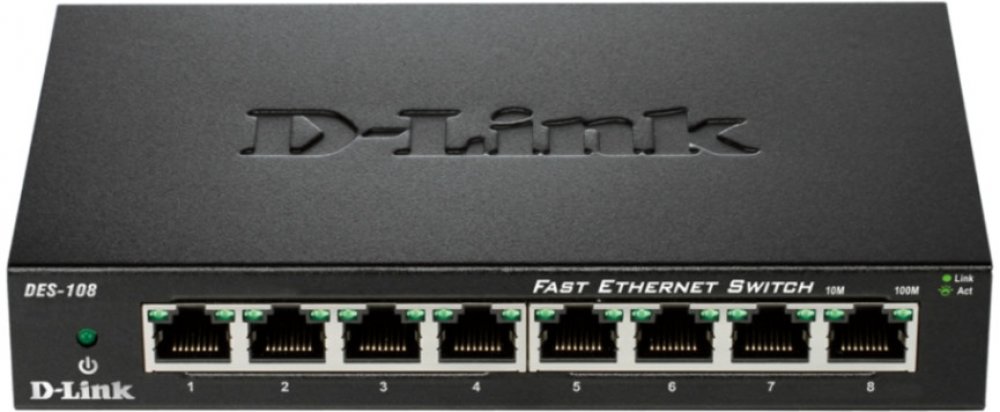

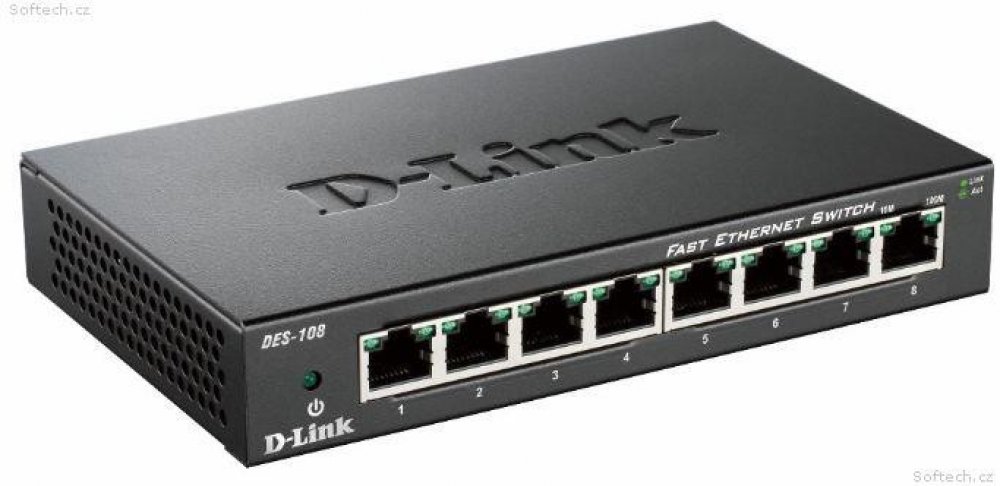

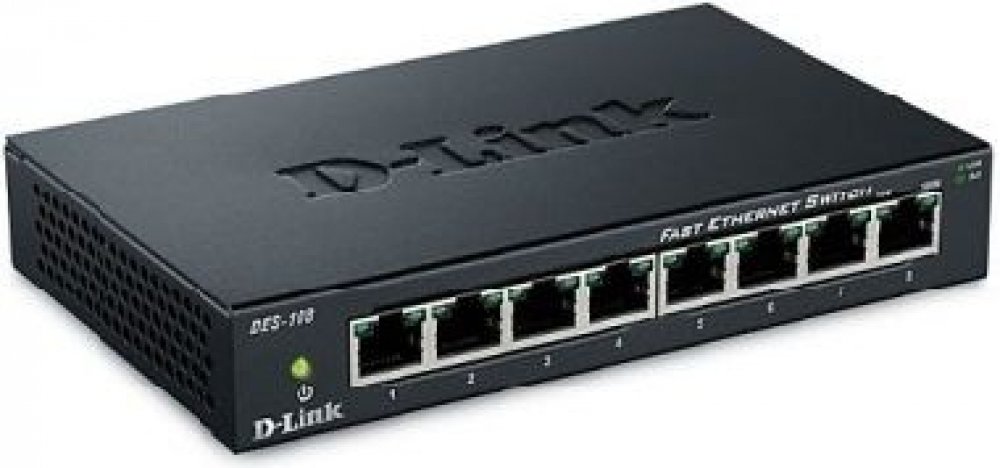

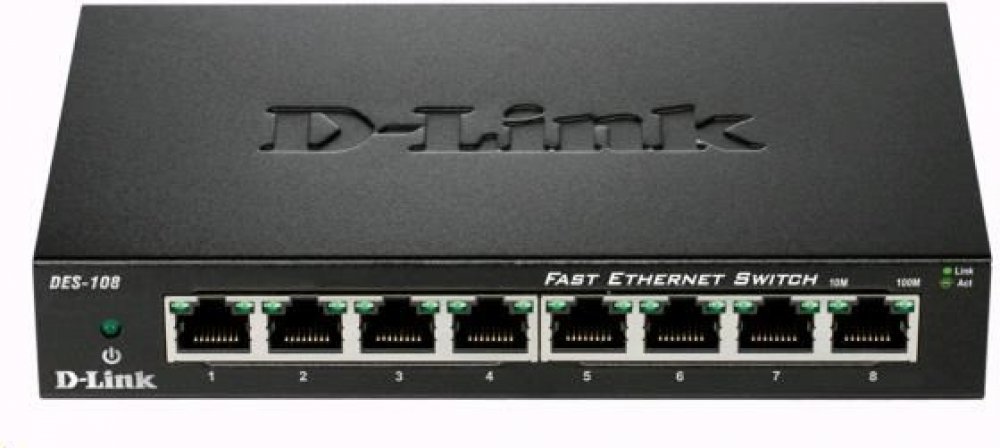

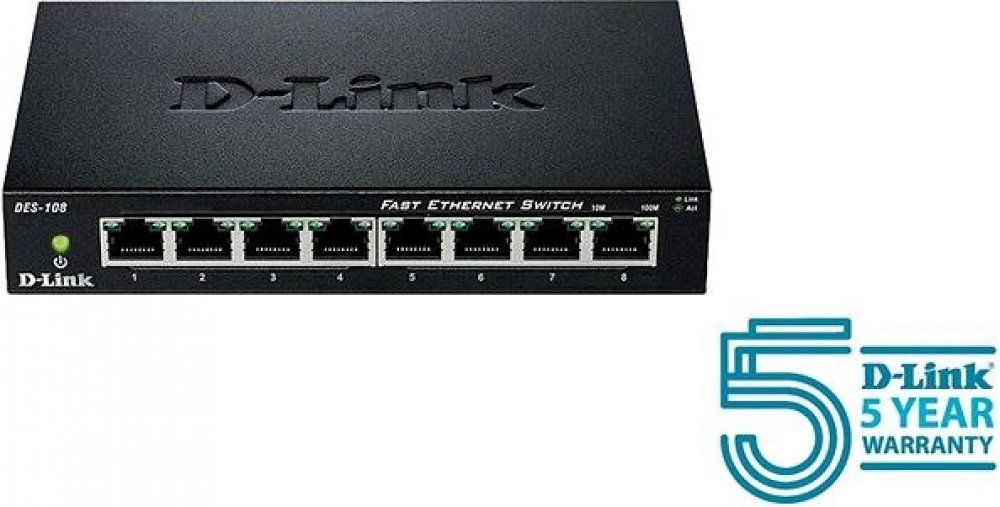

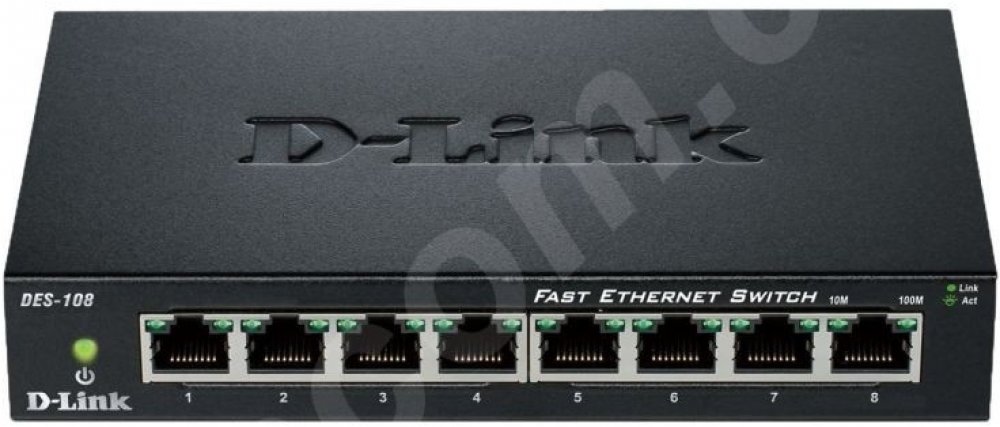

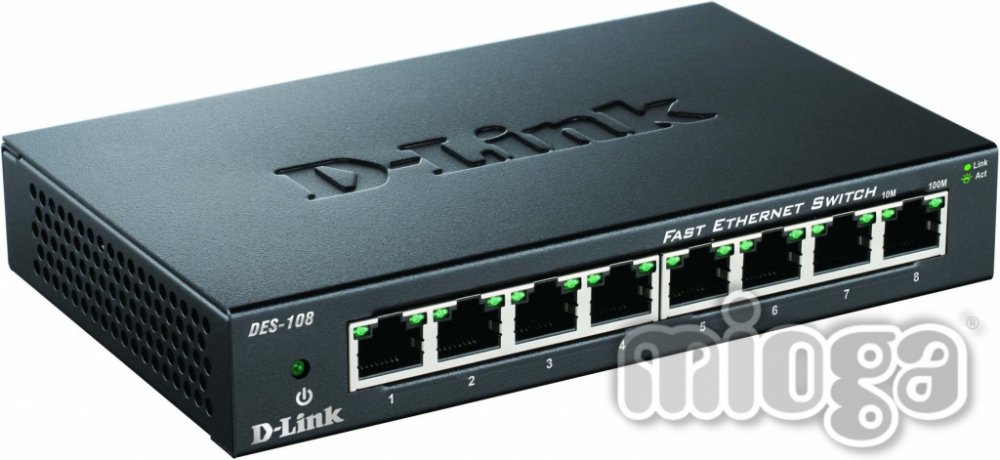

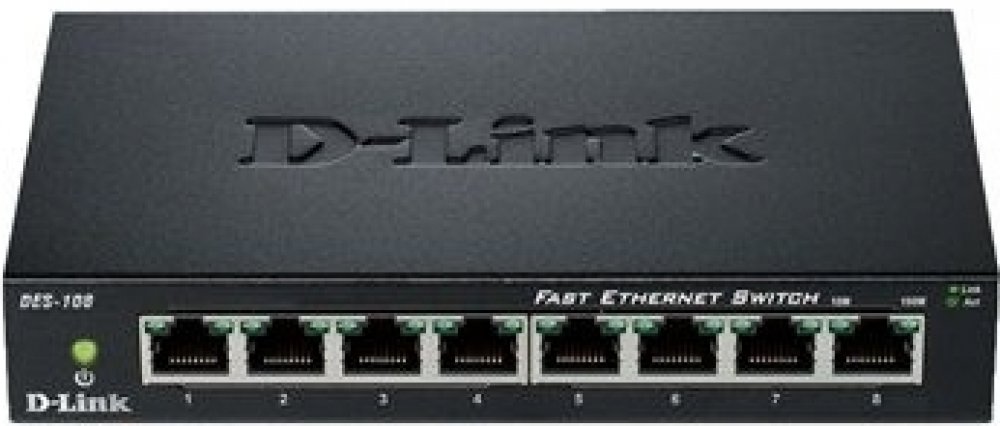

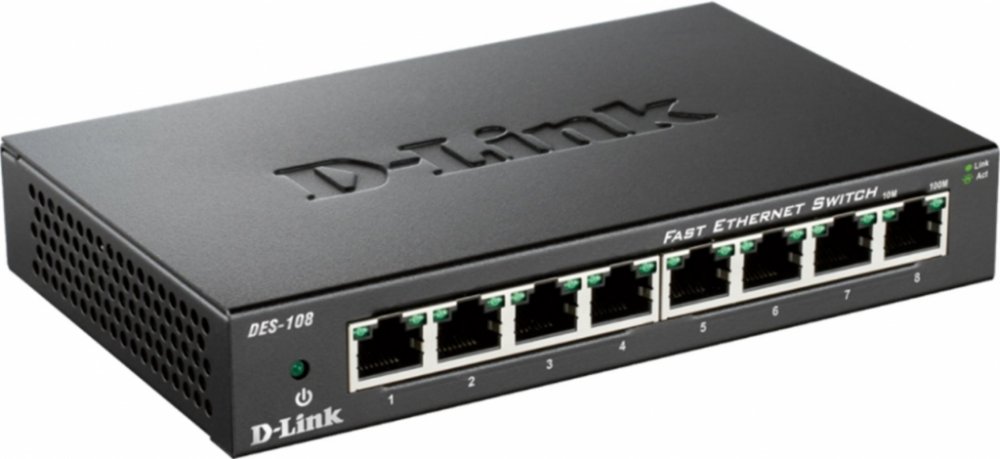

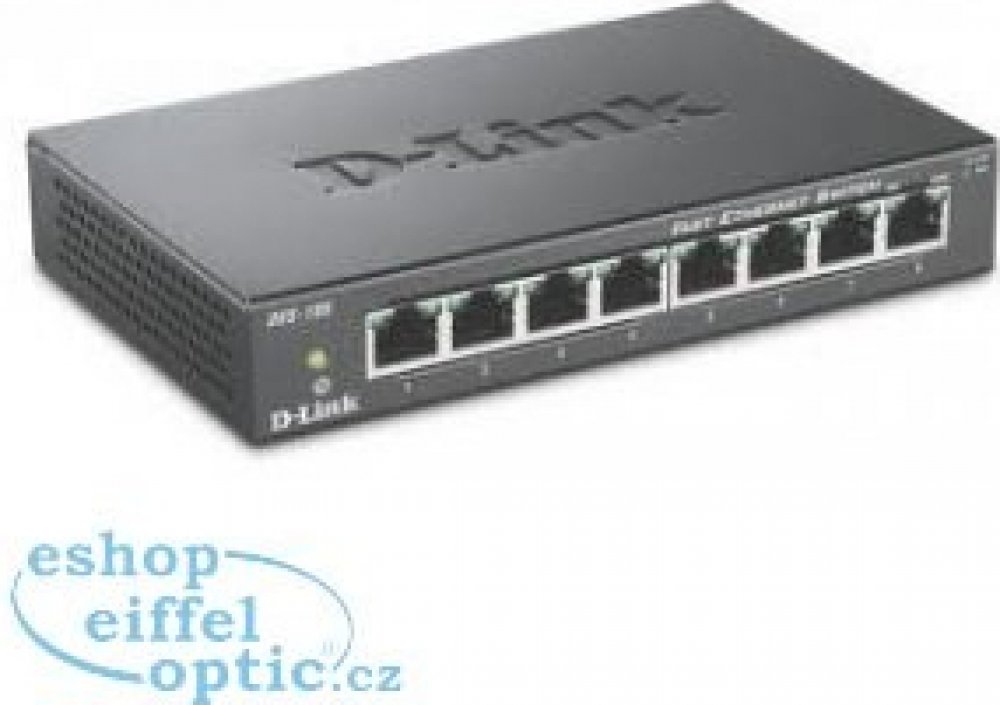

D-Link DES-108

Plug and Play operation
8 Fast Ethernet ports
Non-blocking architecture: simultaneous full speed on all ports
Fanless, silent operation to fit in any environment
Quality of Service (QoS) queues for traffic prioritisation
Solidly built with metal housing
D-Link Green™ technology, saves energy and increases the product’s lifespan
D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.
Robust design

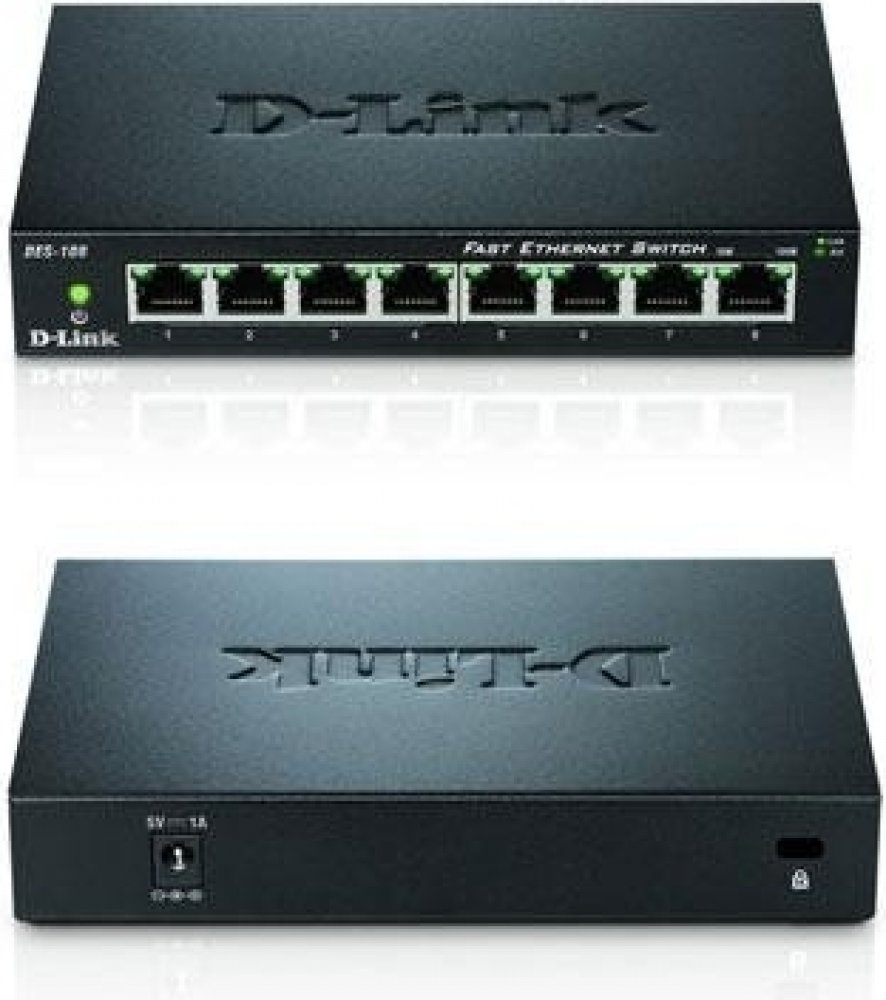

The DES-108 is designed with durability and performance in mind. The sturdy metal housing will protect it against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.
QoS (Quality of Service)
Despite being an unmanaged, Plug and Play switch, the DES-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
Power-saving technology
The DES-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Layer2 Features
MAC address table: 1K
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Jumbo Frames: 1536 Bytes
Switching fabric
1.6 Gbps
Data Transfer Rates
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
768 KB

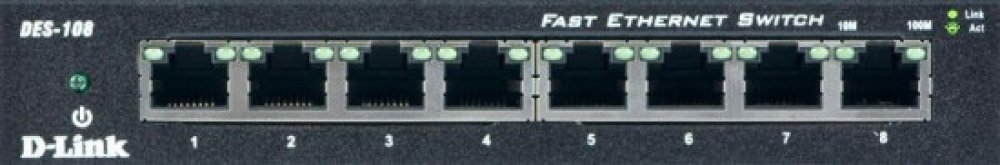

LED Indicators
Per port: Link/Activity
Per device: Power
Quality of Service (QoS)
Supports 802.1p QoS
2 Queues, WRR Mode
Green features
Energy Efficient Ethernet (EEE) standard
RoHS compliant
Power
External 5 V/1 A Level “V” Power Adapter
Power Consumption (DC input)
Standby: 0.63 watts
Maximum 2.1 watts
MTBF
511,323 hours
Temperature
Operating: 0 to 50 °C
Storage: -10 to 70 °C
Humidity
Operating: 10% to 90% RH non-condensing
Storage: 5% to 90% RH non-condensing
Dimensions (W x D x H)
162 x 102 x 28 mm
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
