Club3D CAC-1567

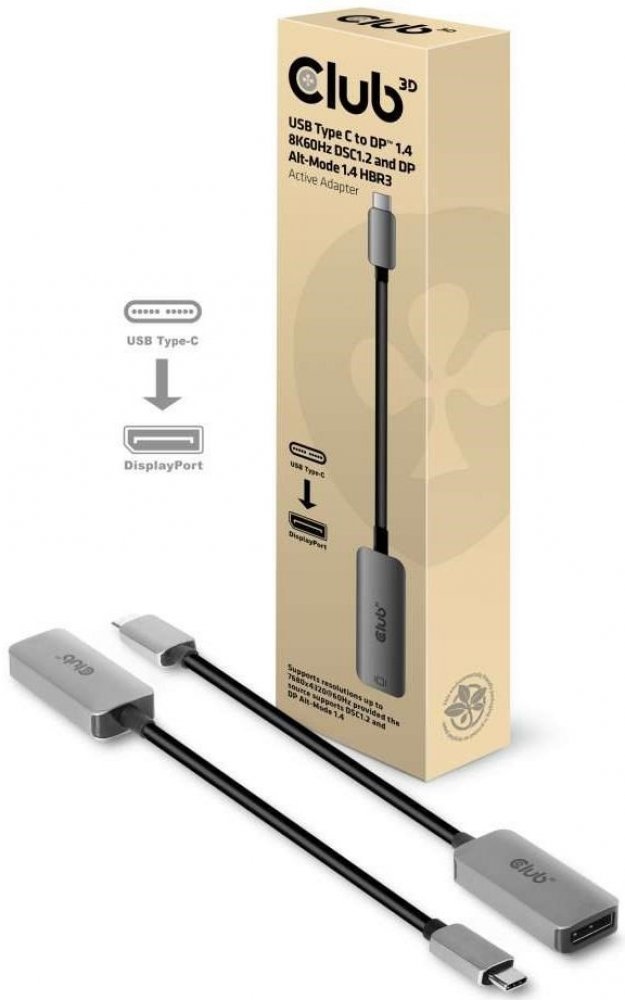

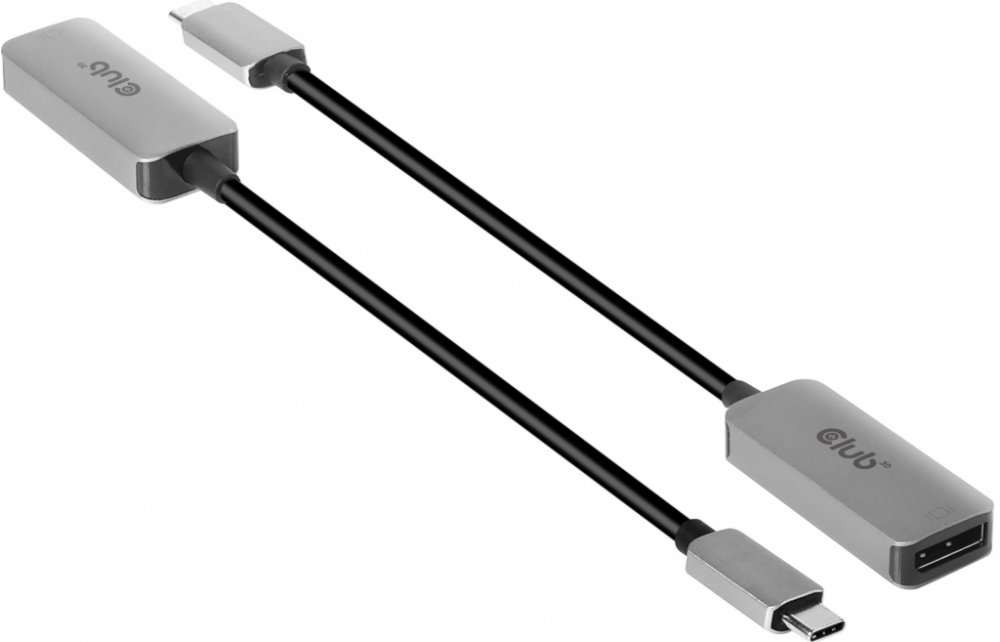

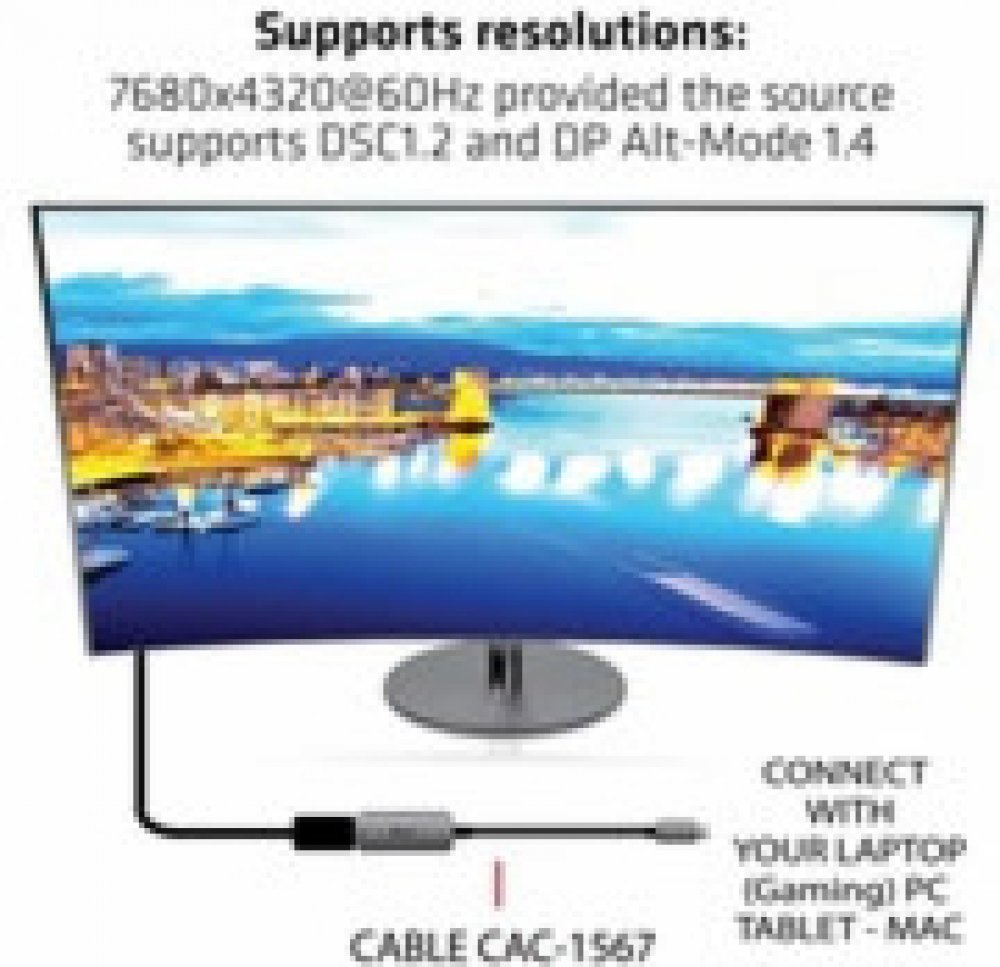

CAC-1567 - The Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.This Adapter also works with those VR glasses which require 3.3V support.It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional. Features Supports USB Type C input and DisplayPort™ output Supports DisplayPort™ resolutions up to 7680x4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4 Supports DisplayPort™ 1.4/1.2 Alt mode Support for 3.3V VR glasses Compliant to Thunderbolt 3 specifications Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) Support up to 48 bit (16bit per channel) deep color Supports content protection of HDCP1.4 & HDCP 2.2 USB bus power (no external power supply) TECHNICAL SPECIFICATIONS Product Series Adapter EAN 8719214471460 OS Support All Input USB Type C male Output DisplayPort™ 1.4 female Box contents Active Adapter Cable size 22 cm Total weight 74 g USB Type C Male connector 2.2 x 0.7 x 1.3 cm DisplayPort Female connector 5.4 x 1.1 x 2.2 cm Certifications Meets ROHS, FCC, and CE EMI requirements .
