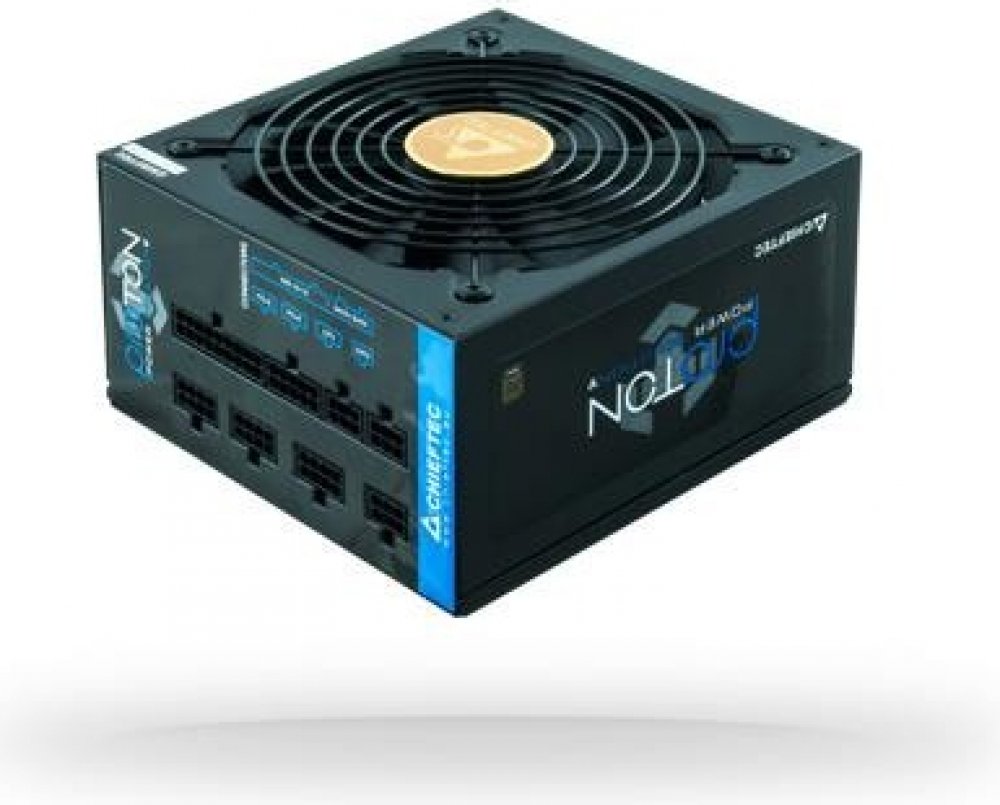

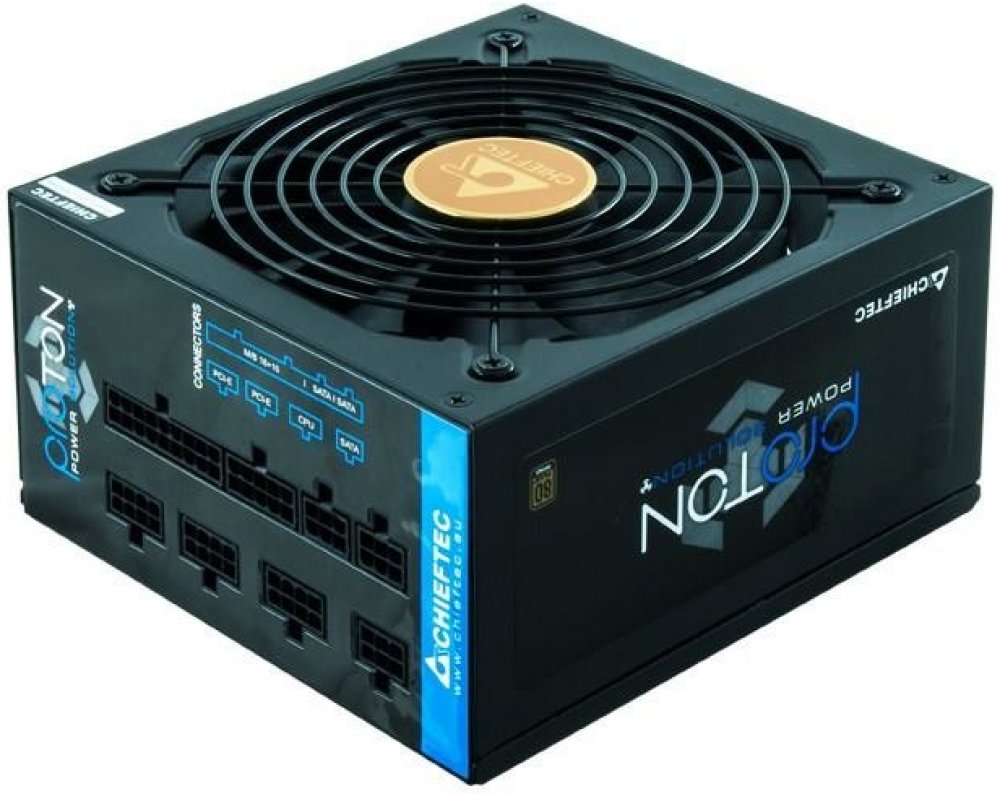

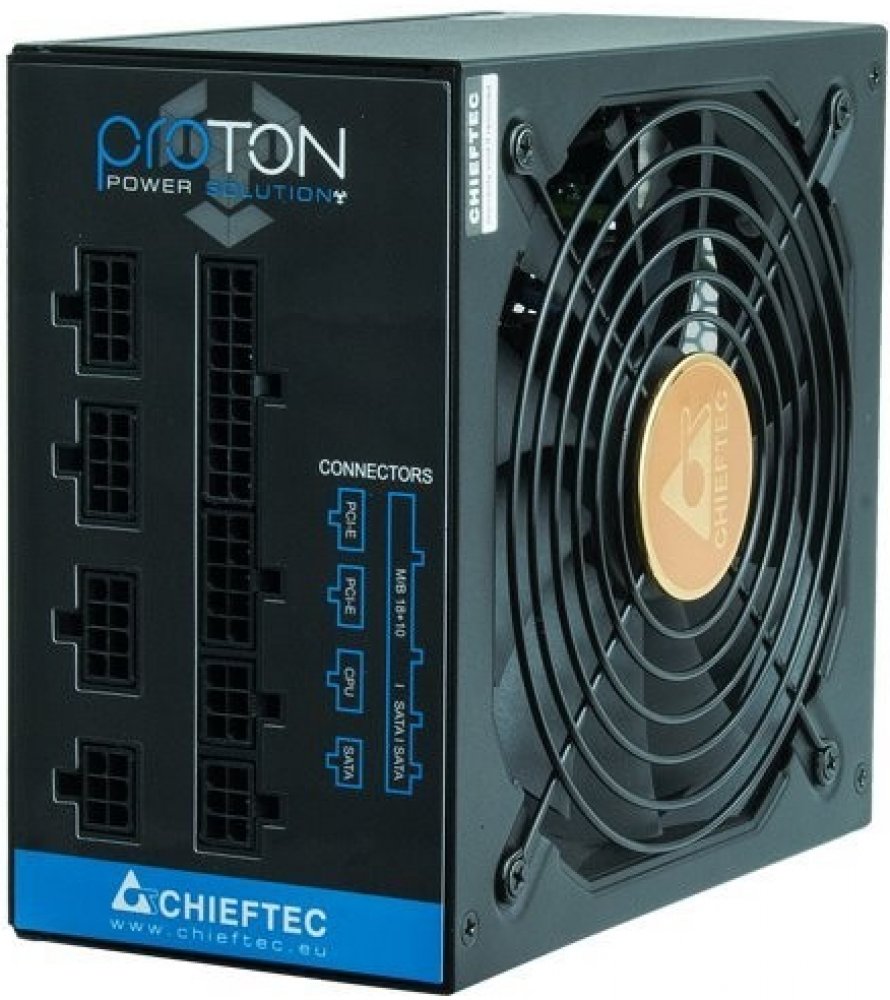

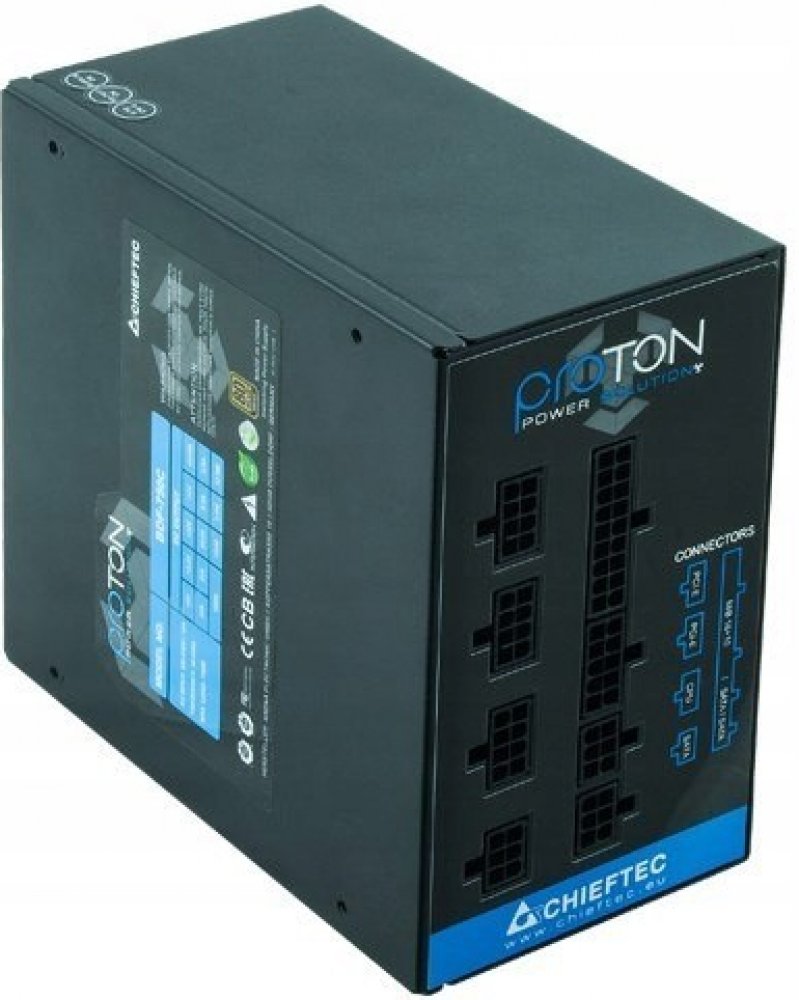

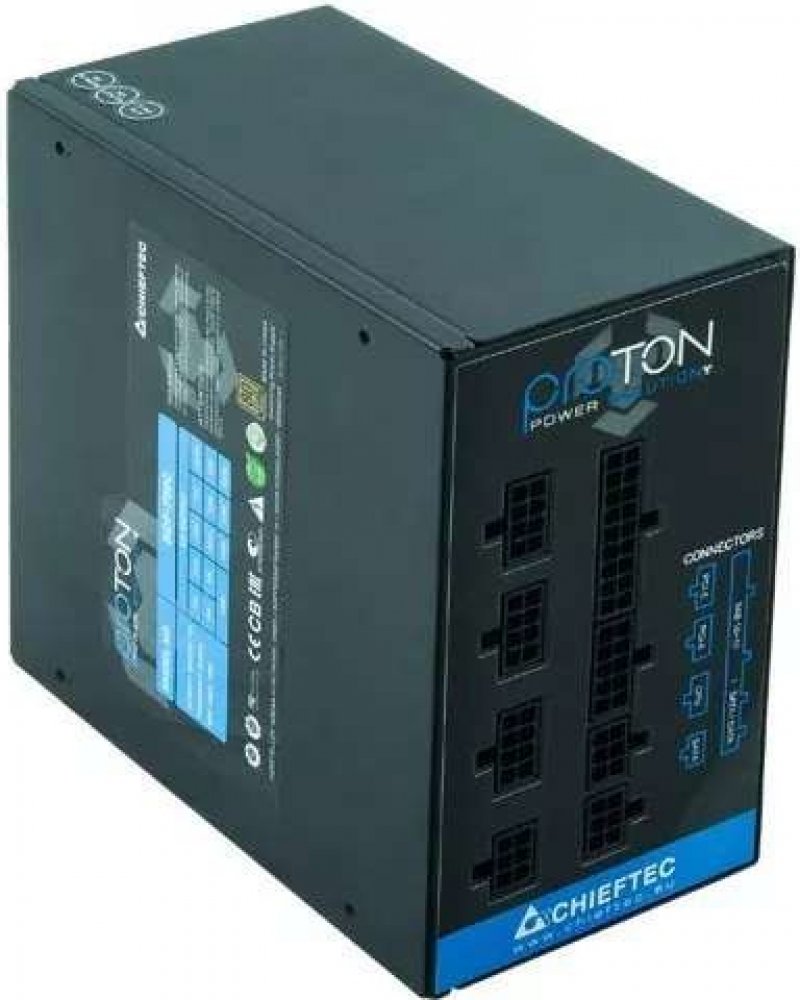

Chieftec Proton Series 750W BDF-750C
ATX 750 W Chieftec 140 mm aktivní
Výkon zdroje (ve W):750; Formát zdroje:ATX; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
Performance
AC Input:
115-230V
Frequency:
50 - 60Hz
+5V:
22A
+3,3V:
22A
+5V & +3,3V combined:
120W
+12V 1:
62,5A
+12V 2:
N/A
+12V 1 & +12V 2 combined:
N/A
+12V 3:
N/A
+12V 4:
N/A
+12V 3 & +12V 4 combined:
N/A
...
Výkon zdroje (ve W):750; Formát zdroje:ATX; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
Performance
AC Input:
115-230V
Frequency:
50 - 60Hz
+5V:
22A
+3,3V:
22A
+5V & +3,3V combined:
120W
+12V 1:
62,5A
+12V 2:
N/A
+12V 1 & +12V 2 combined:
N/A
+12V 3:
N/A
+12V 4:
N/A
+12V 3 & +12V 4 combined:
N/A
P.F.:
>0,9
-12V:
0,3A
+5VSB:
2,5A
Maximum Load:
750W
Modular cable
24PIN ATX:
1(20+4)
SATA:
6
MOLEX:
3
Floppy:
1
4PIN 12V:
-
8PIN 12V:
-
8PIN (4+4) 12V:
1
6PIN PCIe:
-
8PIN (6+2) PCIe:
4
Features
Specification:
ATX 12V 2.3
Form factor:
PS II
Efficiency:
> 85%
Dimension (DxWxH):
140 mm x 150 mm x 87 mm
PFC:
Active PFC (0,9)
Fan:
140mm silent fan
Security:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
OCP (Overcurrent protection)
OTP (Over Temperature protection)
AFC (Automatic Fanspeed Control)
Warranty:
24 Month
Více informací o produktu
Performance
AC Input:
115-230V
Frequency:
50 - 60Hz
+5V:
22A
+3,3V:
22A
+5V & +3,3V combined:
120W
+12V 1:
62,5A
+12V 2:
N/A
+12V 1 & +12V 2 combined:
N/A
+12V 3:
N/A
+12V 4:
N/A
+12V 3 & +12V 4 combined:
N/A
P.F.:
>0,9
-12V:
0,3A
+5VSB:
2,5A
Maximum Load:
750W
Modular cable
24PIN ATX:
1(20+4)
SATA:
6
MOLEX:
3
Floppy:
1
4PIN 12V:
-
8PIN 12V:
-
8PIN (4+4) 12V:
1
6PIN PCIe:
-
8PIN (6+2) PCIe:
4
Features
Specification:
ATX 12V 2.3
Form factor:
PS II
Efficiency:
> 85%
Dimension (DxWxH):
140 mm x 150 mm x 87 mm
PFC:
Active PFC (0,9)
Fan:
140mm silent fan
Security:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
OCP (Overcurrent protection)
OTP (Over Temperature protection)
AFC (Automatic Fanspeed Control)
Warranty:
24 Month
