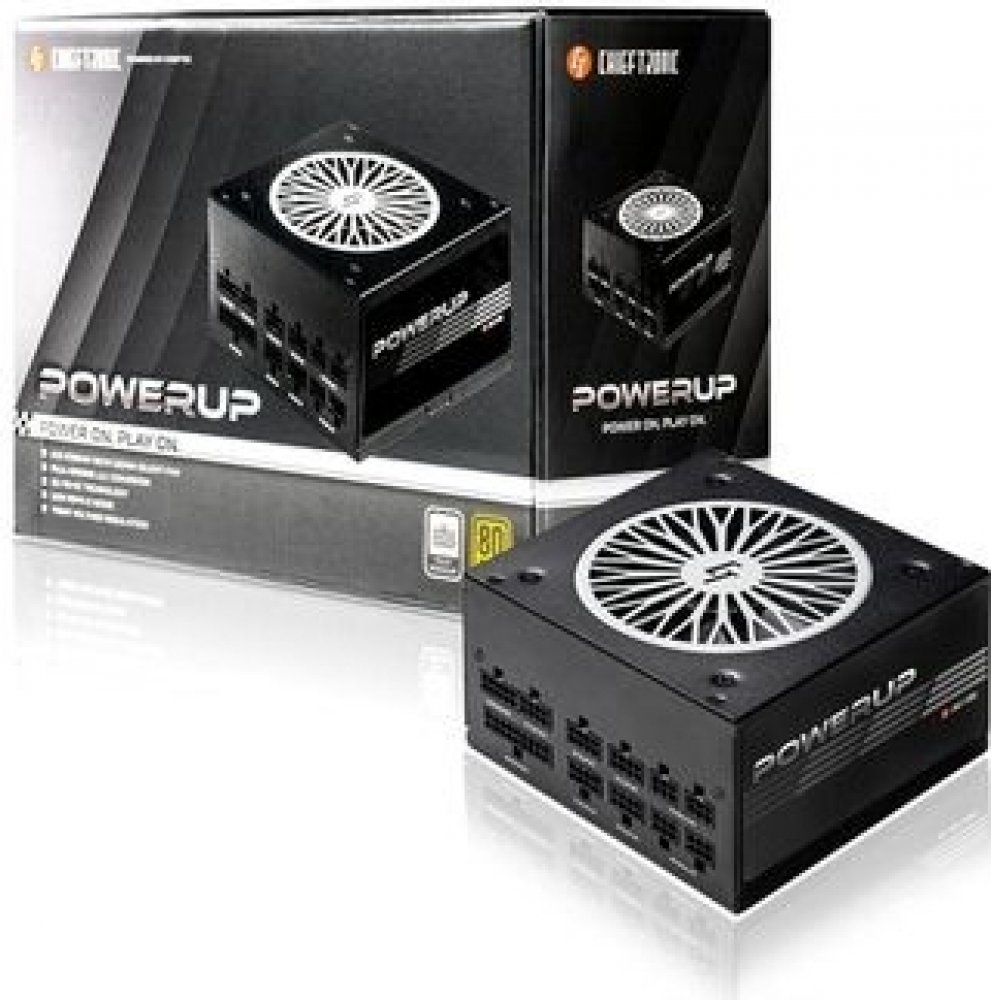

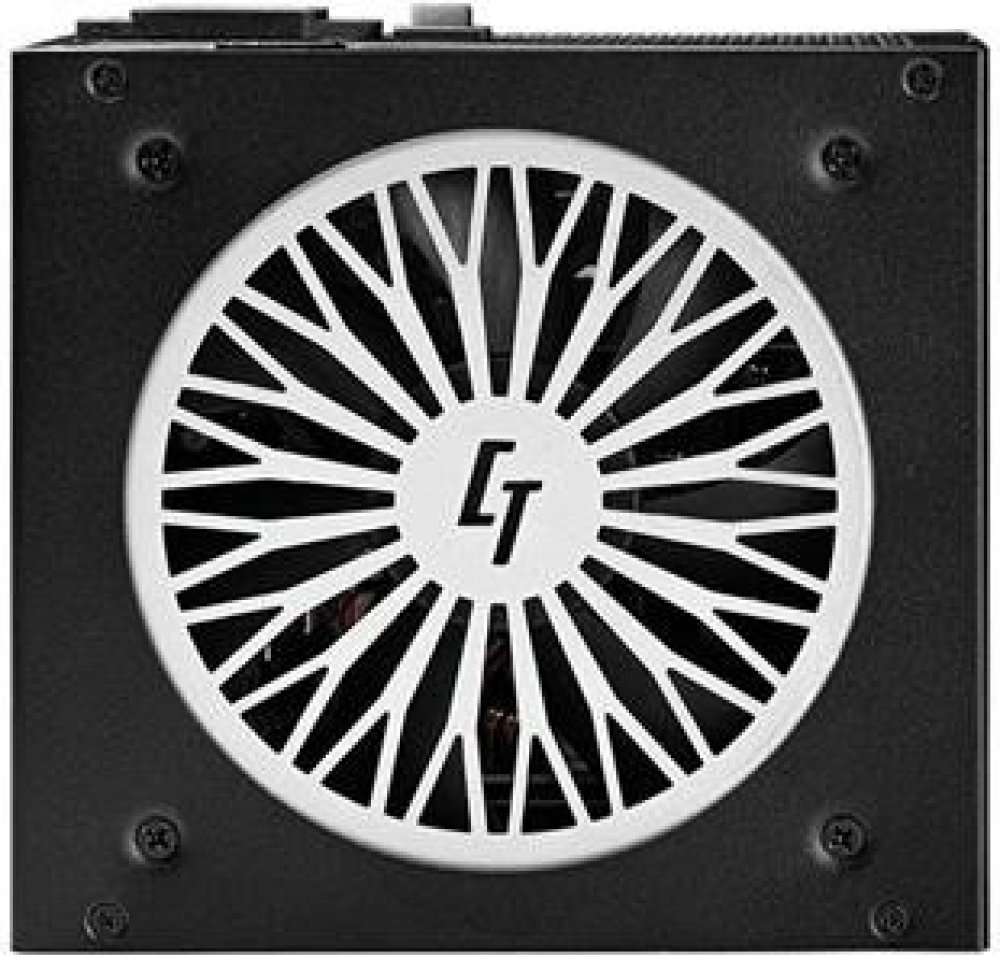

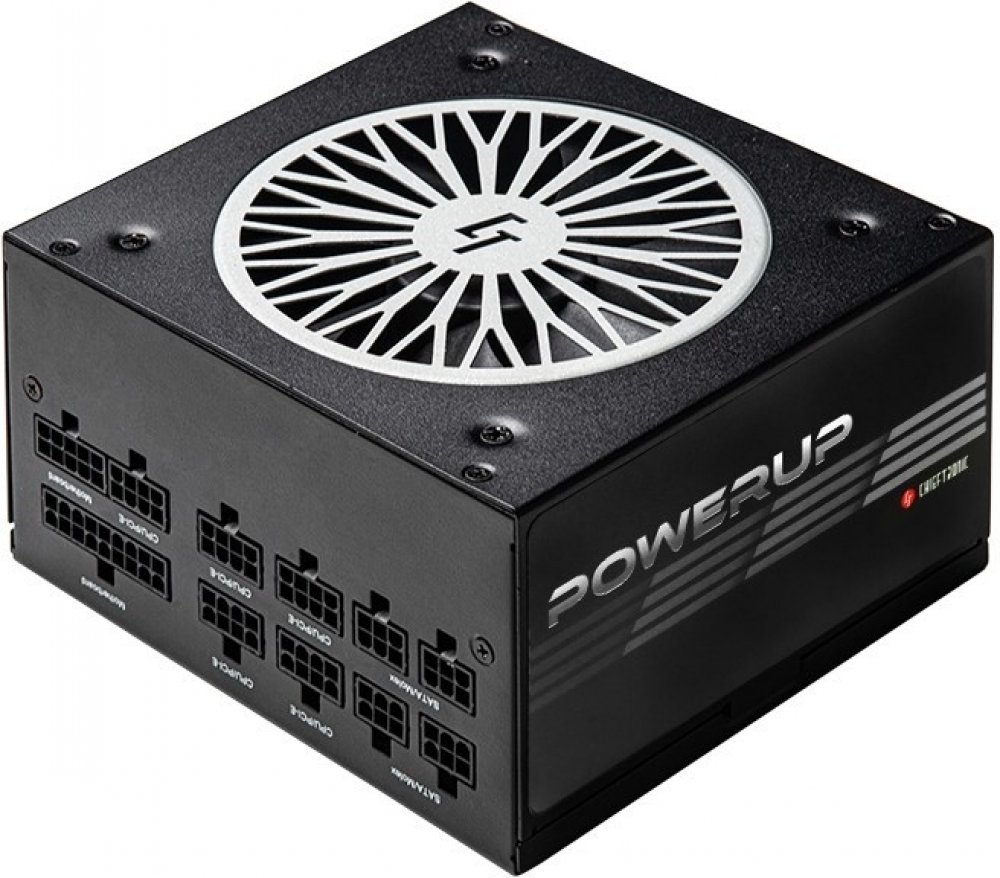

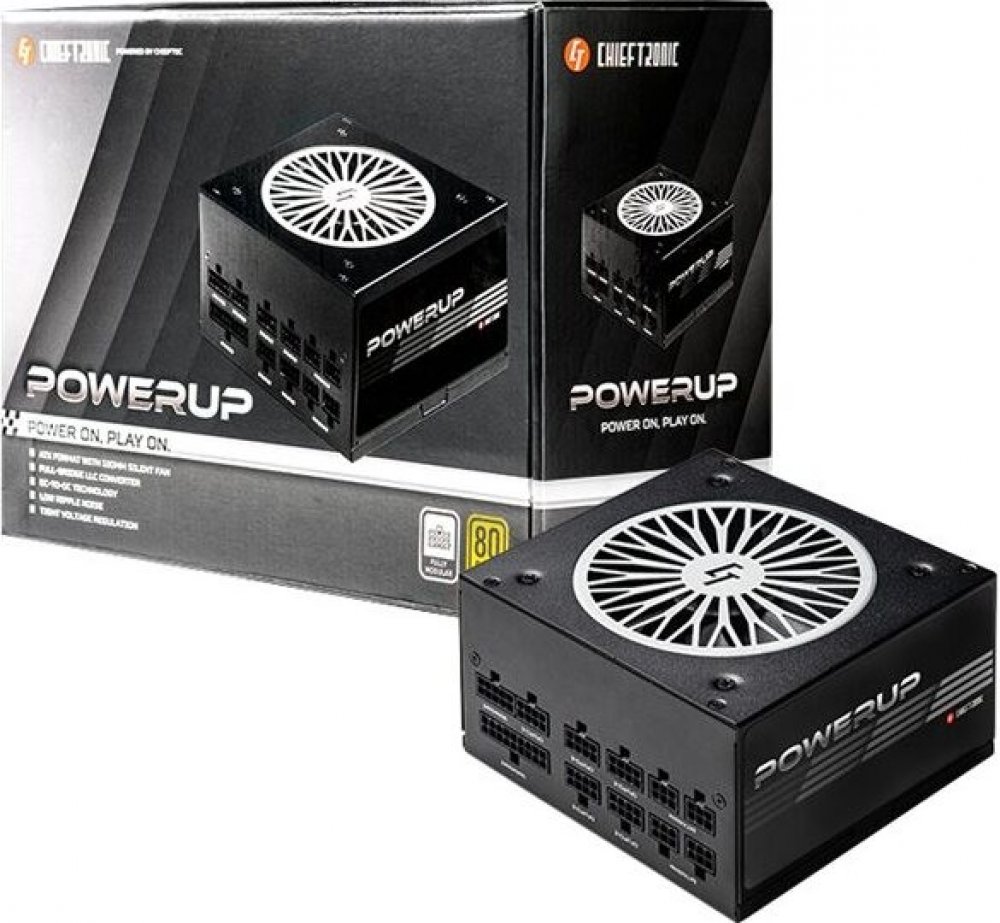

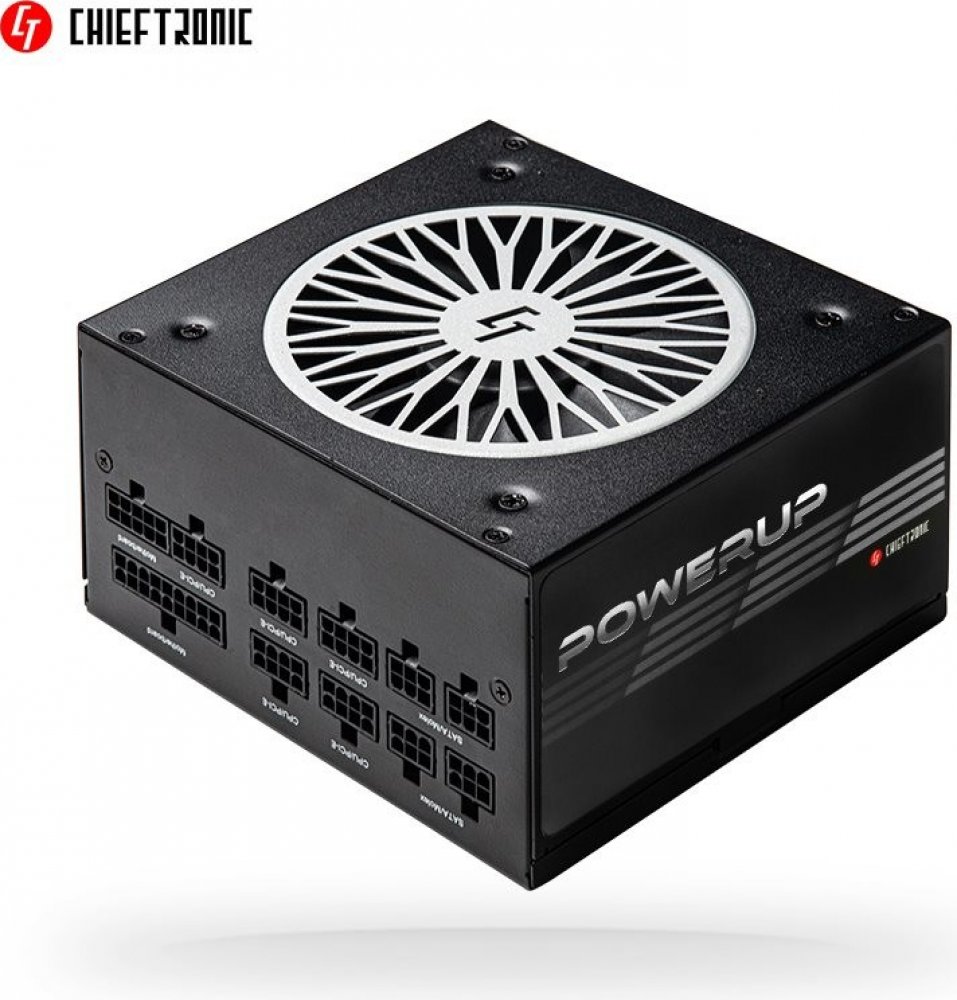

Chieftec PowerUP Series 850W GPX-850FC
ATX 850 W Chieftec 80 PLUS Gold 120 mm aktivní
Formát zdroje:ATX; Výkon zdroje (ve W):850; Konektory:PCIe 8-pin, SATA 15-pin, Molex; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
GPX-850FC
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp...
Formát zdroje:ATX; Výkon zdroje (ve W):850; Konektory:PCIe 8-pin, SATA 15-pin, Molex; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
GPX-850FC
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases. SPECIFICATIONS PerformanceModelPowerUp 850WArticle no.GPX-850FCEAN code0753263077202Weight (without/with package)2.4 kg / 2.95 kgAC Input100 - 240V / 12.0AFrequency47 - 63Hz+5V20A+3,3V20A+5V & +3,3V combined110W+12V
70.5A/846W-12V0.3A / 3.6W+5VsB2.5A / 12.5WMaximum Power850W
Connectors20+4PIN ATX18 PIN CPU (4+4)28 PIN PCIe (6+2)6SATA9MOLEX3FLOPPY1
Cable length20+4PIN ATX6508 PIN CPU (4+4)650/1508 PIN PCIe (6+2)3x 500/150SATA3x 500/150/150MOLEX500/150/150/150FLOPPYMolex
FeaturesATX 12V Versionv2.53Efficiency80 PLUS GoldDimension (DxWxH)140 mm x 150 mm x 86 mmPFCActive PFCFan120mm silent fanSecurity
- OVP (Over voltage protection)
- OPP (Over power protection)
- OCP (Over current protection)
- SCP (Short-circuit protection)
- OTP (Over temperature protection)
- AFC (Automatic Fanspeed Control)
- SIP (Surge & Inrush Protection)
- UVP (Undervoltage Protection)
- No-load operation
Warranty60 Months
Více informací o produktu
GPX-850FC
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases. SPECIFICATIONS PerformanceModelPowerUp 850WArticle no.GPX-850FCEAN code0753263077202Weight (without/with package)2.4 kg / 2.95 kgAC Input100 - 240V / 12.0AFrequency47 - 63Hz+5V20A+3,3V20A+5V & +3,3V combined110W+12V
70.5A/846W-12V0.3A / 3.6W+5VsB2.5A / 12.5WMaximum Power850W
Connectors20+4PIN ATX18 PIN CPU (4+4)28 PIN PCIe (6+2)6SATA9MOLEX3FLOPPY1
Cable length20+4PIN ATX6508 PIN CPU (4+4)650/1508 PIN PCIe (6+2)3x 500/150SATA3x 500/150/150MOLEX500/150/150/150FLOPPYMolex
FeaturesATX 12V Versionv2.53Efficiency80 PLUS GoldDimension (DxWxH)140 mm x 150 mm x 86 mmPFCActive PFCFan120mm silent fanSecurity
- OVP (Over voltage protection)
- OPP (Over power protection)
- OCP (Over current protection)
- SCP (Short-circuit protection)
- OTP (Over temperature protection)
- AFC (Automatic Fanspeed Control)
- SIP (Surge & Inrush Protection)
- UVP (Undervoltage Protection)
- No-load operation
Warranty60 Months
Počet e-shopů: 1
Dostupný do 3 dnů
2 727
Kč
Cena produktu bez dopravy
