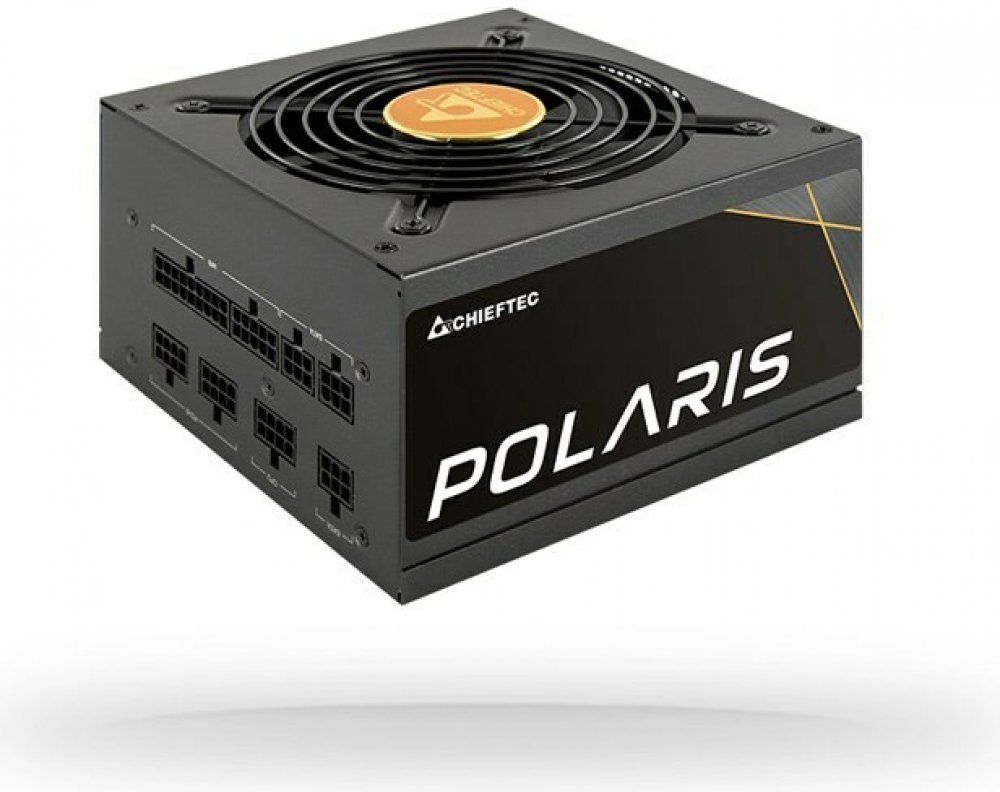

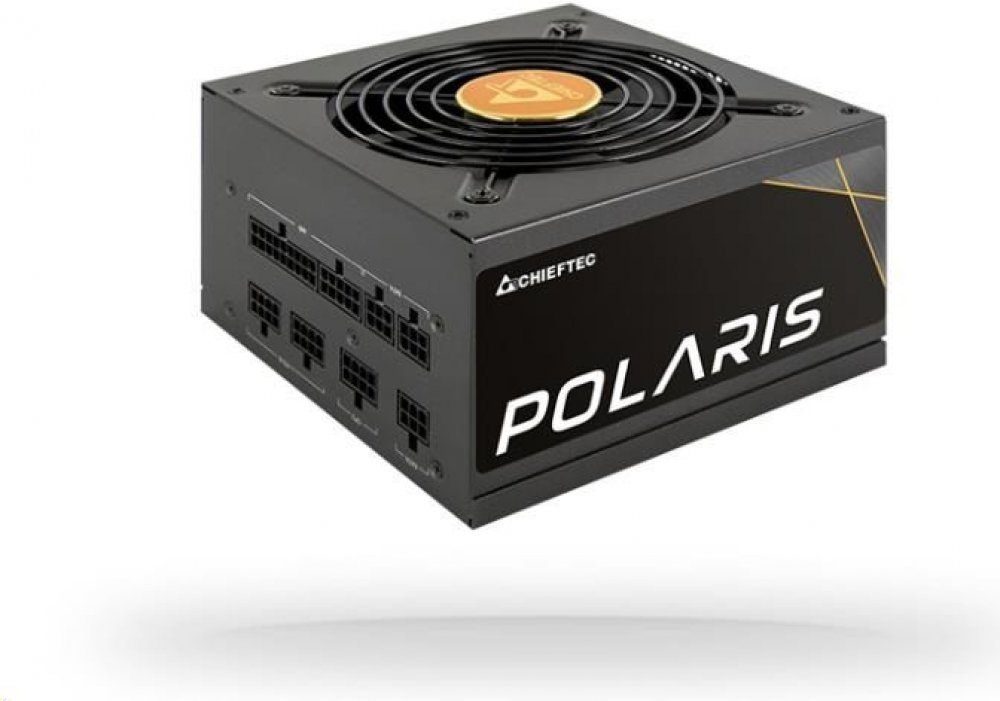

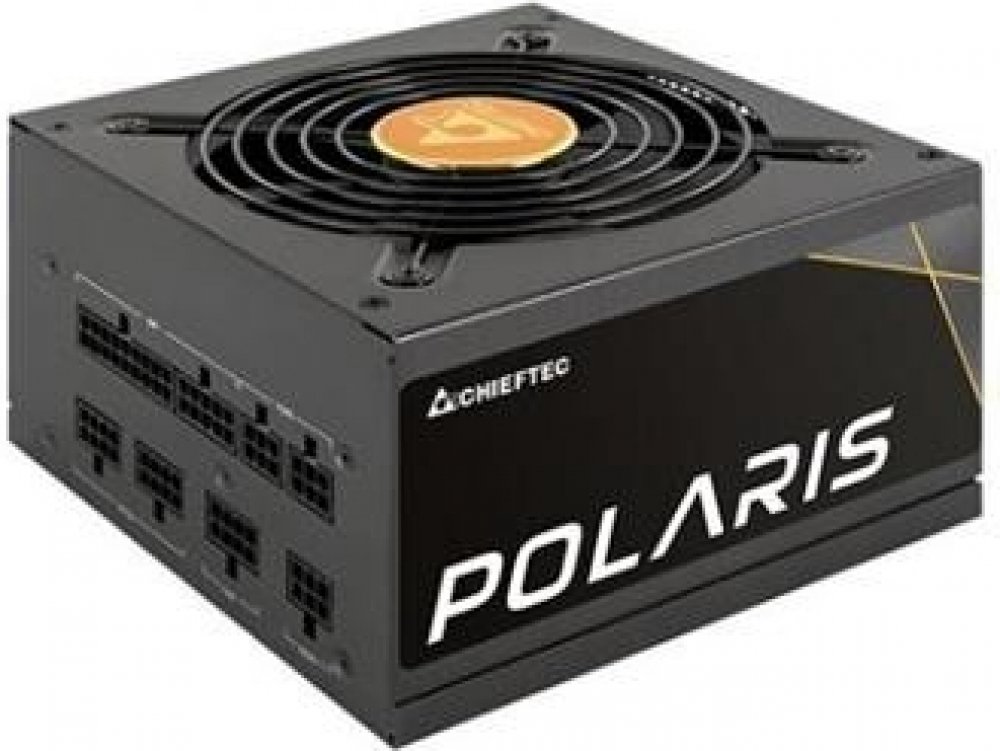

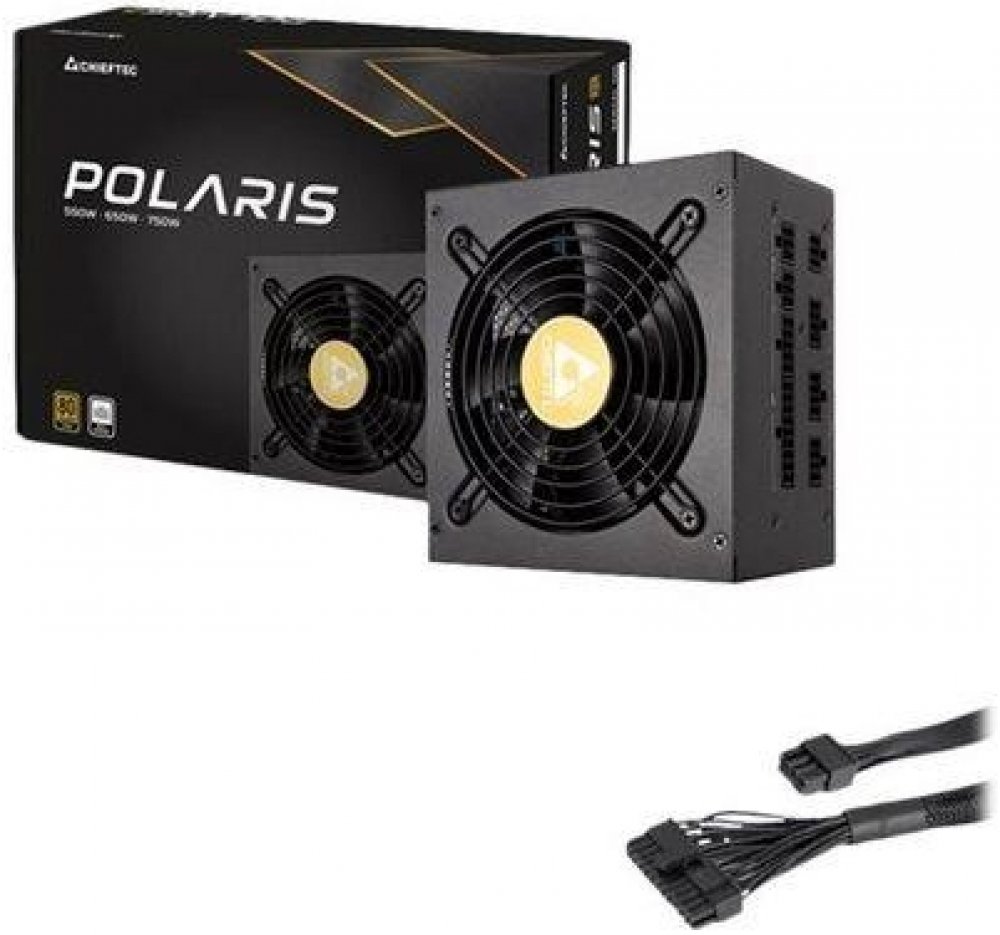

Chieftec Polaris Series 650W PPS-650FC

Formát zdroje:ATX; Výkon zdroje (ve W):650; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
PPS-650FC
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
PERFORMANCE ModelPolaris 650WArticle no.PPS-650FCEAN code0753263076434Weight (without/with package)2.175 kg / 2.480 kgAC Input100-240V / 10AFrequency50-60Hz+5V22A+3,3V22A+5V & +3,3V combined120W+12V 154.2A / 650W+12V 2-+12V 1 & +12V 2 combined-P.F.>0,9-12V0,3A / 3,6W+5VsB3.0A / 15WMaximum Power650W CONNECTORS 20+4PIN ATX18 PIN EPS (4+4)28 PIN PCIe (6+2)4SATA6MOLEX3FLOPPY1 CABLE LENGHT 20+4PIN ATX6508 PIN EPS (4+4)650/1508 PIN PCIe (6+2)2x 500/150SATA2x 450/150/150MOLEX450/150/150/150FLOPPYMolex FEATURES SpecificationATX 12V 2.4Form factorPS IIEfficiency80 PLUS GoldDimension (DxWxH)140mm x 150mm x 87mmFan120mm silent fanSecurityAFC (Automatic Fanspeed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over Temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
OCP (Overcurrent protection)
UVP (Undervoltage protection)Warranty24 Months
