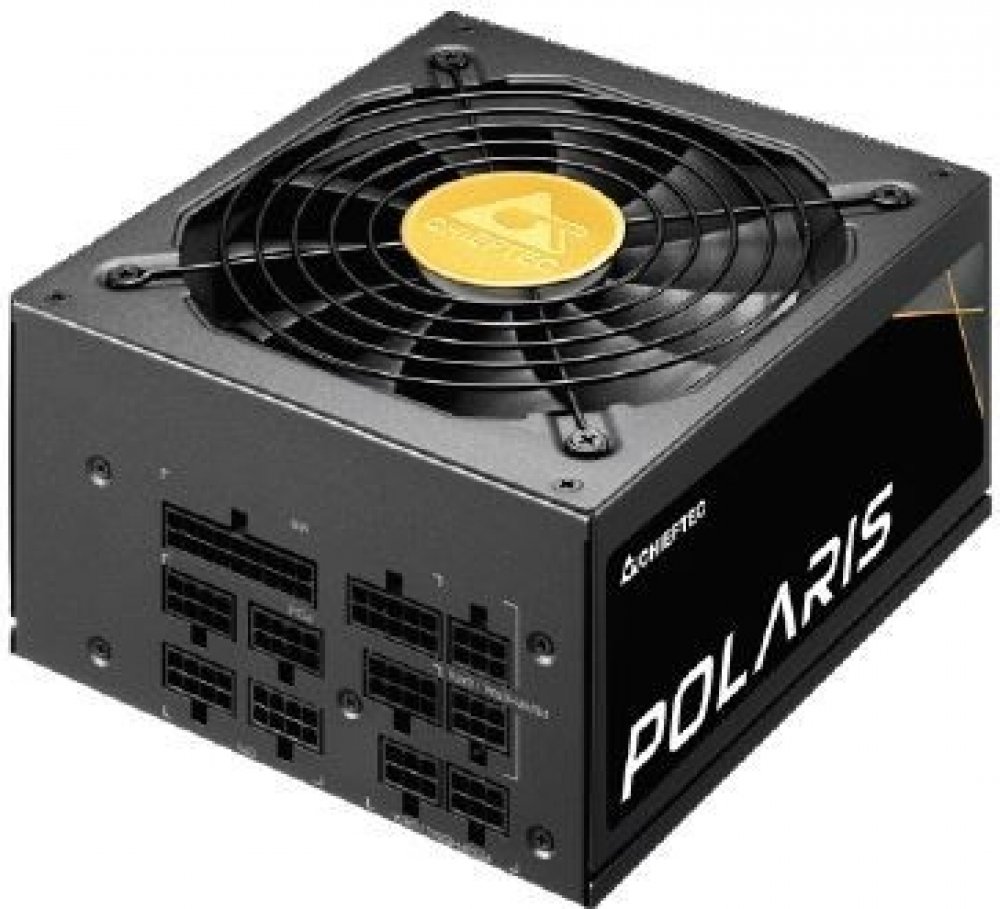

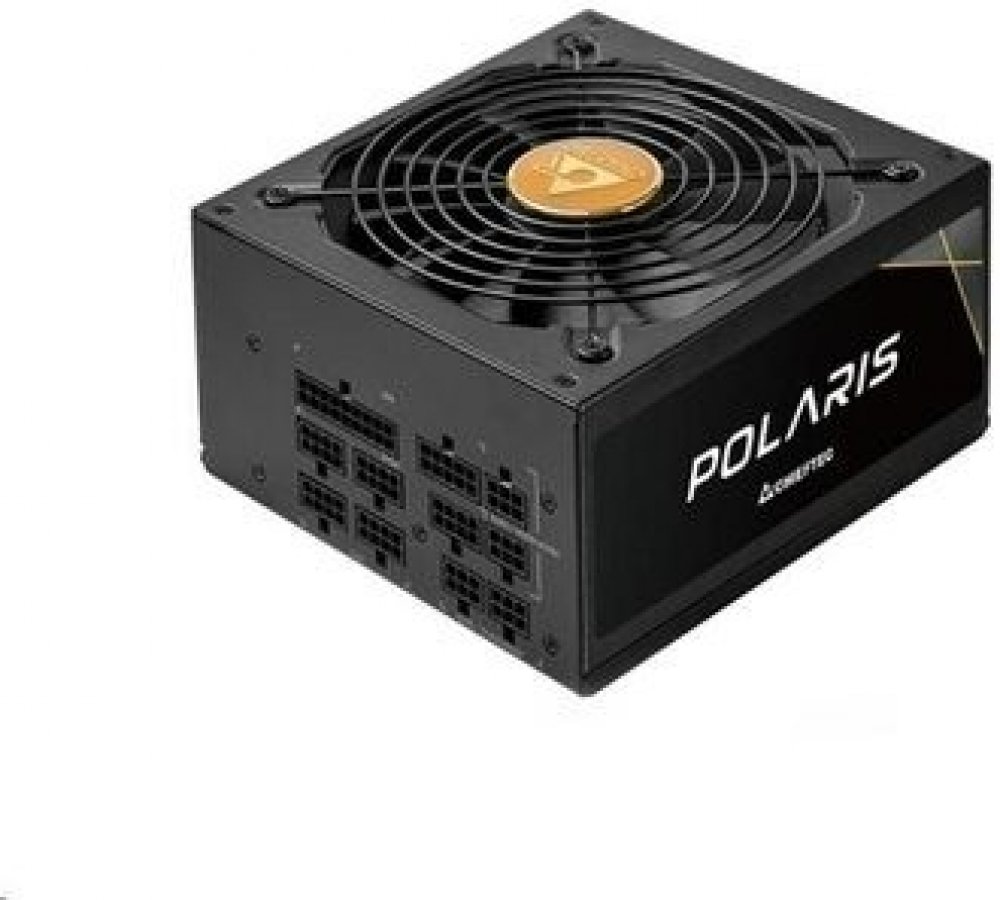

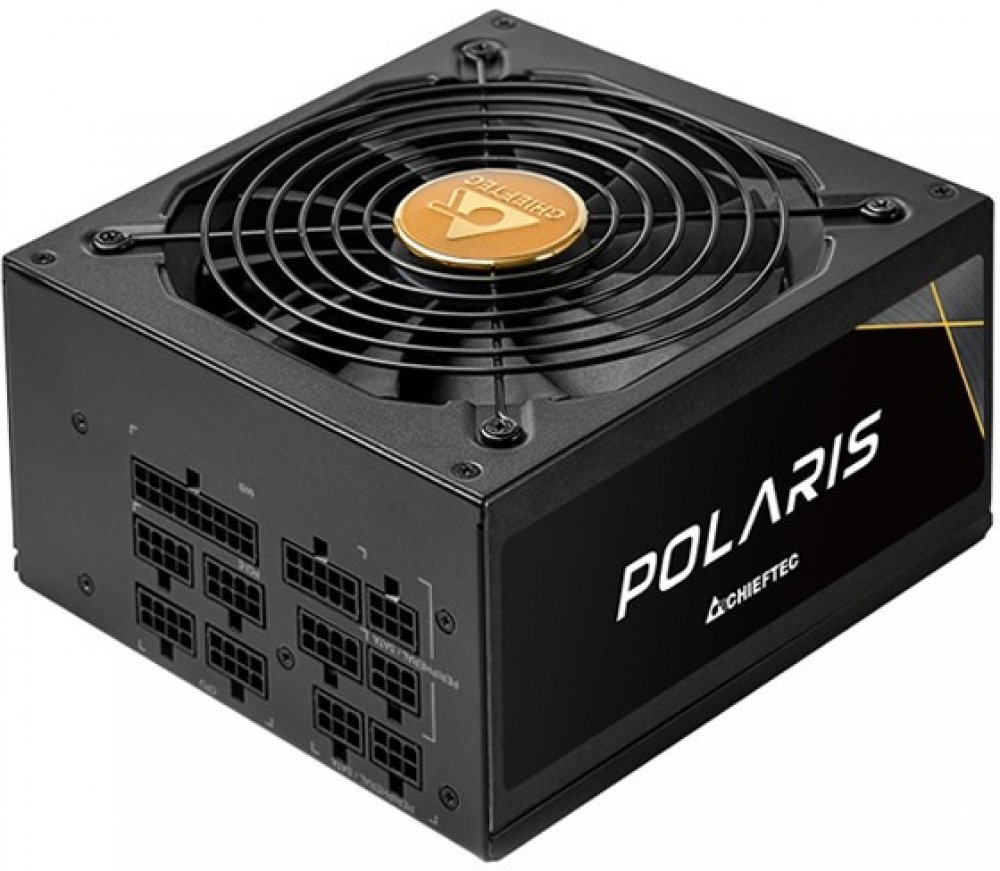

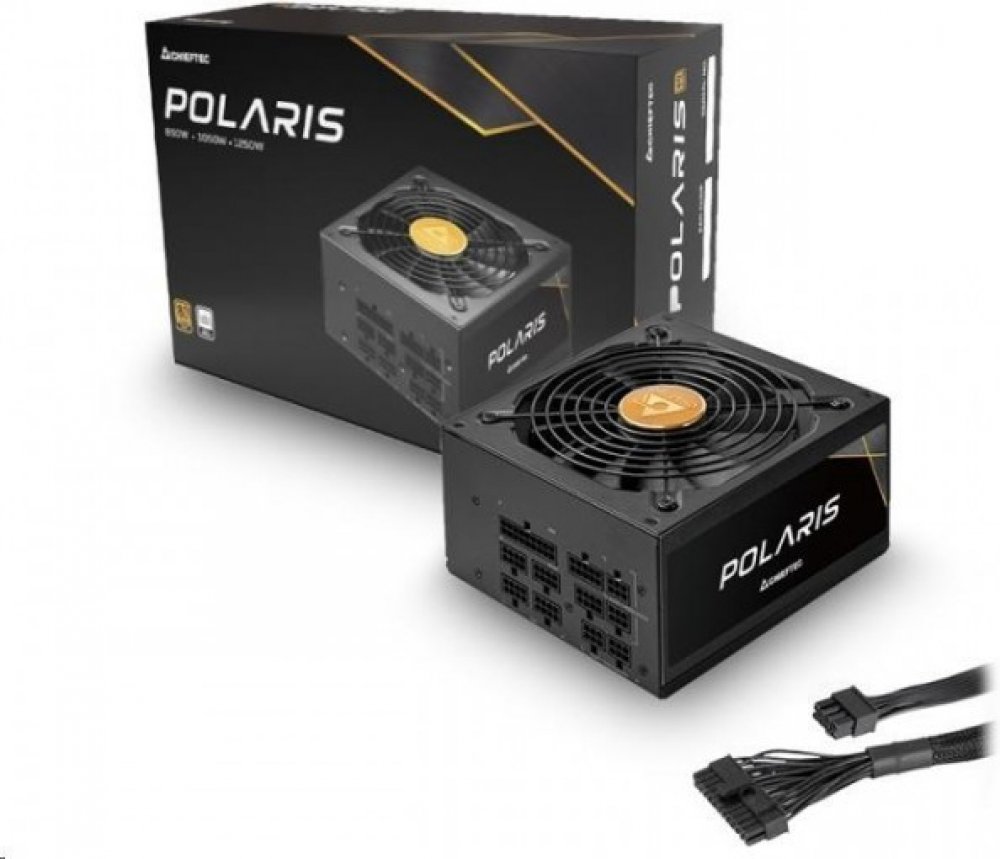

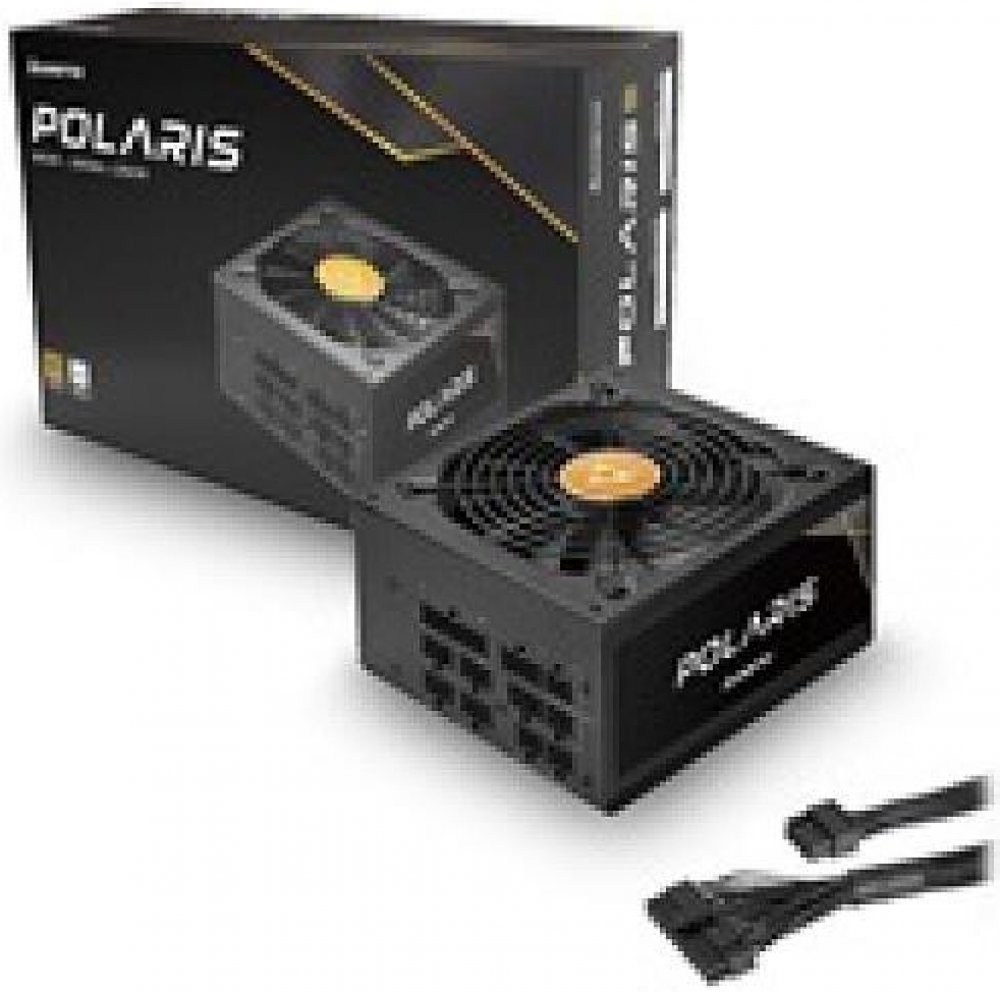

Chieftec Polaris Series 1050W PPS-1050FC
ATX 1050 W Chieftec
Formát zdroje:ATX; Výkon zdroje (ve W):1050; Konektory:PCIe 8-pin, SATA 15-pin, Molex; Konektory pro základní desku:ATX 24-pin, EPS 8-pin
POLARIS SERIES
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- LLC Half-Bridge converter with DC-to-DC technology
TECHNICAL SPECIFICATIONS
ModelPOLARIS 1050WArticle no.PPS-1050FCEAN code0753263077363Weight (wthout/with package)2.6 kg / 3....
Formát zdroje:ATX; Výkon zdroje (ve W):1050; Konektory:PCIe 8-pin, SATA 15-pin, Molex; Konektory pro základní desku:ATX 24-pin, EPS 8-pin
POLARIS SERIES
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- LLC Half-Bridge converter with DC-to-DC technology
TECHNICAL SPECIFICATIONS
ModelPOLARIS 1050WArticle no.PPS-1050FCEAN code0753263077363Weight (wthout/with package)2.6 kg / 3.4 kgAC input100 - 240 V / 15AFrequency50 - 60 Hz+5V22 A+3.3 V22 A+5 V & +3.3 V combined120 W+12 V187.5 A+12V2-+12V1, +12V2 combined1050 W P.F.>0.9-12 V0.3 A / 3.6 W+ 5VBS3.0 A / 15 WMaximum Power1050 WConnectors 20+4 PIN ATX1 8 PIN EPS (4+4)2 8 PIN PCIe (6+2)6 SATA12MOLEX4Cable length (mm)20+4 PIN ATX6508 PIN EPS (4+4)2 x 6508 PIN PCIe (6+2)2 x 600/100SATA3 x 550/100/100/100MOLEX / FLOPPY550/100/100/100FeaturesATX12V VersionATX 12V 2.3Efficiency80+ GoldDimension (D x W x H)160 x 150 x 86 mmPFCActive PFCFan140 mm silent fanSecurityAFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)Warranty24 Months
Více informací o produktu
POLARIS SERIES
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- LLC Half-Bridge converter with DC-to-DC technology
TECHNICAL SPECIFICATIONS
ModelPOLARIS 1050WArticle no.PPS-1050FCEAN code0753263077363Weight (wthout/with package)2.6 kg / 3.4 kgAC input100 - 240 V / 15AFrequency50 - 60 Hz+5V22 A+3.3 V22 A+5 V & +3.3 V combined120 W+12 V187.5 A+12V2-+12V1, +12V2 combined1050 W P.F.>0.9-12 V0.3 A / 3.6 W+ 5VBS3.0 A / 15 WMaximum Power1050 WConnectors 20+4 PIN ATX1 8 PIN EPS (4+4)2 8 PIN PCIe (6+2)6 SATA12MOLEX4Cable length (mm)20+4 PIN ATX6508 PIN EPS (4+4)2 x 6508 PIN PCIe (6+2)2 x 600/100SATA3 x 550/100/100/100MOLEX / FLOPPY550/100/100/100FeaturesATX12V VersionATX 12V 2.3Efficiency80+ GoldDimension (D x W x H)160 x 150 x 86 mmPFCActive PFCFan140 mm silent fanSecurityAFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)Warranty24 Months
