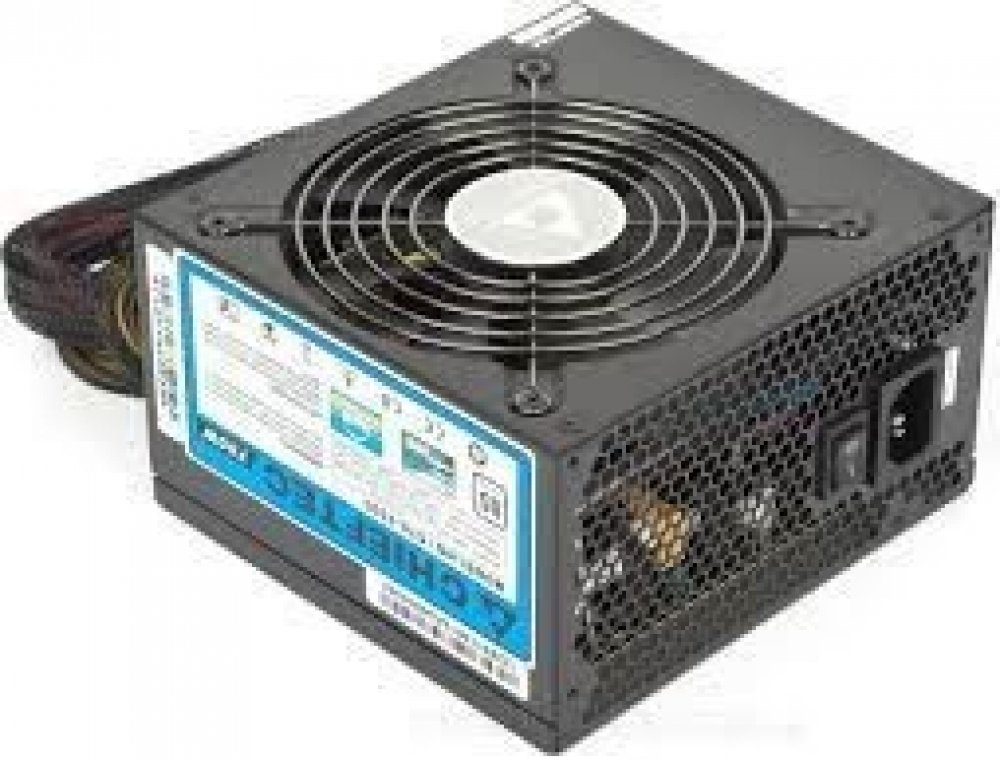

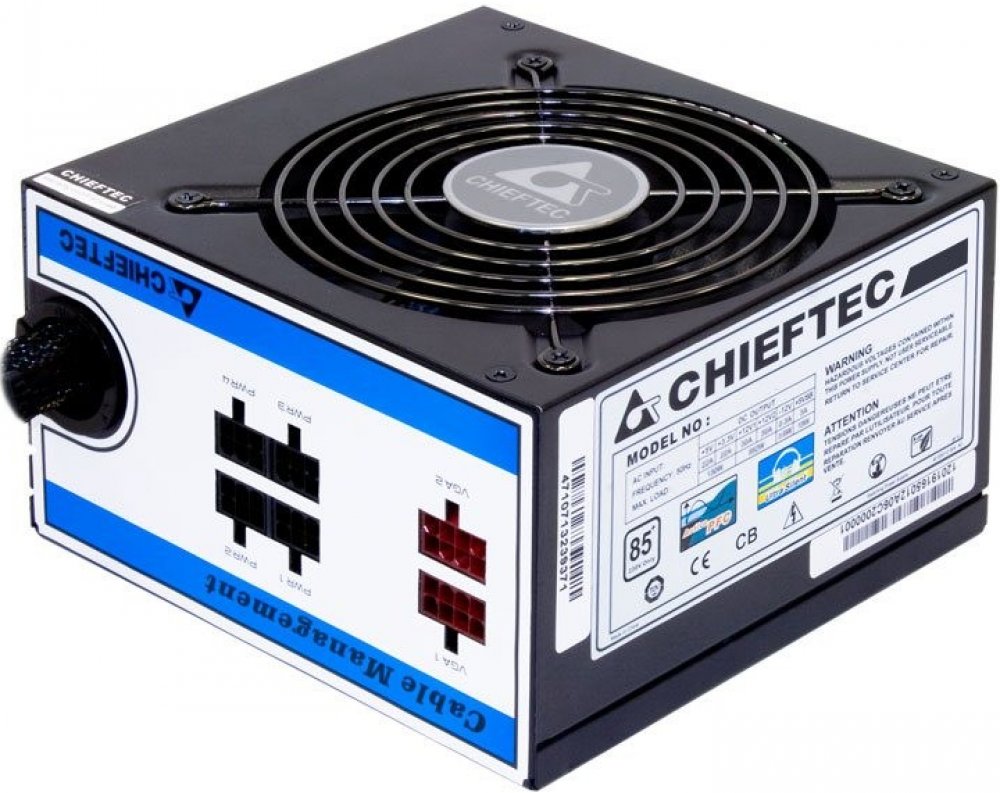

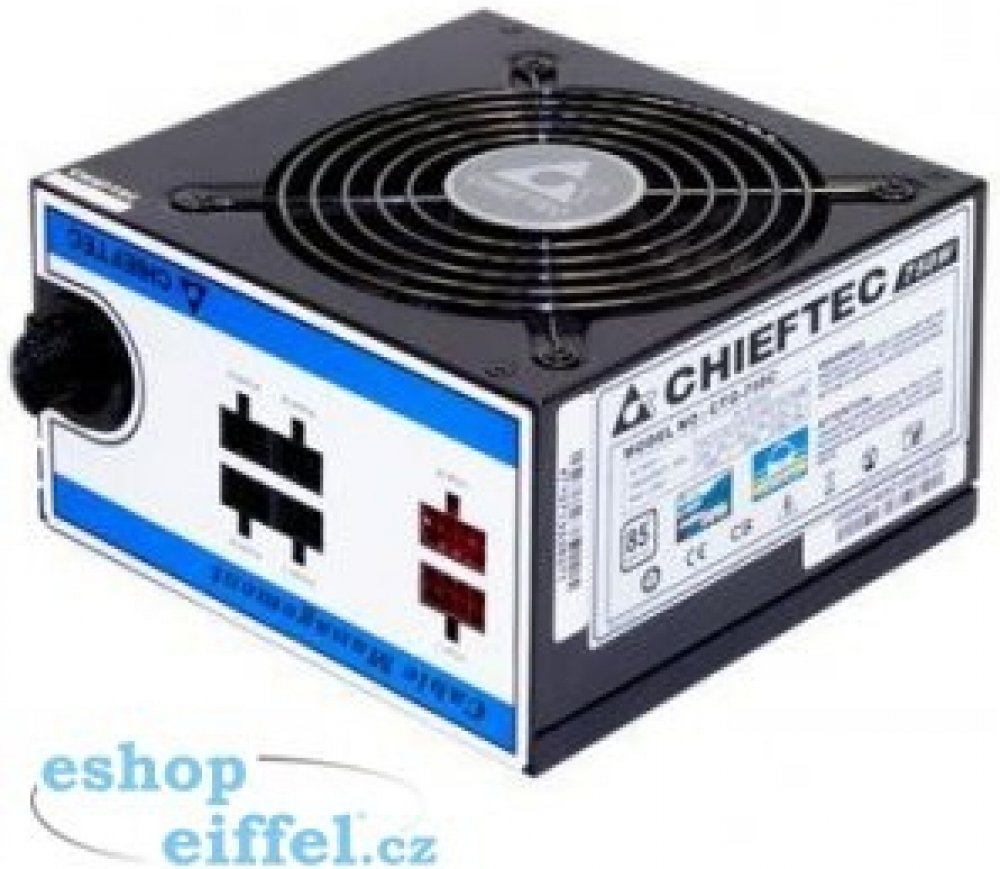

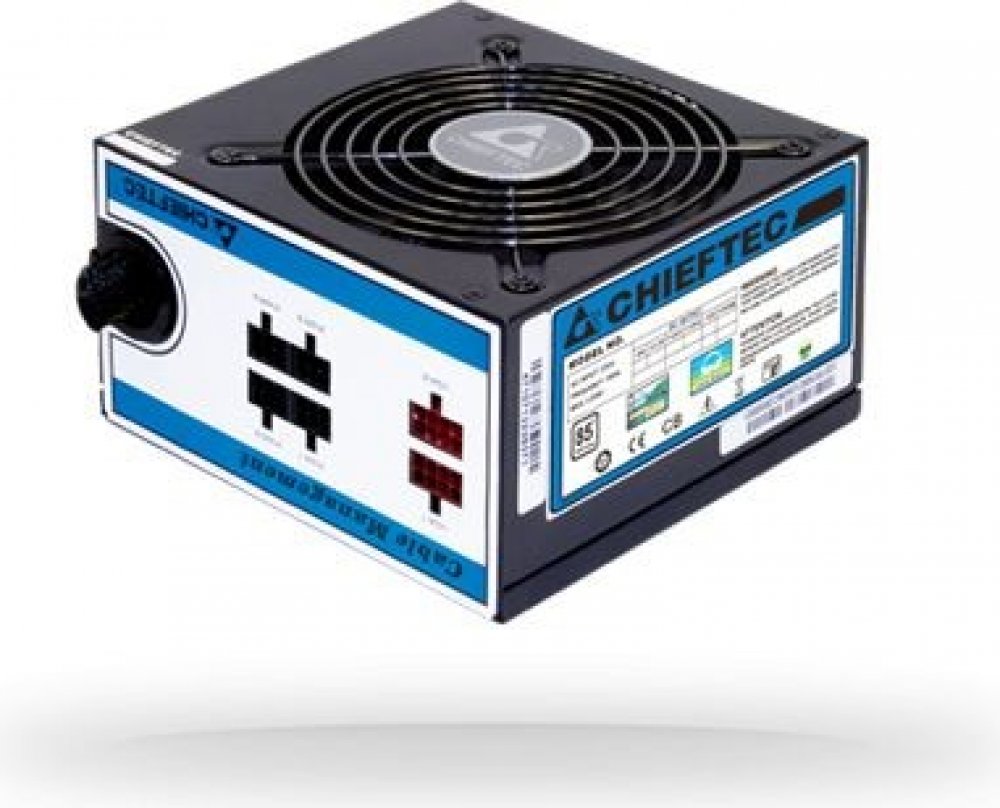

Chieftec A-80 Series 750W CTG-750C

ATX 750 W Chieftec 120 mm aktivní

Formát zdroje:ATX; Výkon zdroje (ve W):750; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
http://www.chieftec.eu/en/psus/a-80-series/ctg-750c.html
Performance:
AC Input:
230V / 6A
Frequency:
50 Hz
+5V:
22A
+3,3V:
22A
+5V & +3,3V combined:
130W
+12V 1:
35A
+12V 2:
35A
+12V 1 & +12V 2 combined:
648W
+12V 3:
N/A
+12V 4:
N/A
+12V 3 & +12V 4 combined:
N/A
P.F.:
>0,9
-12V:
0,3A / 3,6W
+5VSB:
3,0A / 15W
Maximum Load:
750W
Connectors:
Native cable:
24PIN:
===450mm===[24PIN]
8PIN EPS / 4PIN 12V:
===550mm===[8PIN EPS]===150mm===[4PIN 12V]
Modular cable:
SATA:
===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
SATA:
===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
Molex / Floppy:
===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
Molex / Floppy:
===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
8PIN PCIe (6+2):
===450mm===[PCIe]
8PIN PCIe (6+2):
===450mm===[PCIe]
Features:
Specification:
ATX 12V 2.3
Form factor:
PS II
Efficiency:
>85%
Dimension (DxWxH):
140 mm x 150 mm x 87 mm
PFC:
Active PFC (0,9)
Fan:
120mm silent fan
Security:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
AFC (Automatic Fanspeed Control)
MTBF (mean time between failure): >50.000h
Certificates:
85+ only 230V

Více informací o produktu
