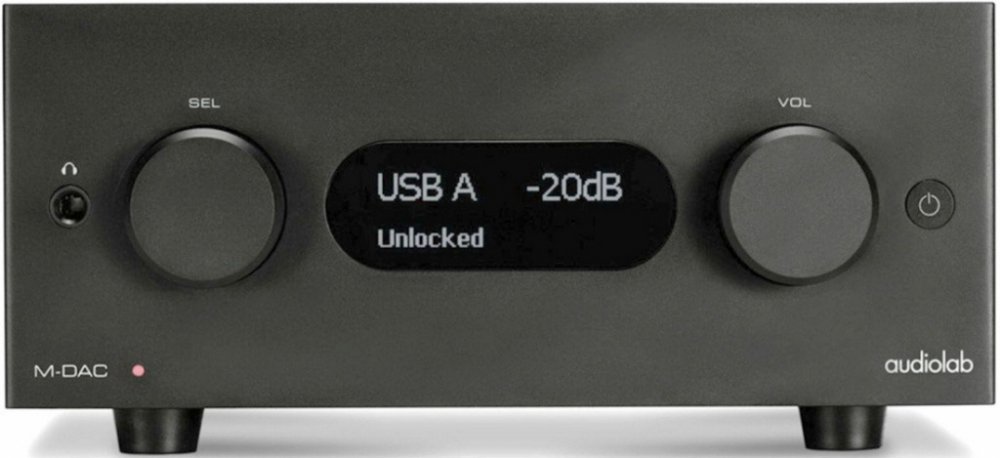

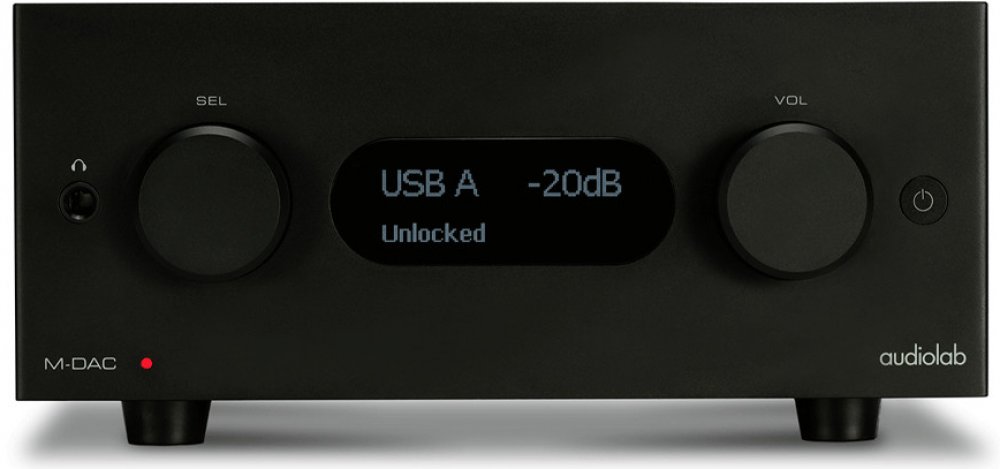

Audiolab M-DAC+
Audiolab 10 3.7 kg
Audiolab M-DAC+ (B)
Audiolab M-DAC+: 32 bitový DA převodník s asynchr. USB vstupem s podp. DSD, RCA i XLR.
The new M-DAC+ is a high-performance, multi-purpose audio DAC (Digital-to-Analogue Converter) for home use, designed to sit on a desk or table, or integrate into a hi-fi system. It incorporates a highly specified, audiophile-quality digital preamplifier and Class A output stage for connection...
Audiolab M-DAC+ (B)
Audiolab M-DAC+: 32 bitový DA převodník s asynchr. USB vstupem s podp. DSD, RCA i XLR.
The new M-DAC+ is a high-performance, multi-purpose audio DAC (Digital-to-Analogue Converter) for home use, designed to sit on a desk or table, or integrate into a hi-fi system. It incorporates a highly specified, audiophile-quality digital preamplifier and Class A output stage for connection to a power amp and speakers (the output can be fixed for those who wish to use an existing preamp or integrated amp), in addition to a high-quality output for headphone use.
Specifications
General description
Digital-to-Analogue Converter
DAC
ESS Sabre32 9018 chip
Sampling Rate
32-bit / 192kHz (Optical, Coaxial, AES)32-bit / 384kHz (USB)2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256)
Digital Input
2 x Coaxial, 2 x Toslink Optical, 1 x AES/EBU, 1 x USB for PC USB, 1x USB for iPod/iPhone/iPad
Digital Output
1x Coaxial, 1 x Toslink Optical
Output Voltage
Balanced: 4.5V RMS Unbalanced: 2.25V RMS
Output Impedance
Balanced: 20Ω Unbalanced: 10Ω
THD (1kHz 0dB 20Hz - 20kHz A wtd)
-115dB, XLR: > -120dB
Dynamic Range
RCA: > 115dB, XLR: > 120dB
Crosstalk
RCA: > 120dB, XLR: > 130dB
Dimensions (mm)
114mm x 247mm x 292mm
Net Weight
3.7kg
Více informací o produktu
Audiolab M-DAC+: 32 bitový DA převodník s asynchr. USB vstupem s podp. DSD, RCA i XLR.
The new M-DAC+ is a high-performance, multi-purpose audio DAC (Digital-to-Analogue Converter) for home use, designed to sit on a desk or table, or integrate into a hi-fi system. It incorporates a highly specified, audiophile-quality digital preamplifier and Class A output stage for connection to a power amp and speakers (the output can be fixed for those who wish to use an existing preamp or integrated amp), in addition to a high-quality output for headphone use.
Specifications
General description
Digital-to-Analogue Converter
DAC
ESS Sabre32 9018 chip
Sampling Rate
32-bit / 192kHz (Optical, Coaxial, AES)32-bit / 384kHz (USB)2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256)
Digital Input
2 x Coaxial, 2 x Toslink Optical, 1 x AES/EBU, 1 x USB for PC USB, 1x USB for iPod/iPhone/iPad
Digital Output
1x Coaxial, 1 x Toslink Optical
Output Voltage
Balanced: 4.5V RMS Unbalanced: 2.25V RMS
Output Impedance
Balanced: 20Ω Unbalanced: 10Ω
THD (1kHz 0dB 20Hz - 20kHz A wtd)
-115dB, XLR: > -120dB
Dynamic Range
RCA: > 115dB, XLR: > 120dB
Crosstalk
RCA: > 120dB, XLR: > 130dB
Dimensions (mm)
114mm x 247mm x 292mm
Net Weight
3.7kg
