Aten VE801R-AT-G

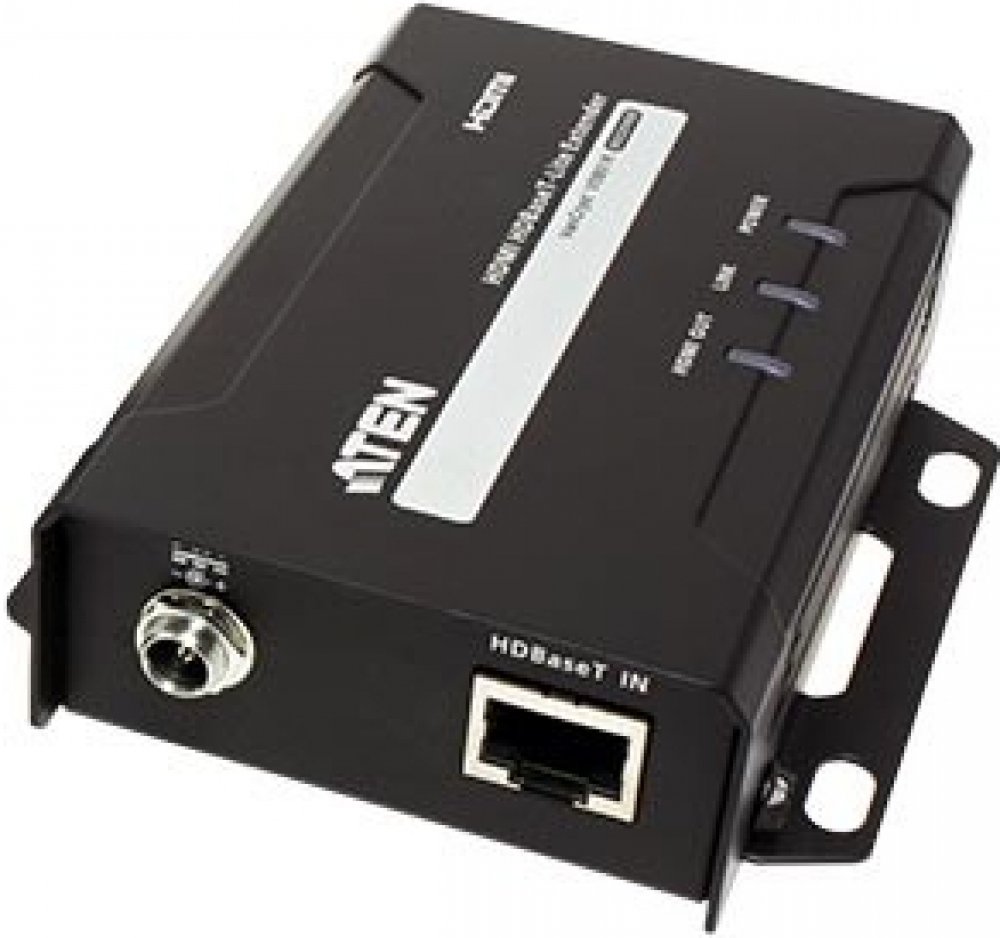

ATEN VE801R-AT-G (VE801R-AT-G) The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT
transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a
cable. It supports HDMI features that include 3D, Deep Color and 4K image
resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The
VE801R all-in-one design provides an easy method for mounting the device in any
location. The side panel provides slip-resistant grooves that help prevent
accidental drops when installing the unit. The grooves also enhance the ability
to see the LED status lights. The VE801R is perfect for digital entertainment
centers or any installation that requires superior HDMI video quality to be
extended for great distances.
* Compatible HDBaseT Transmitter Units: VE801T
Features ¦ HDBaseT Connectivity – extends an HDMI connection over a long
distance via one Cat 5e/6/6a cable ¦ HDBaseT Anti-jamming – resists signal
interference during high-quality video transmission using HDBaseT technology ¦
EDID Expert – configures optimum EDID settings for smooth power-up,
high-quality display and use of the best resolution across different screens ¦
Rack- Mountable
Package Contents 1× VE801R HDMI HDBaseT-Lite Extender 1× 0AD6–1F05–26EG
Power Adapter 1× User Instructions
